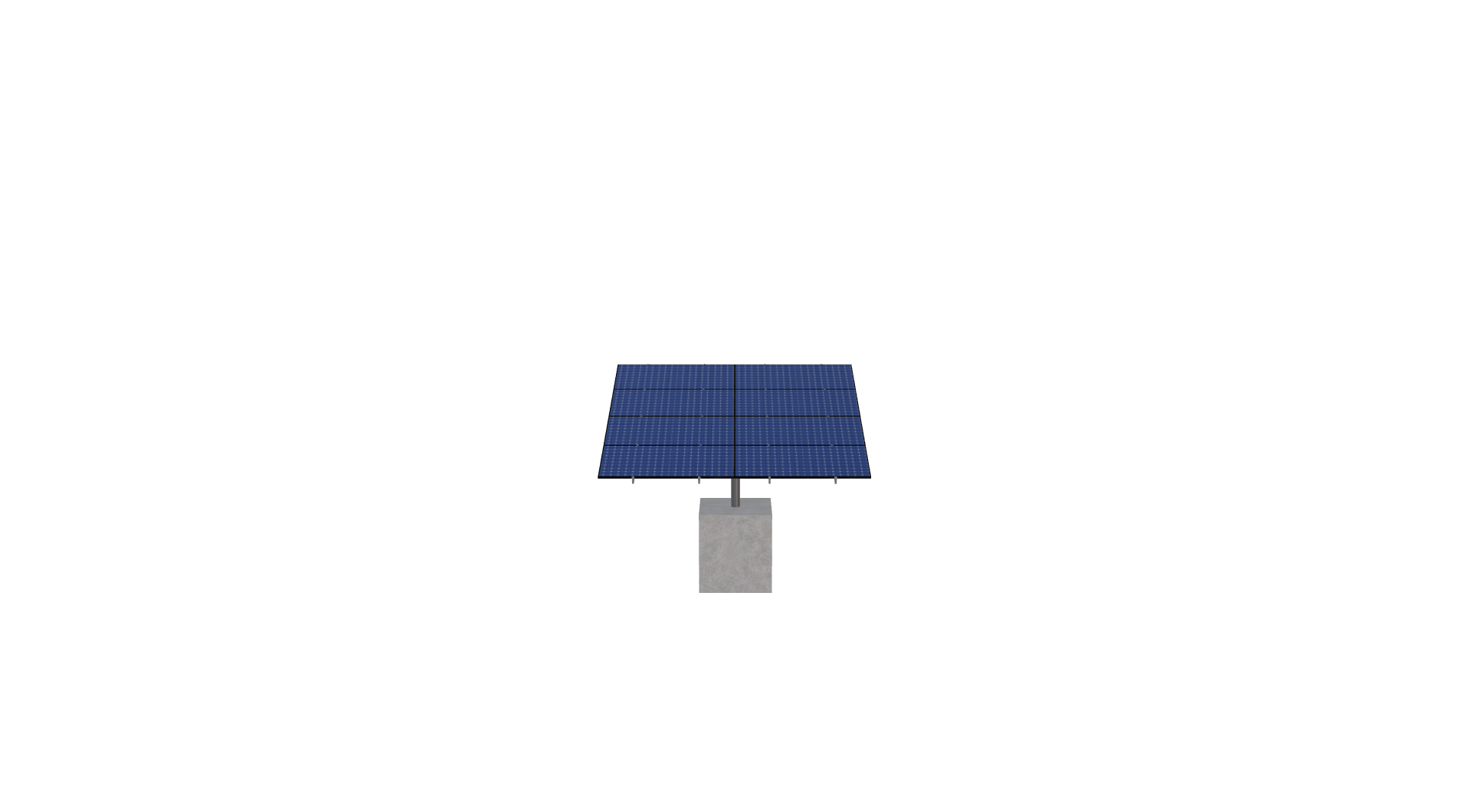

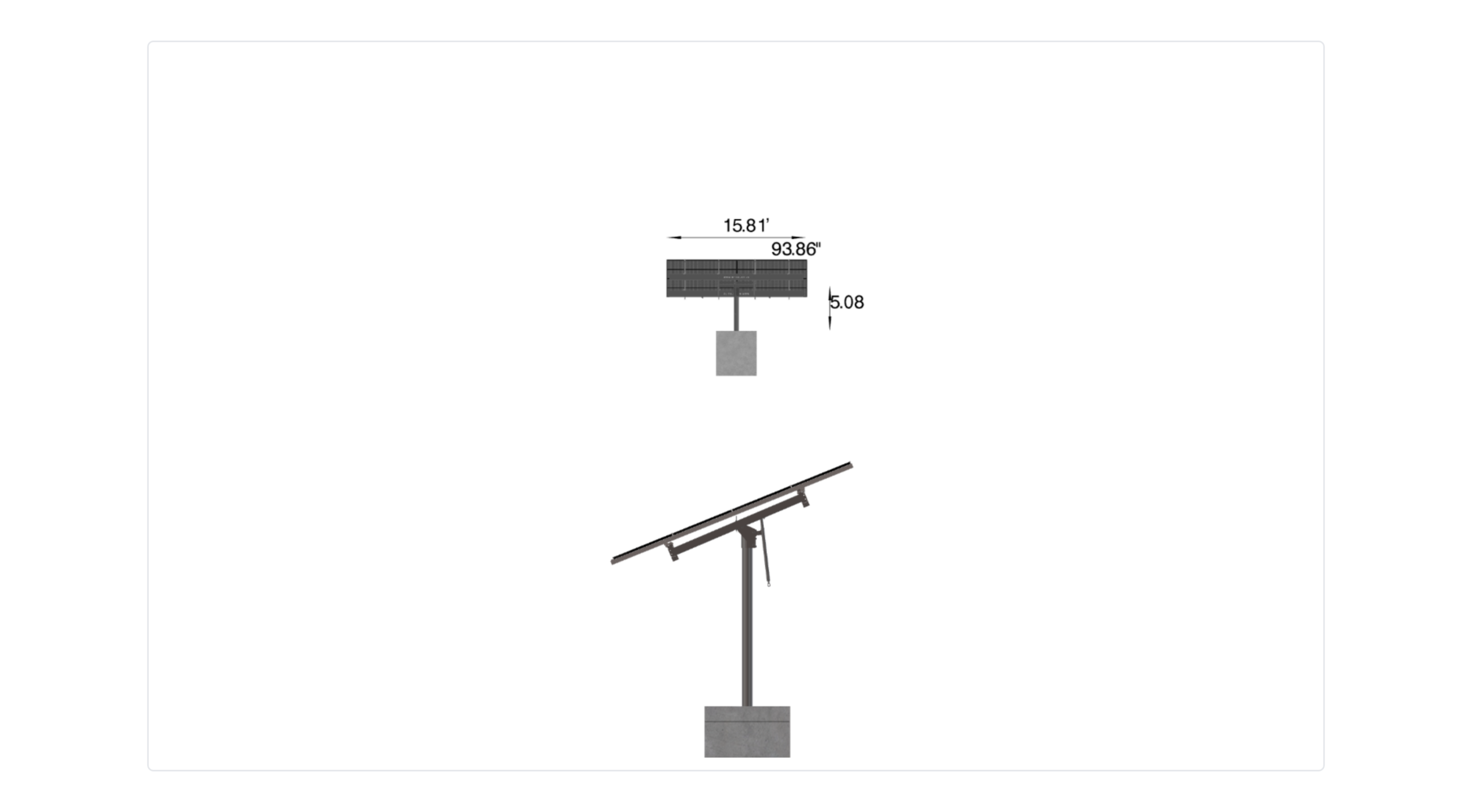

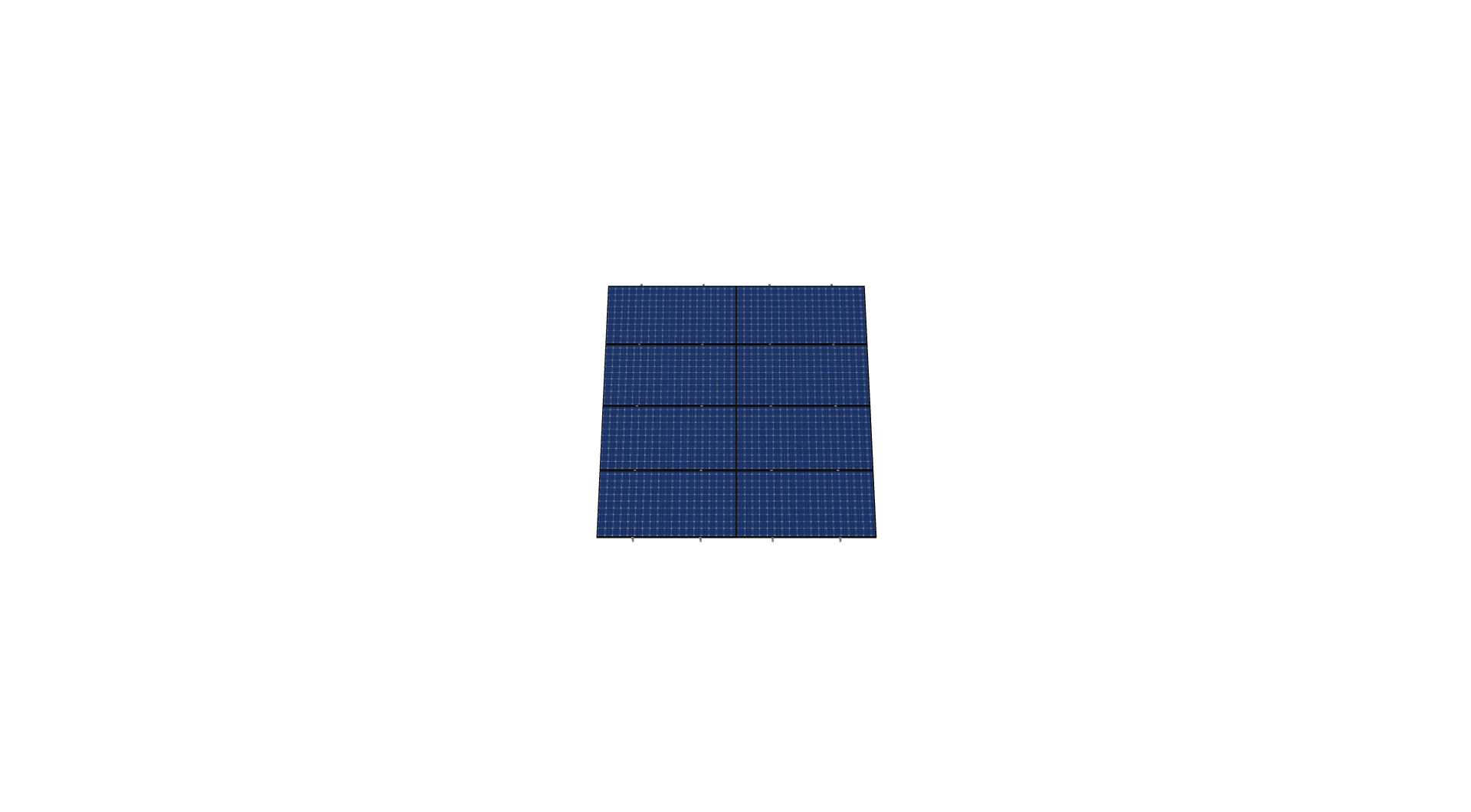

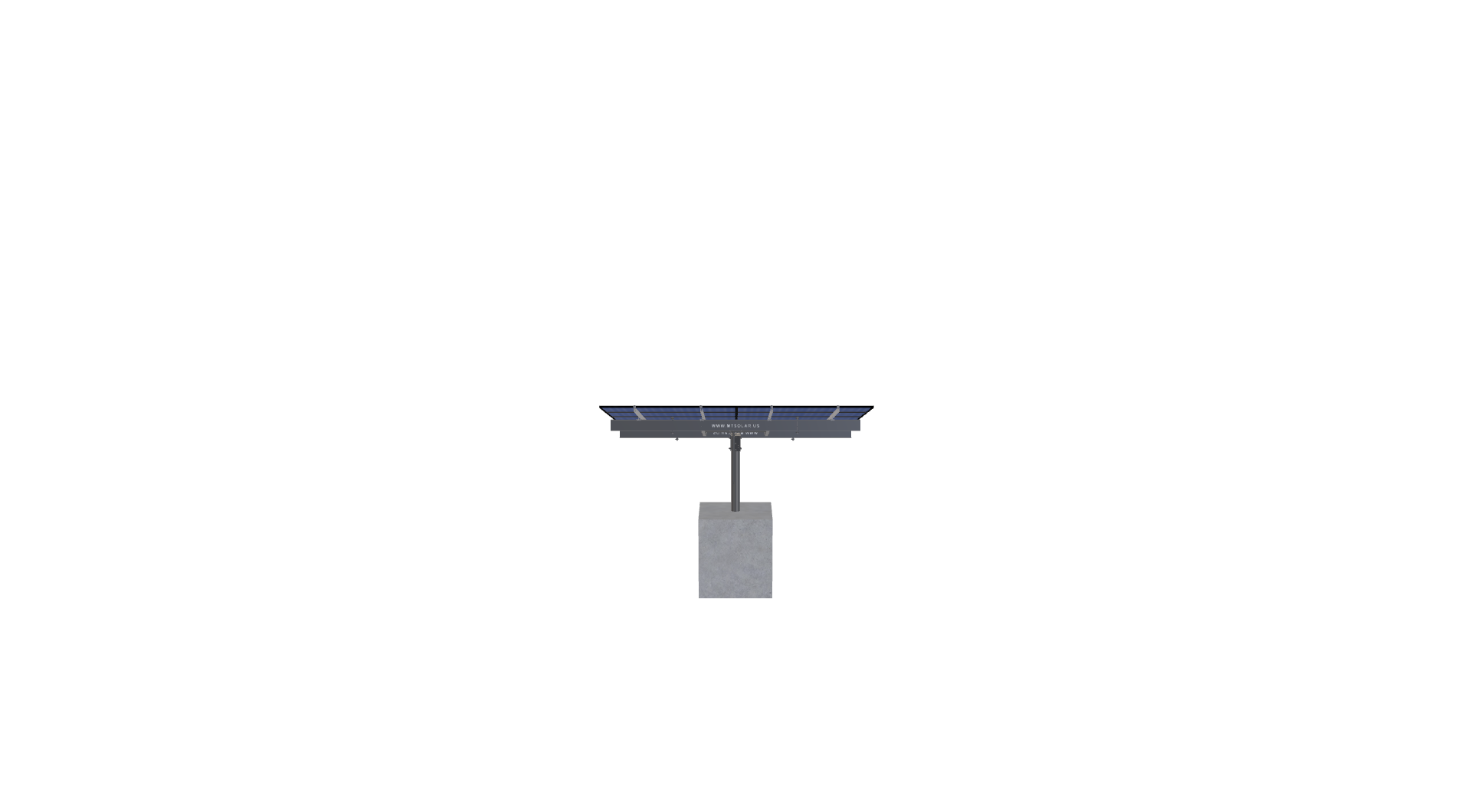

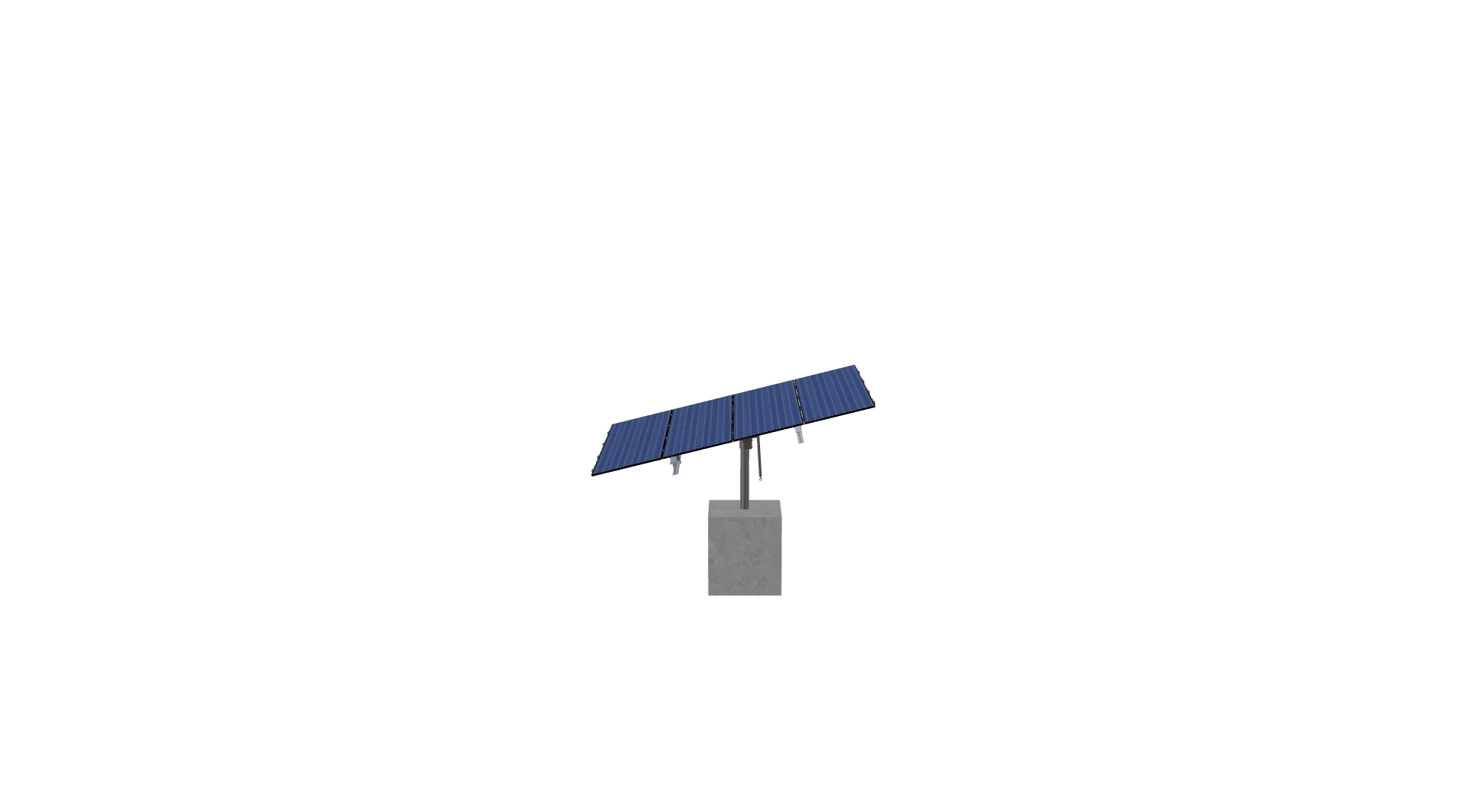

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 93.86 inches by 51.2 inches and an array layout of 2 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Test
$3,730.65
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 93.86 inches by 51.2 inches and an array layout of 2 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 626.44 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-6TOP-SD-45-L-4HX2W-JGJD |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 5.08 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 5.00 |
| TILT ANGLE | 14.00 |
| CANTILEVER | 180.00 |
| GROUND CLEARANCE | 3.00 |
| NO POLES | 1.00 |
| MODULE AREA | 272.46 |
| ARRAY WIDTH | 15.81 |
| ARRAY HEIGHT | 17.23 |
| RAIL LENGTH | 206.80 |
| MODULE LENGTH | 93.86 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 15.00 |
| GROUND TO TOP | 7.17 |
| PROJECTED PANEL HEIGHT | 4.17 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | DAVID, KATZ |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 4062065105.00 |
| PROJECT ID | TEST |
| SITE ADDRESS | 190, PO, BOX, WORTHAM, TX, 76693, USA |
| MODULE WIDTH | 51.20 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 2.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 3553.00 |
| TOTAL WEIGHT | 626.44 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/784b3711-8679-48ed-870d-50fb40678f86.pdf |
|
| ID | 9021.00 |
| 3D Solar link |
