Tex Lampkin – 48in Round – JB

$7,412.92

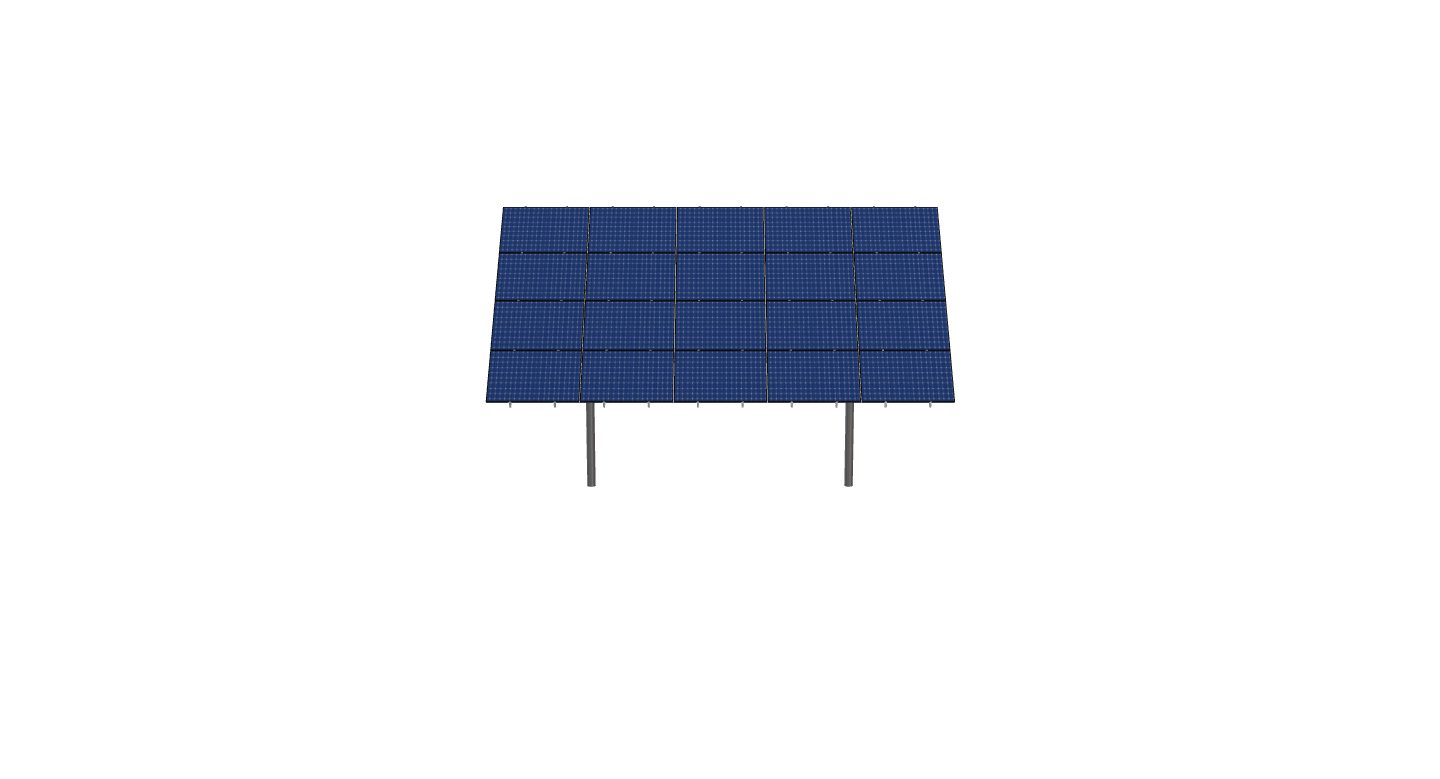

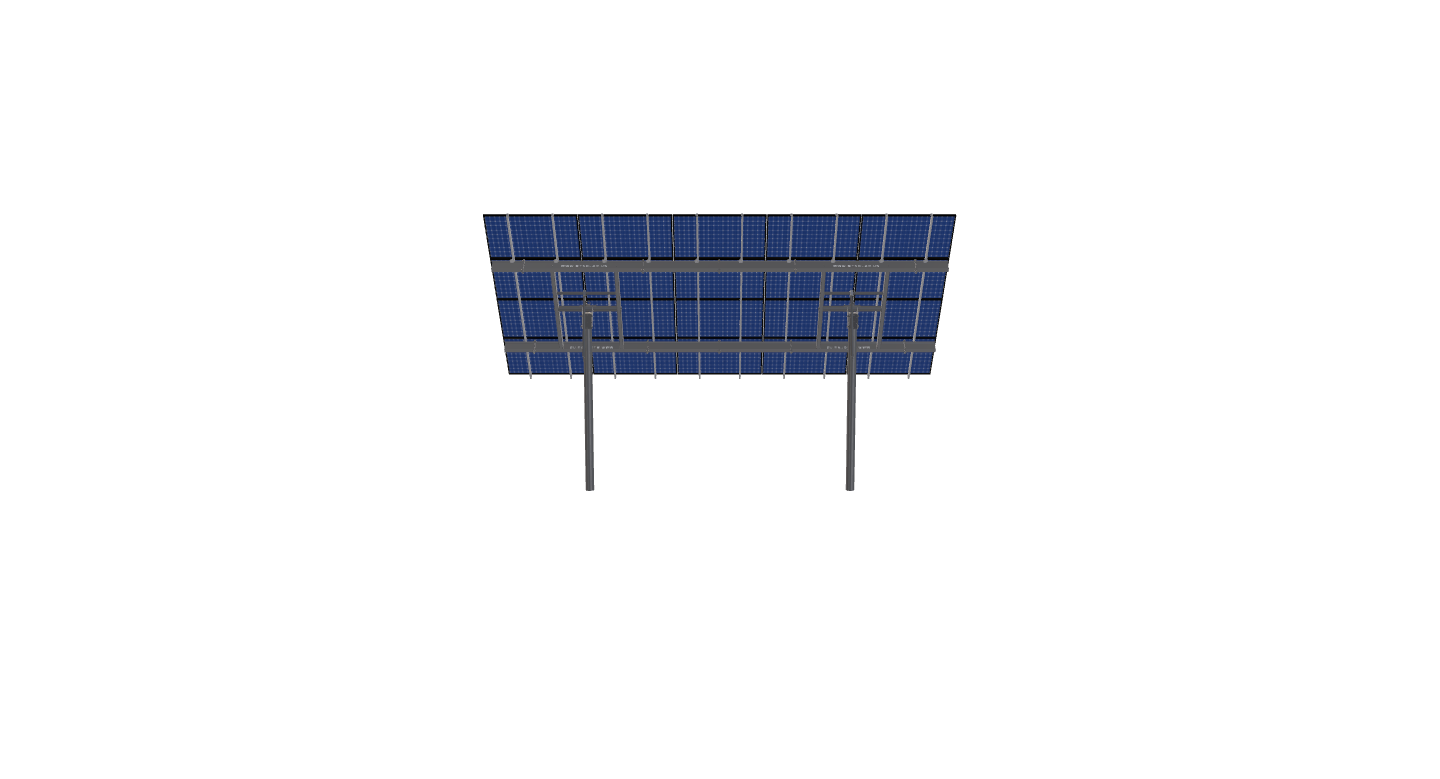

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68.8 inches by 45.27 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 2P-17-6TOP-SD-24-L-4Hx5W-GKK4 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68.8 inches by 45.27 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 1287.1 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

2P-17-6TOP-SD-24-L-4HX5W-GKK4

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 80

PRODUCT TYPE

BEAM

NUMBER OF POLES

2.00

POLE SPACING

17.00

POLE HEIGHT

11.84

WING SPAN

24.00

MAX FOUNDATION DEPTH

8.50

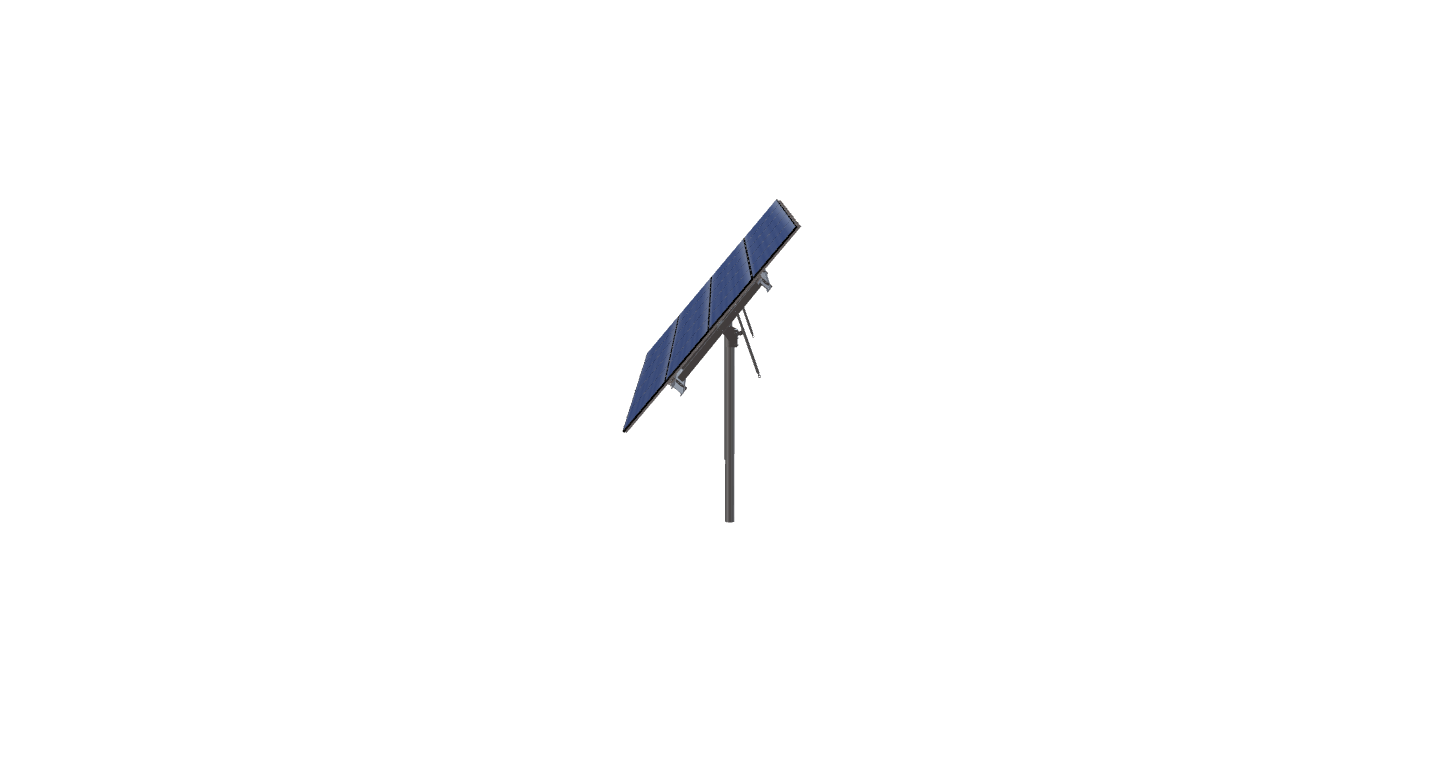

TILT ANGLE

50.00

CANTILEVER

342.00

GROUND CLEARANCE

6.00

NO POLES

2.00

MODULE AREA

443.71

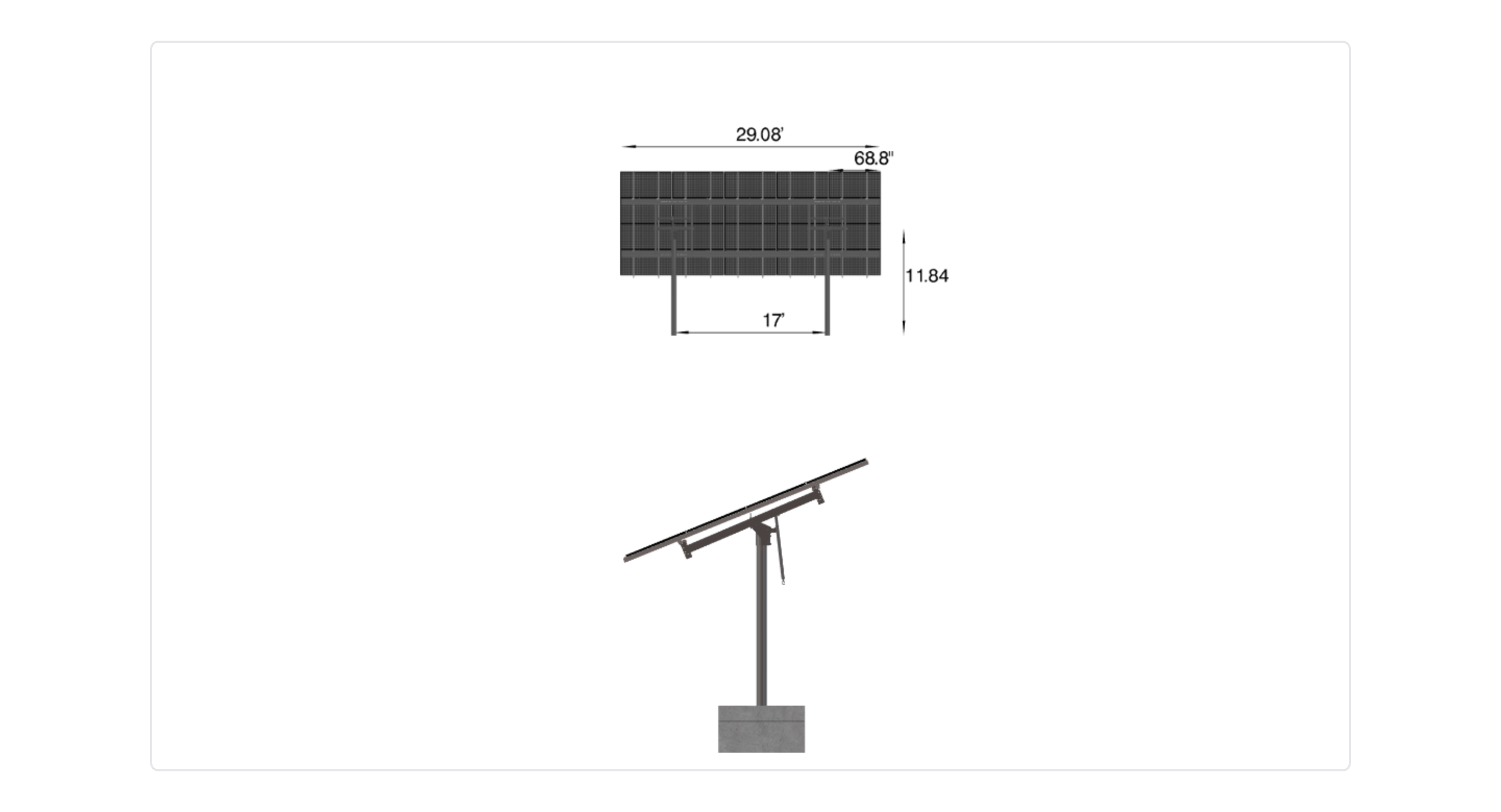

ARRAY WIDTH

29.08

ARRAY HEIGHT

15.26

RAIL LENGTH

183.08

MODULE LENGTH

68.80

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

28.50

GROUND TO TOP

17.62

PROJECTED PANEL HEIGHT

11.56

WIND SPEED OVERRIDE

105.00

SNOW LOAD OVERRIDE

15.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

TEX, LAMPKIN, -, 48IN, ROUND, -, JB

SITE ADDRESS

US-60, KEVIL, KY, USA

MODULE WIDTH

45.27

NUMBER ROWS

4.00

NUMBER COLUMNS

5.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

36, ROUND

FOUNDATION TYPE

ROUND

FOUNDATION SIZE

48.00

CHECK RAILS

TRUE

TOTAL PRICE

7412.92

TOTAL WEIGHT

1287.10

TOTAL PALLETS

2.00
