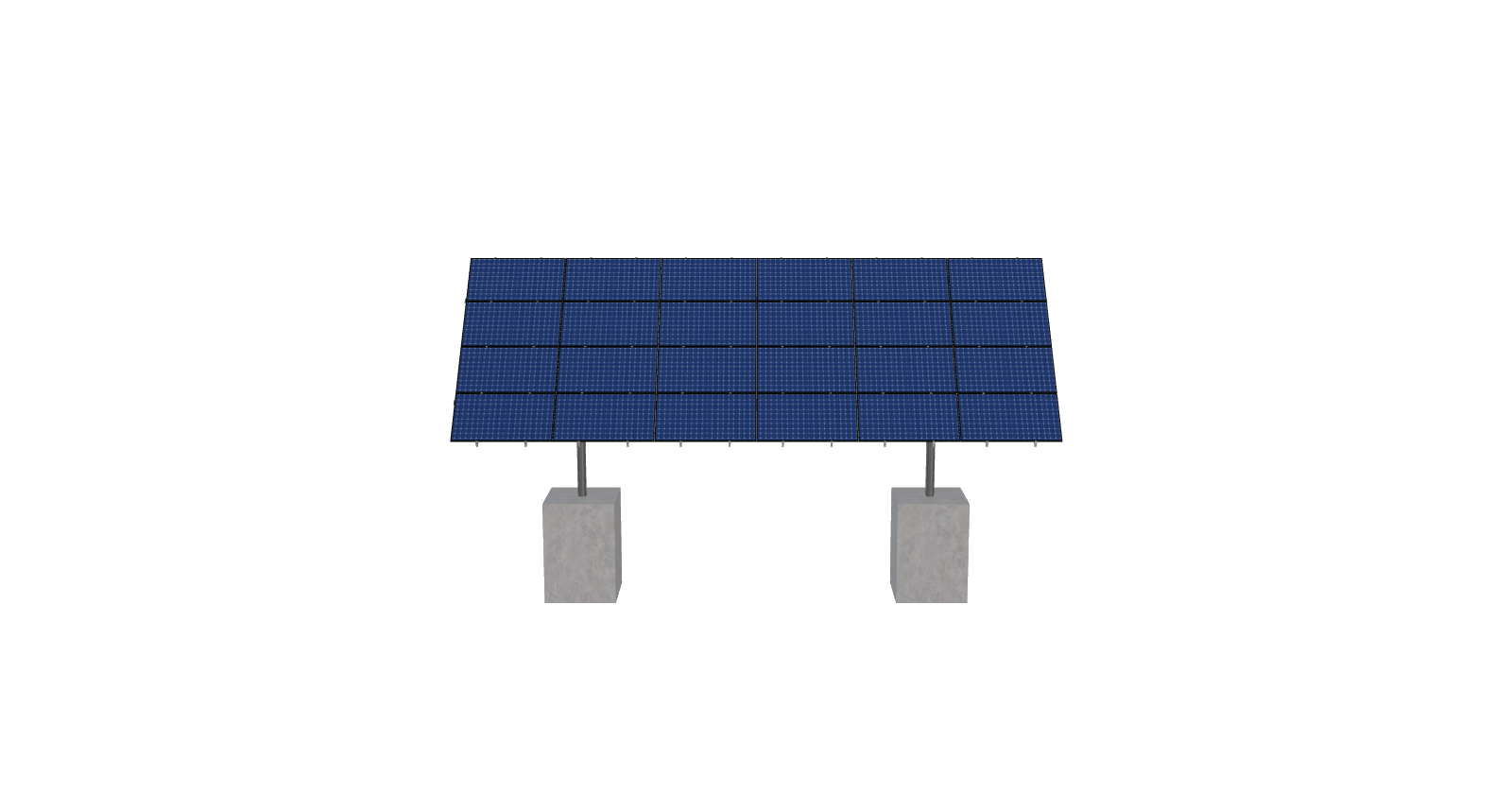

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41.1 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
TF-Travis CU A
$9,438.82
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41.1 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 1737.5 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 2P-22.5-6TOP-HD-45-L-4HX6W-JC3D |
DUTY SIZE | HD |
POLE SIZE | 6IN, PIPE, SCH, 80 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 2.00 |
POLE SPACING | 22.50 |
POLE HEIGHT | 9.31 |
WING SPAN | 45.00 |
MAX FOUNDATION DEPTH | 6.50 |
TILT ANGLE | 50.00 |
CANTILEVER | 450.00 |
GROUND CLEARANCE | 4.00 |
NO POLES | 2.00 |
MODULE AREA | 520.00 |
ARRAY WIDTH | 37.50 |
ARRAY HEIGHT | 13.87 |
RAIL LENGTH | 166.40 |
MODULE LENGTH | 74.00 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 37.50 |
GROUND TO TOP | 14.56 |
PROJECTED PANEL HEIGHT | 10.49 |
PROJECT ID | TF-TRAVIS, CU, A |
SITE ADDRESS | PEREGRINE, WAY, COLORADO, SPRINGS, CO, 80908, USA |
MODULE WIDTH | 41.10 |
NUMBER ROWS | 4.00 |
NUMBER COLUMNS | 6.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | C |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | TRUE |
WIND SPEED OVERRIDE | 130.00 |
SNOW LOAD OVERRIDE | 57.00 |
DIRECT SNOW LOAD | FALSE |
ADD ANGLE BRACE | FALSE |
TOTAL PRICE | 9438.82 |
TOTAL WEIGHT | 1737.50 |
TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/8afae4bd-1843-4eeb-8752-9b636317f817.pdf |
|
ID | 2771.00 |
3D Solar link |
