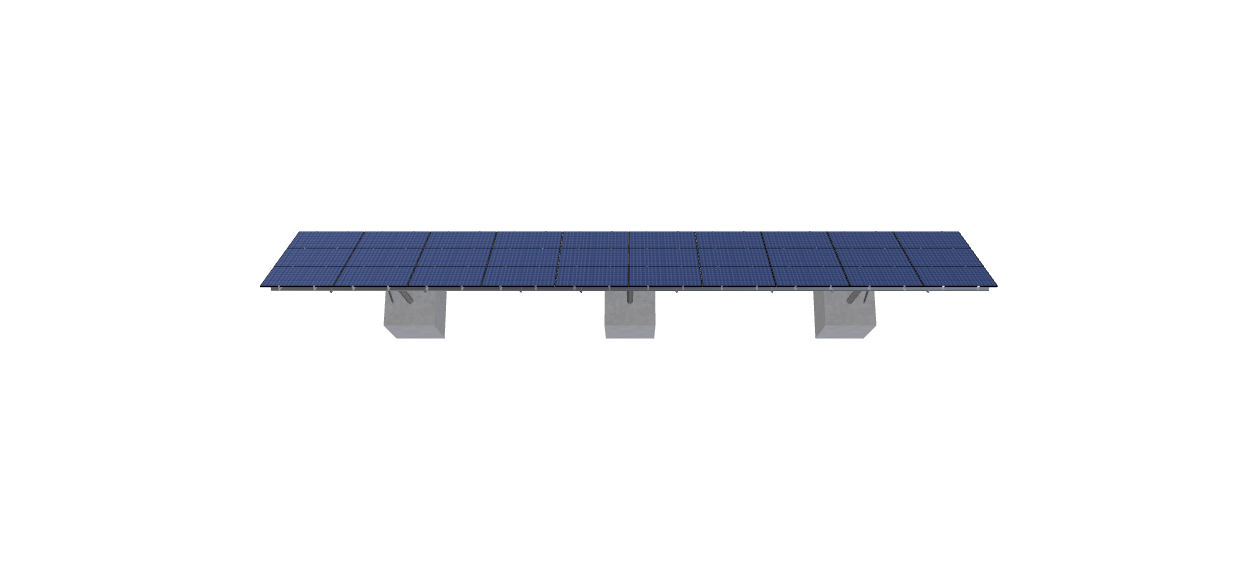

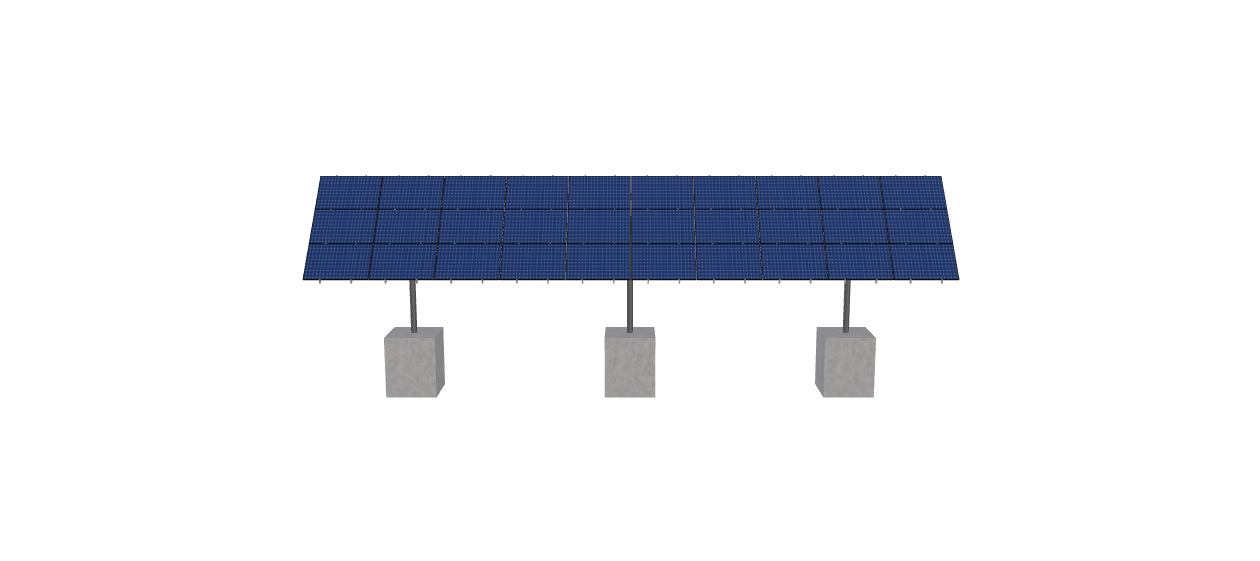

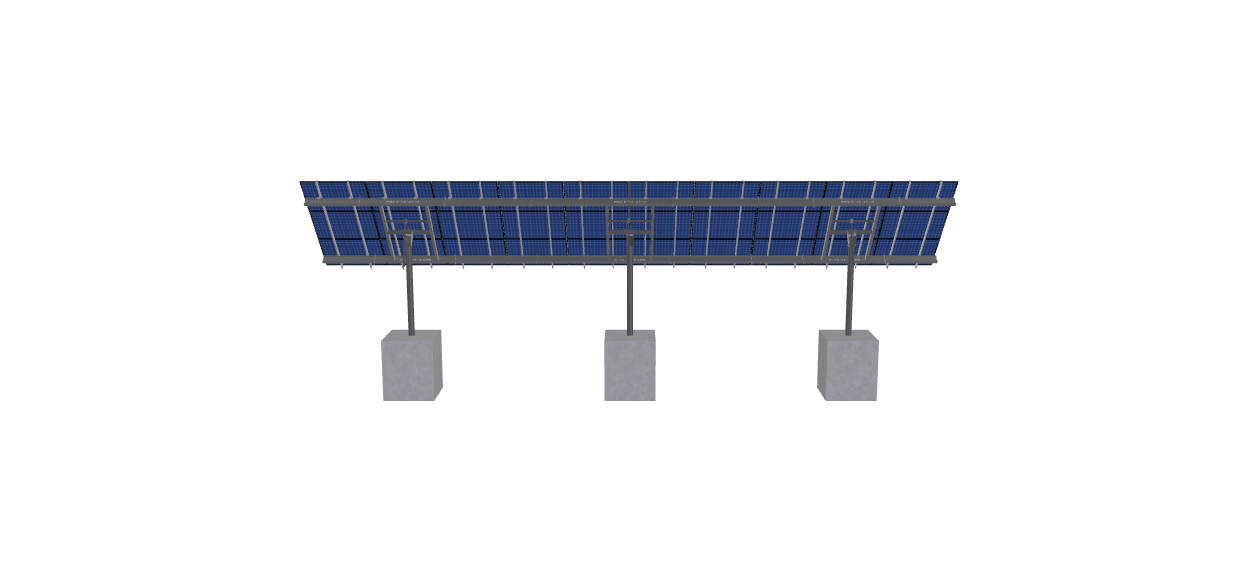

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.7 inches by 44.6 inches and an array layout of 10 wide by 3 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
TH-3Pole_MTSOLAR_9F7L82JAL0LA
$13,001.88
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.7 inches by 44.6 inches and an array layout of 10 wide by 3 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information

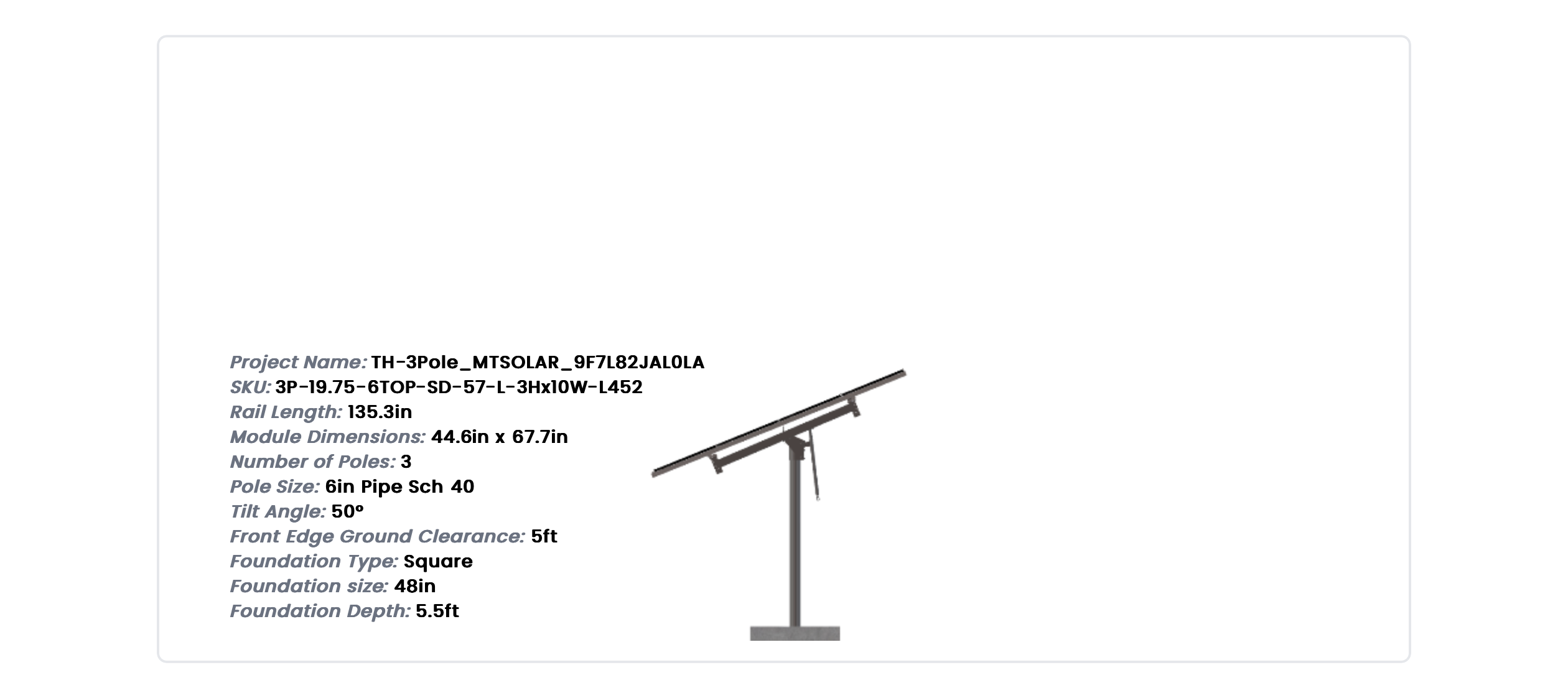

| Weight | 2210.2 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-19.75-6TOP-SD-57-L-3HX10W-L452 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 9.32 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 5.50 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 678.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 3.00 |
| MODULE AREA | 645.49 |
| ARRAY WIDTH | 57.25 |
| ARRAY HEIGHT | 11.28 |
| RAIL LENGTH | 135.30 |
| MODULE LENGTH | 67.70 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 56.50 |
| GROUND TO TOP | 13.64 |
| PROJECTED PANEL HEIGHT | 8.64 |
| DESIGNER NAME | KEVIN |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 4257858049.00 |
| PROJECT ID | TH-3POLE, MTSOLAR, 9F7L82JAL0LA |
| SITE ADDRESS | 108, WALLEWEIN, RD, SUNBURST, MT, 59482, USA |
| MODULE WIDTH | 44.60 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 10.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 105.00 |
| SNOW LOAD OVERRIDE | 35.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 12382.74 |
| TOTAL WEIGHT | 2210.20 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/02b0348c-673d-4fa6-a7e0-7c9e6a06d0ae.pdf |
|
| ID | 10619.00 |
| 3D Solar link |
