Tilted Hyundai – V1Jb

$8,041.48

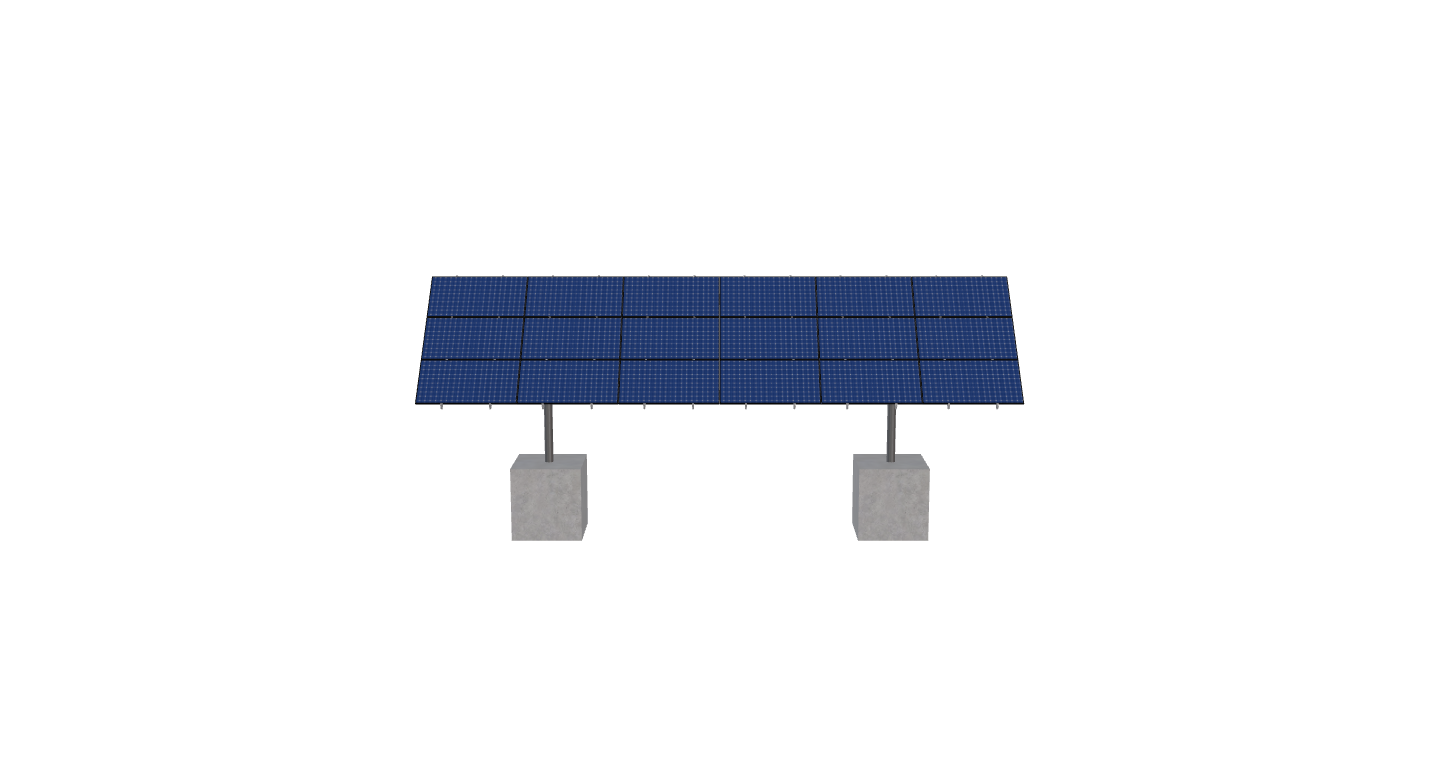

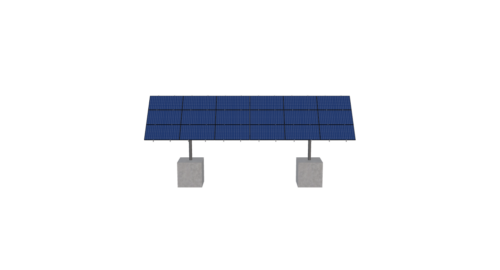

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.75 inches by 40.8 inches and an array layout of 6 wide by 3 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 2P-22.5-6TOP-SD-45-L-3Hx6W-LF3B Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.75 inches by 40.8 inches and an array layout of 6 wide by 3 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 1442.52 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

2P-22.5-6TOP-SD-45-L-3HX6W-LF3B

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

2.00

POLE SPACING

22.50

POLE HEIGHT

7.72

WING SPAN

45.00

MAX FOUNDATION DEPTH

4.75

TILT ANGLE

46.10

CANTILEVER

450.00

GROUND CLEARANCE

4.00

NO POLES

2.00

MODULE AREA

396.22

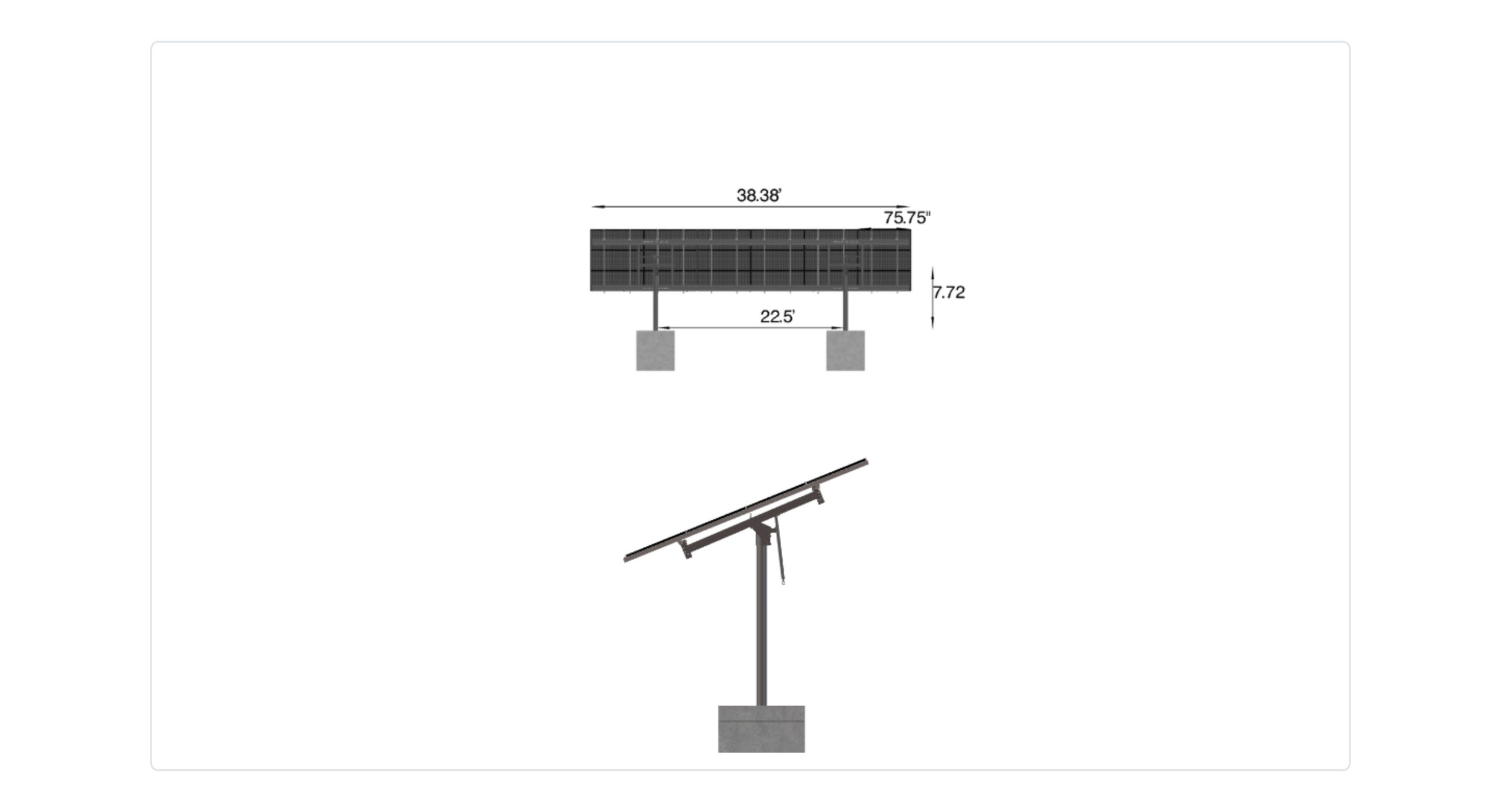

ARRAY WIDTH

38.38

ARRAY HEIGHT

10.32

RAIL LENGTH

123.90

MODULE LENGTH

75.75

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

37.50

GROUND TO TOP

11.39

PROJECTED PANEL HEIGHT

7.35

WIND SPEED OVERRIDE

110.00

SNOW LOAD OVERRIDE

50.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

TILTED, HYUNDAI, -, V1JB

SITE ADDRESS

1430, N, RD, NAME, NO, 1, NO, 1, HARTSEL, CO, 80449, USA

MODULE WIDTH

40.80

NUMBER ROWS

3.00

NUMBER COLUMNS

6.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

8041.48

TOTAL WEIGHT

1442.52

TOTAL PALLETS

2.00
