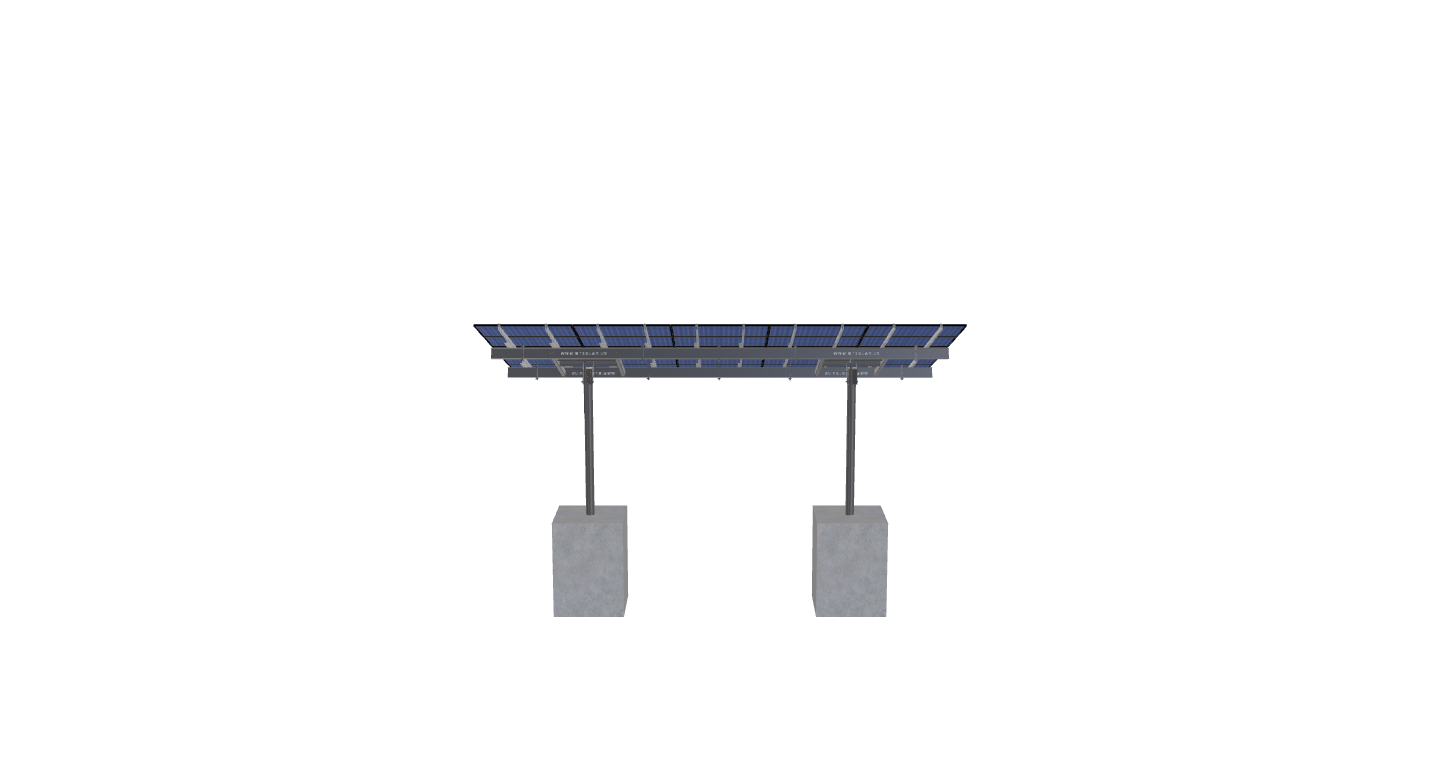

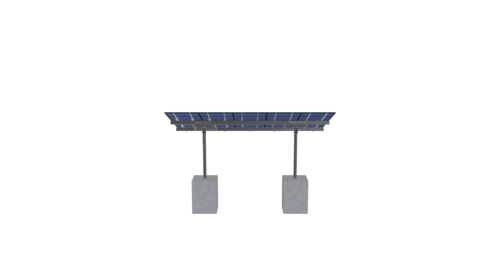

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.4 inches by 44.7 inches and an array layout of 5 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Uhlmann Carport – 5×5 – 69in – JB
$9,799.82
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.4 inches by 44.7 inches and an array layout of 5 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1841.46 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-17-6TOP-HD-24-L-5HX5W-I4DE |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 9.91 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 6.25 |
| TILT ANGLE | 18.00 |
| CANTILEVER | 342.00 |
| GROUND CLEARANCE | 7.00 |
| NO POLES | 2.00 |
| MODULE AREA | 552.44 |
| ARRAY WIDTH | 29.33 |
| ARRAY HEIGHT | 18.83 |
| RAIL LENGTH | 226.00 |
| MODULE LENGTH | 69.40 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 28.50 |
| GROUND TO TOP | 12.79 |
| PROJECTED PANEL HEIGHT | 5.76 |
| WIND SPEED OVERRIDE | 120.00 |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | UHLMANN, CARPORT, -, 5X5, -, 69IN, -, JB |
| SITE ADDRESS | 578, COLTER, TRAIL, THREE, FORKS, MT, 59752, USA |
| MODULE WIDTH | 44.70 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 5.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 9333.16 |
| TOTAL WEIGHT | 1841.46 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/744d39c0-2b6d-409f-a6dd-3ac15fae8fed.pdf |
|
| ID | 7219.00 |
| 3D Solar link |
