This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.5 inches by 44.6 inches and an array layout of 10 wide by 4 high.
This mount fits on 4 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

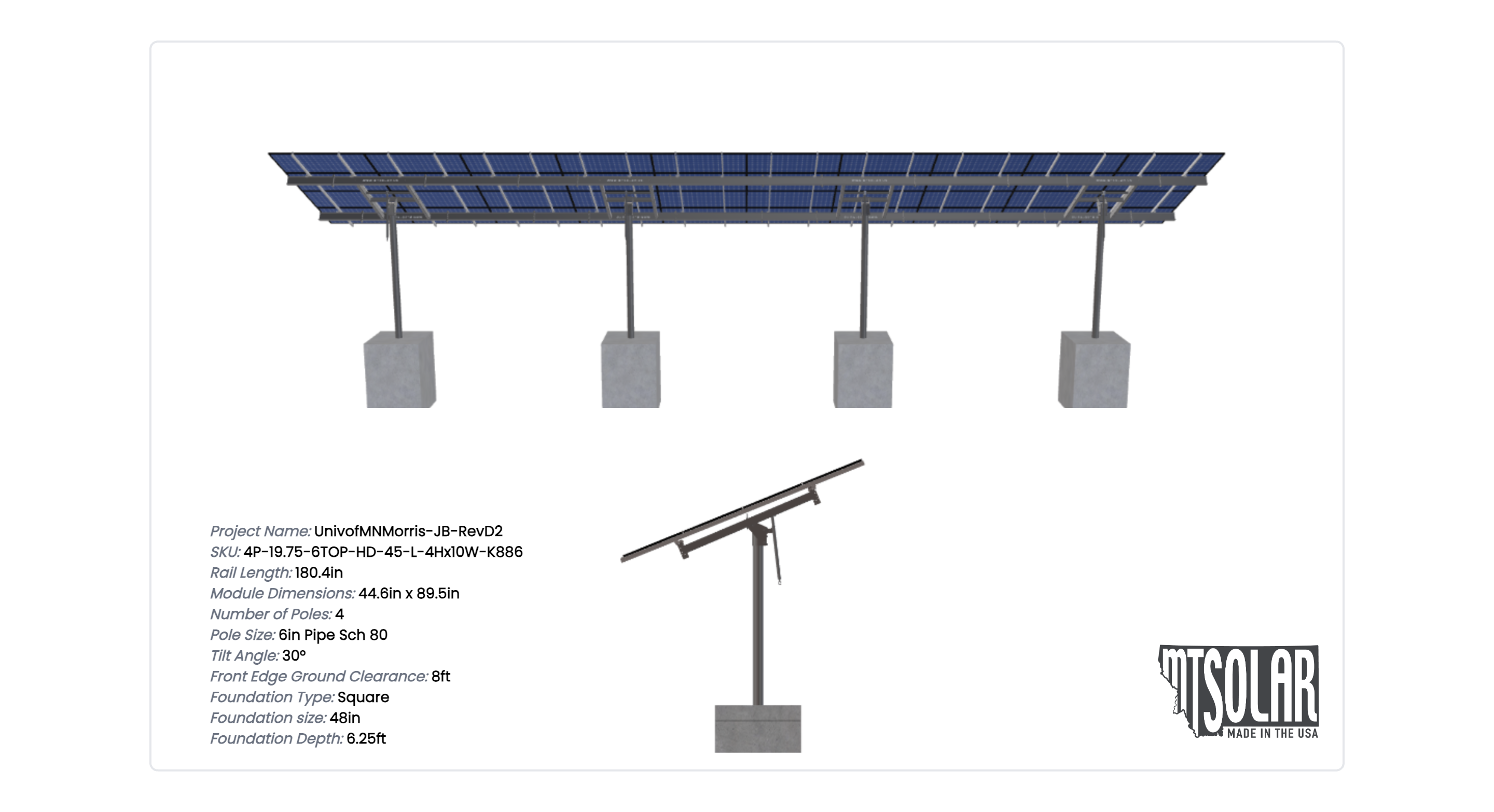

See 3D Model Here
UnivofMNMorris-JB-RevD2
$18,336.97
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.5 inches by 44.6 inches and an array layout of 10 wide by 4 high.
This mount fits on 4 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 3414.38 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 4P-19.75-6TOP-HD-45-L-4HX10W-K886 |
DUTY SIZE | HD |
POLE SIZE | 6IN, PIPE, SCH, 80 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 4.00 |
POLE SPACING | 19.75 |
POLE HEIGHT | 11.76 |
WING SPAN | 45.00 |
MAX FOUNDATION DEPTH | 6.25 |
TILT ANGLE | 30.00 |
CANTILEVER | 891.00 |
GROUND CLEARANCE | 8.00 |
NO POLES | 4.00 |
MODULE AREA | 1133.76 |
ARRAY WIDTH | 75.42 |
ARRAY HEIGHT | 15.03 |
RAIL LENGTH | 180.40 |
MODULE LENGTH | 89.50 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 74.25 |
GROUND TO TOP | 15.47 |
PROJECTED PANEL HEIGHT | 7.43 |
WIND SPEED OVERRIDE | NULL |
SNOW LOAD OVERRIDE | NULL |
DIRECT SNOW LOAD | FALSE |
ADD ANGLE BRACE | FALSE |
PROJECT ID | UNIVOFMNMORRIS-JB-REVD2 |
SITE ADDRESS | 600, E, 4TH, ST, MORRIS, MN, 56267, USA |
MODULE WIDTH | 44.60 |
NUMBER ROWS | 4.00 |
NUMBER COLUMNS | 10.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | B |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | TRUE |
TOTAL PRICE | 18336.97 |
TOTAL WEIGHT | 3414.38 |
TOTAL PALLETS | 4.00 |
