This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 88.82 inches by 44.61 inches and an array layout of 2 wide by 5 high.
This mount fits on 1 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

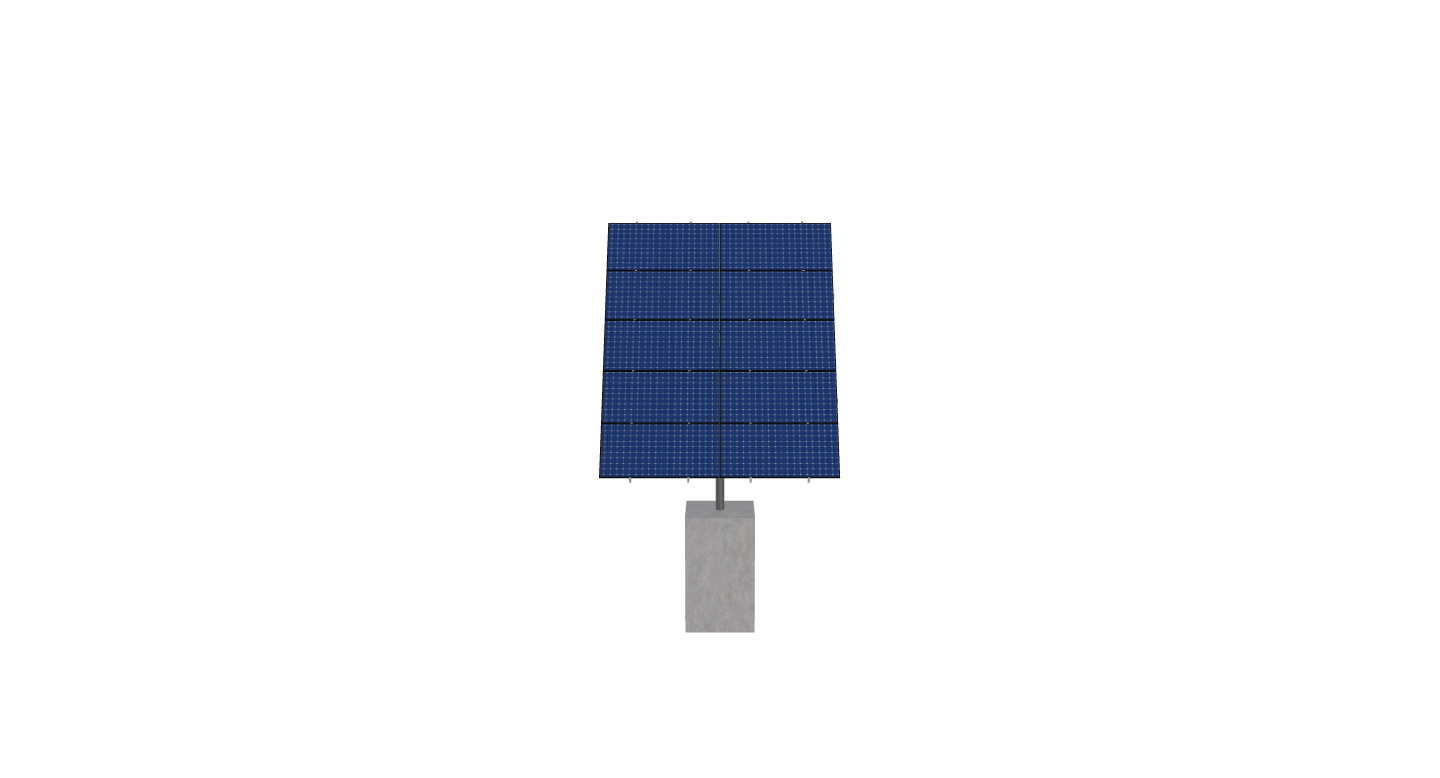

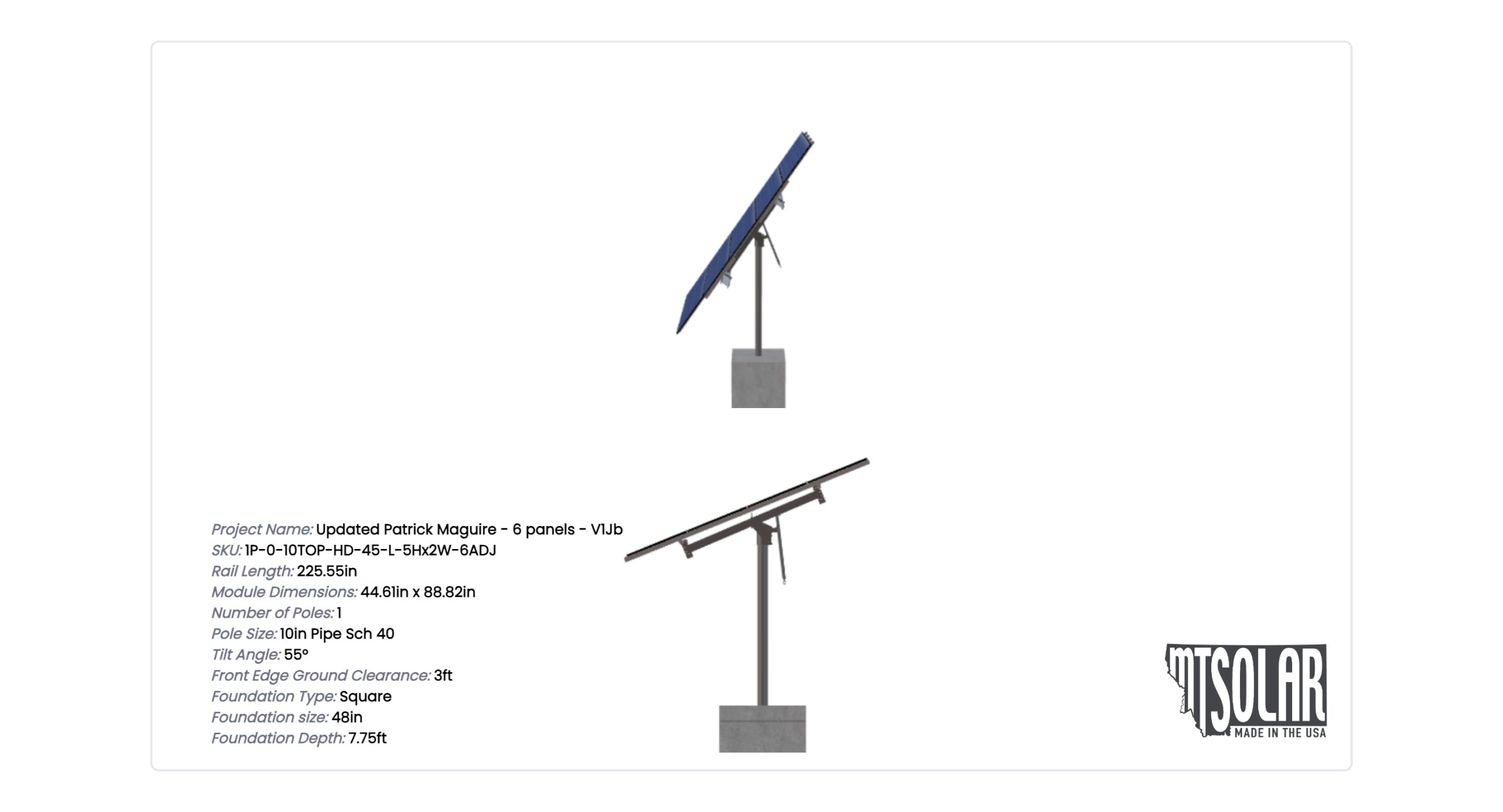

See 3D Model Here
Updated Patrick Maguire – 6 panels – V1Jb
$4,786.58
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 88.82 inches by 44.61 inches and an array layout of 2 wide by 5 high.
This mount fits on 1 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 900.5899999999999 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-10TOP-HD-45-L-5HX2W-6ADJ |
| DUTY SIZE | HD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 10.70 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 7.75 |
| TILT ANGLE | 55.00 |
| CANTILEVER | 180.00 |
| GROUND CLEARANCE | 3.00 |
| NO POLES | 1.00 |
| MODULE AREA | 281.37 |
| ARRAY WIDTH | 14.97 |
| ARRAY HEIGHT | 18.80 |
| RAIL LENGTH | 225.55 |
| MODULE LENGTH | 88.82 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 15.00 |
| GROUND TO TOP | 18.40 |
| PROJECTED PANEL HEIGHT | 15.40 |
| DESIGNER NAME | HASTON |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 9706586635.00 |
| PROJECT ID | UPDATED, PATRICK, MAGUIRE, -, 6, PANELS, -, V1JB |
| SITE ADDRESS | 8720, ARAPAHOE, VALLEY, RD, LAPORTE, CO, 80535, USA |
| MODULE WIDTH | 44.61 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 2.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | 10, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| WIND SPEED OVERRIDE | 146.00 |
| SNOW LOAD OVERRIDE | 45.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 4558.65 |
| TOTAL WEIGHT | 900.59 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/17bce6fa-1c86-4983-ab2a-566a146b2e18.pdf |
|
| ID | 10239.00 |
| 3D Solar link |
