This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 70.6 inches by 41.2 inches and an array layout of 7 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

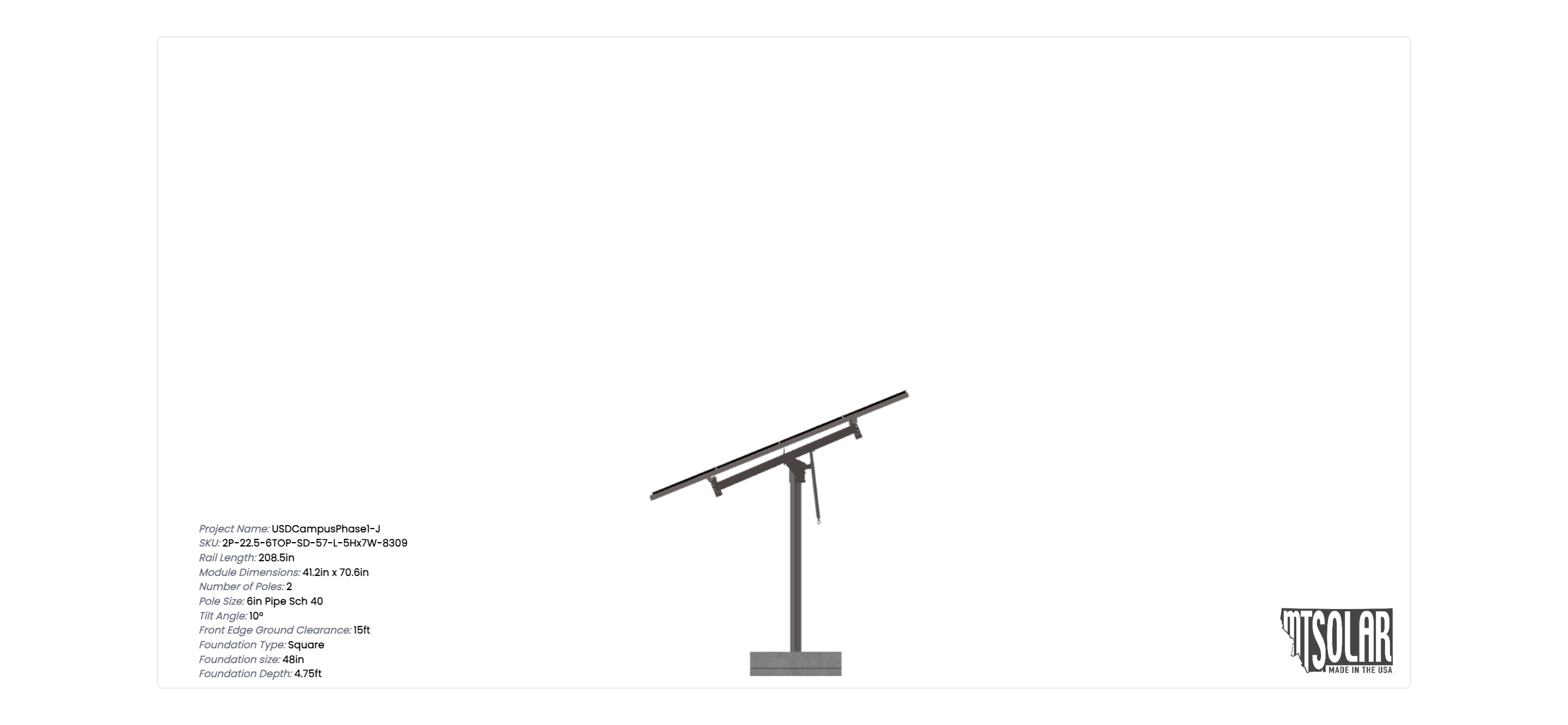

See 3D Model Here
USDCampusPhase1-J
$10,087.92
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 70.6 inches by 41.2 inches and an array layout of 7 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2009.08 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-22.5-6TOP-SD-57-L-5HX7W-8309 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 16.51 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 4.75 |
| TILT ANGLE | 10.00 |
| CANTILEVER | 474.00 |
| GROUND CLEARANCE | 15.00 |
| NO POLES | 2.00 |
| MODULE AREA | 725.70 |
| ARRAY WIDTH | 41.77 |
| ARRAY HEIGHT | 17.38 |
| RAIL LENGTH | 208.50 |
| MODULE LENGTH | 70.60 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 39.50 |
| GROUND TO TOP | 18.00 |
| PROJECTED PANEL HEIGHT | 2.98 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | USDCAMPUSPHASE1-J |
| SITE ADDRESS | 5072, BENSON, RD, UNION, CITY, CA, 94587, USA |
| MODULE WIDTH | 41.20 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 7.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 10087.92 |
| TOTAL WEIGHT | 2009.08 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/39797c85-495f-434a-bed0-ac2e462ba6b5.pdf |
|
| ID | 2244.00 |
| 3D Solar link |
