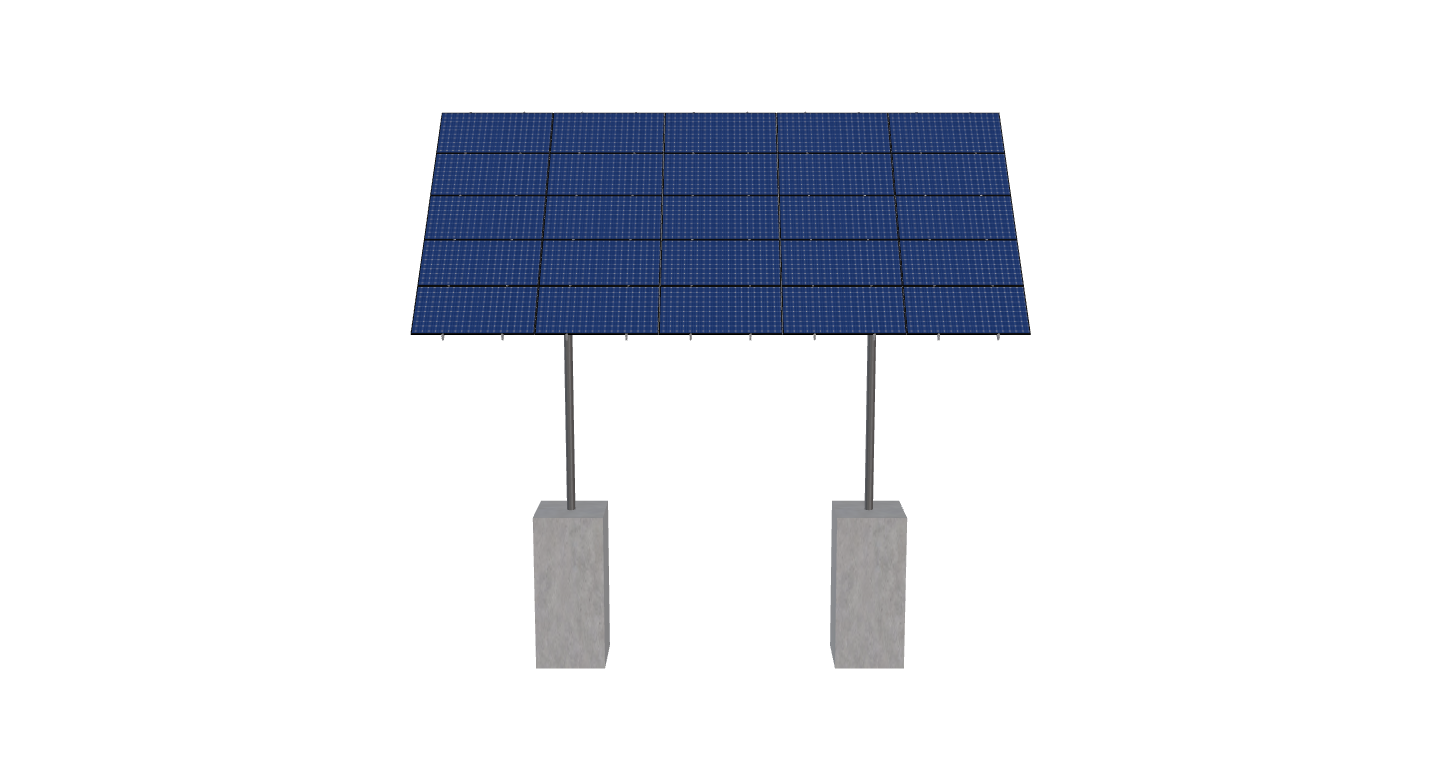

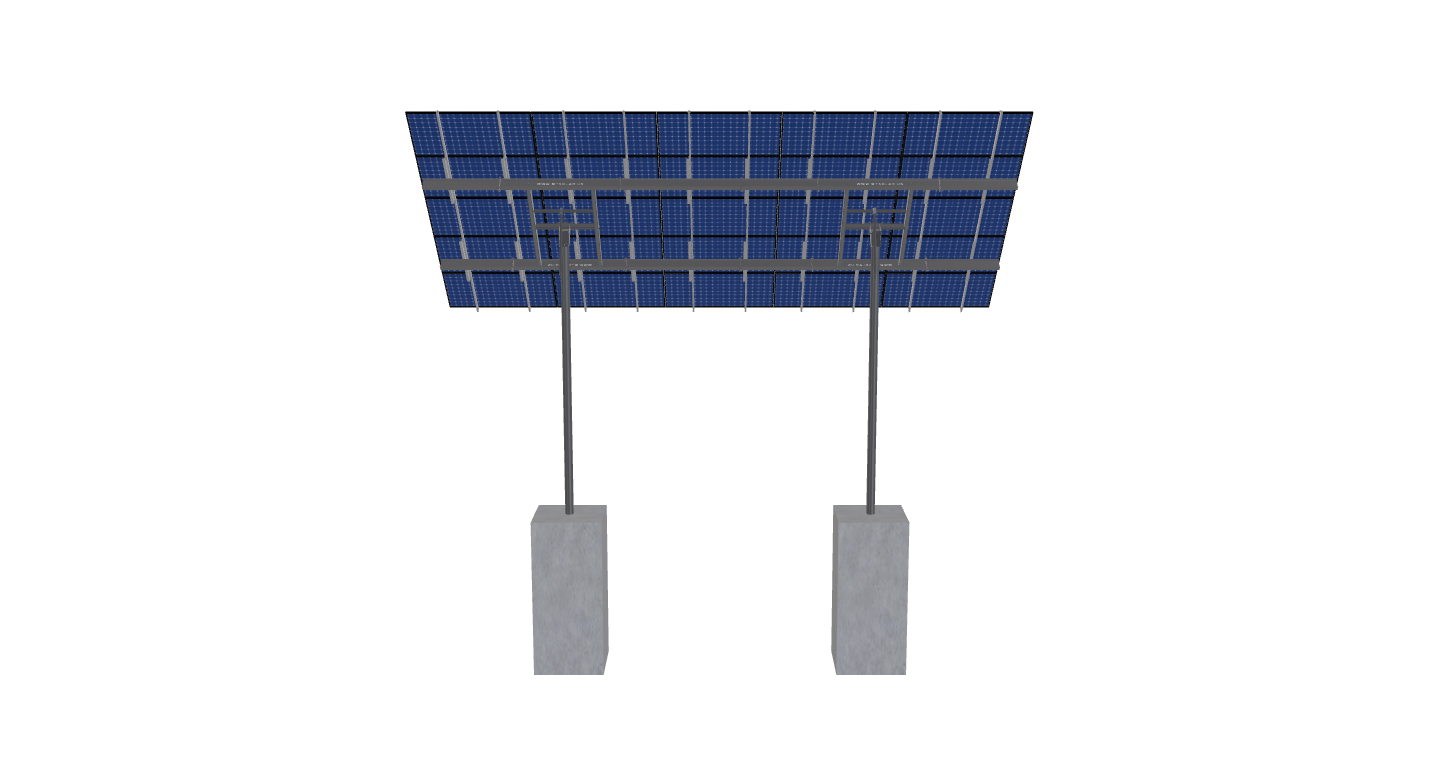

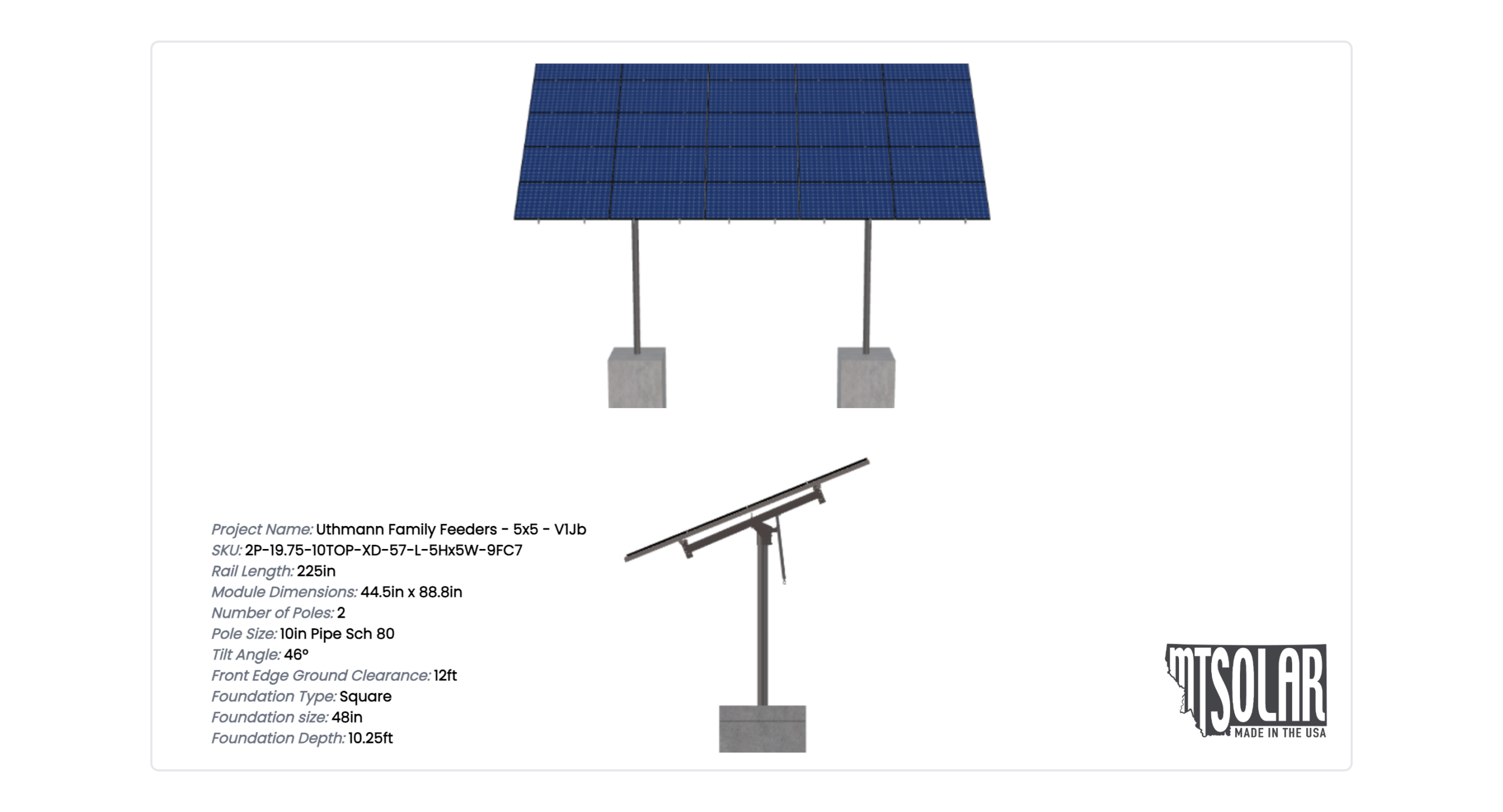

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 88.8 inches by 44.5 inches and an array layout of 5 wide by 5 high.
This mount fits on 2 – 10in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Uthmann Family Feeders – 5×5 – V1Jb
$11,959.14
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 88.8 inches by 44.5 inches and an array layout of 5 wide by 5 high.
This mount fits on 2 – 10in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2295.8999999999996 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-19.75-10TOP-XD-57-L-5HX5W-9FC7 |
| DUTY SIZE | XD |
| POLE SIZE | 10IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 18.74 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 10.25 |
| TILT ANGLE | 46.00 |
| CANTILEVER | 441.00 |
| GROUND CLEARANCE | 12.00 |
| NO POLES | 2.00 |
| MODULE AREA | 701.56 |
| ARRAY WIDTH | 37.42 |
| ARRAY HEIGHT | 18.75 |
| RAIL LENGTH | 225.00 |
| MODULE LENGTH | 88.80 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 36.75 |
| GROUND TO TOP | 25.49 |
| PROJECTED PANEL HEIGHT | 13.49 |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | UTHMANN, FAMILY, FEEDERS, -, 5X5, -, V1JB |
| SITE ADDRESS | 5200, N, COUNTY, RD, 19, FORT, COLLINS, CO, 80524, USA |
| MODULE WIDTH | 44.50 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 5.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| WIND SPEED OVERRIDE | 145.00 |
| SNOW LOAD OVERRIDE | 45.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 11389.66 |
| TOTAL WEIGHT | 2295.90 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/8a51ef54-b29d-4056-be03-3a9c48e6c8bc.pdf |
|
| ID | 9911.00 |
| 3D Solar link |
