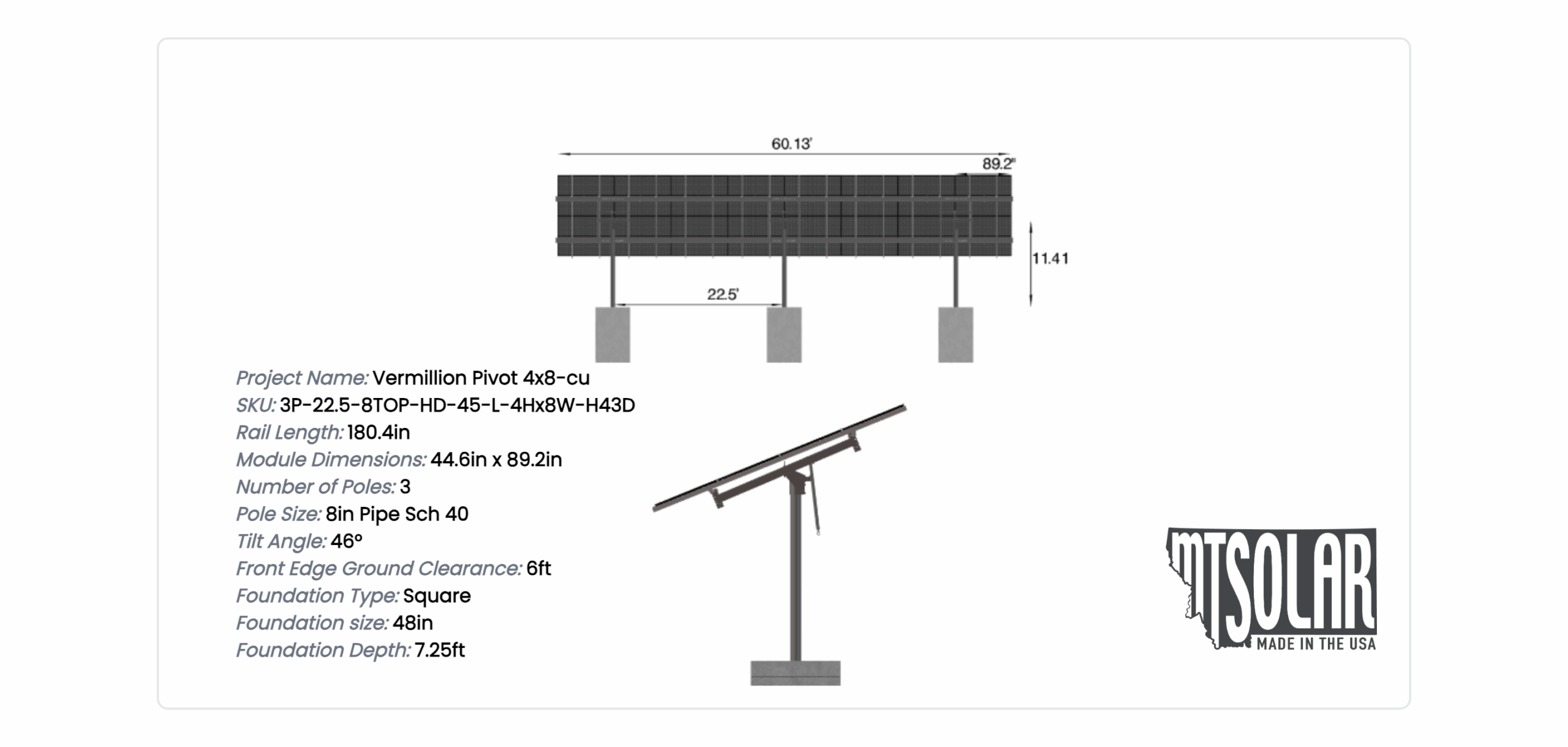

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.2 inches by 44.6 inches and an array layout of 8 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

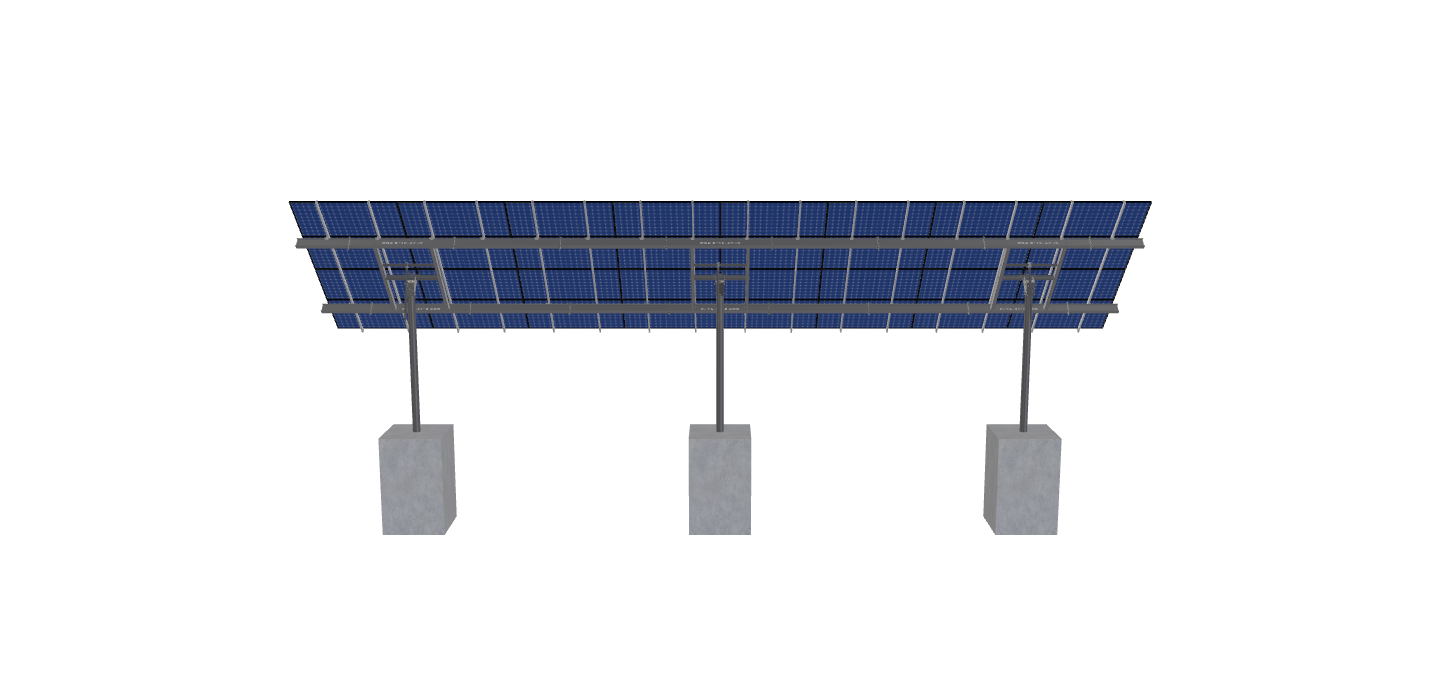

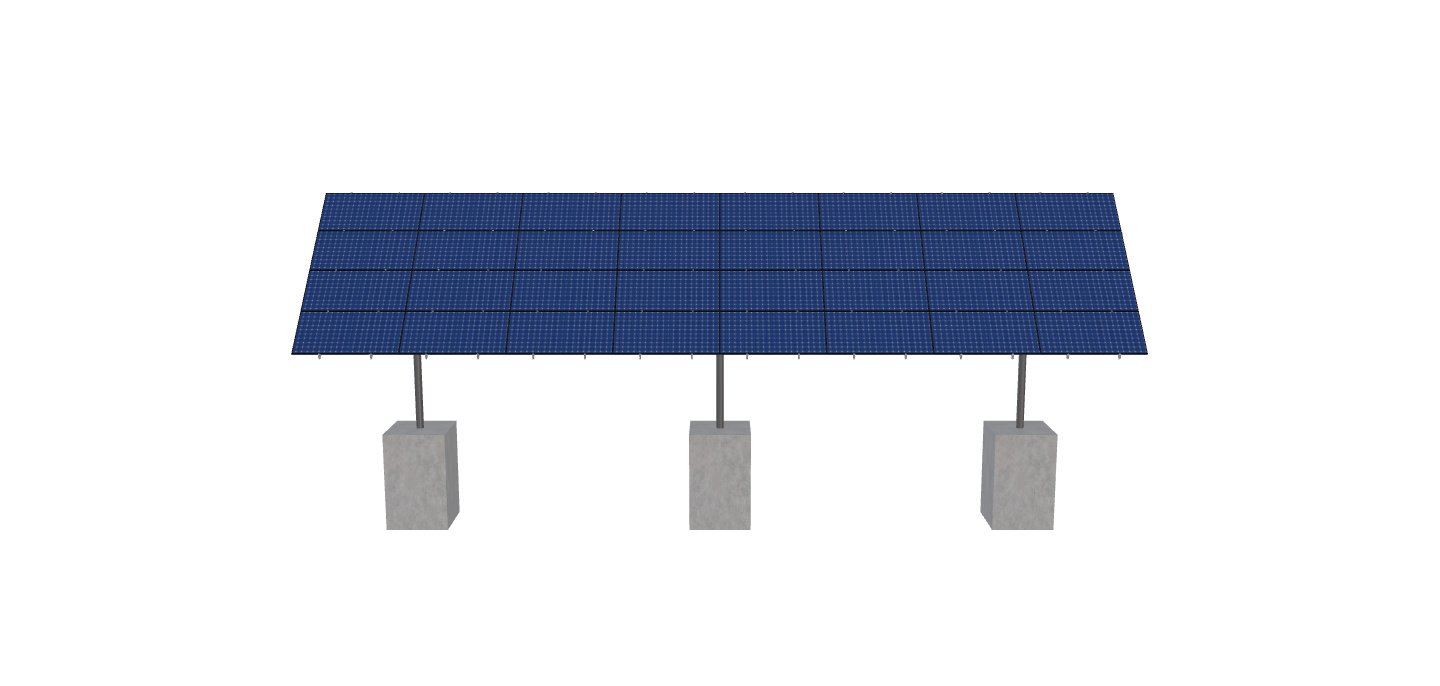

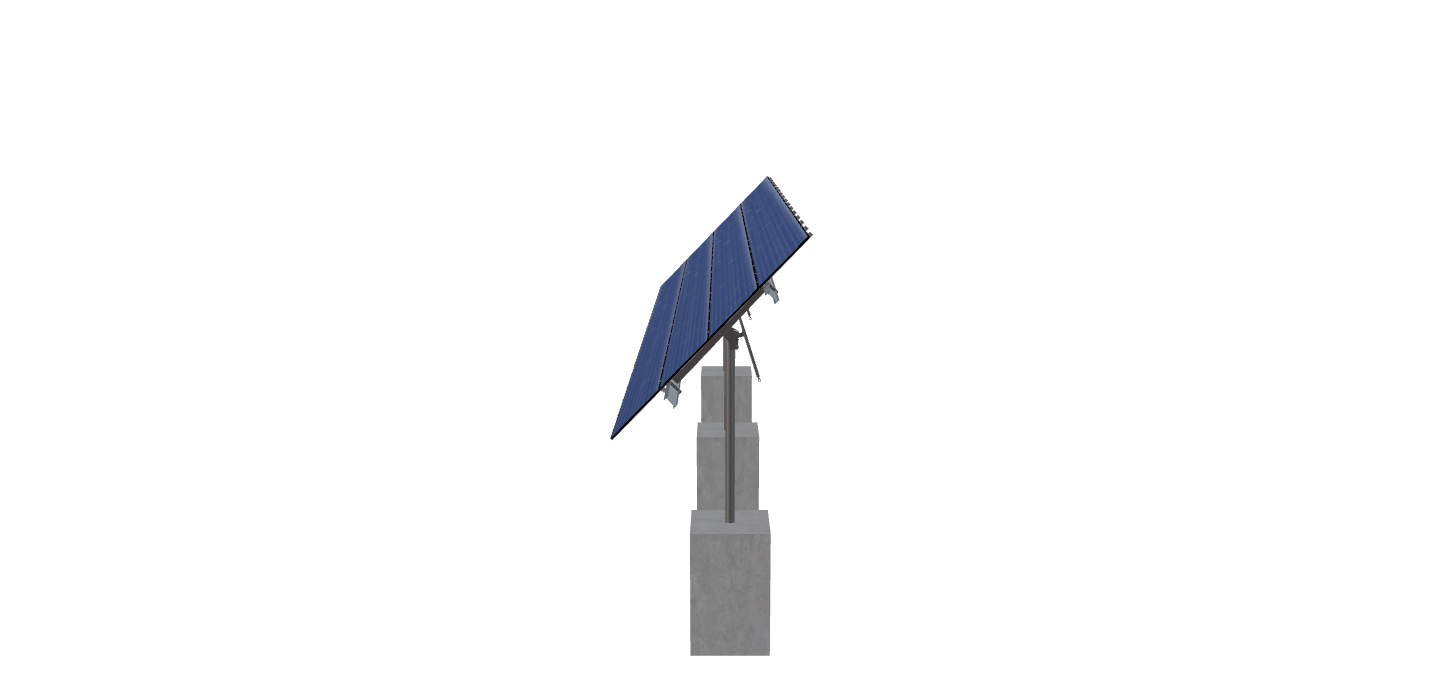

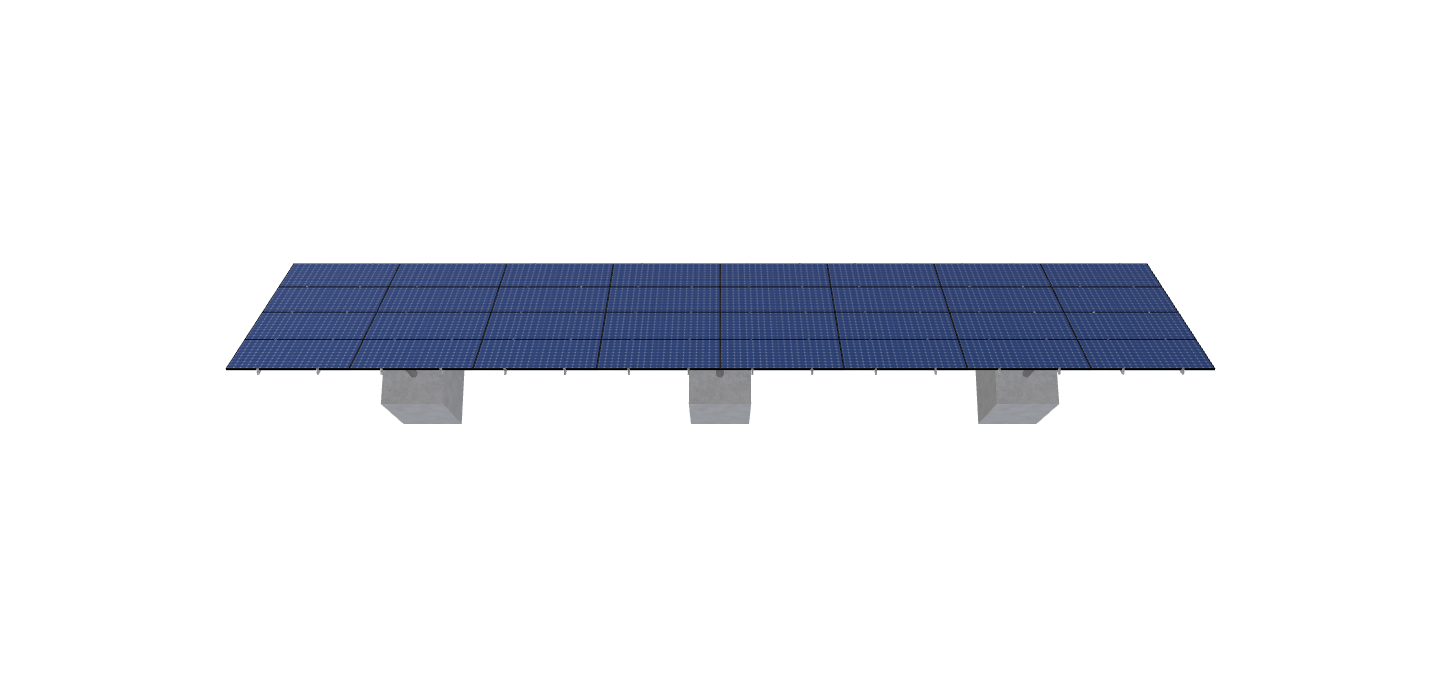

See 3D Model Here
Vermillion Pivot 4×8-cu
$15,075.28
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.2 inches by 44.6 inches and an array layout of 8 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2752.69 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-22.5-8TOP-HD-45-L-4HX8W-H43D |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 11.41 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 7.25 |
| TILT ANGLE | 46.00 |
| CANTILEVER | 720.00 |
| GROUND CLEARANCE | 6.00 |
| NO POLES | 3.00 |
| MODULE AREA | 904.00 |
| ARRAY WIDTH | 60.13 |
| ARRAY HEIGHT | 15.03 |
| RAIL LENGTH | 180.40 |
| MODULE LENGTH | 89.20 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 60.00 |
| GROUND TO TOP | 16.81 |
| PROJECTED PANEL HEIGHT | 10.81 |
| WIND SPEED OVERRIDE | 115.00 |
| SNOW LOAD OVERRIDE | 54.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | VERMILLION, PIVOT, 4X8-CU |
| SITE ADDRESS | Q6Q5+HW, GREYCLIFF, MT, USA |
| MODULE INFO | SOLAREVER, SE-182*105-450M-96-BD |
| MODULE WIDTH | 44.60 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 8.00 |
| POLE SPACING OVERRIDE | 20.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 15075.28 |
| TOTAL WEIGHT | 2752.69 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/7c95a979-6e86-4a0a-931c-0374d1b30a76.pdf |
|
| ID | 11876.00 |
| 3D Solar link |
