This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 61.39 inches by 41.18 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

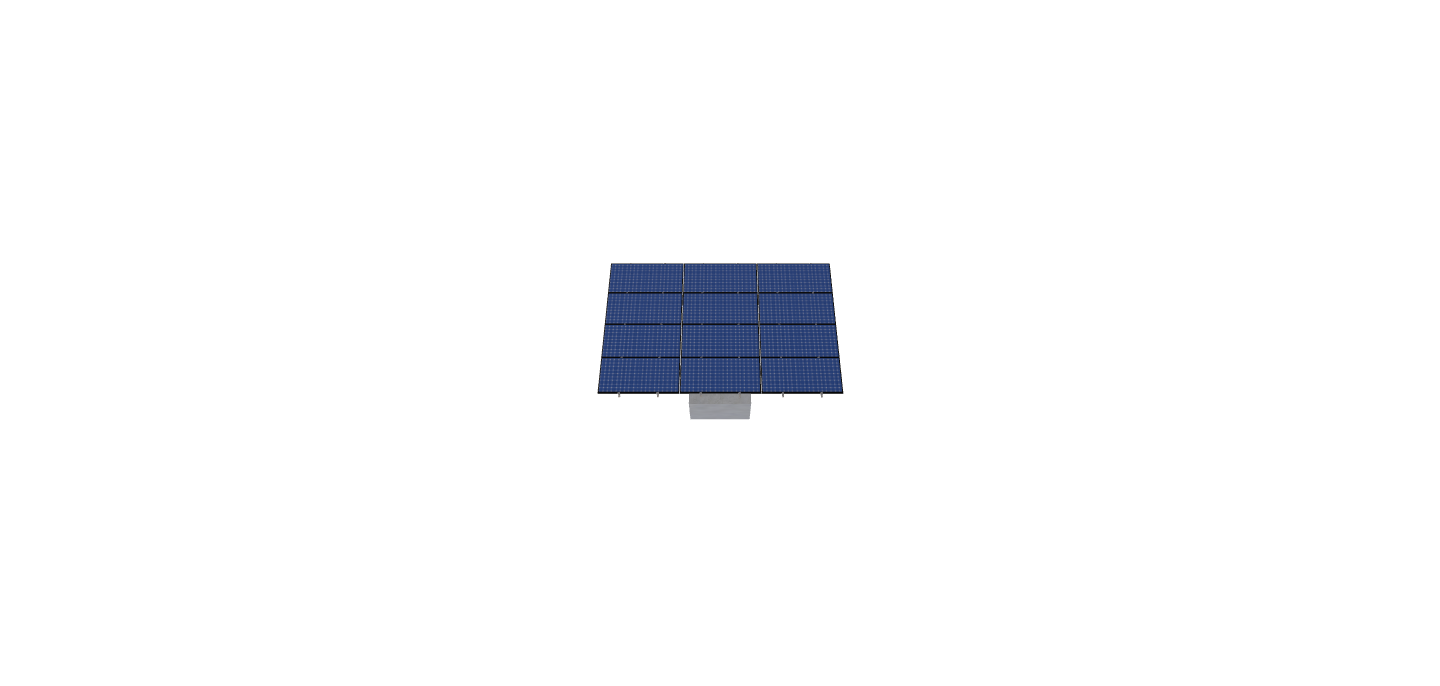

See 3D Model Here
Vermont-Wind Replacement-v1cu
$4,848.21
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 61.39 inches by 41.18 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 812.85 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |

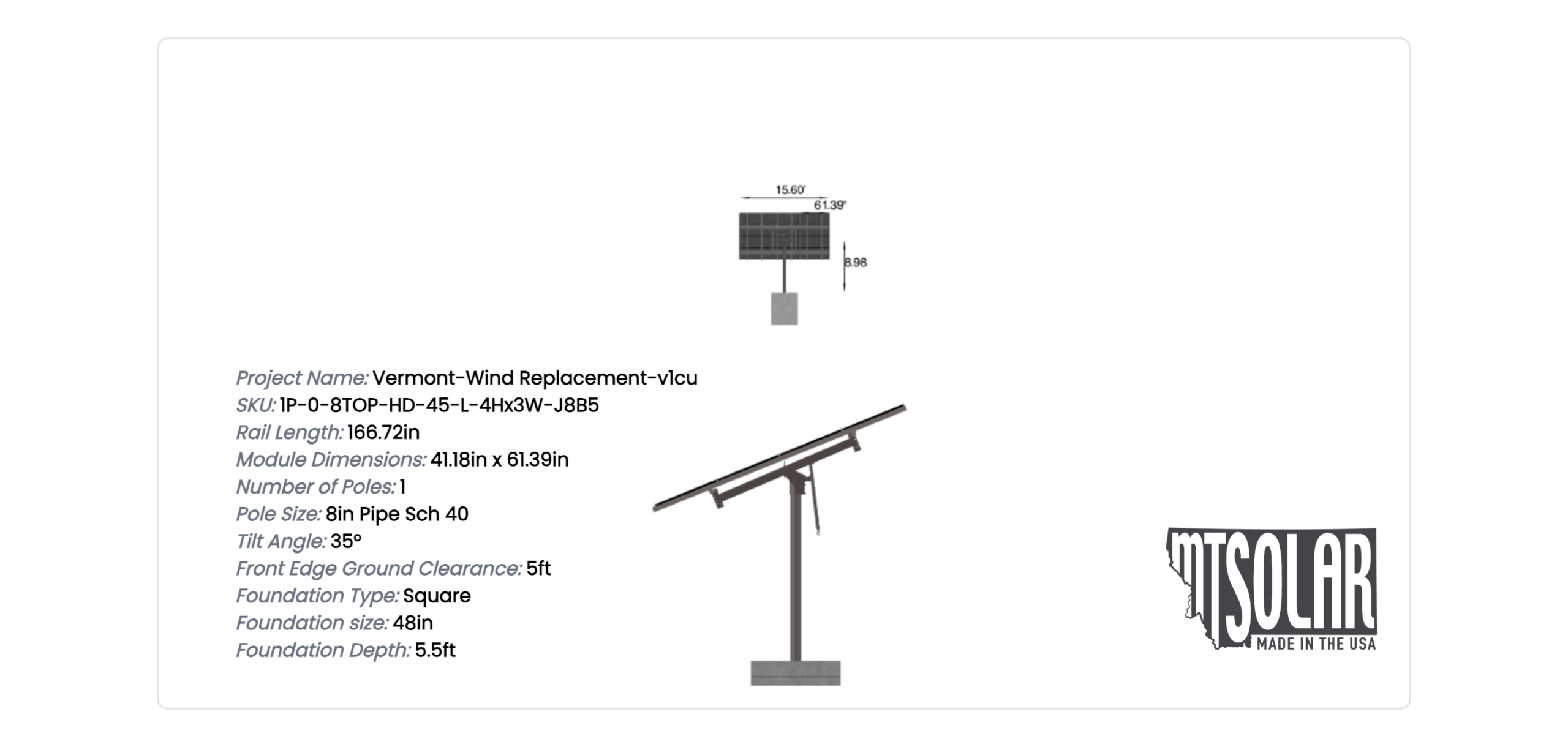

| SKU CODE | 1P-0-8TOP-HD-45-L-4HX3W-J8B5 |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 8.98 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 5.50 |
| TILT ANGLE | 35.00 |
| CANTILEVER | 180.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 1.00 |
| MODULE AREA | 216.70 |
| ARRAY WIDTH | 15.60 |
| ARRAY HEIGHT | 13.89 |
| RAIL LENGTH | 166.72 |
| MODULE LENGTH | 61.39 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 15.00 |
| GROUND TO TOP | 12.97 |
| PROJECTED PANEL HEIGHT | 7.97 |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | VERMONT-WIND, REPLACEMENT-V1CU |
| SITE ADDRESS | 220, MURRAY, RD, LINCOLN, VT, 05443, USA |
| MODULE INFO | SUNPOWER, E20/327 |
| MODULE WIDTH | 41.18 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 105.00 |
| SNOW LOAD OVERRIDE | 60.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 4617.34 |
| TOTAL WEIGHT | 812.85 |
| TOTAL PALLETS | 1.00 |
