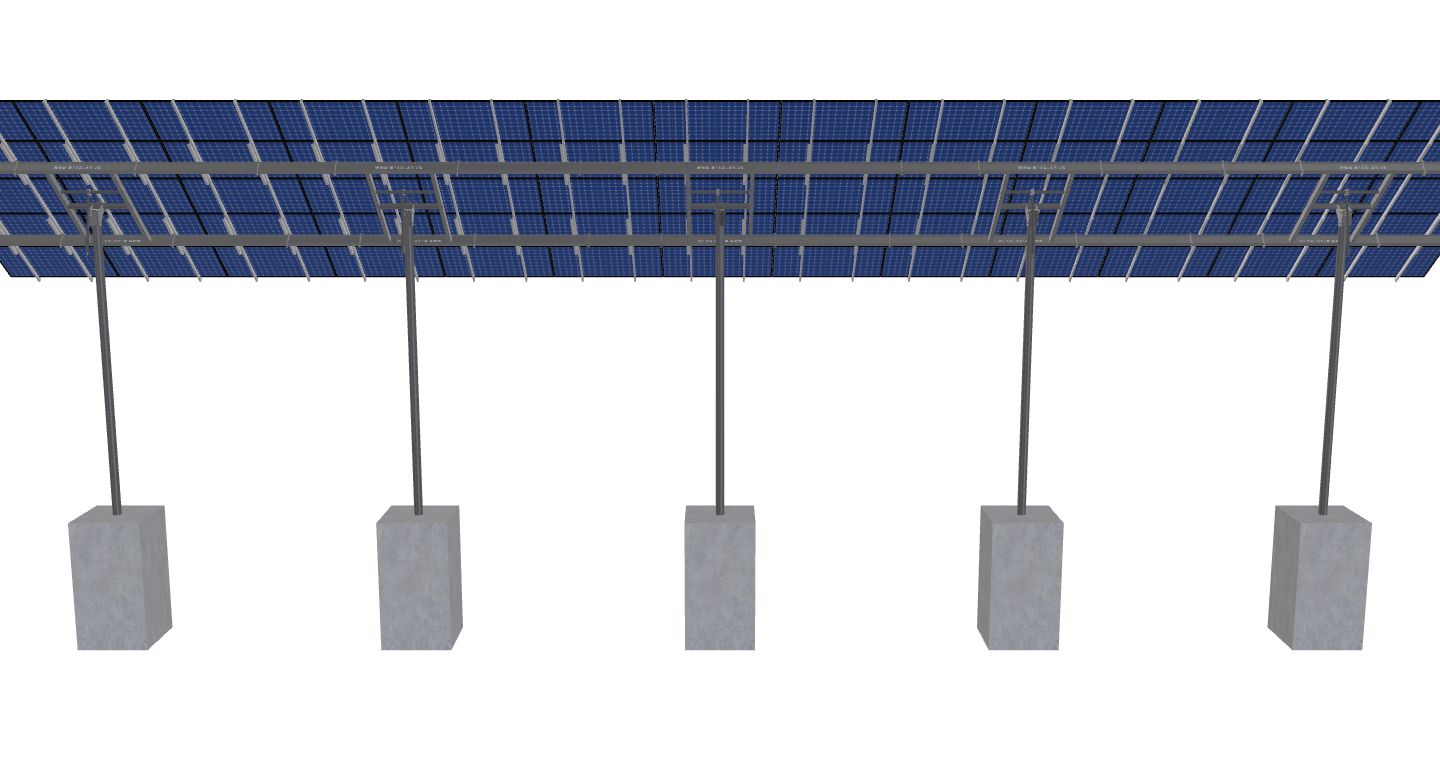

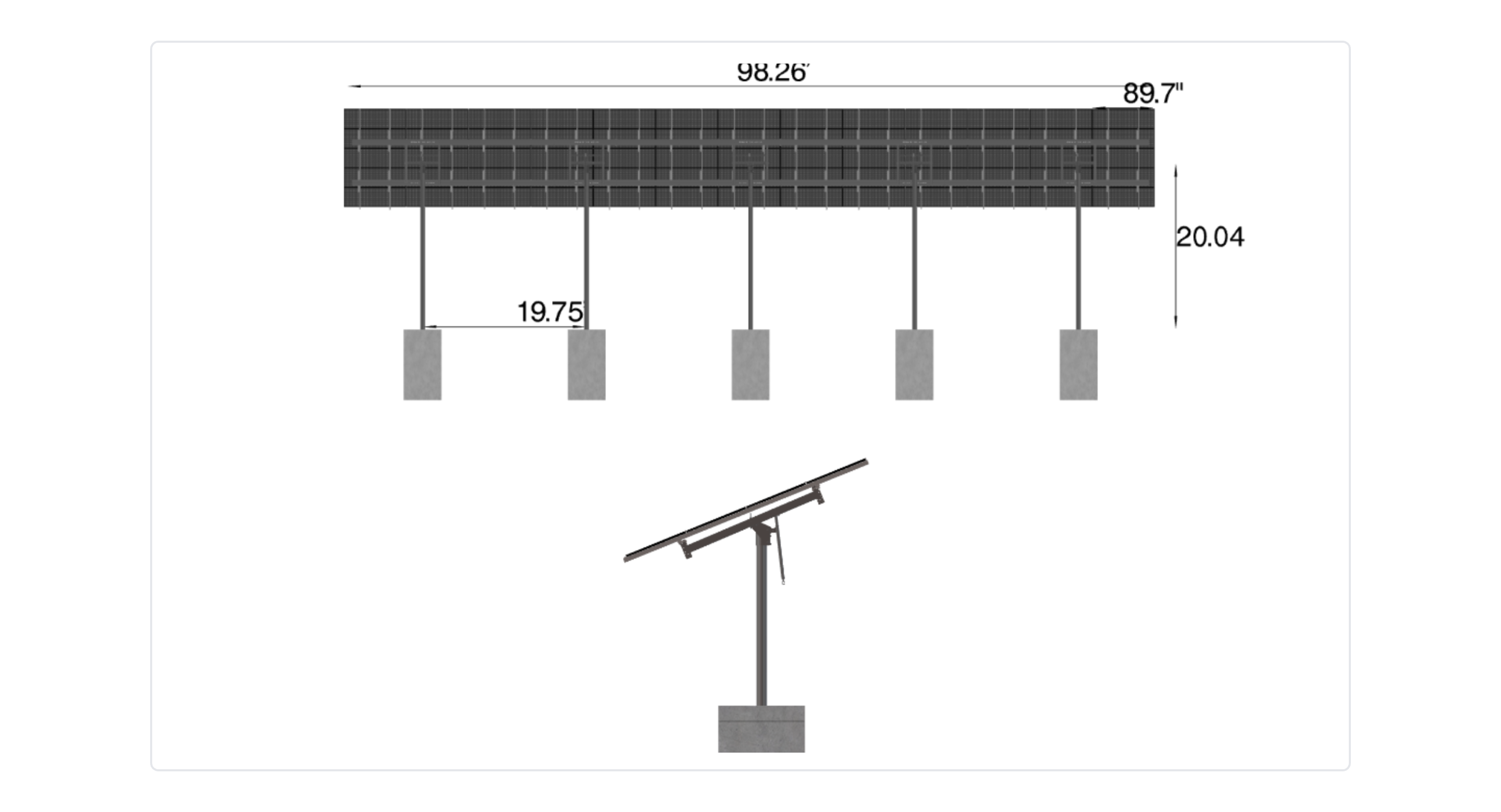

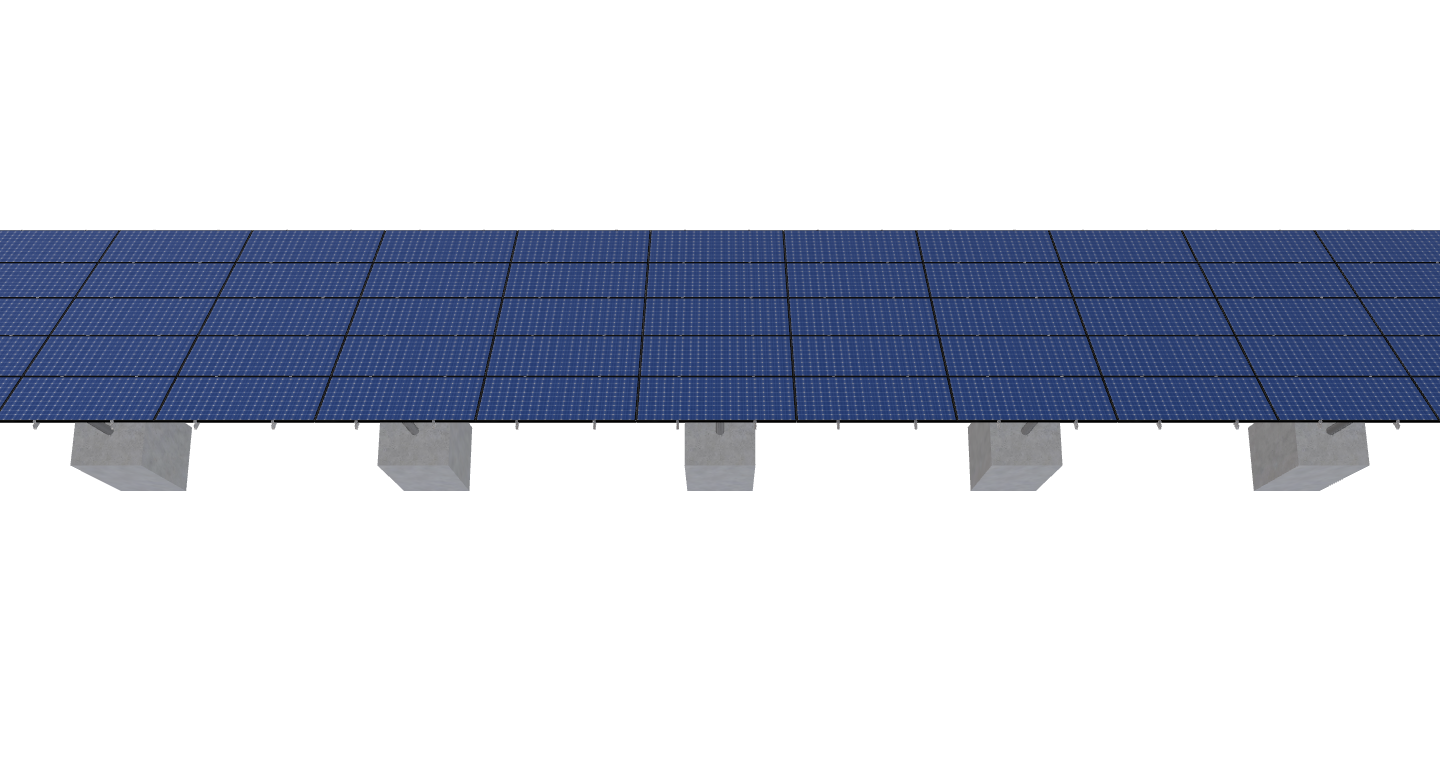

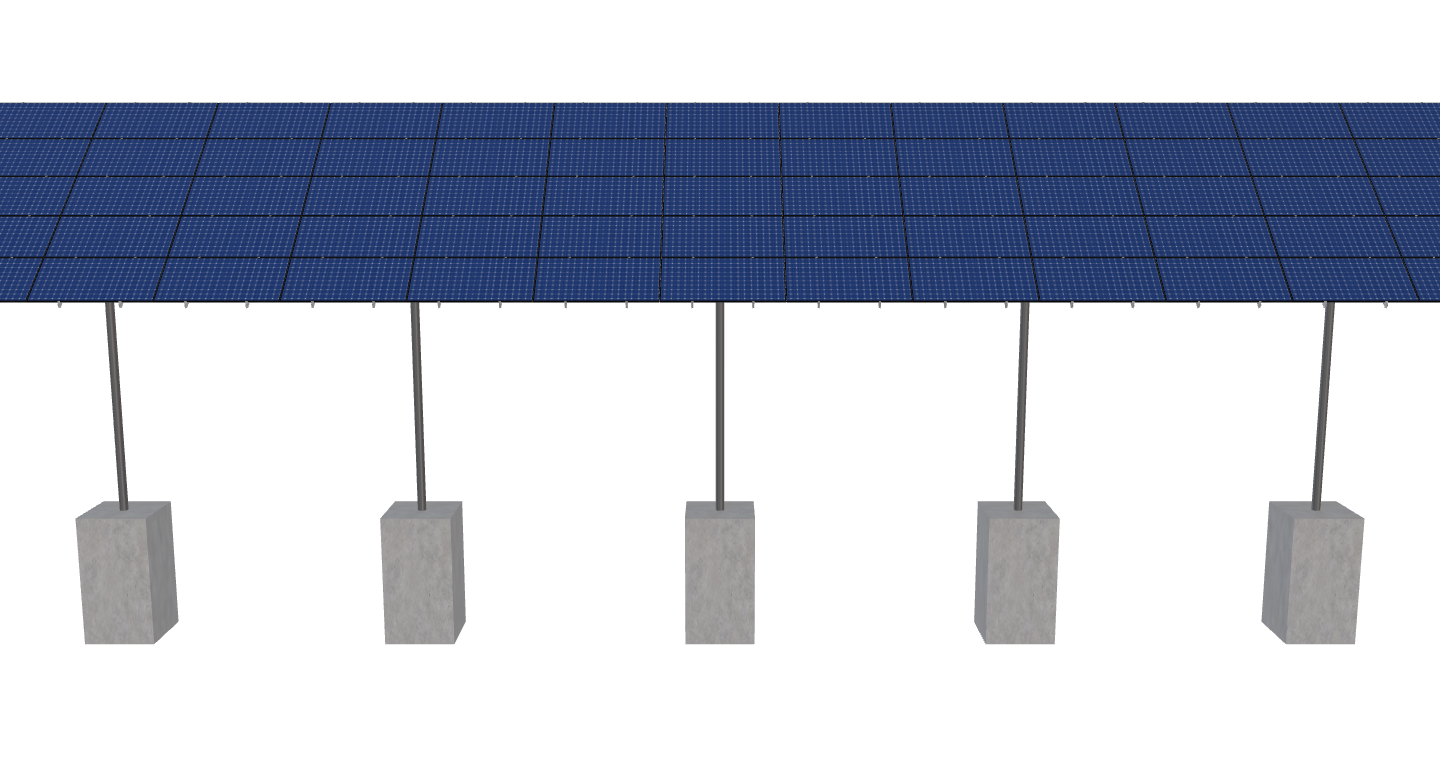

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.7 inches by 44.6 inches and an array layout of 13 wide by 5 high.
This mount fits on 5 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
VIs – Paved Area – Cantilever – 5P – 5×13 – 19spacing- RevA – Jb
$30,771.71
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.7 inches by 44.6 inches and an array layout of 13 wide by 5 high.
This mount fits on 5 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 5939.870000000001 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 5P-19.75-10TOP-XD-57-L-5HX13W-STRUTS-H03K |
| DUTY SIZE | XD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 5.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 20.04 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 8.50 |
| TILT ANGLE | 40.00 |
| CANTILEVER | 1152.00 |
| GROUND CLEARANCE | 14.00 |
| NO POLES | 5.00 |
| MODULE AREA | 1846.44 |
| ARRAY WIDTH | 98.26 |
| ARRAY HEIGHT | 18.79 |
| RAIL LENGTH | 225.50 |
| MODULE LENGTH | 89.70 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 96.00 |
| GROUND TO TOP | 26.01 |
| PROJECTED PANEL HEIGHT | 11.95 |
| WIND SPEED OVERRIDE | 91.00 |
| SNOW LOAD OVERRIDE | 79.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | TRUE |
| PROJECT ID | VIS, -, PAVED, AREA, -, CANTILEVER, -, 5P, -, 5X13, -, 19SPACING-, REVA, -, JB |
| SITE ADDRESS | 6575, OR-35, MT, HOOD, OR, 97041, USA |
| MODULE WIDTH | 44.60 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 13.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | XD |
| POLE OVERRIDE | 10, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 29306.39 |
| TOTAL WEIGHT | 5939.87 |
| TOTAL PALLETS | 5.00 |
https://skycivquotes.s3.amazonaws.com/da65c27e-97ae-4266-993b-f9a57d7bbc91.pdf |
|
| ID | 5656.00 |
| 3D Solar link |
