This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 73 inches by 42.1 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

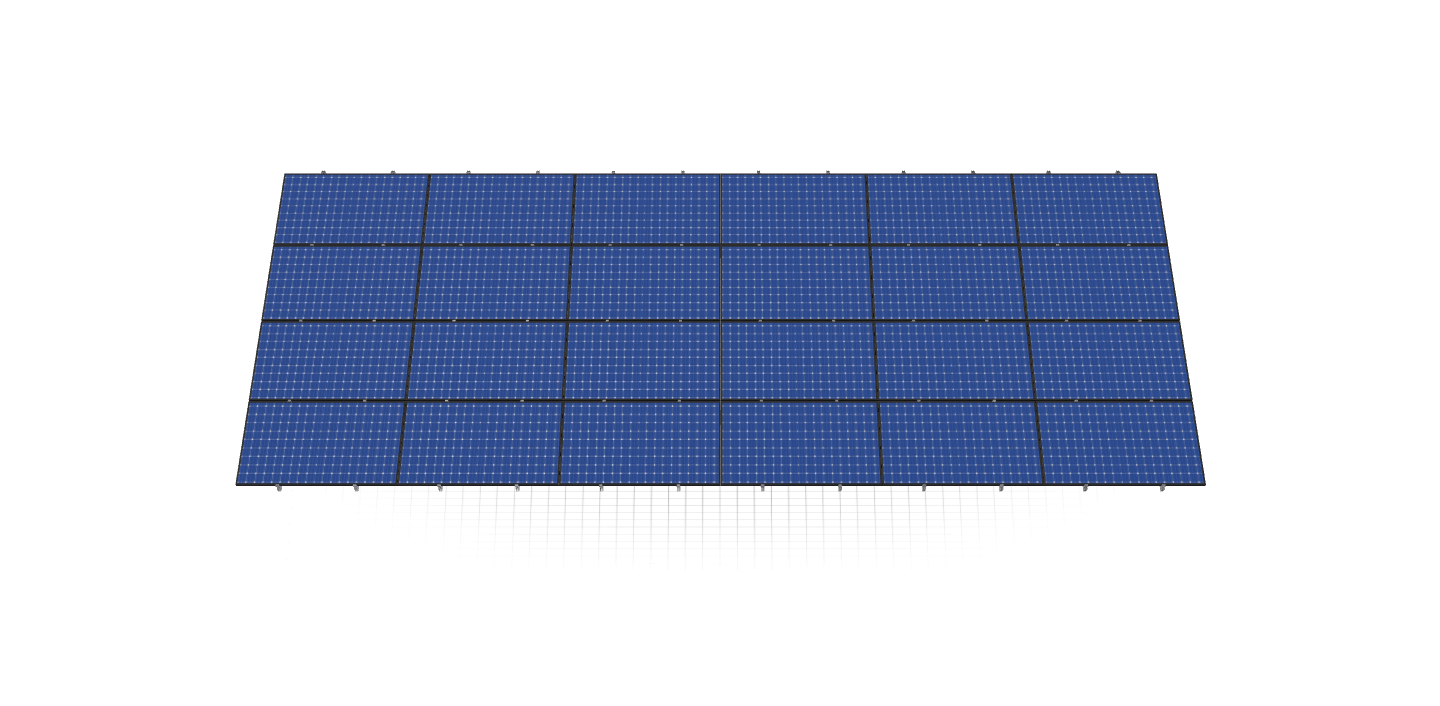

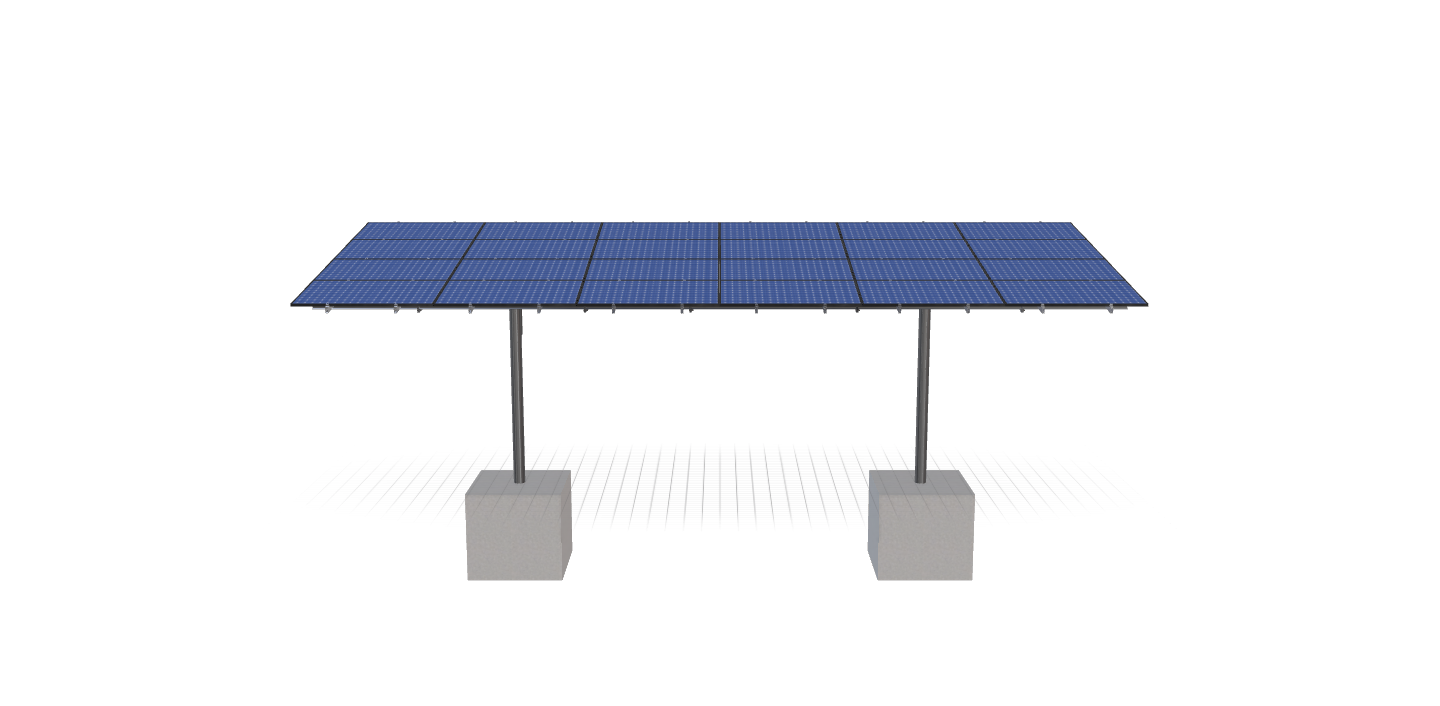

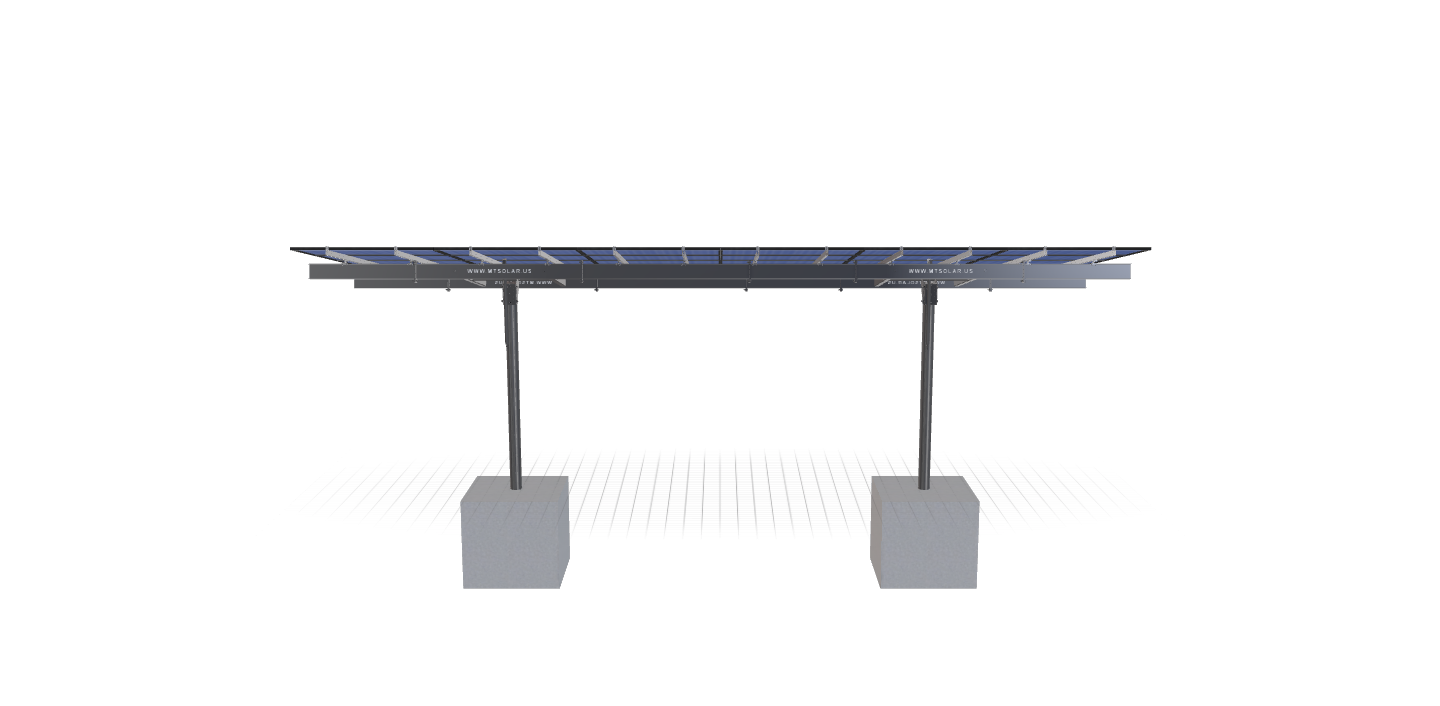

See 3D Model Here
W11313 106 mph 58 psi
$11,009.09
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 73 inches by 42.1 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1952.0199999999998 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-19.75-6TOP-XD-57-L-4HX6W-18L8 |
| DUTY SIZE | XD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 10.23 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 4.25 |
| TILT ANGLE | 10.00 |
| CANTILEVER | 441.00 |
| GROUND CLEARANCE | 9.00 |
| NO POLES | 2.00 |
| MODULE AREA | 525.40 |
| ARRAY WIDTH | 37.00 |
| ARRAY HEIGHT | 14.20 |
| RAIL LENGTH | 170.40 |
| MODULE LENGTH | 73.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 36.75 |
| GROUND TO TOP | 11.45 |
| PROJECTED PANEL HEIGHT | 2.44 |
| PROJECT ID | W11313, 106, MPH, 58, PSI |
| SITE ADDRESS | 319, MAIN, ST, ANACONDA, MT, 59711, USA |
| MODULE WIDTH | 42.10 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| WIND SPEED OVERRIDE | 106.00 |
| SNOW LOAD OVERRIDE | 58.00 |
| DIRECT SNOW LOAD | FALSE |
| TOTAL PRICE | 10484.85 |
| TOTAL WEIGHT | 1952.02 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/ddc018c8-7054-43d3-a7d4-9a9eb5c7d3c8.pdf |
|
| ID | 1436.00 |
| 3D Solar link |
