W12116 5×6 Revb CU

$10,689.72

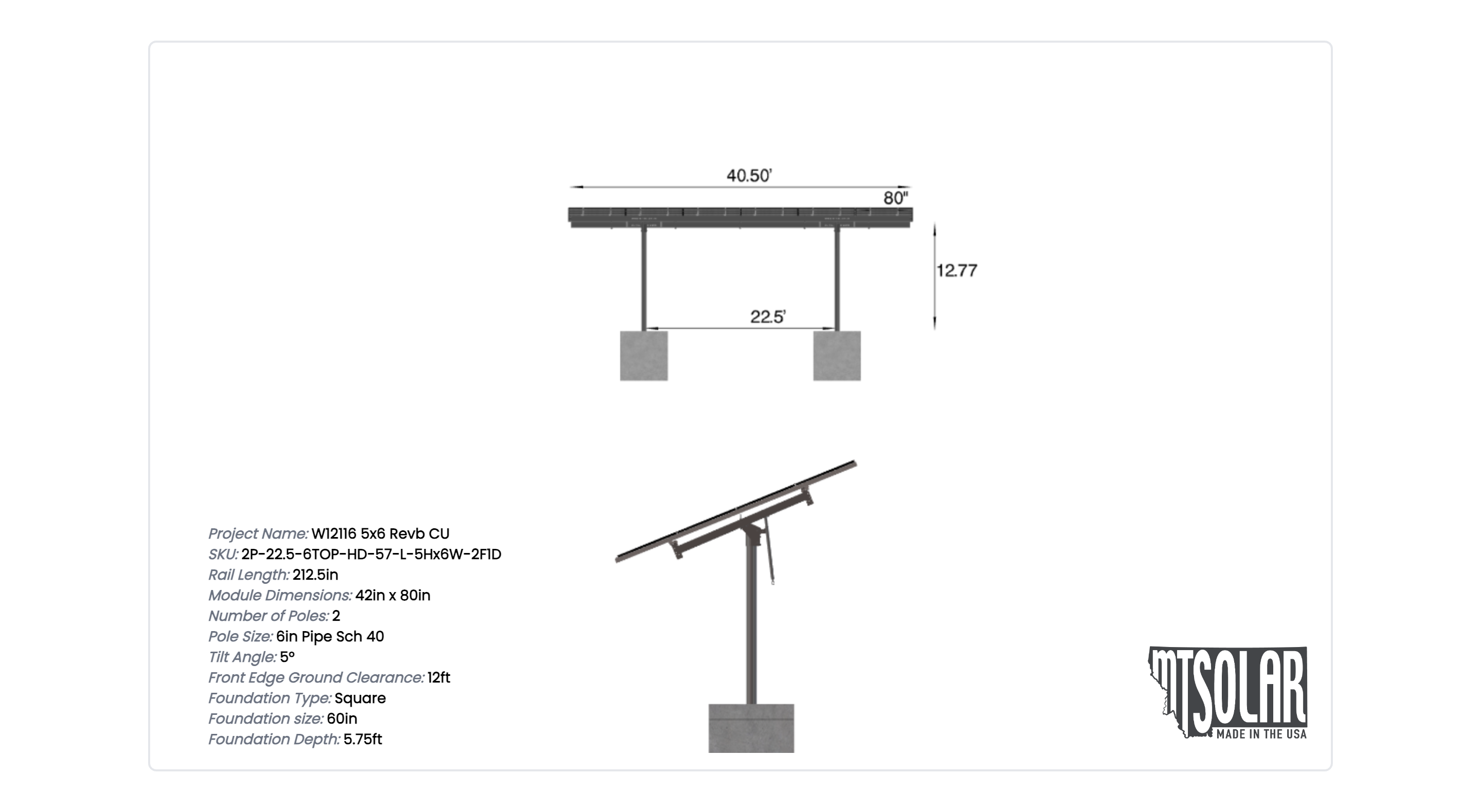

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 80 inches by 42 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

SKU: 2P-22.5-6TOP-HD-57-L-5Hx6W-2F1D Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 80 inches by 42 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 2162.82 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

2P-22.5-6TOP-HD-57-L-5HX6W-2F1D

DUTY SIZE

HD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

2.00

POLE SPACING

22.50

POLE HEIGHT

12.77

WING SPAN

57.00

MAX FOUNDATION DEPTH

5.75

TILT ANGLE

5.00

CANTILEVER

474.00

GROUND CLEARANCE

12.00

NO POLES

2.00

MODULE AREA

717.19

ARRAY WIDTH

40.50

ARRAY HEIGHT

17.71

RAIL LENGTH

212.50

MODULE LENGTH

80.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

39.50

GROUND TO TOP

13.53

PROJECTED PANEL HEIGHT

1.53

WIND SPEED OVERRIDE

170.00

SNOW LOAD OVERRIDE

0.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

W12116, 5X6, REVB, CU

SITE ADDRESS

10250, NW, 60TH, PL, PARKLAND, FL, 33076, USA

MODULE WIDTH

42.00

NUMBER ROWS

5.00

NUMBER COLUMNS

6.00

RISK CATEGORY

II

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

60.00

CHECK RAILS

TRUE

TOTAL PRICE

10689.72

TOTAL WEIGHT

2162.82

TOTAL PALLETS

2.00
