This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.13 inches by 40.9 inches and an array layout of 10 wide by 5 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
W12185 – REVISION CU4
$16,382.91
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.13 inches by 40.9 inches and an array layout of 10 wide by 5 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3305.09 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-19.75-6TOP-HD-57-L-5HX10W-KK4F |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 19.75 |

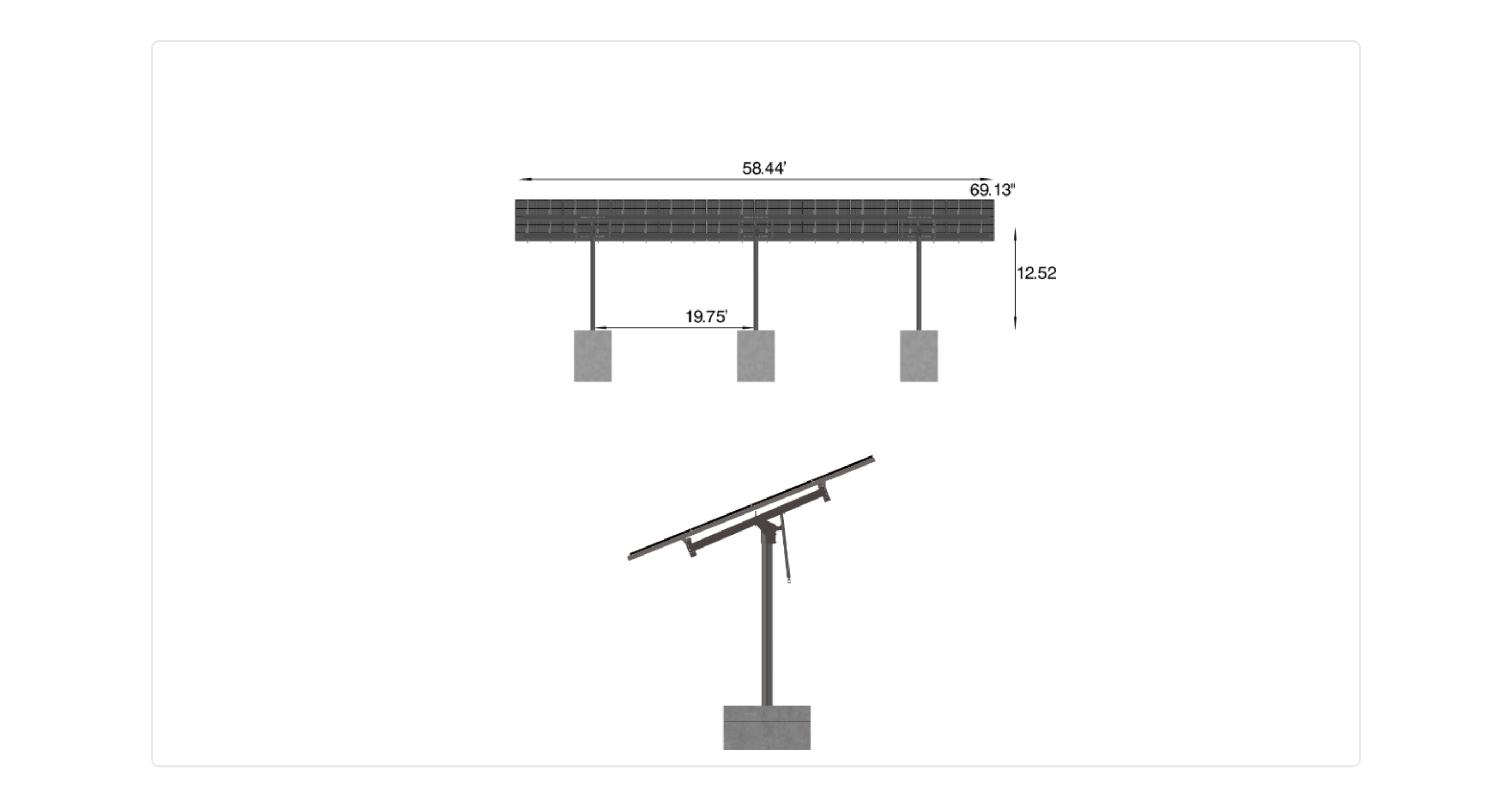

| POLE HEIGHT | 12.52 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 6.25 |
| TILT ANGLE | 17.00 |
| CANTILEVER | 678.00 |
| GROUND CLEARANCE | 10.00 |
| NO POLES | 3.00 |
| MODULE AREA | 1008.12 |
| ARRAY WIDTH | 58.44 |
| ARRAY HEIGHT | 17.25 |
| RAIL LENGTH | 207.00 |
| MODULE LENGTH | 69.13 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 56.50 |
| GROUND TO TOP | 15.01 |
| PROJECTED PANEL HEIGHT | 4.98 |
| WIND SPEED OVERRIDE | 106.00 |
| SNOW LOAD OVERRIDE | 30.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | W12185, -, REVISION, CU4 |
| SITE ADDRESS | 2845, N, SANDERS, ST, HELENA, MT, 59601, USA |
| MODULE WIDTH | 40.90 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 10.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 16382.91 |
| TOTAL WEIGHT | 3305.09 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/9566f4b2-4a7a-4228-8f04-7cefbb13ee43.pdf |
|
| ID | 4121.00 |
| 3D Solar link |
