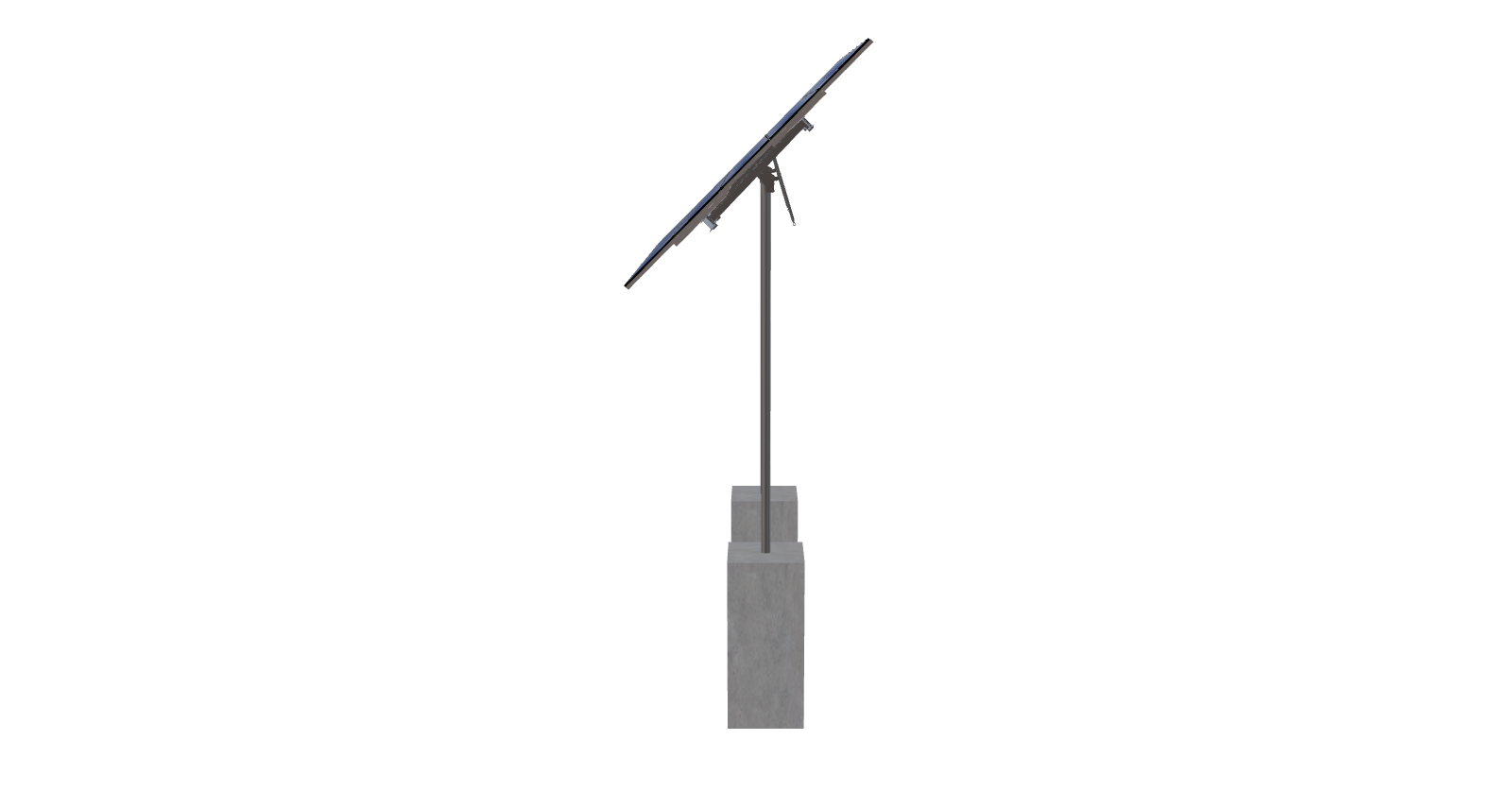

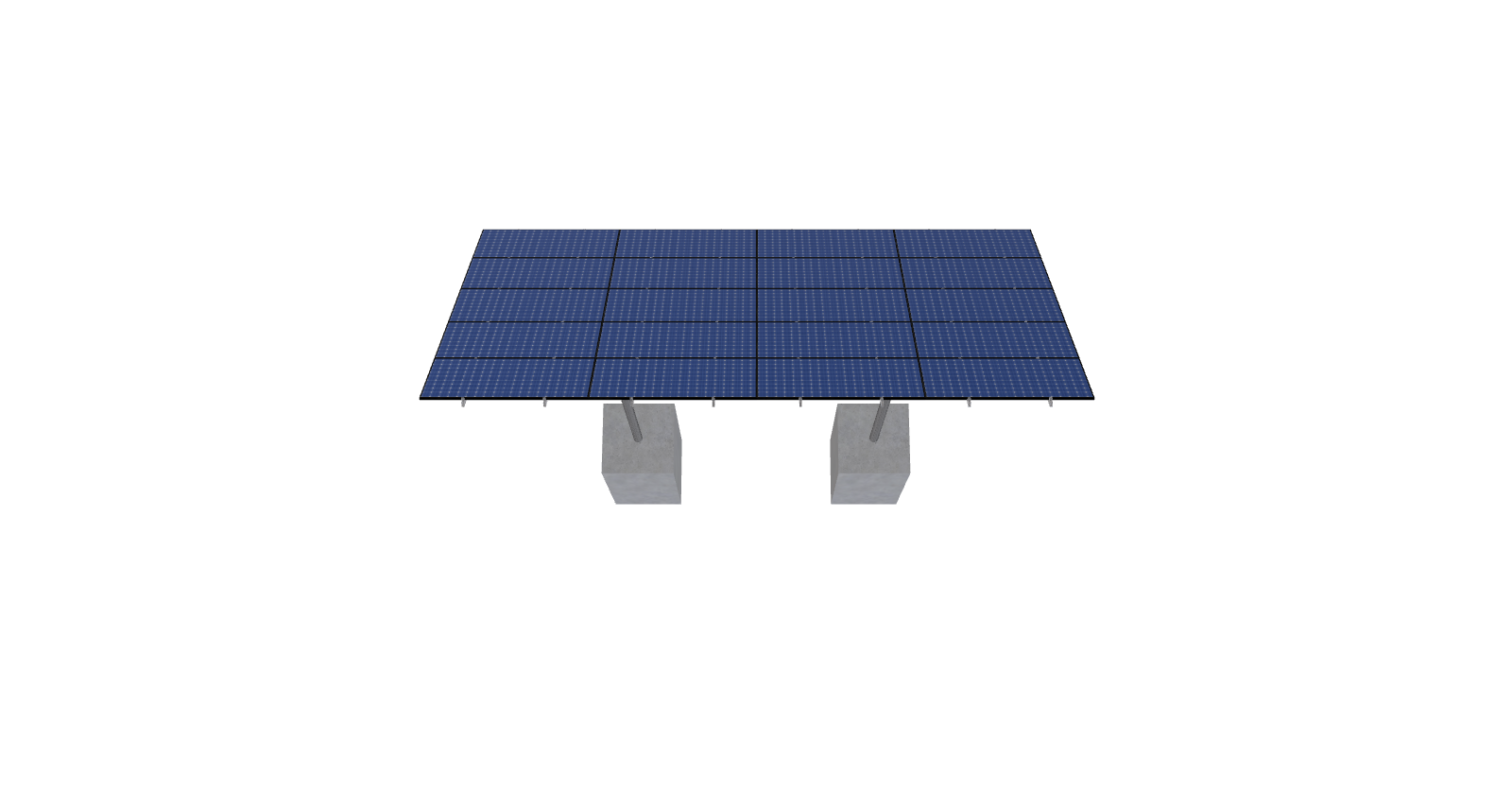

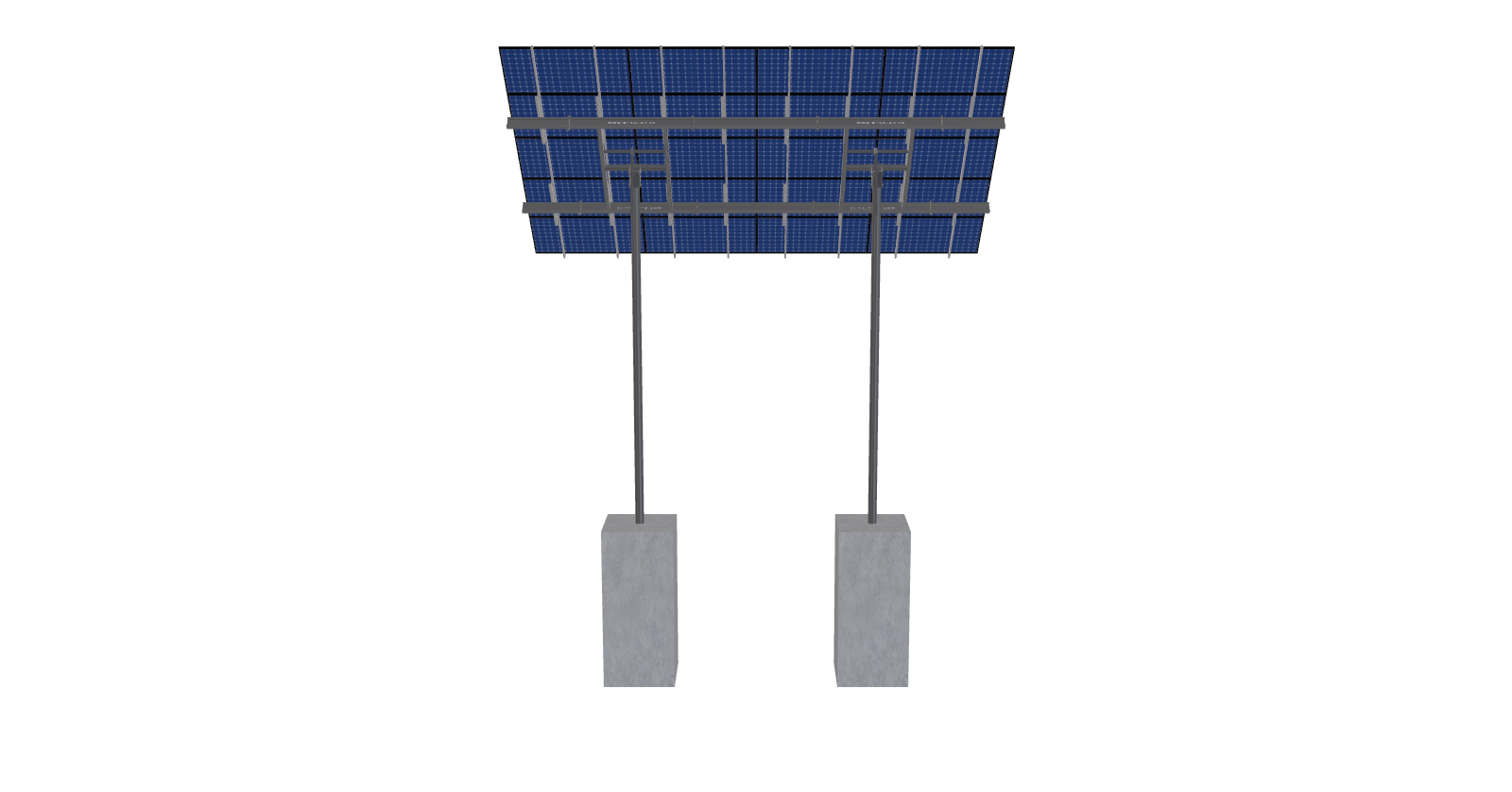

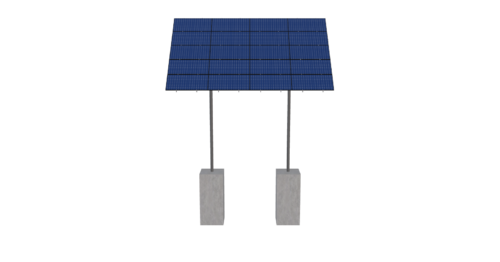

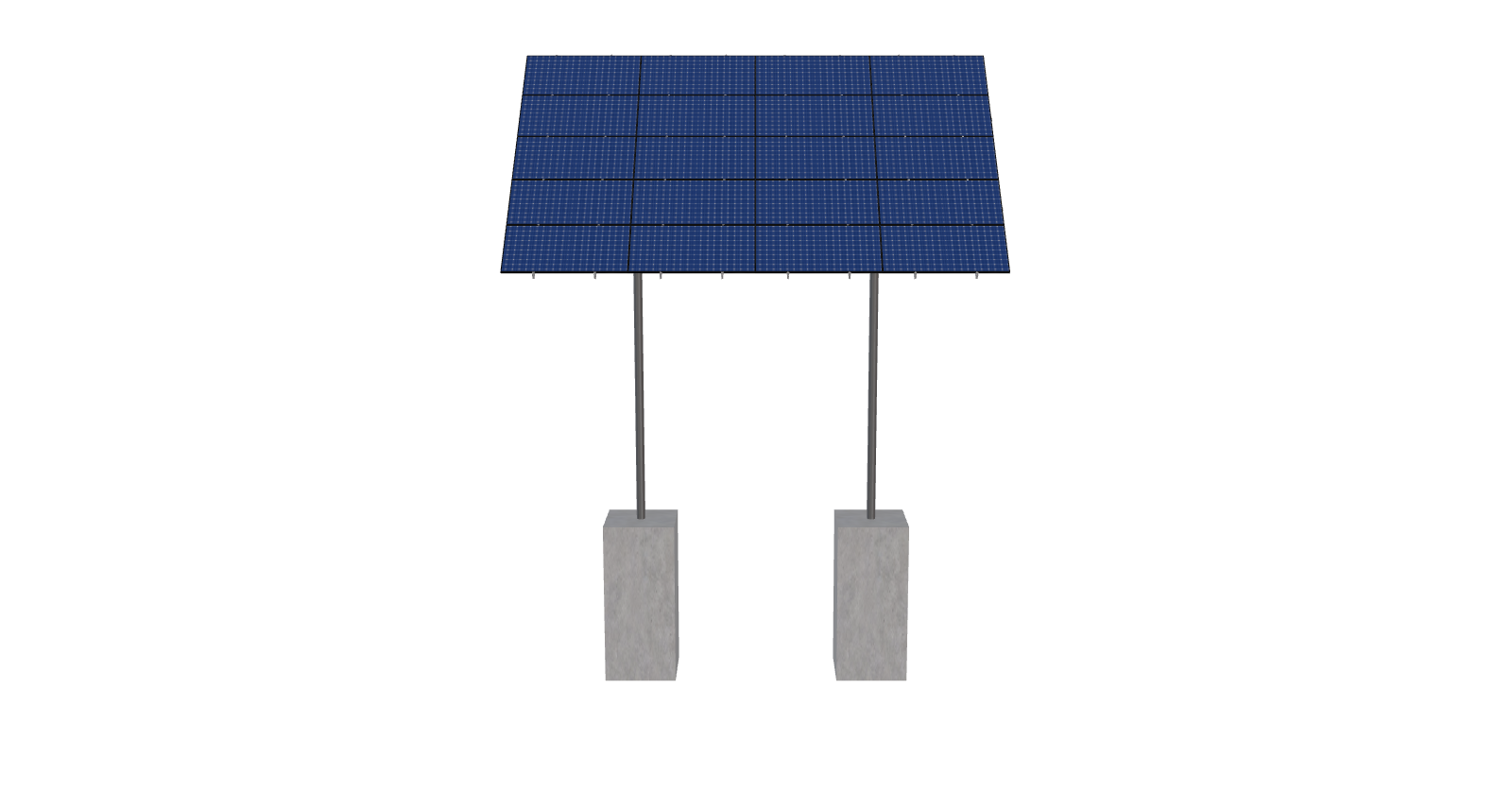

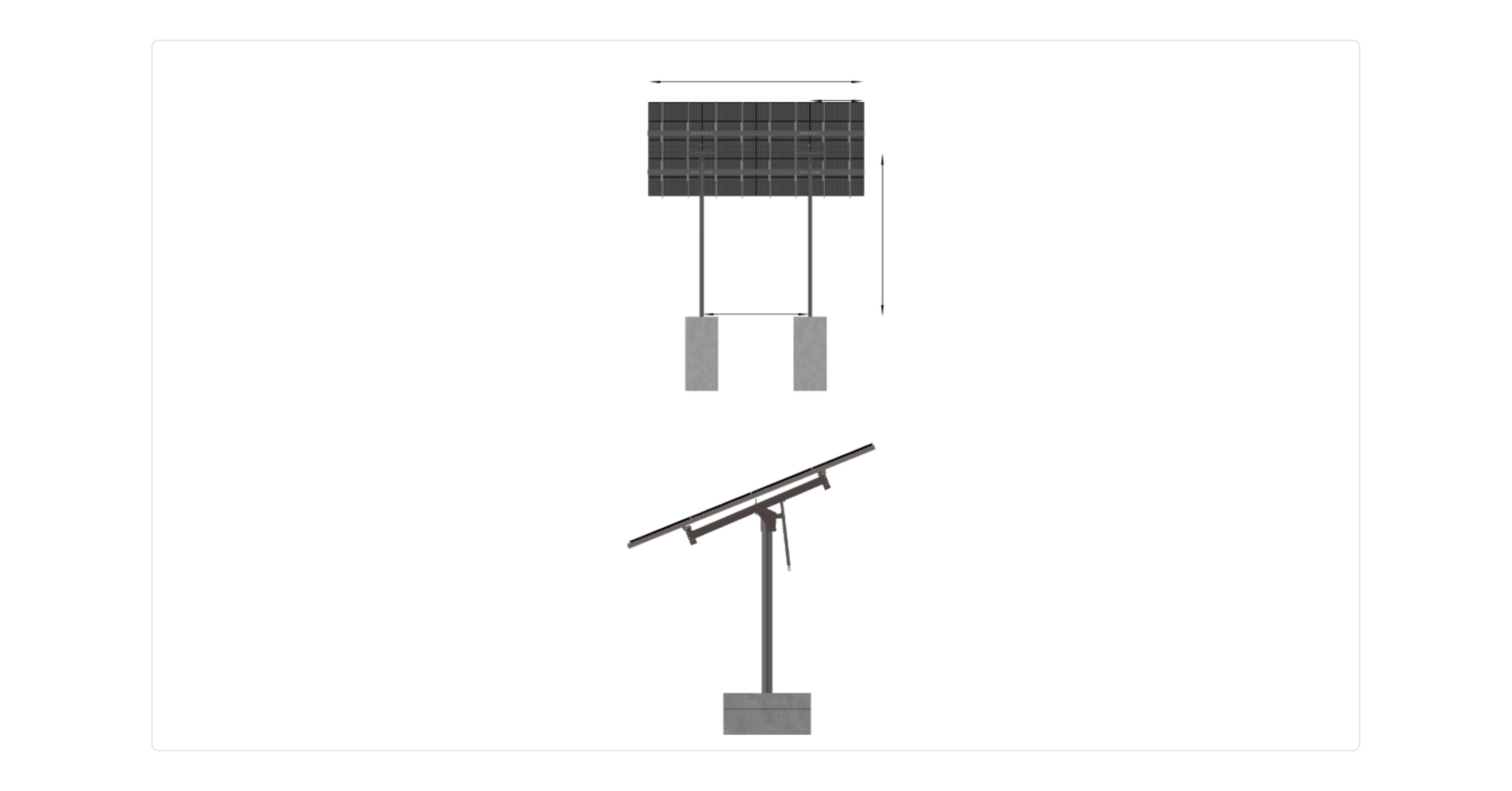

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.2 inches by 44.6 inches and an array layout of 4 wide by 5 high.
This mount fits on 2 – 10in Pipe Sch 80 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
W12473-Boxpower-3cu
$10,115.49
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.2 inches by 44.6 inches and an array layout of 4 wide by 5 high.
This mount fits on 2 – 10in Pipe Sch 80 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2000.86 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-15-10TOP-XD-45-L-5HX4W-77DB |
| DUTY SIZE | XD |
| POLE SIZE | 10IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 15.00 |
| POLE HEIGHT | 22.64 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 10.25 |
| TILT ANGLE | 45.00 |
| CANTILEVER | 360.00 |
| GROUND CLEARANCE | 16.00 |
| NO POLES | 2.00 |
| MODULE AREA | 565.00 |
| ARRAY WIDTH | 30.07 |
| ARRAY HEIGHT | 18.79 |
| RAIL LENGTH | 225.50 |
| MODULE LENGTH | 89.20 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 30.00 |
| GROUND TO TOP | 29.21 |
| PROJECTED PANEL HEIGHT | 13.14 |
| WIND SPEED OVERRIDE | 101.00 |
| SNOW LOAD OVERRIDE | 75.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | W12473-BOXPOWER-3CU |
| SITE ADDRESS | QG99+43, CONCOW, CA, USA |
| MODULE WIDTH | 44.60 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 4.00 |
| RISK CATEGORY | III |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 10115.49 |
| TOTAL WEIGHT | 2000.86 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/bda37dfd-de72-42f9-bf39-ccbcd7c0413f.pdf |
|
| ID | 7121.00 |
| 3D Solar link |
