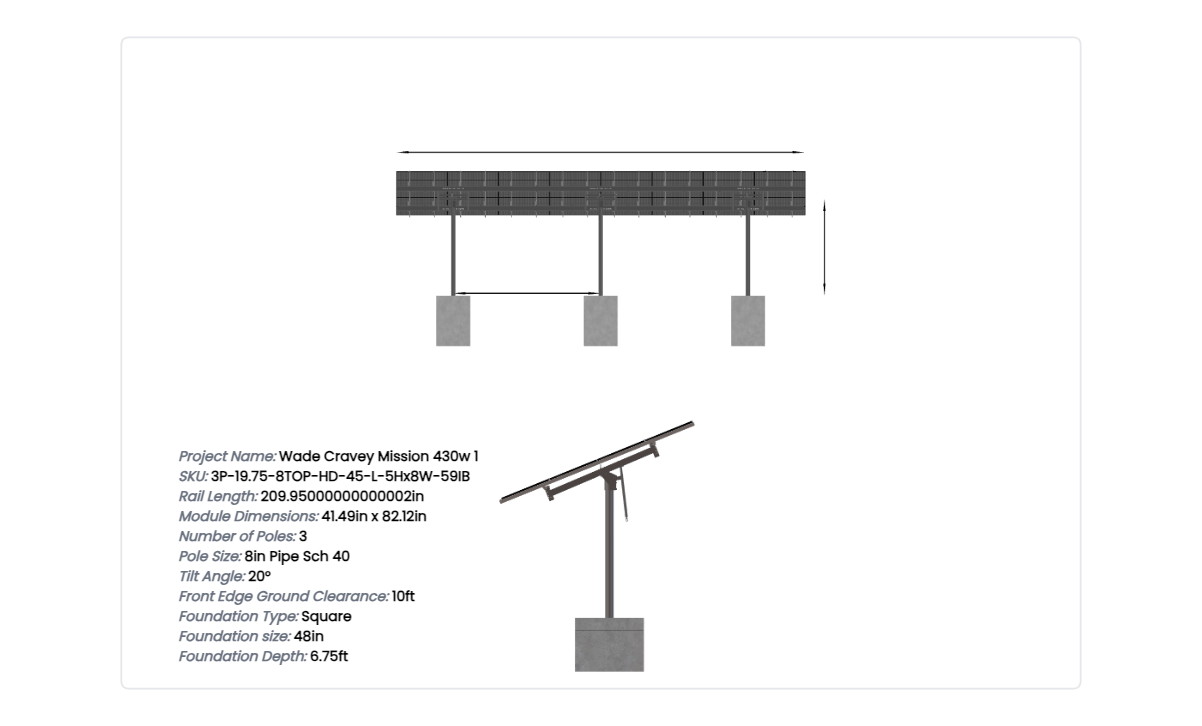

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.12 inches by 41.49 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Wade Cravey Mission 430w 1
$15,464.26
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.12 inches by 41.49 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3107.21 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-19.75-8TOP-HD-45-L-5HX8W-59IB |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 12.99 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 6.75 |
| TILT ANGLE | 20.00 |
| CANTILEVER | 654.00 |
| GROUND CLEARANCE | 10.00 |
| NO POLES | 3.00 |
| MODULE AREA | 969.50 |
| ARRAY WIDTH | 55.41 |
| ARRAY HEIGHT | 17.50 |
| RAIL LENGTH | 209.95 |
| MODULE LENGTH | 82.12 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 54.50 |
| GROUND TO TOP | 15.95 |
| PROJECTED PANEL HEIGHT | 5.91 |
| PROJECT ID | WADE, CRAVEY, MISSION, 430W, 1 |
| SITE ADDRESS | S, STATE, HWY, 78, FARMERSVILLE, TX, USA |
| MODULE WIDTH | 41.49 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 8.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 15464.26 |
| TOTAL WEIGHT | 3107.21 |
| TOTAL PALLETS | 3.00 |
