This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 86.81 inches by 63 inches and an array layout of 2 wide by 3 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

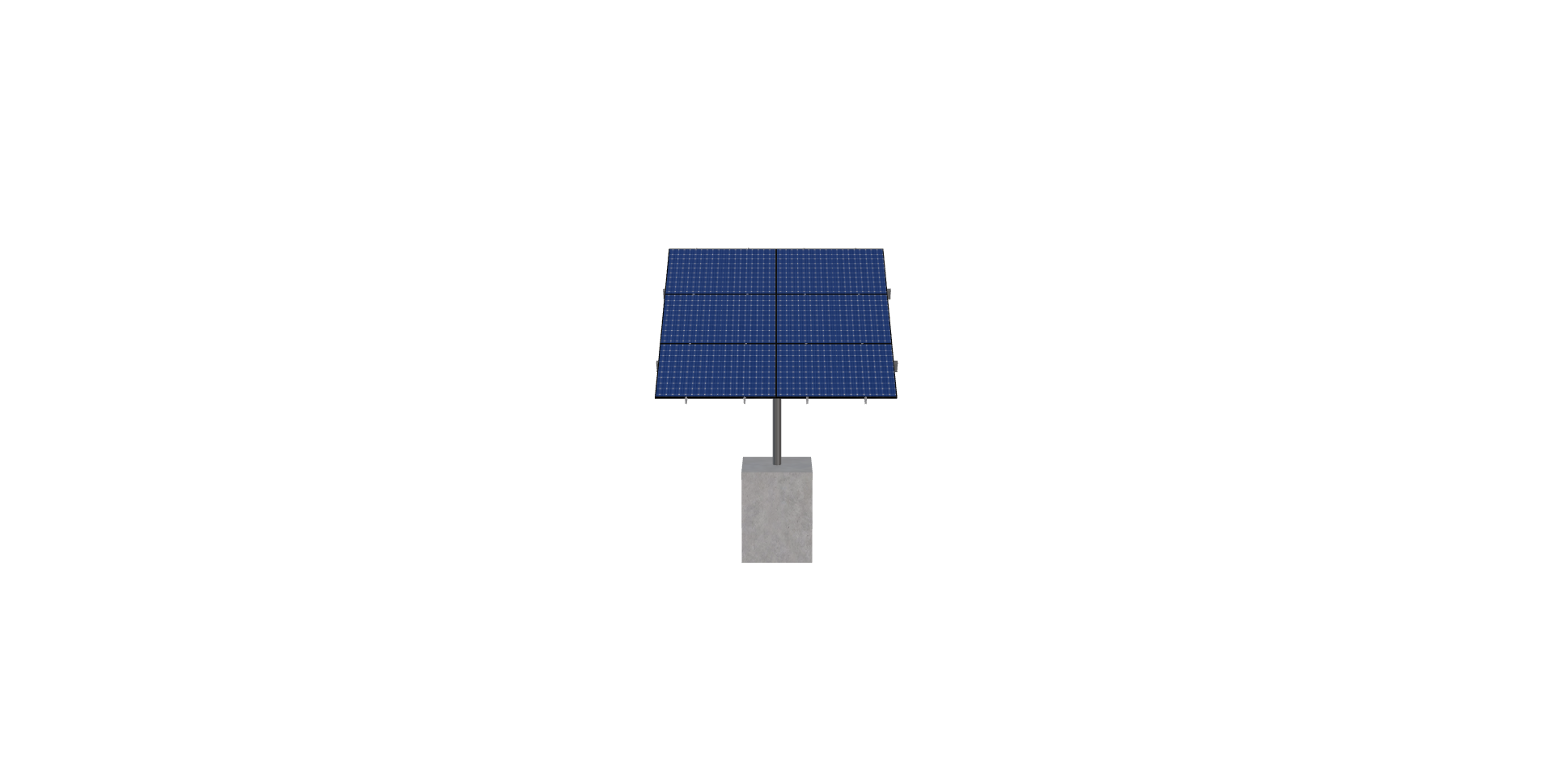

See 3D Model Here
Wapello County
$4,210.65
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 86.81 inches by 63 inches and an array layout of 2 wide by 3 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information

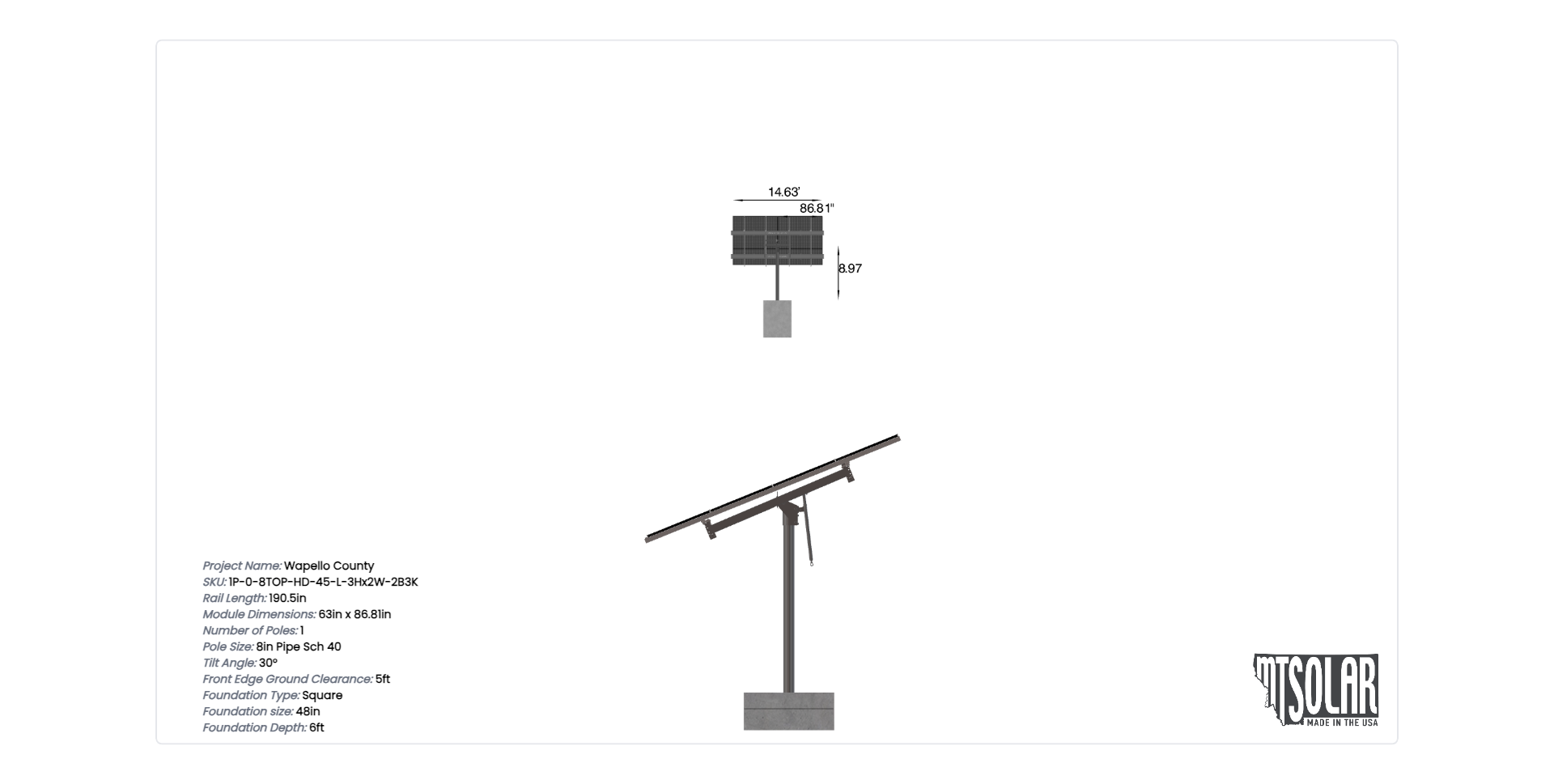

| Weight | 742.5500000000001 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-8TOP-HD-45-L-3HX2W-2B3K |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 8.97 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 6.00 |
| TILT ANGLE | 30.00 |
| CANTILEVER | 180.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 1.00 |
| MODULE AREA | 232.33 |
| ARRAY WIDTH | 14.63 |
| ARRAY HEIGHT | 15.88 |
| RAIL LENGTH | 190.50 |
| MODULE LENGTH | 86.81 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 15.00 |
| GROUND TO TOP | 12.91 |
| PROJECTED PANEL HEIGHT | 7.88 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | WAPELLO, COUNTY |
| SITE ADDRESS | 1225, US-63, BLOOMFIELD, IA, 52537, USA |
| MODULE WIDTH | 63.00 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 2.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 4010.14 |
| TOTAL WEIGHT | 742.55 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/03d4daac-0b38-41ab-864d-c072ed991e85.pdf |
|
| ID | 3173.00 |
| 3D Solar link |
