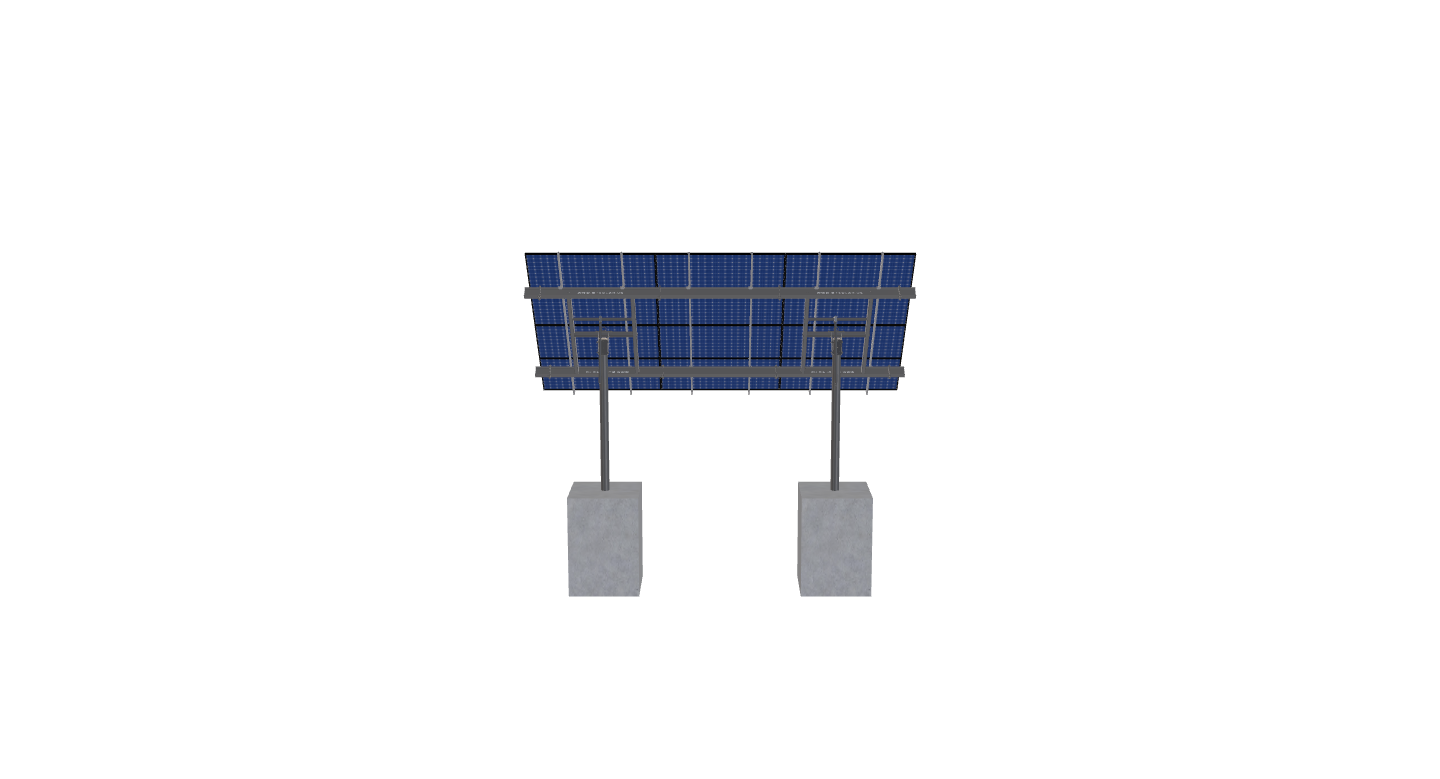

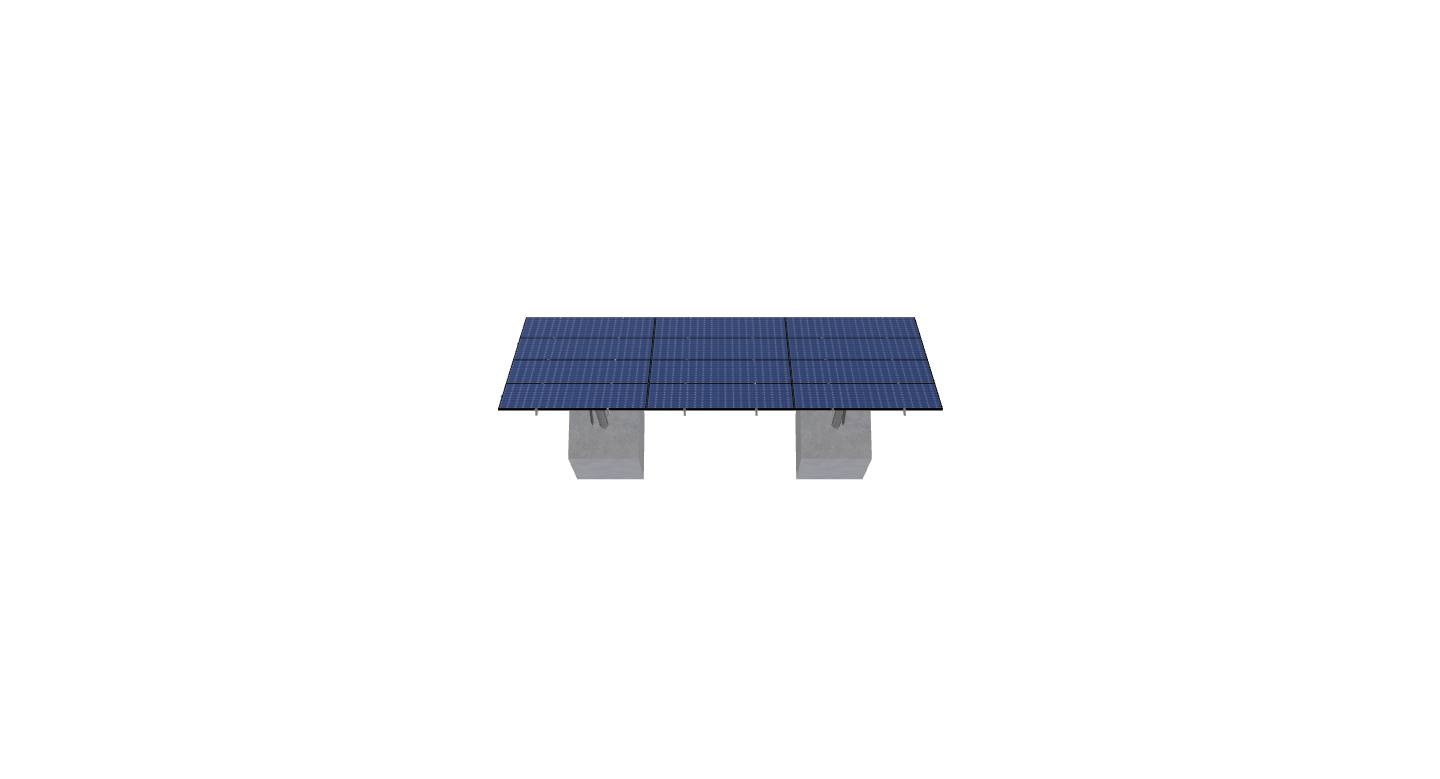

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 96 inches by 40 inches and an array layout of 3 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Warren reva – Jb
$6,385.86
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 96 inches by 40 inches and an array layout of 3 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1118.16 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-15-6TOP-SD-12-L-4HX3W-F9LI |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 15.00 |
| POLE HEIGHT | 10.17 |
| WING SPAN | 12.00 |
| MAX FOUNDATION DEPTH | 6.50 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 294.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 2.00 |
| MODULE AREA | 327.38 |
| ARRAY WIDTH | 24.25 |
| ARRAY HEIGHT | 13.50 |
| RAIL LENGTH | 162.00 |
| MODULE LENGTH | 96.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 24.50 |
| GROUND TO TOP | 15.28 |
| PROJECTED PANEL HEIGHT | 10.21 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | WARREN, REVA, -, JB |
| SITE ADDRESS | KASILOF, AK, 99610, USA |
| MODULE WIDTH | 40.00 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 6385.86 |
| TOTAL WEIGHT | 1118.16 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/f85615da-da38-4591-a581-f94718d26614.pdf |
|
| ID | 6395.00 |
| 3D Solar link |
