WattsStreetBaptistChurch-JB-RevD

$8,905.90

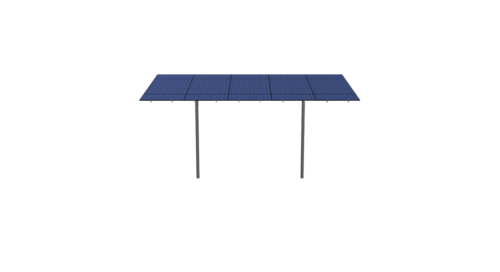

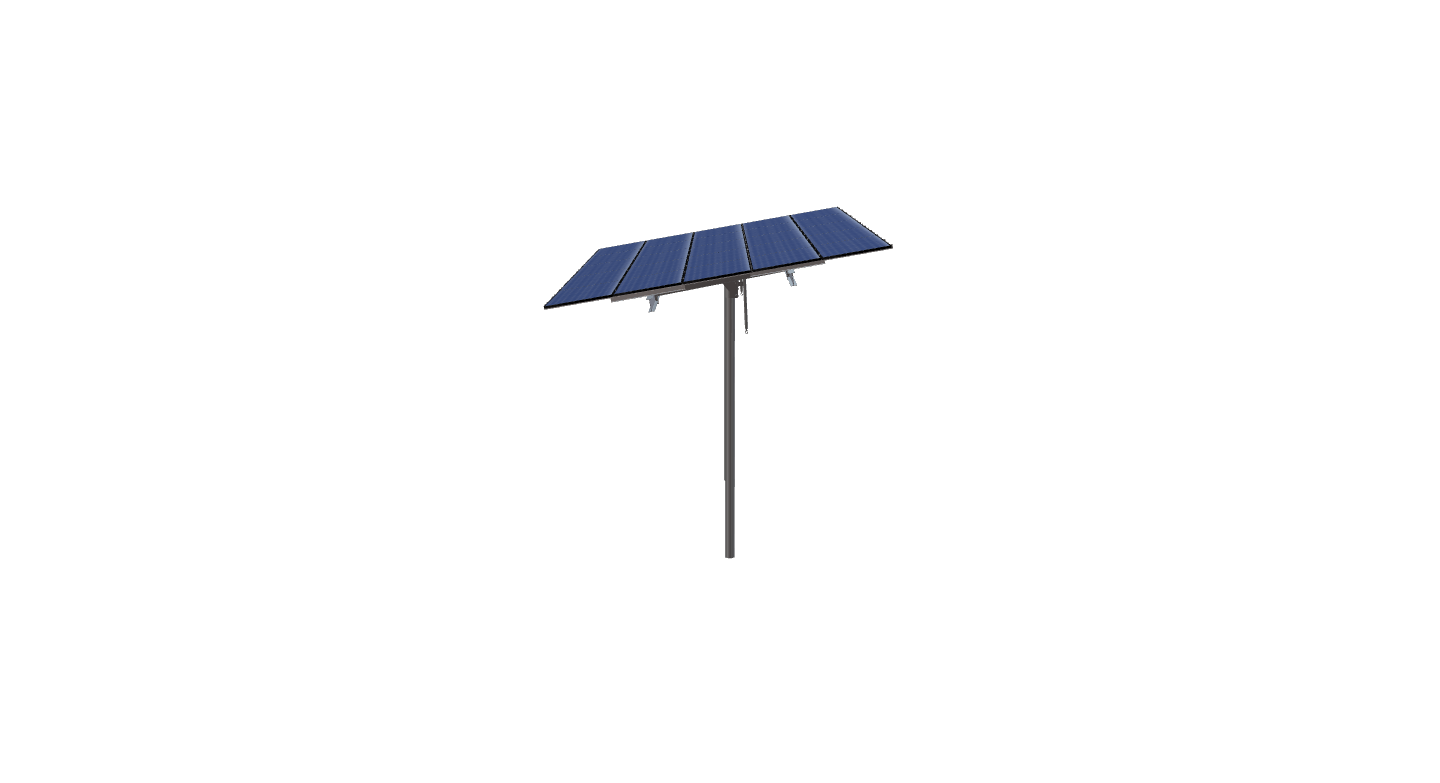

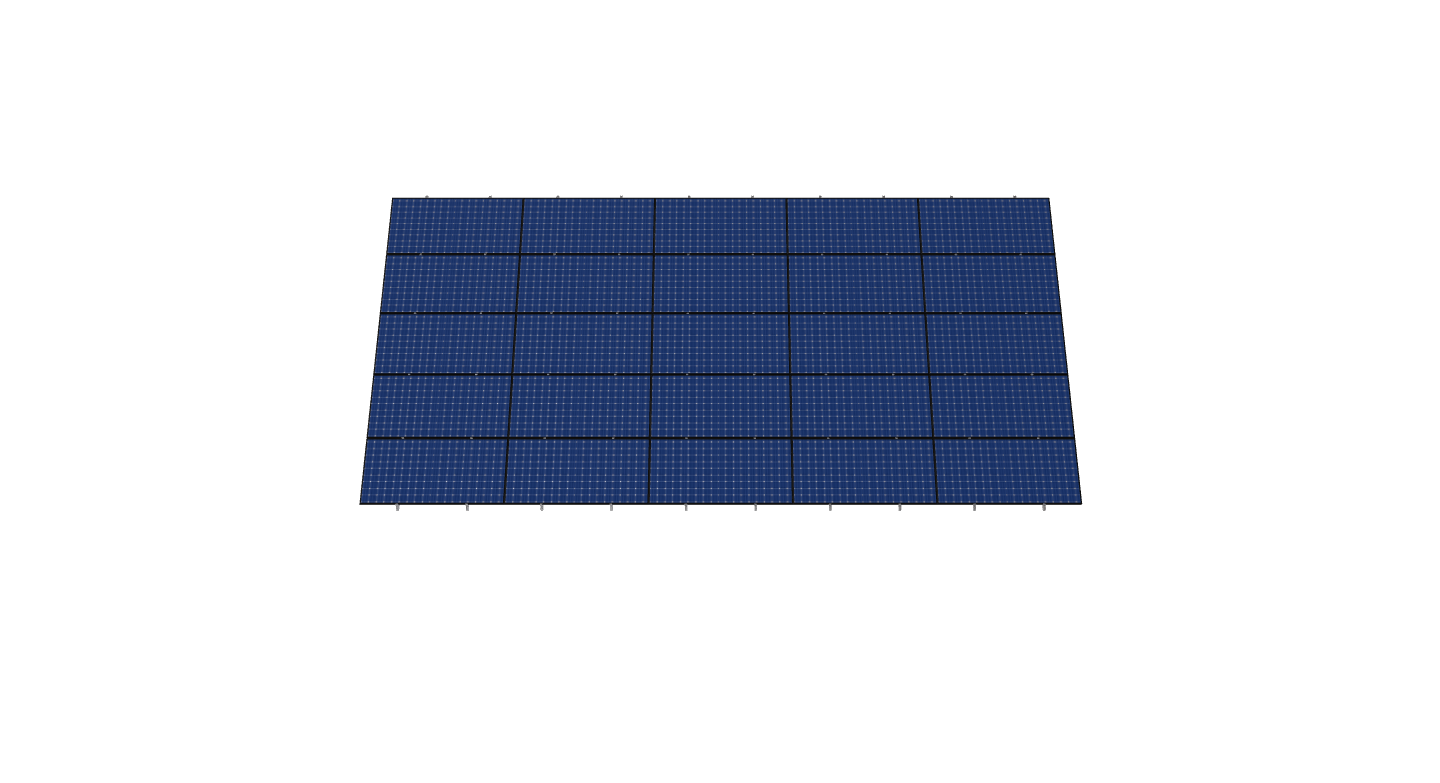

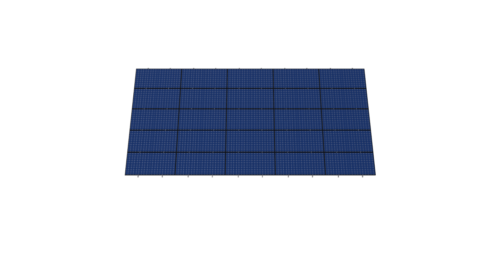

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 88 inches by 44.65 inches and an array layout of 5 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

SKU: 2P-19.75-6TOP-SD-57-L-5Hx5W-I971 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 88 inches by 44.65 inches and an array layout of 5 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 1756.7 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

2P-19.75-6TOP-SD-57-L-5HX5W-I971

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

2.00

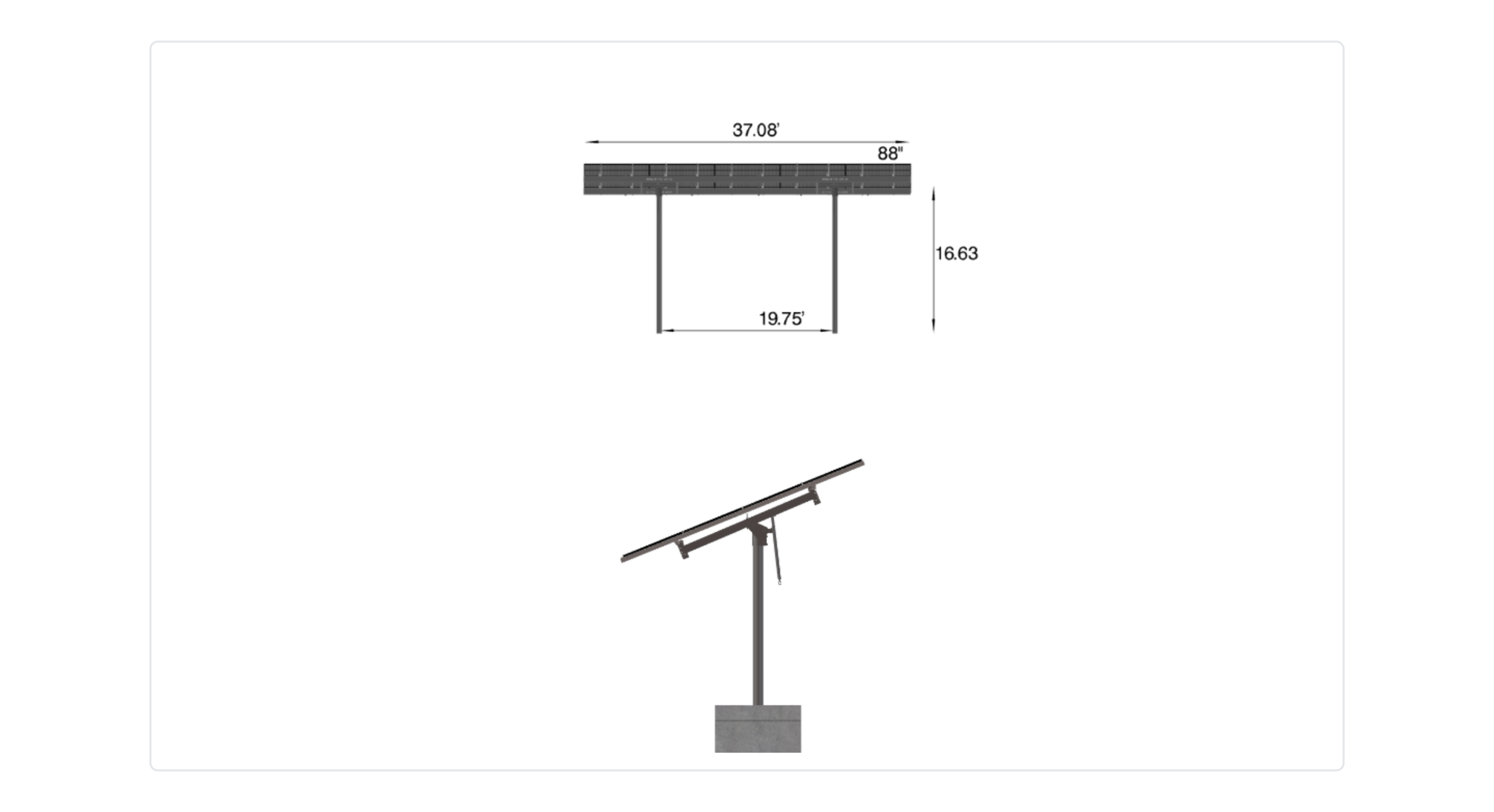

POLE SPACING

19.75

POLE HEIGHT

16.63

WING SPAN

57.00

MAX FOUNDATION DEPTH

7.75

TILT ANGLE

10.00

CANTILEVER

441.00

GROUND CLEARANCE

15.00

NO POLES

2.00

MODULE AREA

697.63

ARRAY WIDTH

37.08

ARRAY HEIGHT

18.81

RAIL LENGTH

225.75

MODULE LENGTH

88.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

36.75

GROUND TO TOP

18.25

PROJECTED PANEL HEIGHT

3.23

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

WATTSSTREETBAPTISTCHURCH-JB-REVD

SITE ADDRESS

800, WATTS, ST, DURHAM, NC, 27701, USA

MODULE WIDTH

44.65

NUMBER ROWS

5.00

NUMBER COLUMNS

5.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

36, ROUND

FOUNDATION TYPE

ROUND

FOUNDATION SIZE

36.00

CHECK RAILS

FALSE

TOTAL PRICE

8905.90

TOTAL WEIGHT

1756.70

TOTAL PALLETS

2.00

pdf

https://skycivquotes.s3.amazonaws.com/1aa5ca25-5b63-4bda-a7fa-61df6e0e2c1e.pdf

ID

3477.00
