This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41.1 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

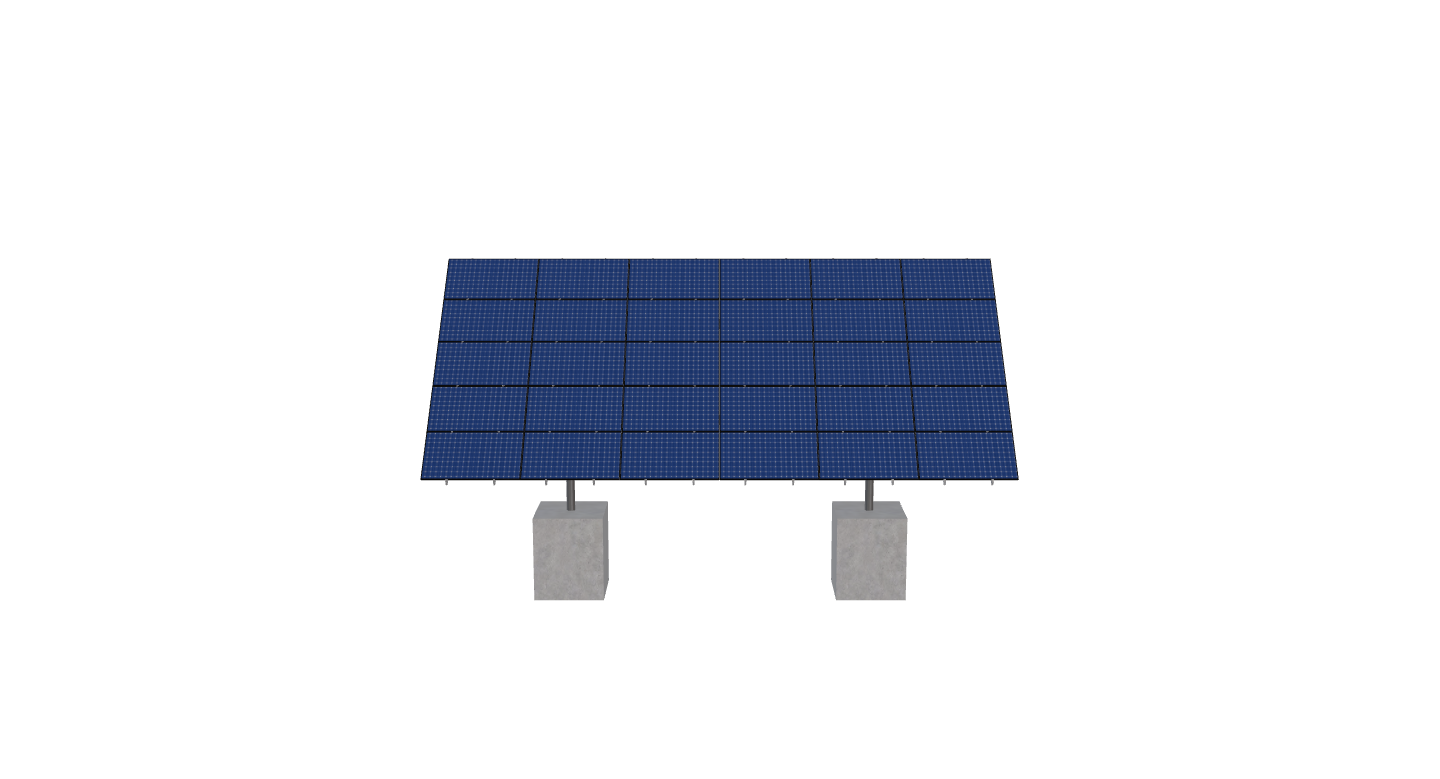

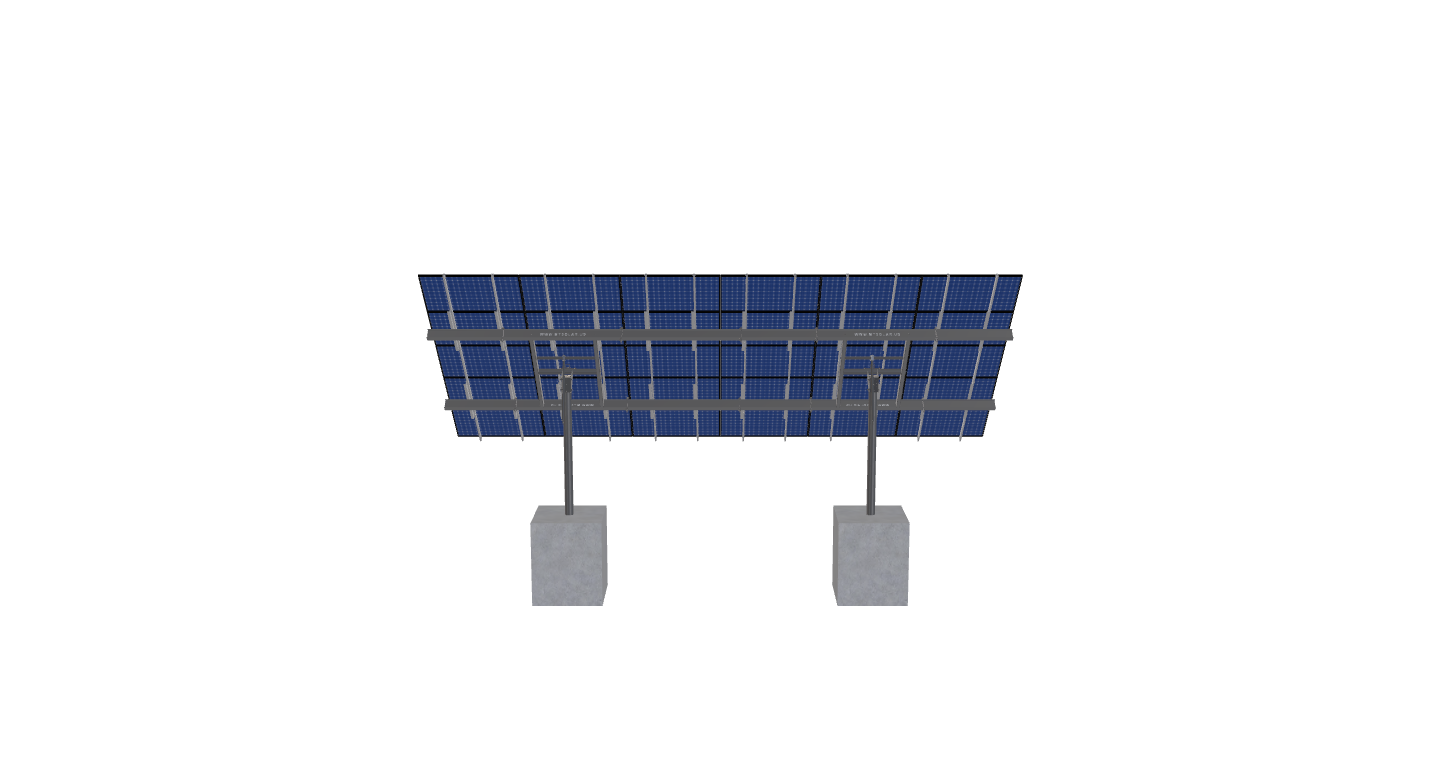

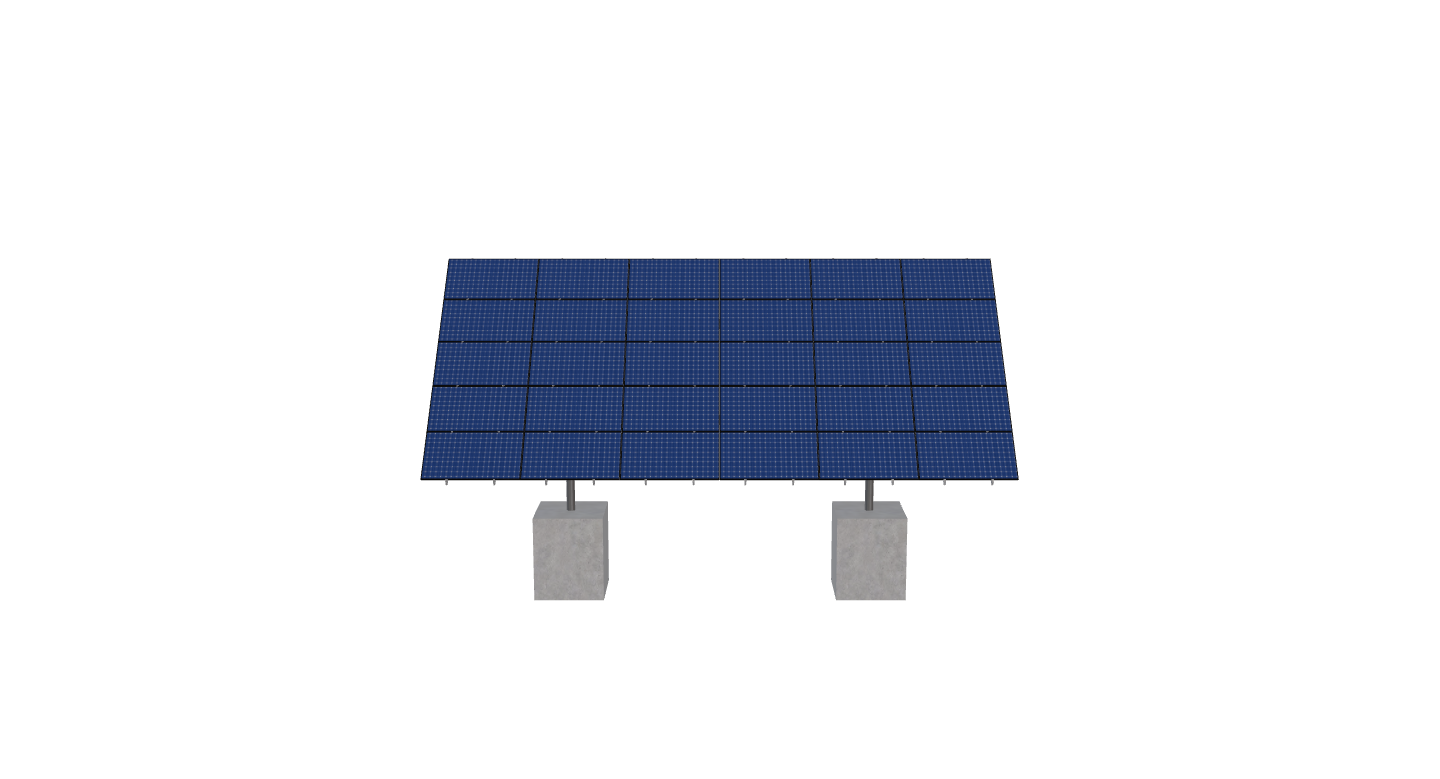

See 3D Model Here
Wentworth Plymouth Ener – 30 mods – 19pole spacing – Jb
$10,472.22
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41.1 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2107.84 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-19.75-6TOP-HD-57-L-5HX6W-STRUTS-3GI9 |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 9.38 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 5.50 |
| TILT ANGLE | 46.00 |
| CANTILEVER | 441.00 |
| GROUND CLEARANCE | 3.00 |
| NO POLES | 2.00 |
| MODULE AREA | 656.75 |
| ARRAY WIDTH | 37.00 |
| ARRAY HEIGHT | 17.75 |
| RAIL LENGTH | 213.00 |
| MODULE LENGTH | 73.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 36.75 |
| GROUND TO TOP | 15.69 |
| PROJECTED PANEL HEIGHT | 12.62 |
| WIND SPEED OVERRIDE | 100.00 |
| SNOW LOAD OVERRIDE | 96.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | TRUE |
| PROJECT ID | WENTWORTH, PLYMOUTH, ENER, -, 30, MODS, -, 19POLE, SPACING, -, JB |
| SITE ADDRESS | 19, TURNER, RD, WENTWORTH, NH, 03282, USA |
| MODULE WIDTH | 42.10 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 10472.22 |
| TOTAL WEIGHT | 2107.84 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/73e9aed4-a25c-4640-a792-3e047411e1f9.pdf |
|
| ID | 5727.00 |
| 3D Solar link |
