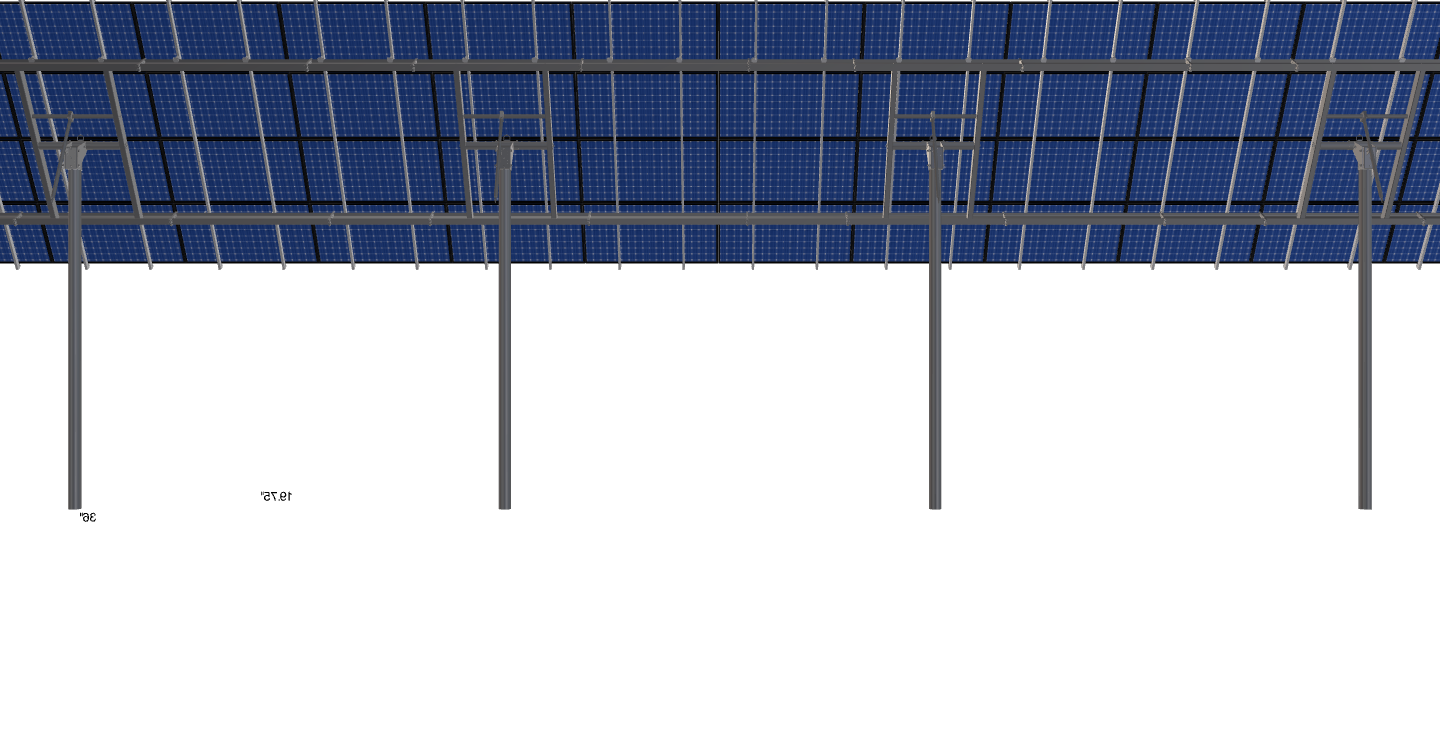

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 78.03 inches by 39.45 inches and an array layout of 12 wide by 4 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
WhitisSolar-RevB
$21,883.90
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 78.03 inches by 39.45 inches and an array layout of 12 wide by 4 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 4123.64 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-19.75-8TOP-XD-72-L-4HX12W-10DK |
| DUTY SIZE | XD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 16.77 |
| WING SPAN | 72.00 |
| MAX FOUNDATION DEPTH | 9.50 |
| TILT ANGLE | 60.00 |
| CANTILEVER | 945.00 |
| GROUND CLEARANCE | 11.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1052.42 |
| ARRAY WIDTH | 79.03 |
| ARRAY HEIGHT | 13.32 |
| RAIL LENGTH | 159.80 |
| MODULE LENGTH | 78.03 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 78.75 |
| GROUND TO TOP | 22.46 |
| PROJECTED PANEL HEIGHT | 11.39 |
| PROJECT ID | WHITISSOLAR-REVB |
| SITE ADDRESS | TELLURIDE, CO, 81435, USA |
| MODULE WIDTH | 39.45 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 12.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | XD |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | TRUE |
| WIND SPEED OVERRIDE | 98.00 |
| SNOW LOAD OVERRIDE | 180.00 |
| DIRECT SNOW LOAD | FALSE |
| TOTAL PRICE | 21883.90 |
| TOTAL WEIGHT | 4123.64 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/9aeb62ec-5f2b-4af2-9798-4649629b6086.pdf |
|
| ID | 1658.00 |
| CAD URL | |
| 3D Solar link |
