This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 85.6 inches by 51.4 inches and an array layout of 12 wide by 4 high.
This mount fits on 4 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

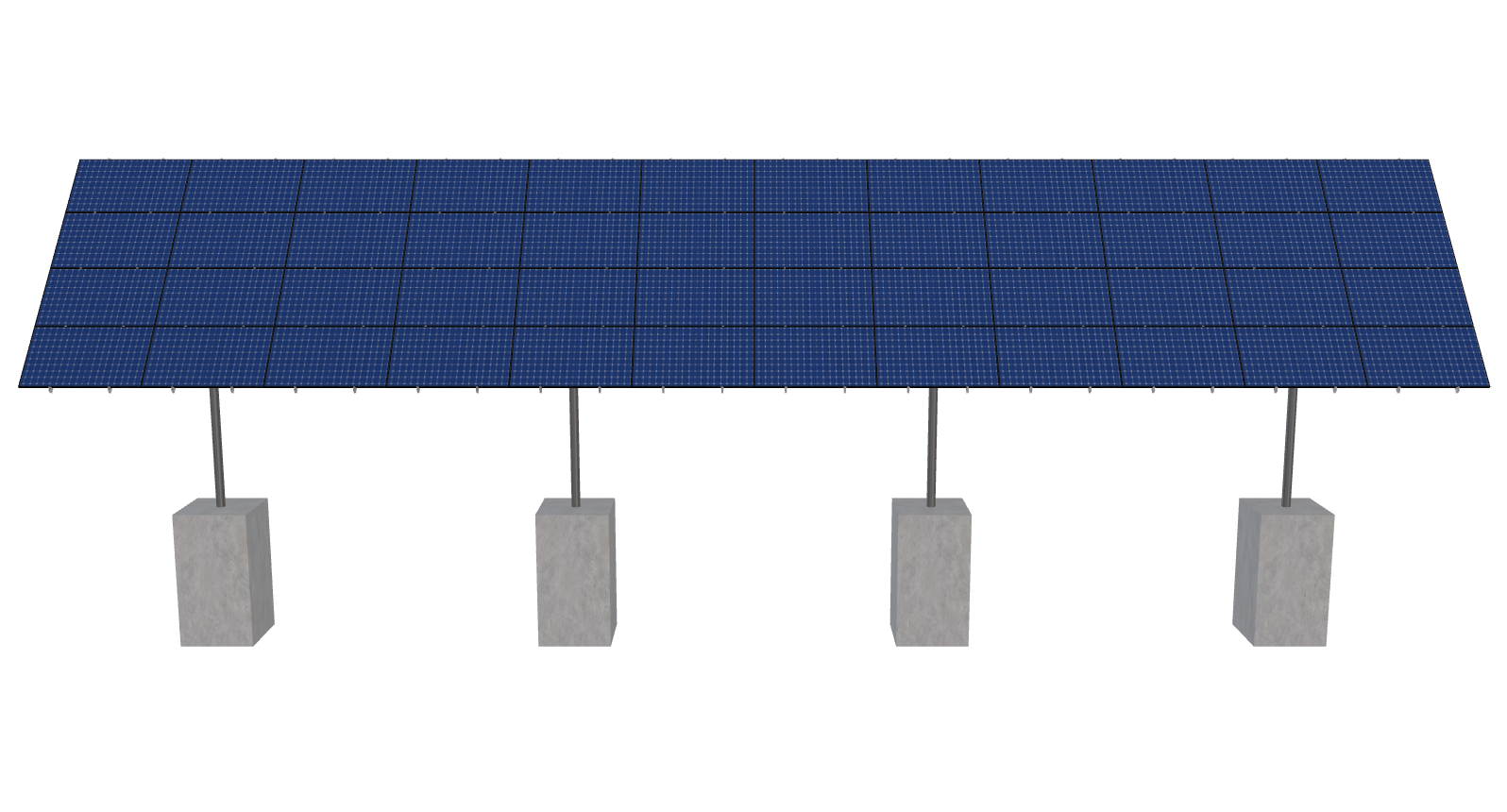

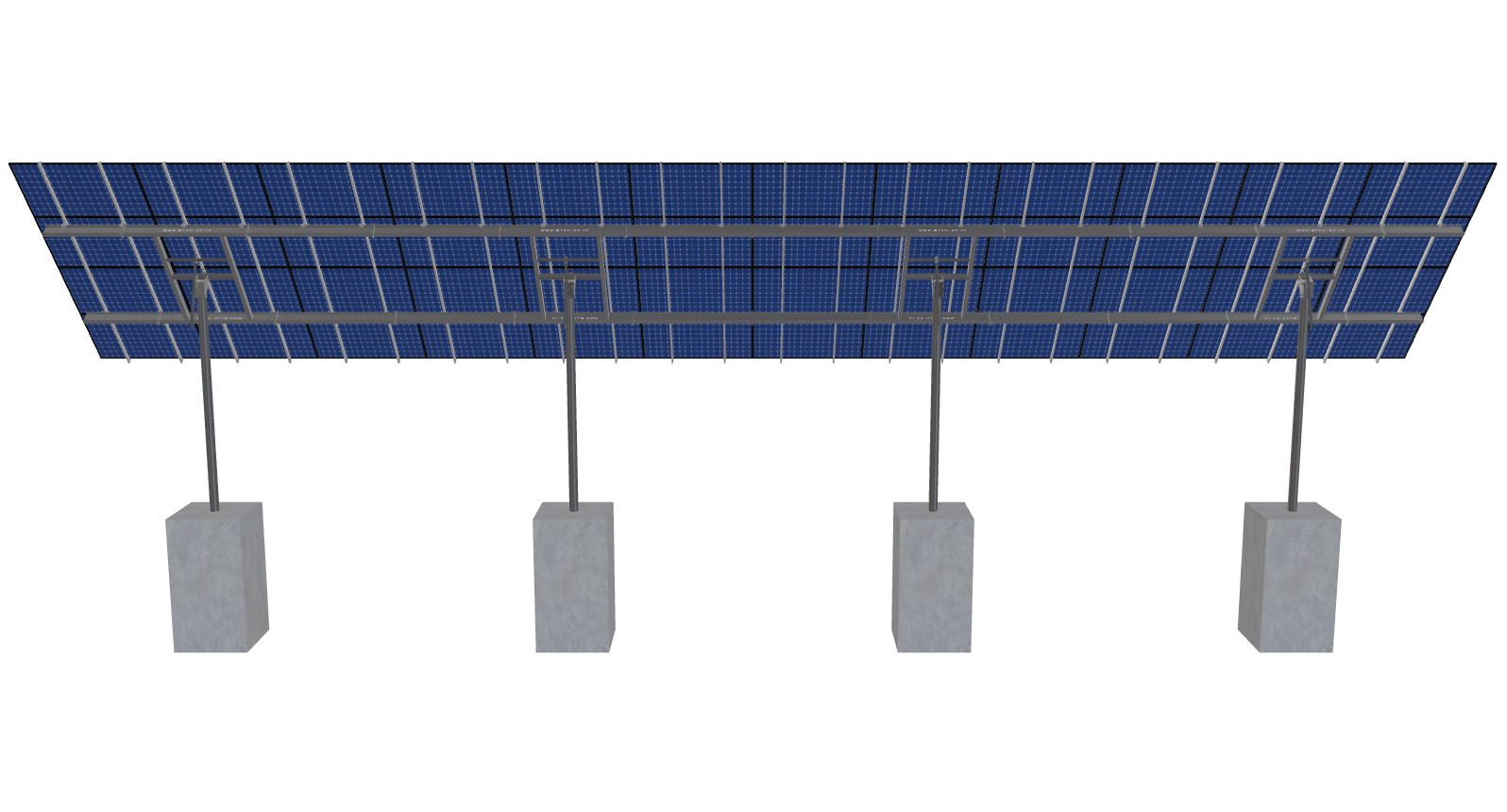

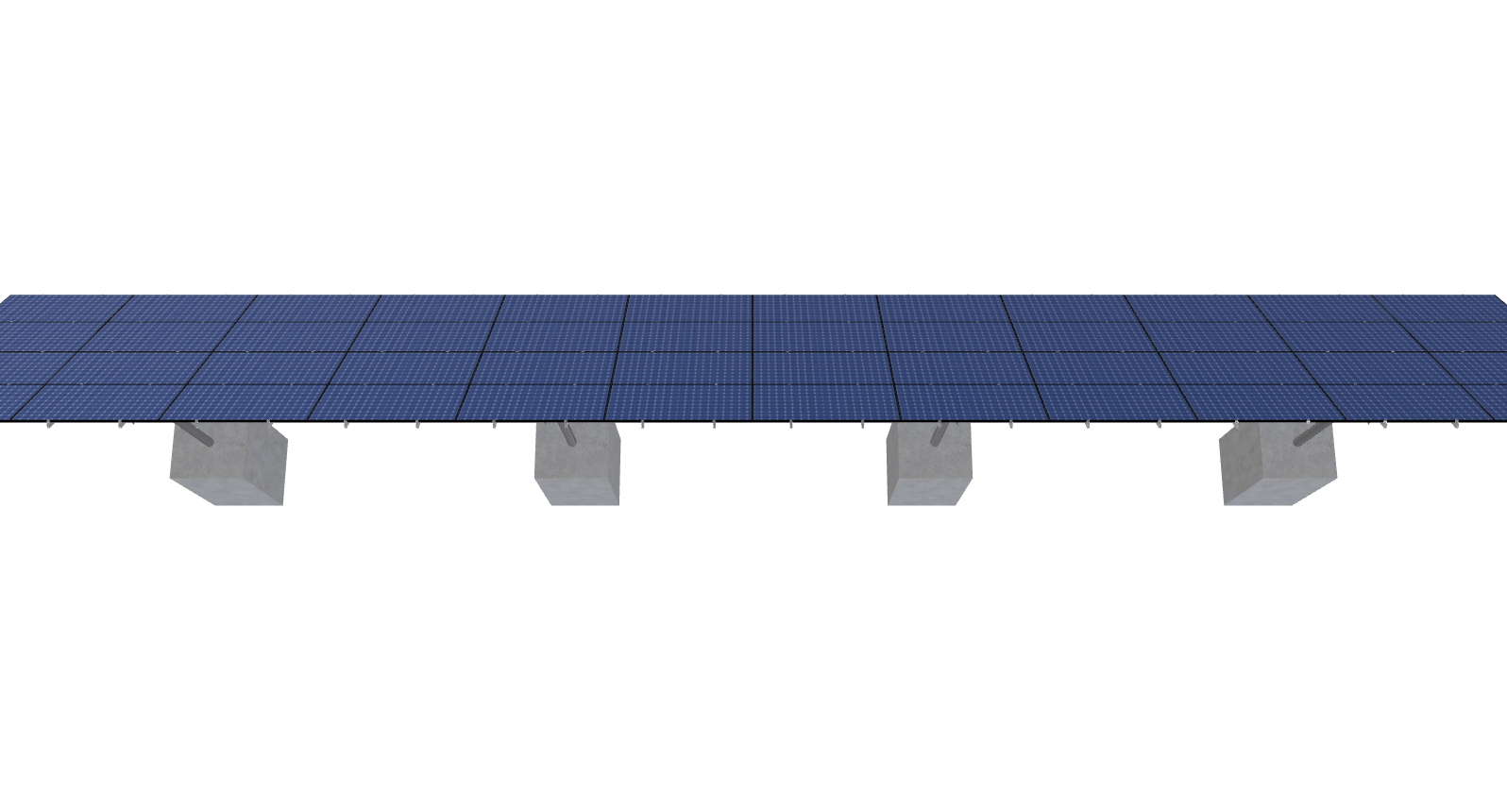

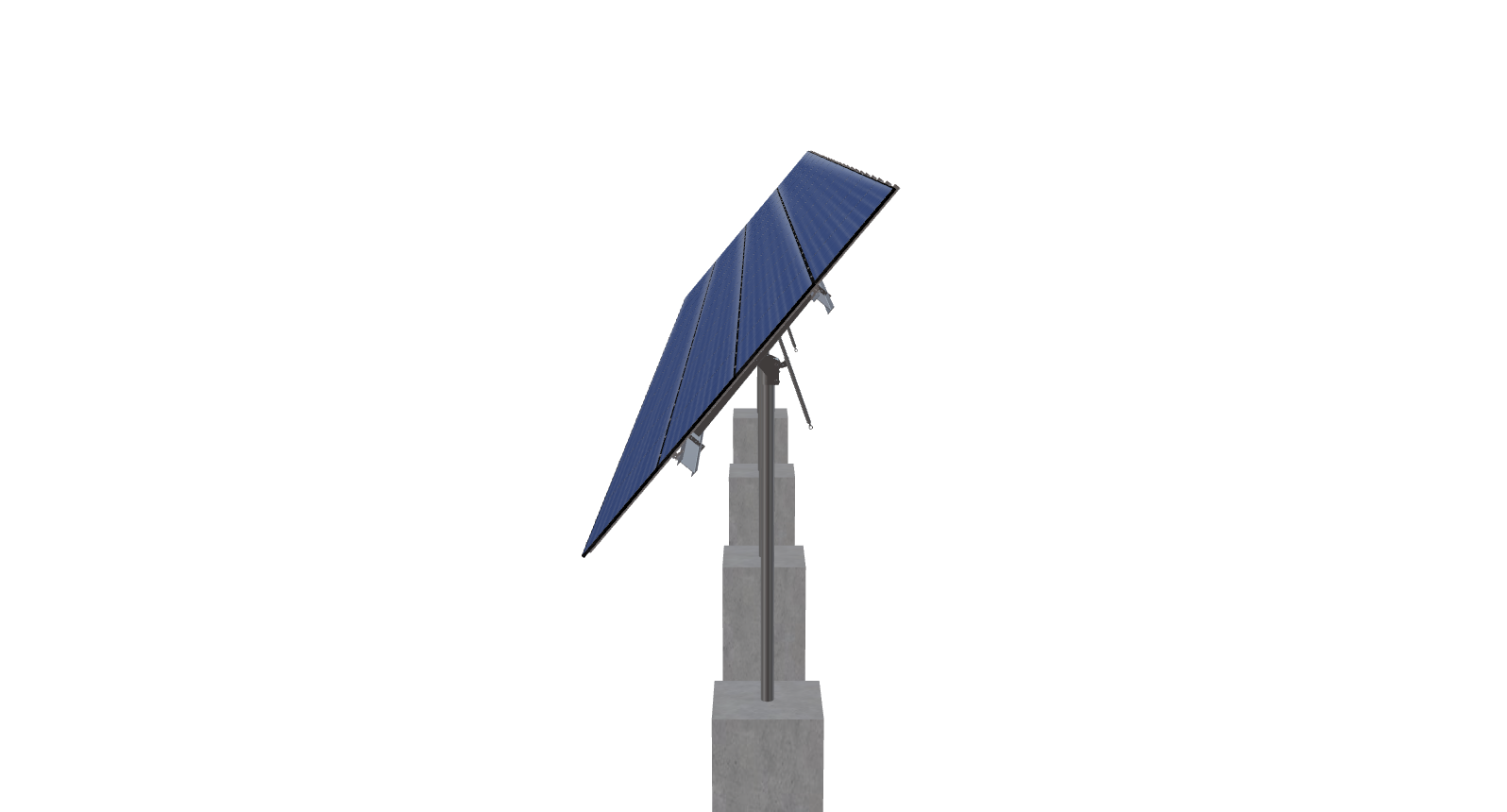

See 3D Model Here
Winthrop 4×12-50D-8ft
$23,428.84
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 85.6 inches by 51.4 inches and an array layout of 12 wide by 4 high.
This mount fits on 4 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

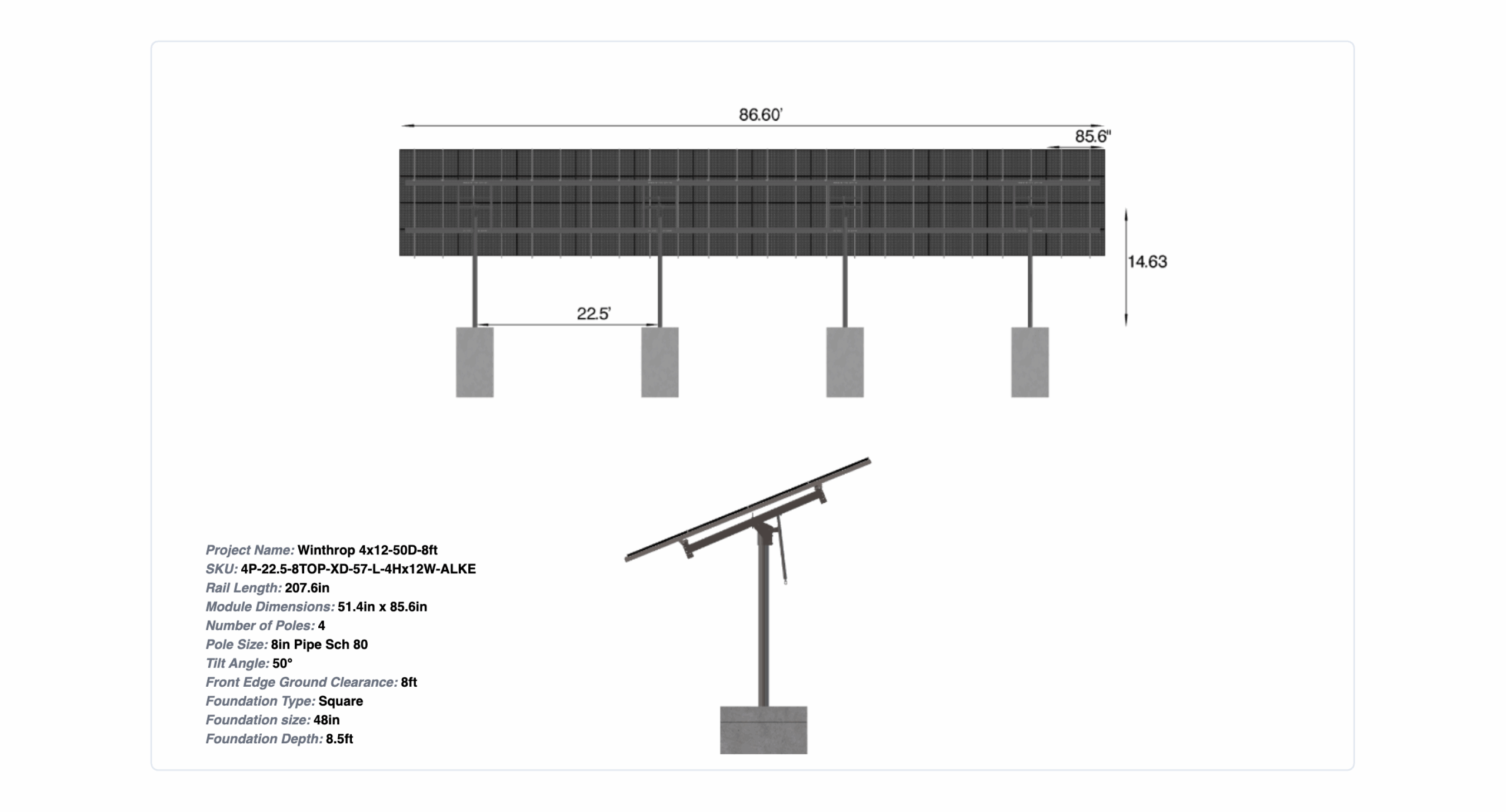

Additional information
| Weight | 4335.5599999999995 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-22.5-8TOP-XD-57-L-4HX12W-ALKE |
| DUTY SIZE | XD |
| POLE SIZE | 8IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 14.63 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 8.50 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 1014.00 |
| GROUND CLEARANCE | 8.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1498.18 |
| ARRAY WIDTH | 86.60 |
| ARRAY HEIGHT | 17.30 |
| RAIL LENGTH | 207.60 |
| MODULE LENGTH | 85.60 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 84.50 |
| GROUND TO TOP | 21.25 |
| PROJECTED PANEL HEIGHT | 13.25 |
| WIND SPEED OVERRIDE | 110.00 |
| SNOW LOAD OVERRIDE | 85.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | WINTHROP, 4X12-50D-8FT |
| SITE ADDRESS | 7831, FARM, TO, MARKET, RD, WHITEFISH, MT, 59937, USA |
| MODULE INFO | |
| MODULE WIDTH | 51.40 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 12.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 23428.84 |
| TOTAL WEIGHT | 4335.56 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/70eff06e-0fcd-4f04-a6ad-1094ce2fd9e7.pdf |
|
| ID | 13505.00 |
| 3D Solar link |
