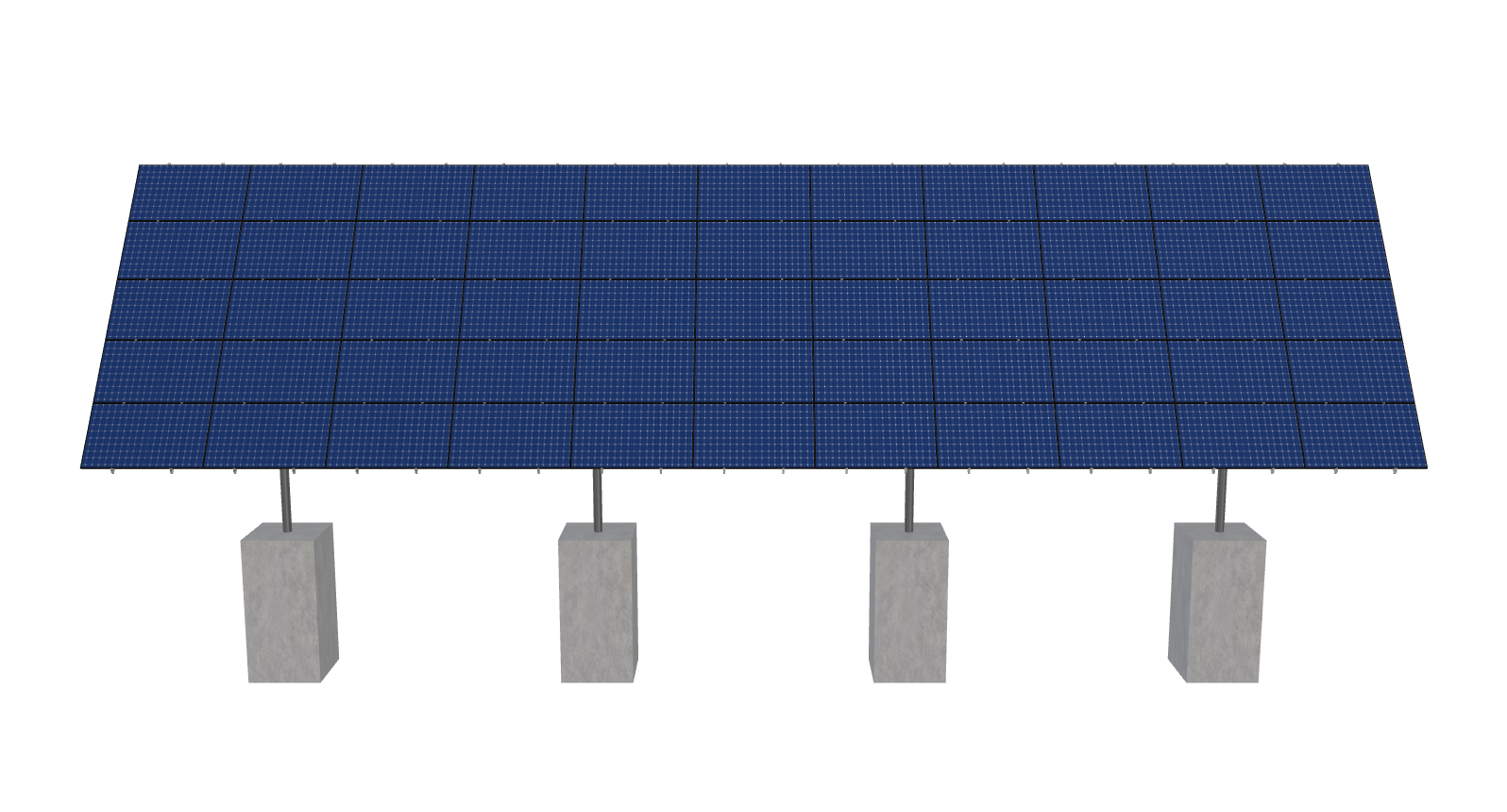

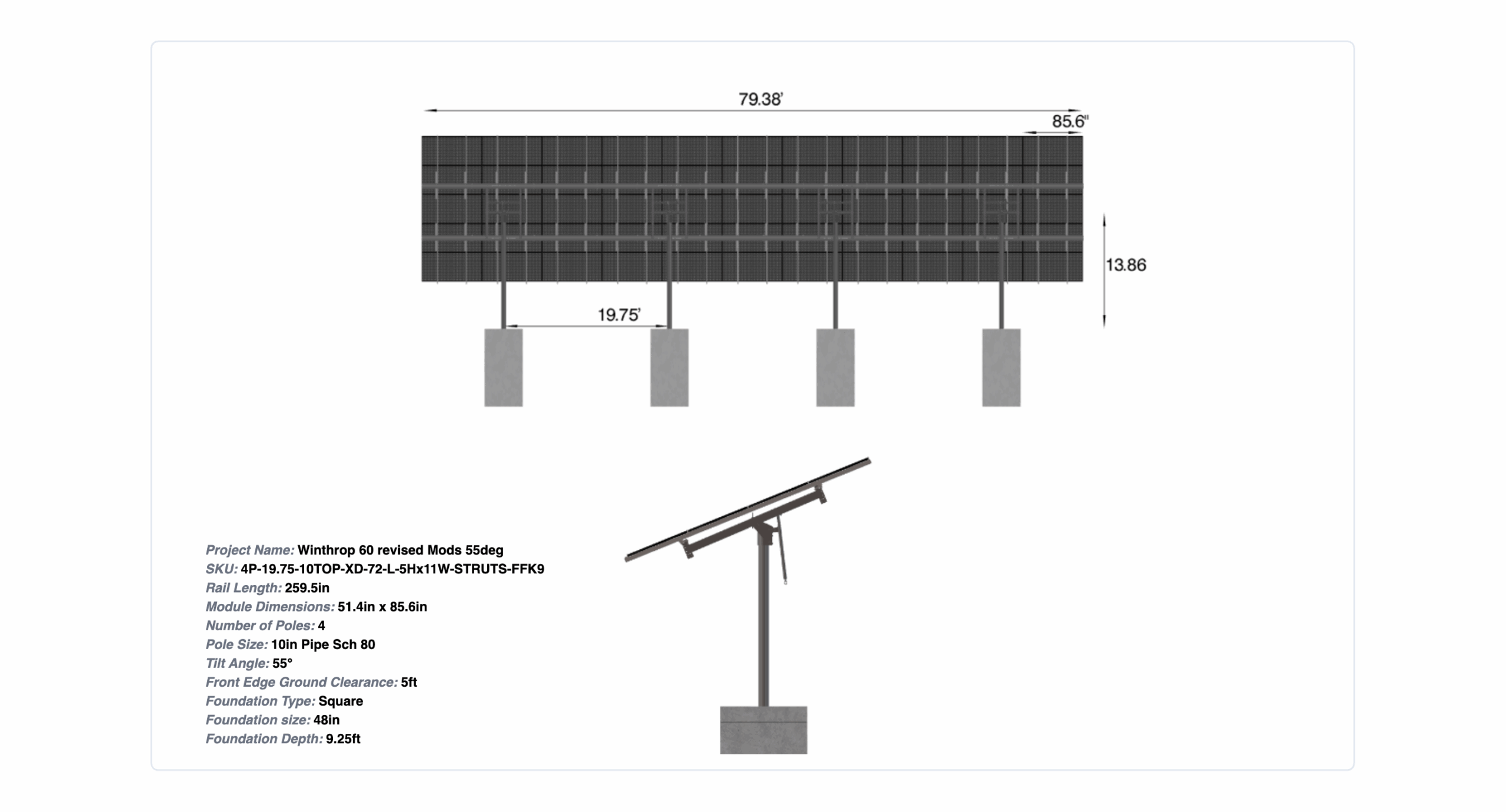

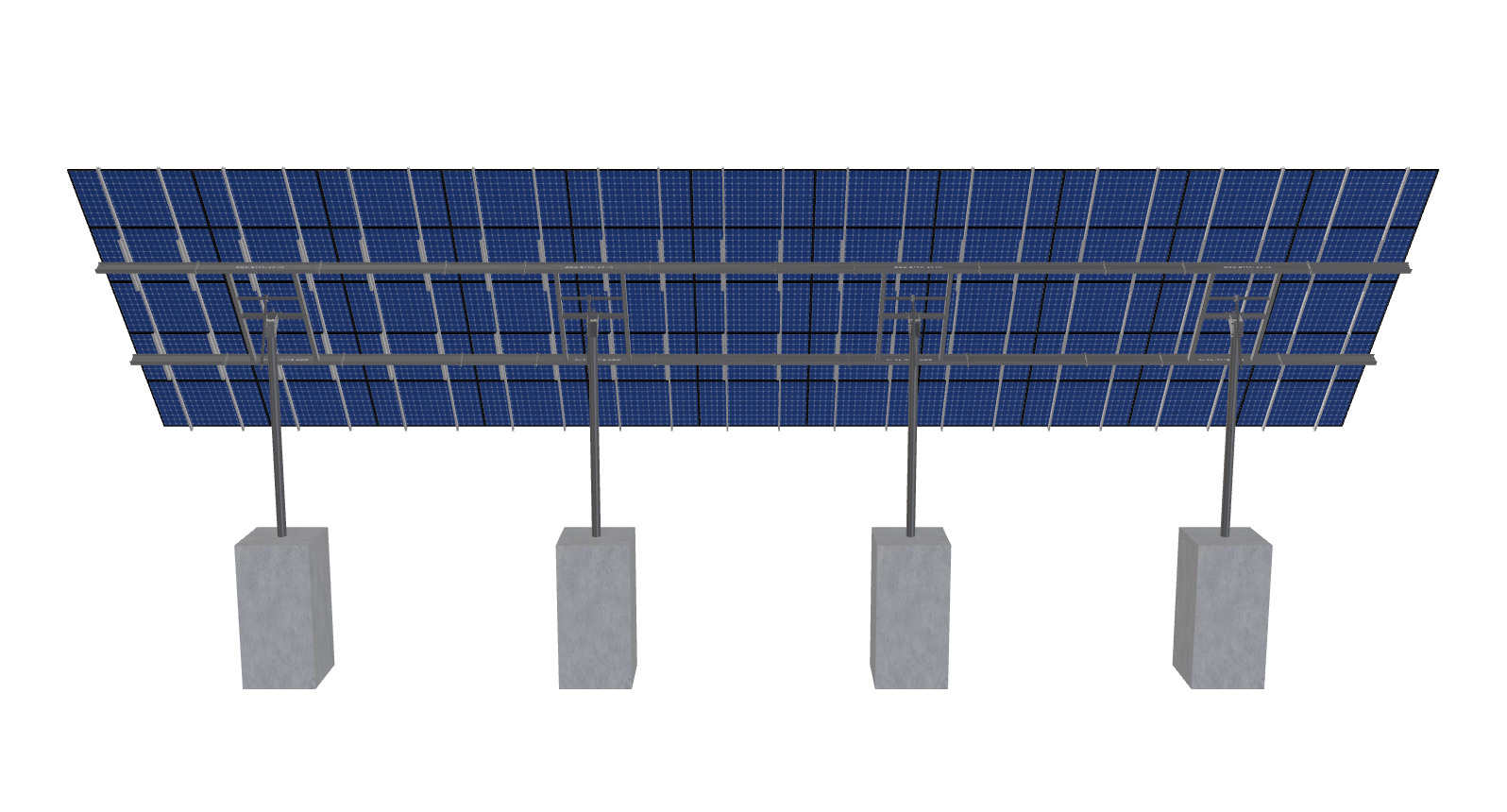

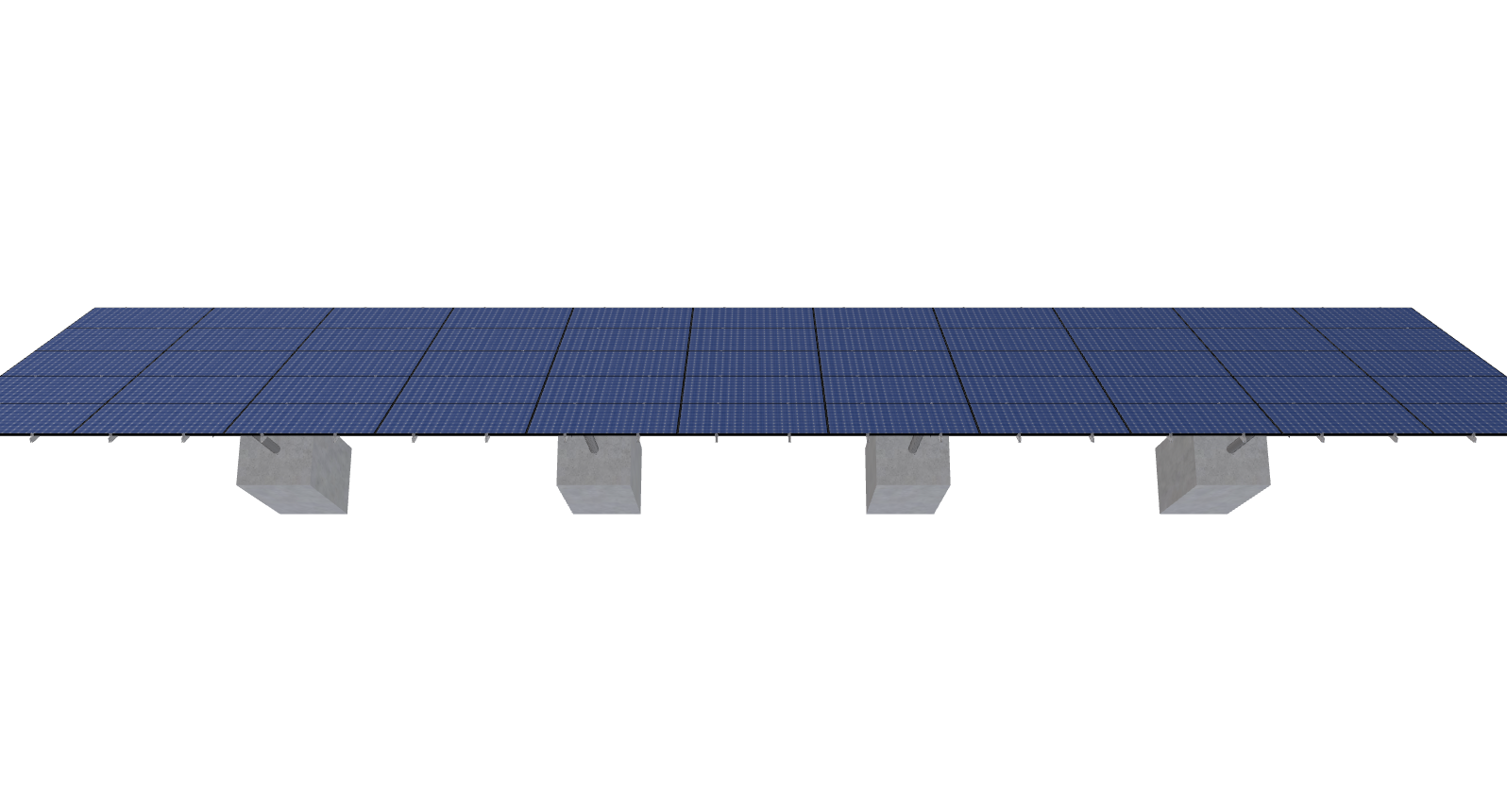

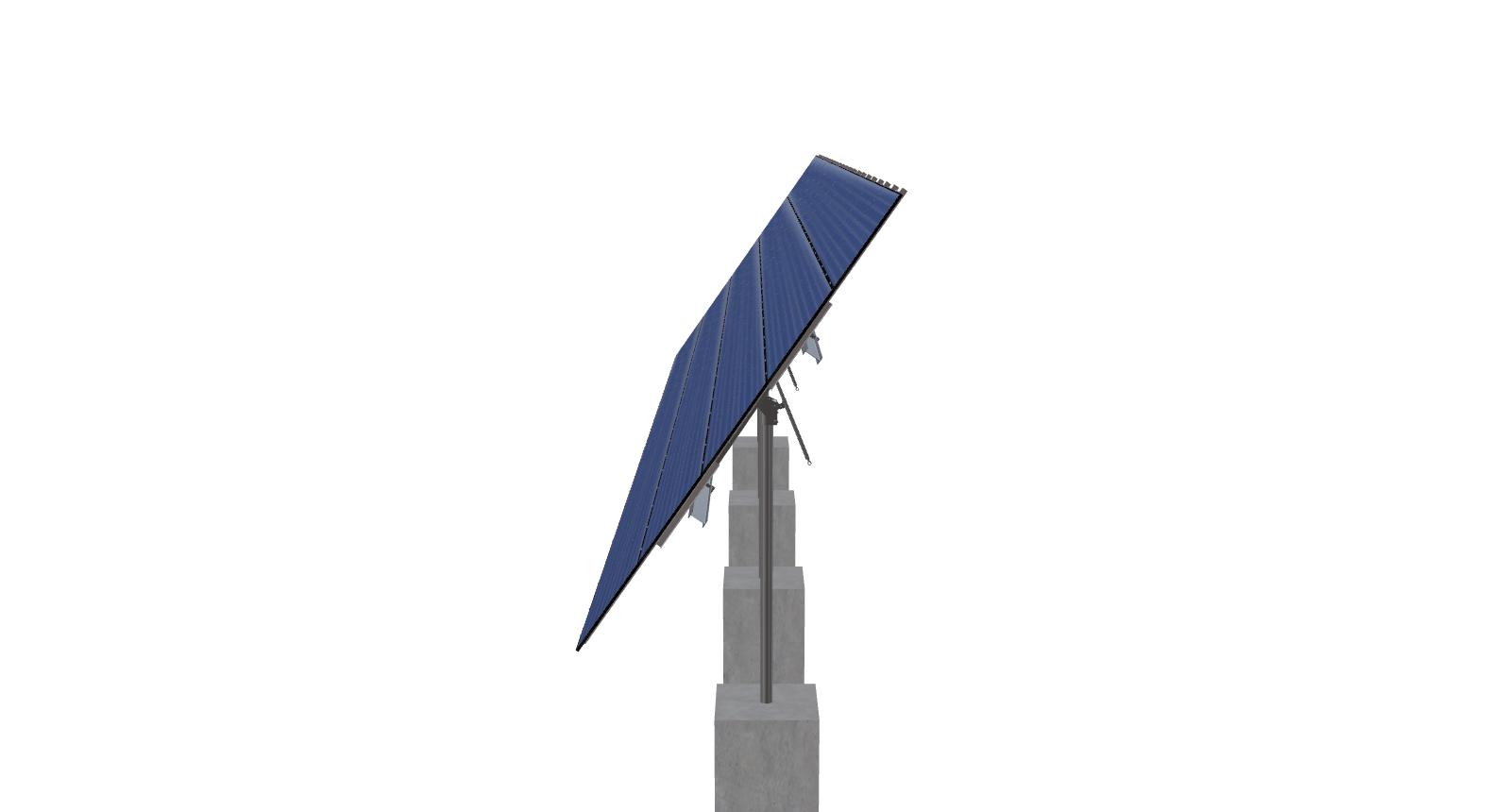

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 85.6 inches by 51.4 inches and an array layout of 11 wide by 5 high.
This mount fits on 4 – 10in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Winthrop 60 revised Mods 55deg
$24,906.90
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 85.6 inches by 51.4 inches and an array layout of 11 wide by 5 high.
This mount fits on 4 – 10in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 4852.84 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-19.75-10TOP-XD-72-L-5HX11W-STRUTS-FFK9 |
| DUTY SIZE | XD |
| POLE SIZE | 10IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 13.86 |
| WING SPAN | 72.00 |
| MAX FOUNDATION DEPTH | 9.25 |
| TILT ANGLE | 55.00 |
| CANTILEVER | 945.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1716.66 |
| ARRAY WIDTH | 79.38 |
| ARRAY HEIGHT | 21.63 |
| RAIL LENGTH | 259.50 |
| MODULE LENGTH | 85.60 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 78.75 |
| GROUND TO TOP | 22.71 |
| PROJECTED PANEL HEIGHT | 17.71 |
| WIND SPEED OVERRIDE | 110.00 |
| SNOW LOAD OVERRIDE | 85.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | TRUE |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | WINTHROP, 60, REVISED, MODS, 55DEG |
| SITE ADDRESS | 7831, FARM, TO, MARKET, RD, 2259, NACOGDOCHES, TX, 75961, USA |
| MODULE INFO | |
| MODULE WIDTH | 51.40 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 11.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 24906.90 |
| TOTAL WEIGHT | 4852.84 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/945fdfff-740d-4573-b1c5-2b00dc9248b1.pdf |
|
| ID | 13432.00 |
| 3D Solar link |
