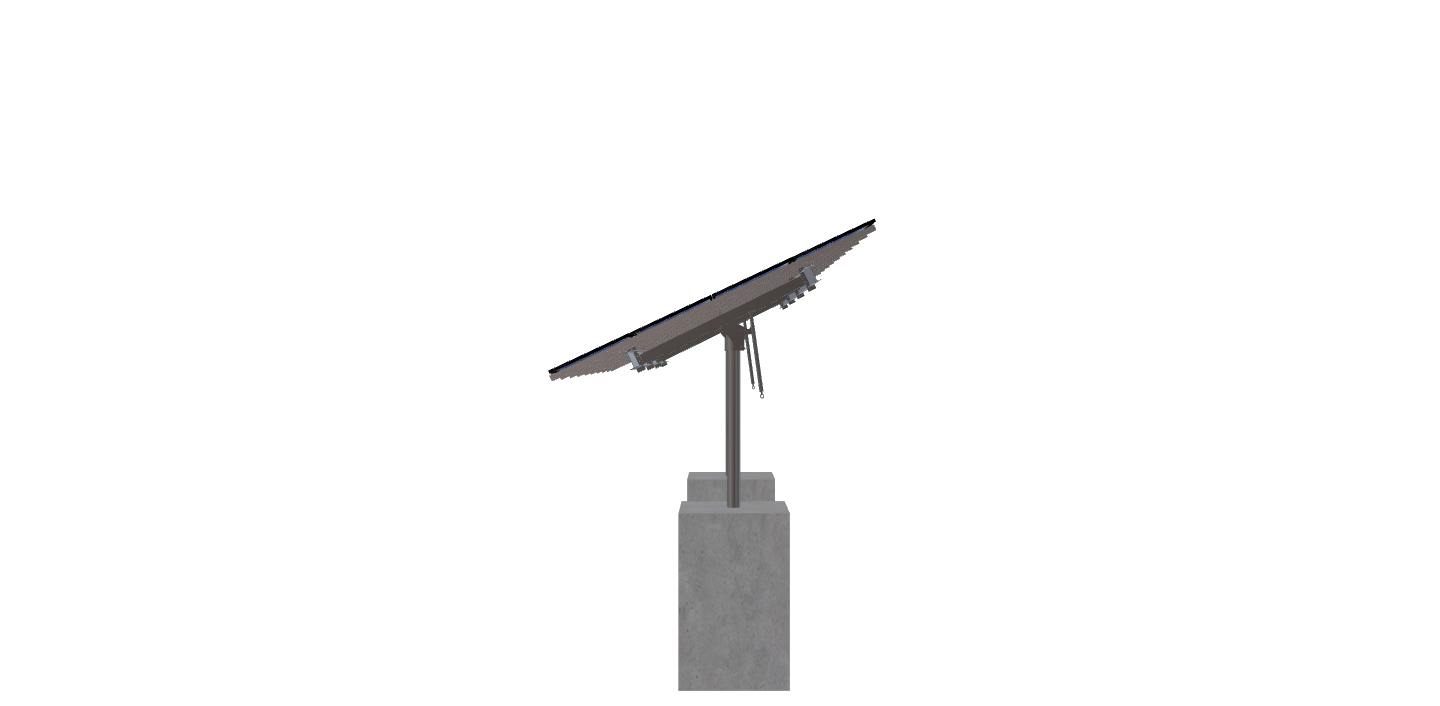

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.7 inches by 40.09 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
10692CountyRoad769SolarRevC
$10,178.88
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.7 inches by 40.09 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1781.1999999999998 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-15-10TOP-XD-45-L-4HX5W-H4H8 |
| DUTY SIZE | XD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 15.00 |
| POLE HEIGHT | 7.86 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 7.25 |
| TILT ANGLE | 25.00 |
| CANTILEVER | 360.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 2.00 |
| MODULE AREA | 432.40 |
| ARRAY WIDTH | 31.96 |
| ARRAY HEIGHT | 13.53 |
| RAIL LENGTH | 162.36 |
| MODULE LENGTH | 75.70 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 30.00 |
| GROUND TO TOP | 10.68 |
| PROJECTED PANEL HEIGHT | 5.65 |
| WIND SPEED OVERRIDE | 160.00 |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | 10692COUNTYROAD769SOLARREVC |
| SITE ADDRESS | 10692, COUNTY, RD, 769, ARCADIA, FL, 34269, USA |
| MODULE WIDTH | 40.09 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 5.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | XD |
| POLE OVERRIDE | 10, 40 |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 9694.17 |
| TOTAL WEIGHT | 1781.20 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/2764830a-eb9a-4f77-a560-c8423077c1db.pdf |
|
| ID | 1517.00 |
