148G8HH1L

$15,029.24

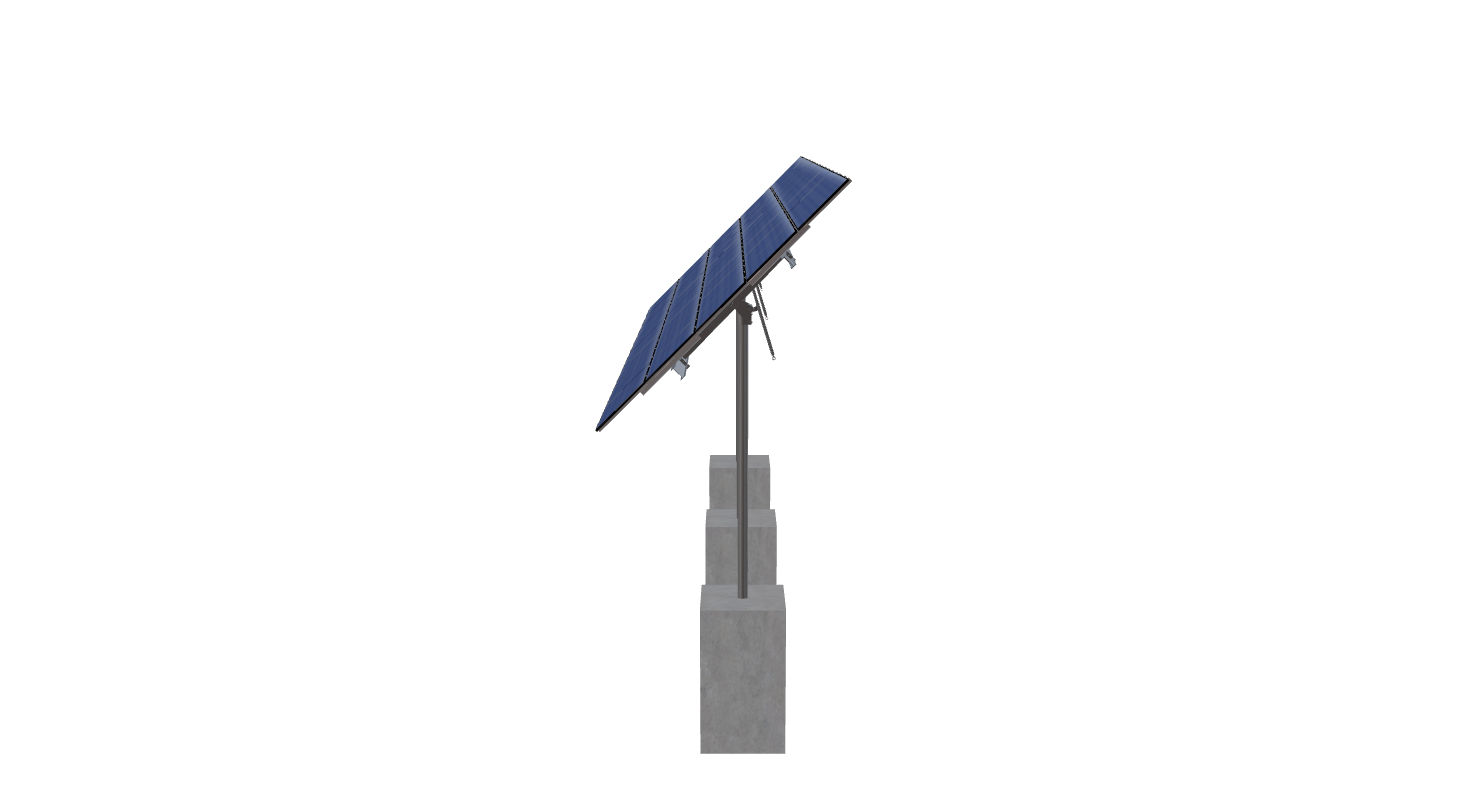

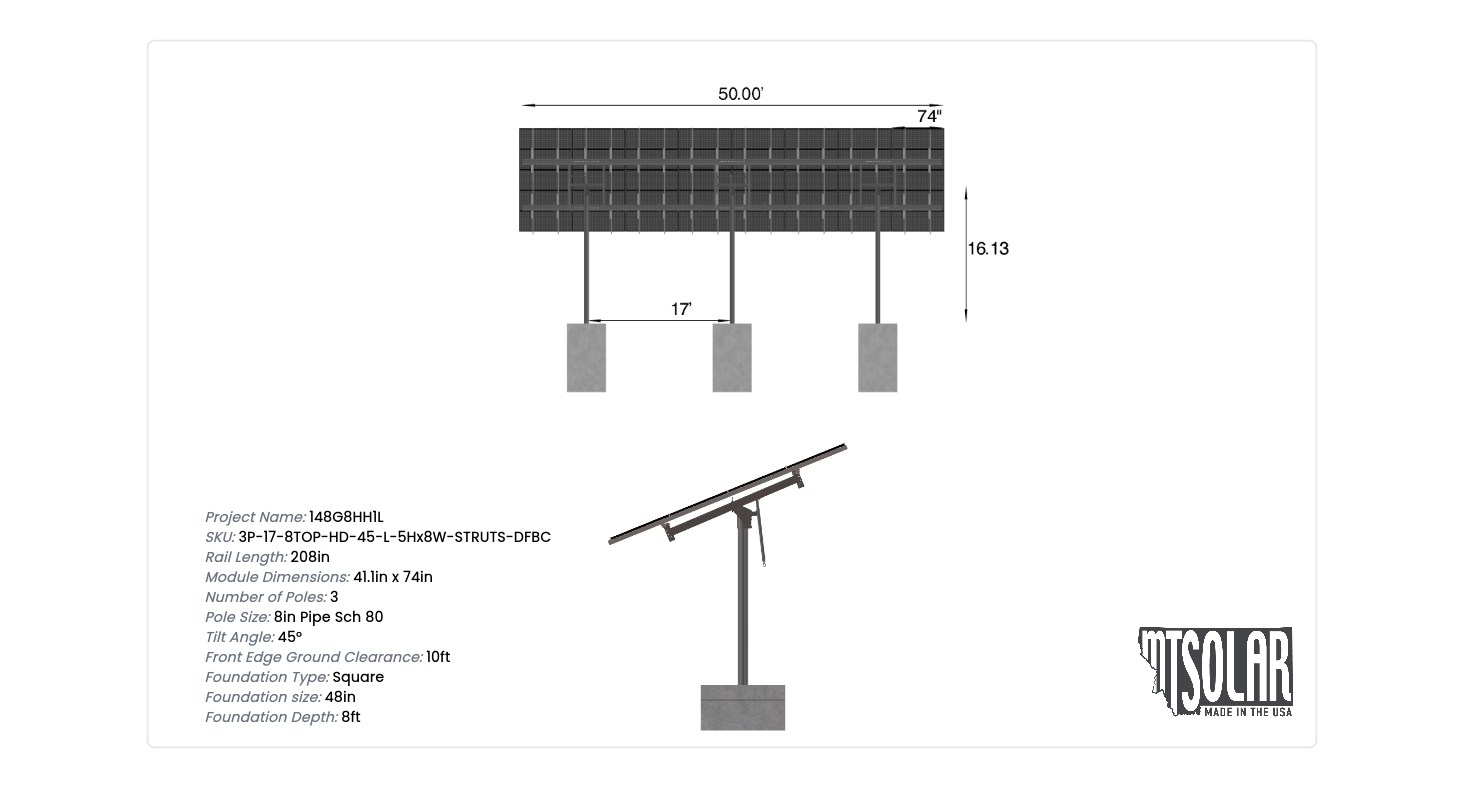

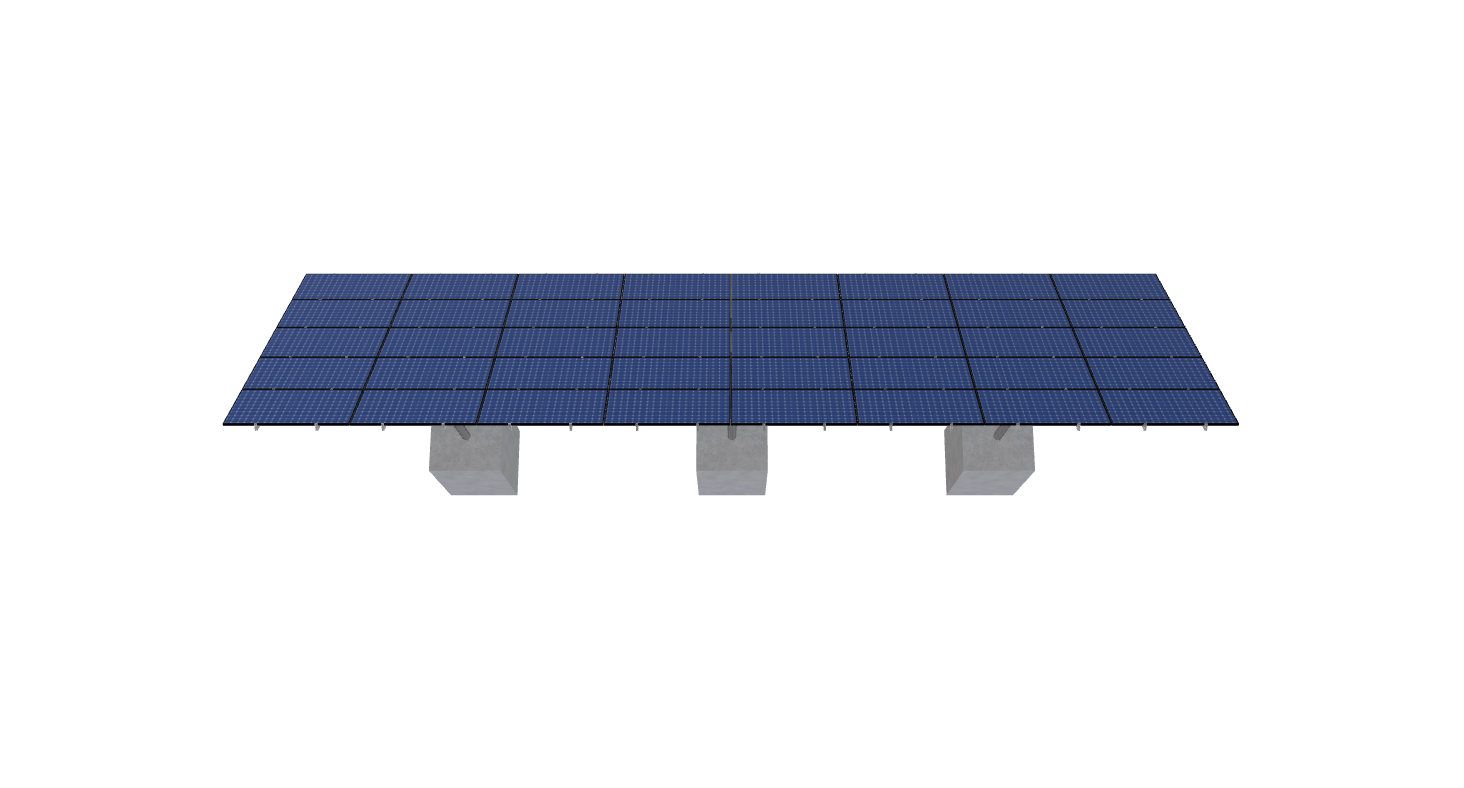

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41.1 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 3P-17-8TOP-HD-45-L-5Hx8W-STRUTS-DFBC Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41.1 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 2997.25 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

3P-17-8TOP-HD-45-L-5HX8W-STRUTS-DFBC

DUTY SIZE

HD

POLE SIZE

8IN, PIPE, SCH, 80

PRODUCT TYPE

BEAM

NUMBER OF POLES

3.00

POLE SPACING

17.00

POLE HEIGHT

16.13

WING SPAN

45.00

MAX FOUNDATION DEPTH

8.00

TILT ANGLE

45.00

CANTILEVER

588.00

GROUND CLEARANCE

10.00

NO POLES

3.00

MODULE AREA

866.67

ARRAY WIDTH

50.00

ARRAY HEIGHT

17.33

RAIL LENGTH

208.00

MODULE LENGTH

74.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

49.00

GROUND TO TOP

22.18

PROJECTED PANEL HEIGHT

12.11

PROJECT ID

148G8HH1L

SITE ADDRESS

BERRYVILLE, VA, 22611, USA

MODULE WIDTH

41.10

NUMBER ROWS

5.00

NUMBER COLUMNS

8.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

100.00

SNOW LOAD OVERRIDE

30.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

TRUE

TOTAL PRICE

15029.24

TOTAL WEIGHT

2997.25

TOTAL PALLETS

3.00
