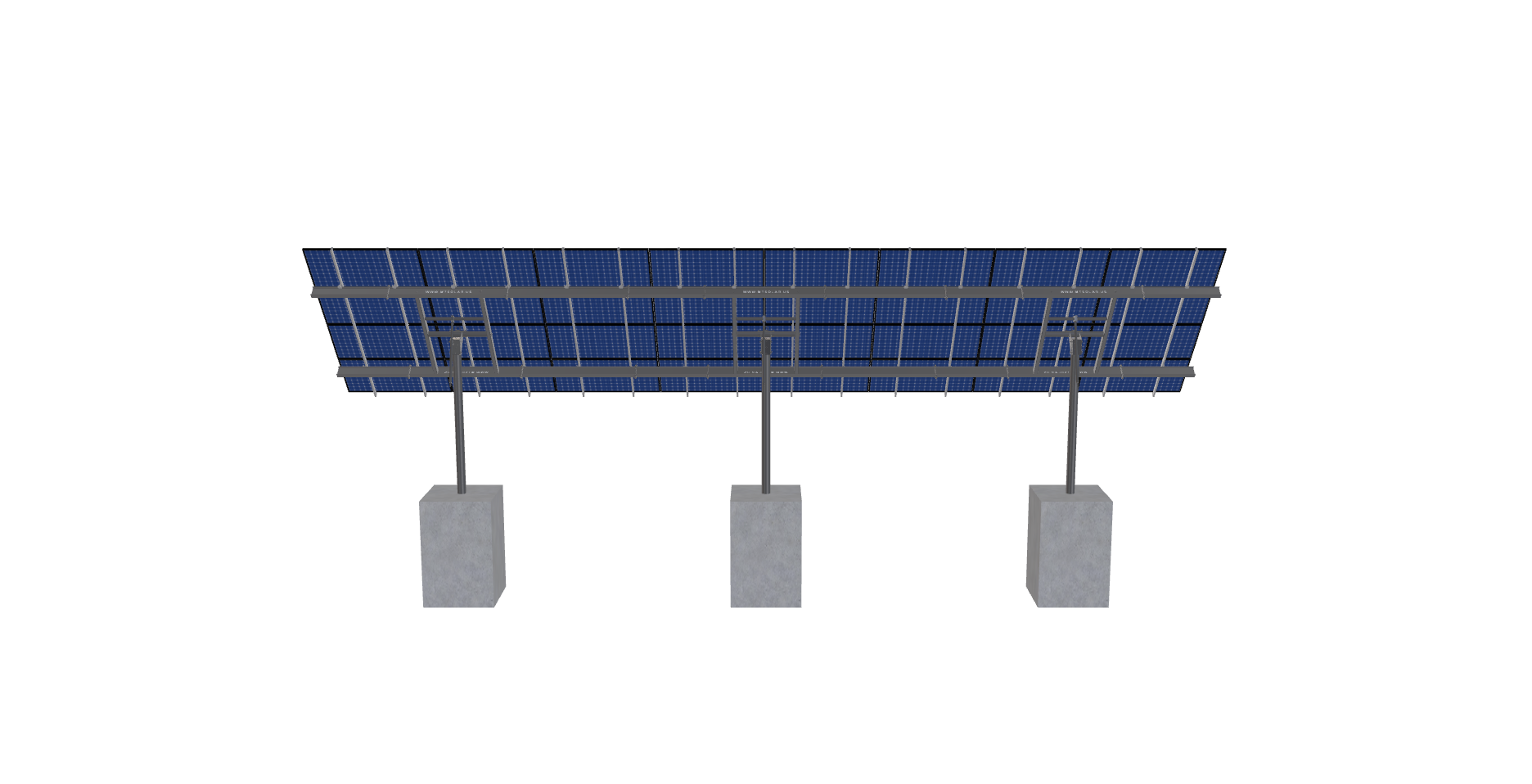

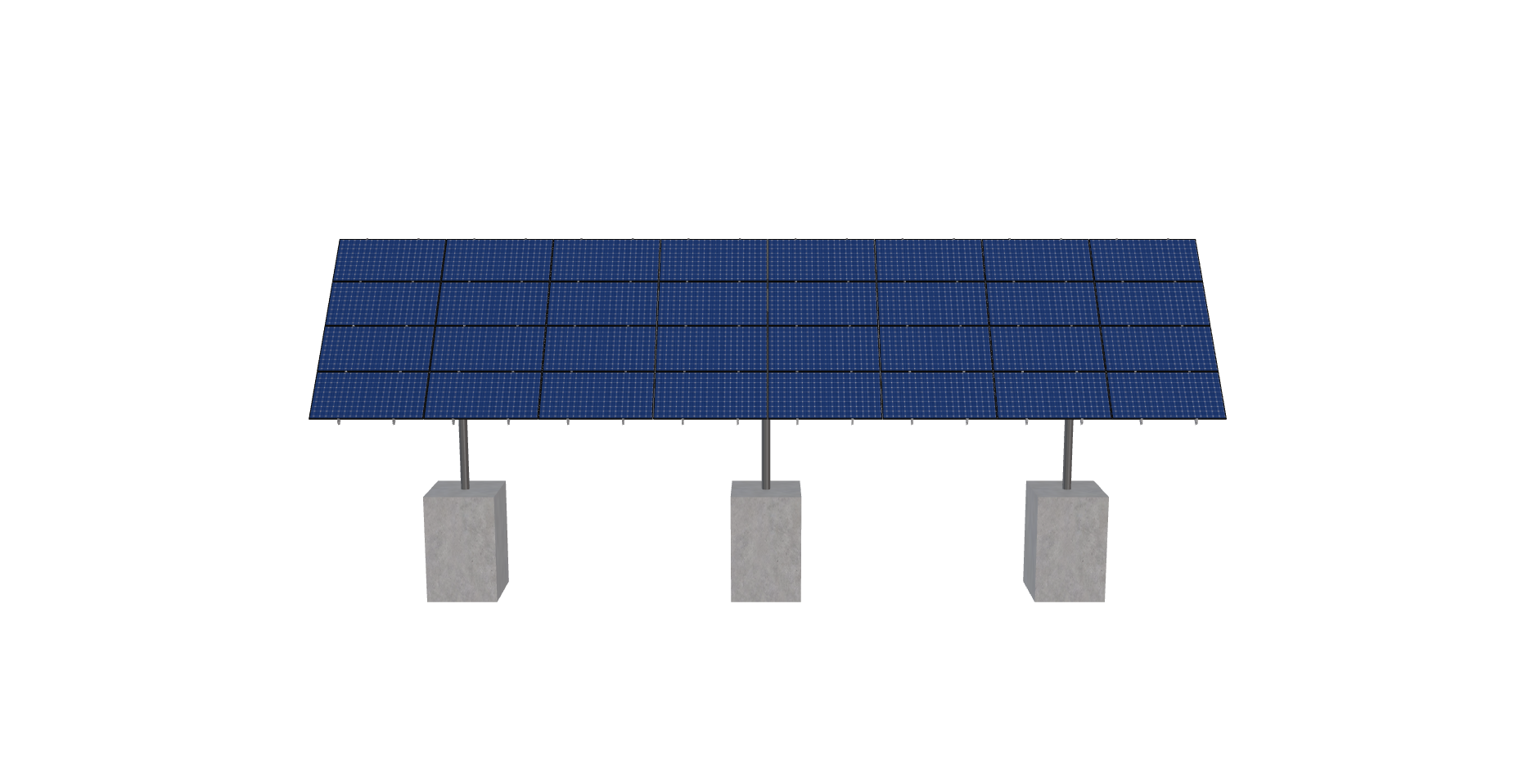

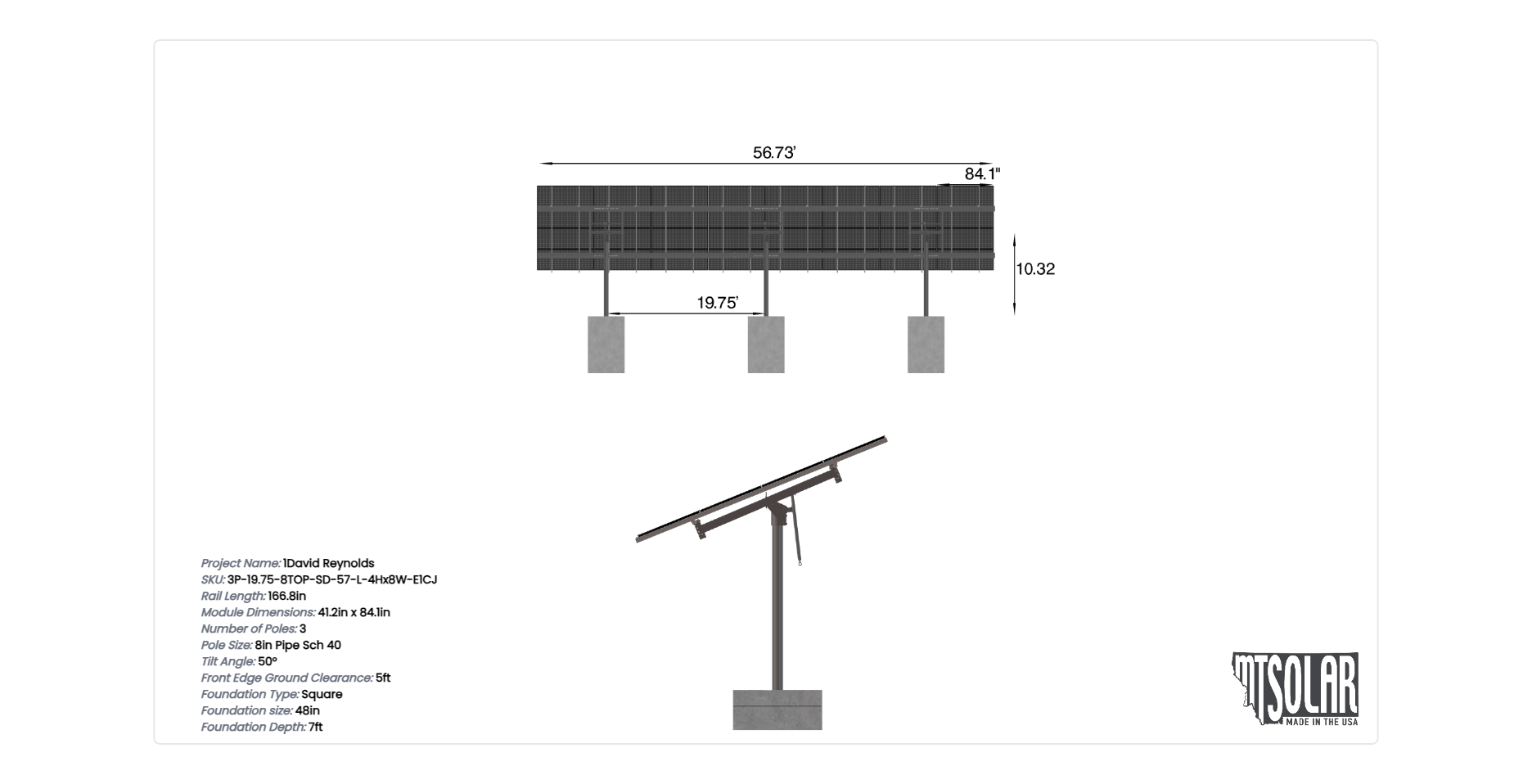

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 84.1 inches by 41.2 inches and an array layout of 8 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
1David Reynolds
$12,513.85
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 84.1 inches by 41.2 inches and an array layout of 8 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2253.76 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-19.75-8TOP-SD-57-L-4HX8W-E1CJ |
| DUTY SIZE | SD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 10.32 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 7.00 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 678.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 3.00 |
| MODULE AREA | 788.59 |
| ARRAY WIDTH | 56.73 |
| ARRAY HEIGHT | 13.90 |
| RAIL LENGTH | 166.80 |
| MODULE LENGTH | 84.10 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 56.50 |
| GROUND TO TOP | 15.58 |
| PROJECTED PANEL HEIGHT | 10.52 |
| PROJECT ID | 1DAVID, REYNOLDS |
| SITE ADDRESS | PORT, ANGELES, WA, USA |
| MODULE WIDTH | 41.20 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 8.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 120.00 |
| SNOW LOAD OVERRIDE | 25.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 12513.85 |
| TOTAL WEIGHT | 2253.76 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/cff9b7ae-4f0a-4f07-9234-9703e306254b.pdf |
|
| ID | 4484.00 |
| 3D Solar link |
