This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 81.4 inches by 39.3 inches and an array layout of 11 wide by 4 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

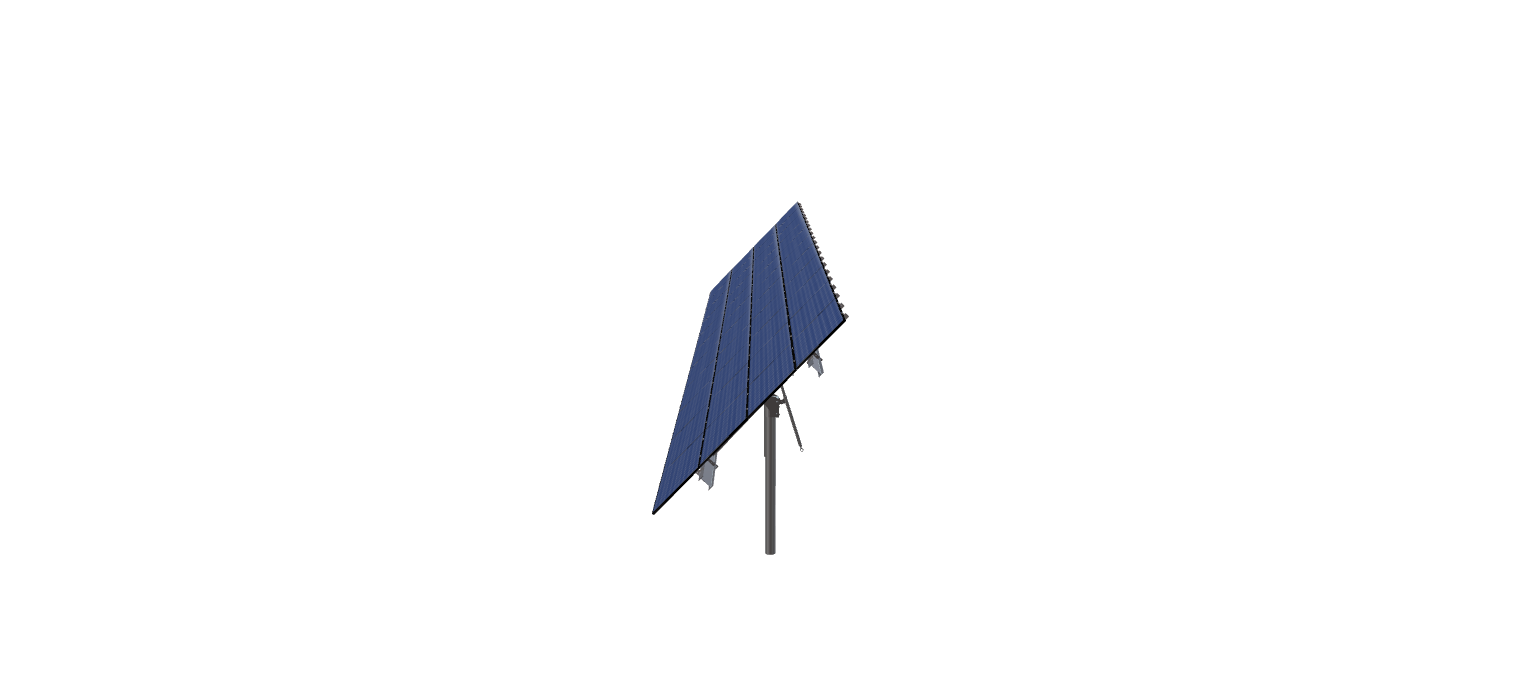

See 3D Model Here
2 Bit RevC
$18,647.48
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 81.4 inches by 39.3 inches and an array layout of 11 wide by 4 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

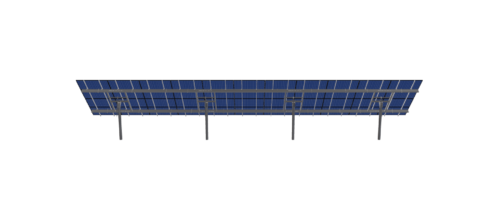

See 3D Model Here
Additional information
| Weight | 3451.6000000000004 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-19.75-6TOP-HD-45-L-4HX11W-462J |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 8.77 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 8.00 |
| TILT ANGLE | 46.00 |
| CANTILEVER | 891.00 |
| GROUND CLEARANCE | 4.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1002.08 |
| ARRAY WIDTH | 75.53 |
| ARRAY HEIGHT | 13.27 |
| RAIL LENGTH | 159.20 |
| MODULE LENGTH | 81.40 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 74.25 |
| GROUND TO TOP | 13.48 |
| PROJECTED PANEL HEIGHT | 9.42 |
| WIND SPEED OVERRIDE | 120.00 |
| SNOW LOAD OVERRIDE | 100.00 |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | 2, BIT, REVC |
| SITE ADDRESS | 32750, COUNTY, RD, 35, STEAMBOAT, SPRINGS, CO, 80487, USA |
| MODULE WIDTH | 39.30 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 11.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 18647.48 |
| TOTAL WEIGHT | 3451.60 |
| TOTAL PALLETS | 4.00 |

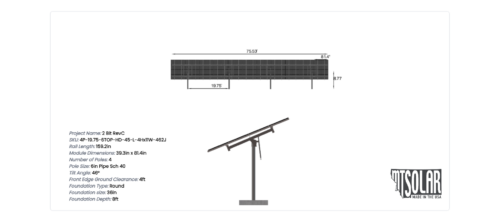

https://skycivquotes.s3.amazonaws.com/8d437877-5765-4111-b165-6a91b7138134.pdf |
|
| ID | 2273.00 |
| 3D Solar link |
