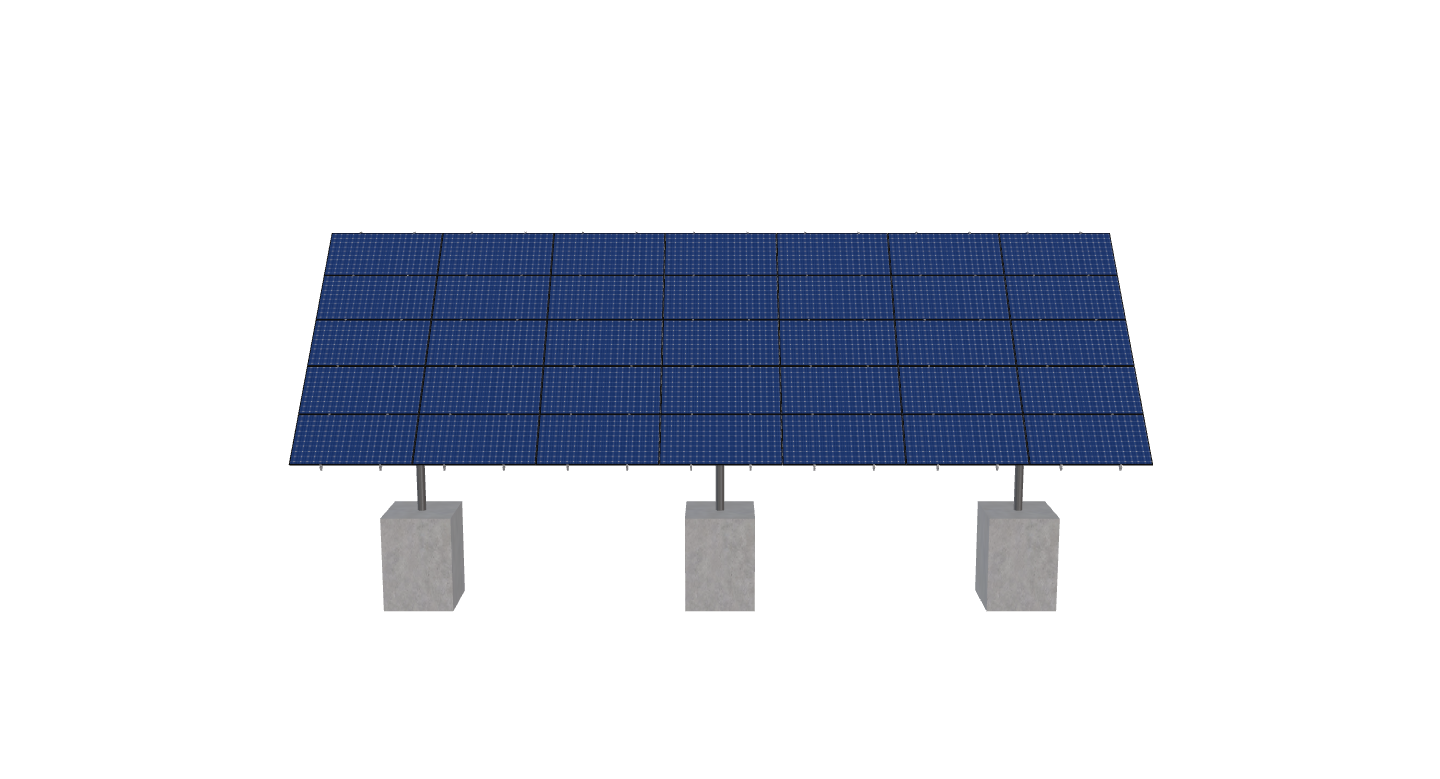

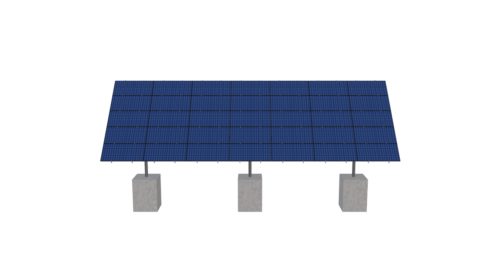

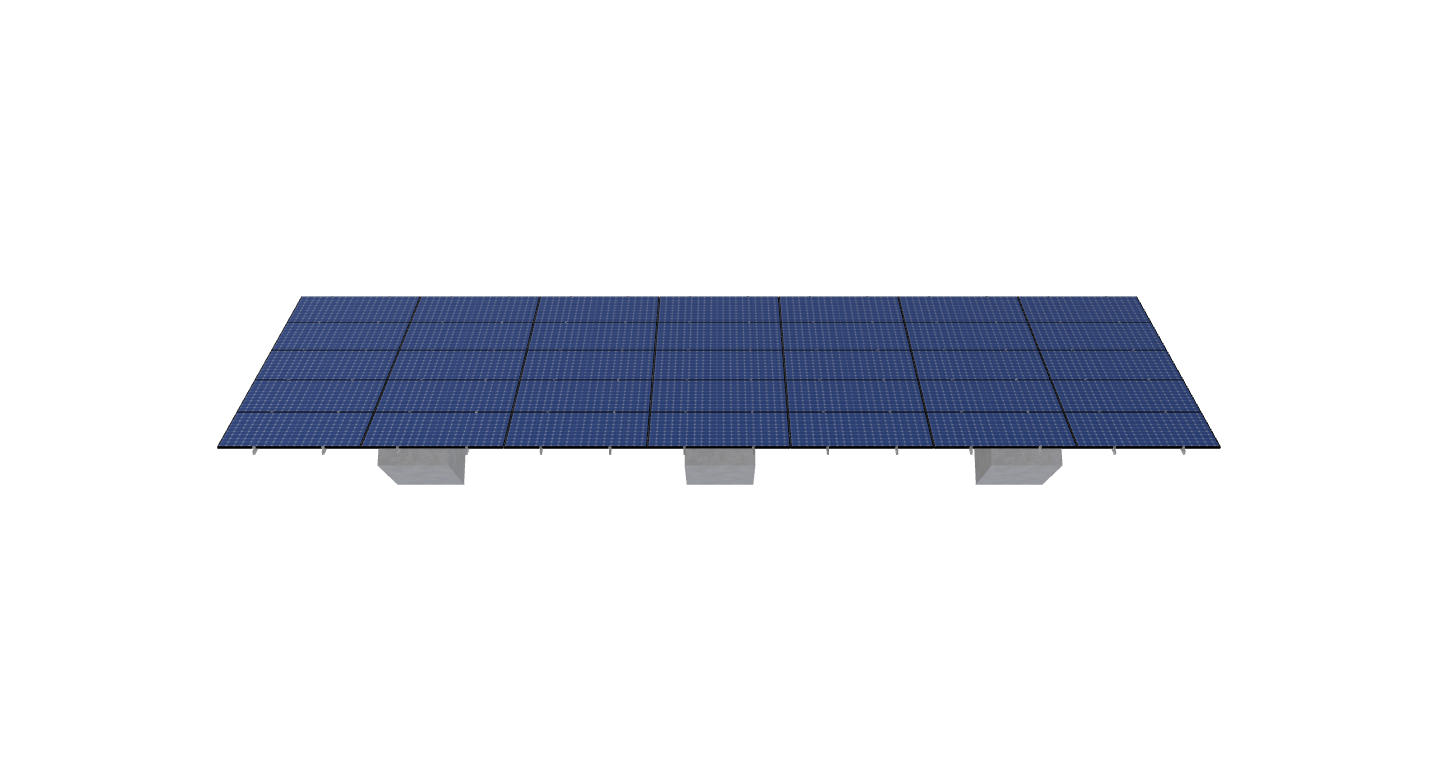

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.69 inches by 44.65 inches and an array layout of 7 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).

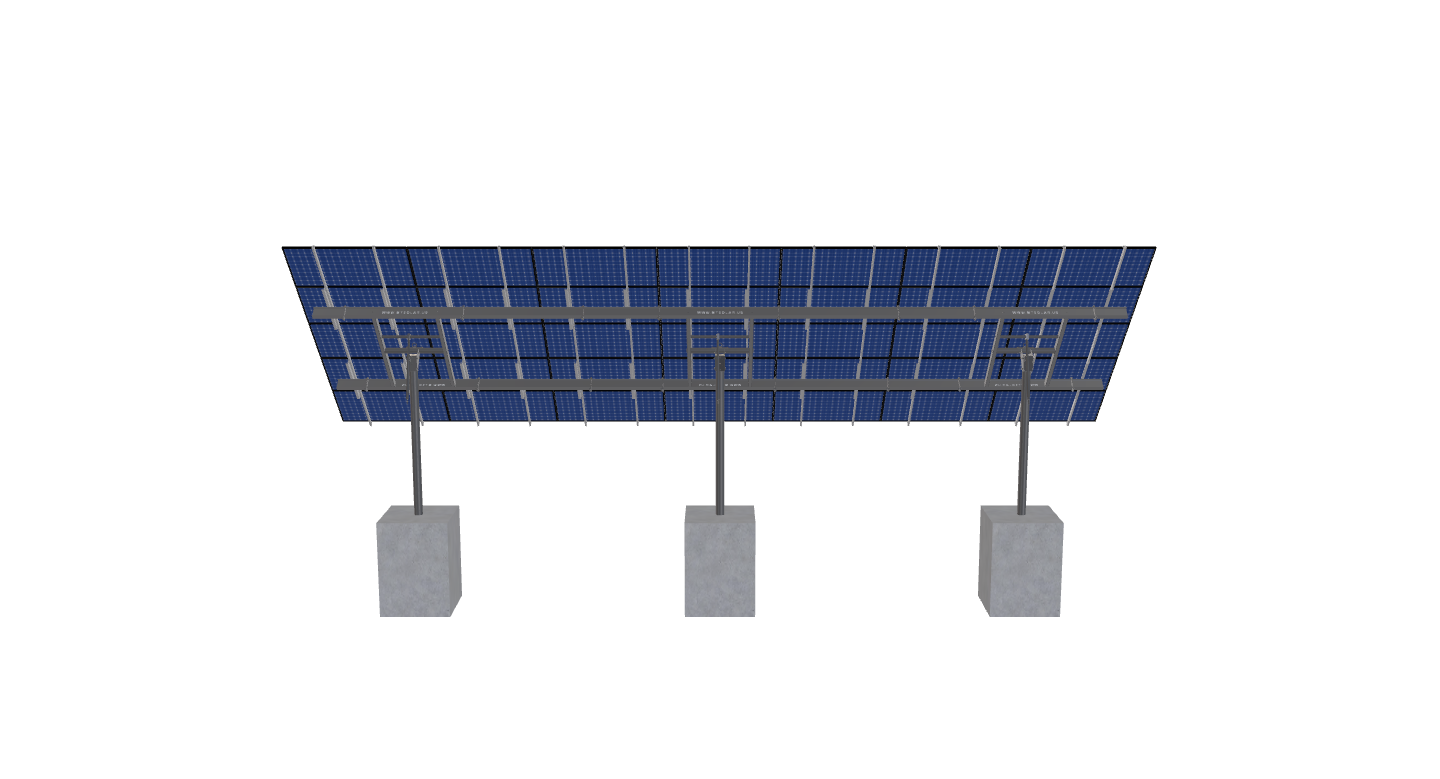

The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
31 North Street – Opt3 – Jb
$16,293.72
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.69 inches by 44.65 inches and an array layout of 7 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 3265.93 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 3P-19.75-8TOP-XD-24-L-5HX7W-5L4F |
DUTY SIZE | XD |
POLE SIZE | 8IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 3.00 |
POLE SPACING | 19.75 |
POLE HEIGHT | 10.77 |
WING SPAN | 24.00 |
MAX FOUNDATION DEPTH | 6.25 |

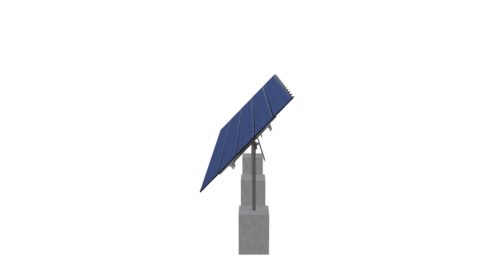

TILT ANGLE | 46.00 |
CANTILEVER | 612.00 |
GROUND CLEARANCE | 4.00 |
NO POLES | 3.00 |
MODULE AREA | 995.23 |

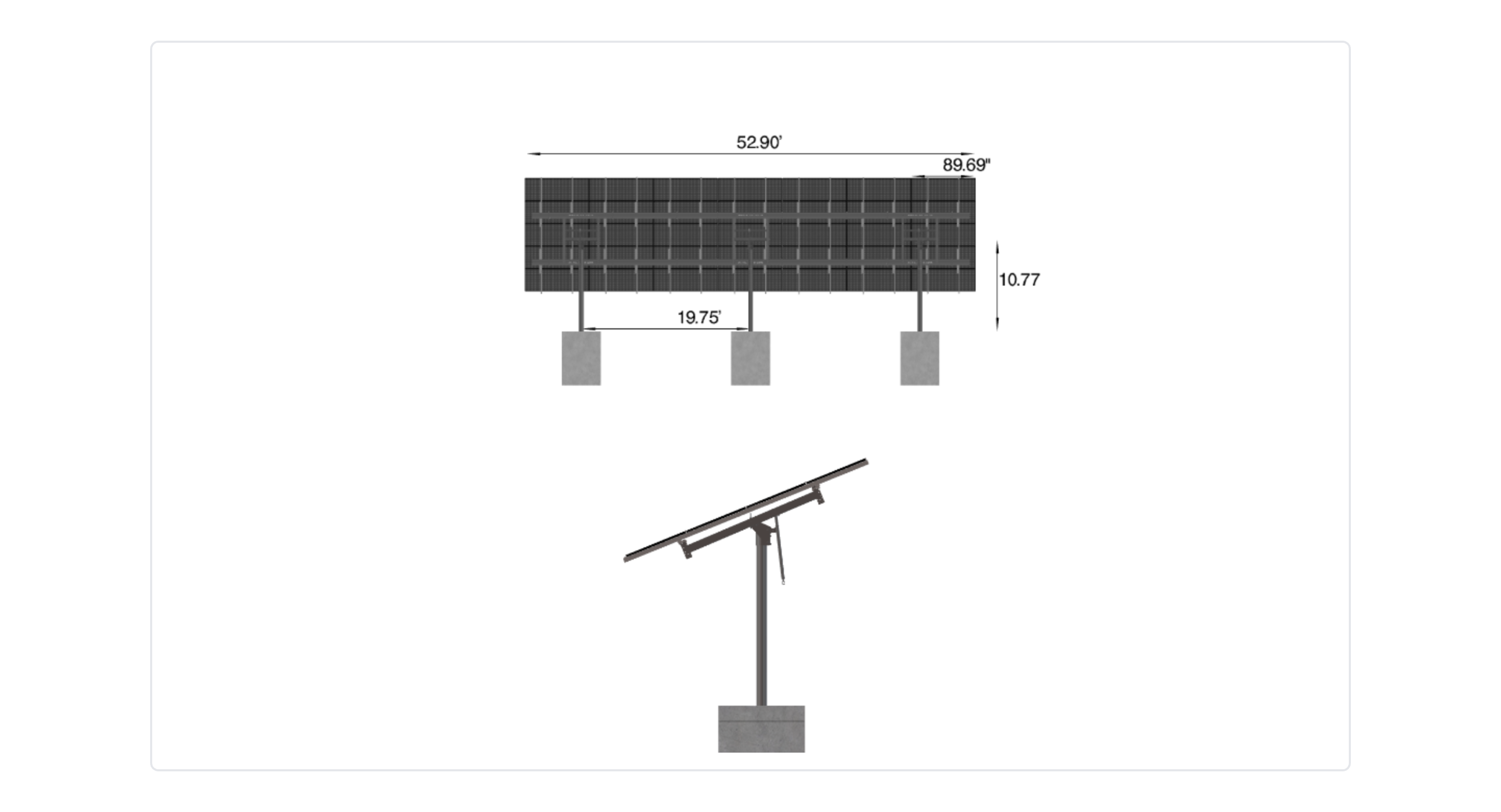

ARRAY WIDTH | 52.90 |
ARRAY HEIGHT | 18.81 |
RAIL LENGTH | 225.75 |
MODULE LENGTH | 89.69 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 51.00 |
GROUND TO TOP | 17.46 |
PROJECTED PANEL HEIGHT | 13.38 |
WIND SPEED OVERRIDE | NULL |
SNOW LOAD OVERRIDE | NULL |
DIRECT SNOW LOAD | FALSE |
ADD ANGLE BRACE | FALSE |
PROJECT ID | 31, NORTH, STREET, -, OPT3, -, JB |
SITE ADDRESS | 31, NORTH, ST, EAST, MILLINOCKET, ME, 04430, USA |
MODULE WIDTH | 44.65 |
NUMBER ROWS | 5.00 |
NUMBER COLUMNS | 7.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | B |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
TOTAL PRICE | 16293.72 |
TOTAL WEIGHT | 3265.93 |
TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/87b0a6dc-533b-4eba-96ef-6e854382c2c2.pdf |
|
ID | 7266.00 |
3D Solar link |
