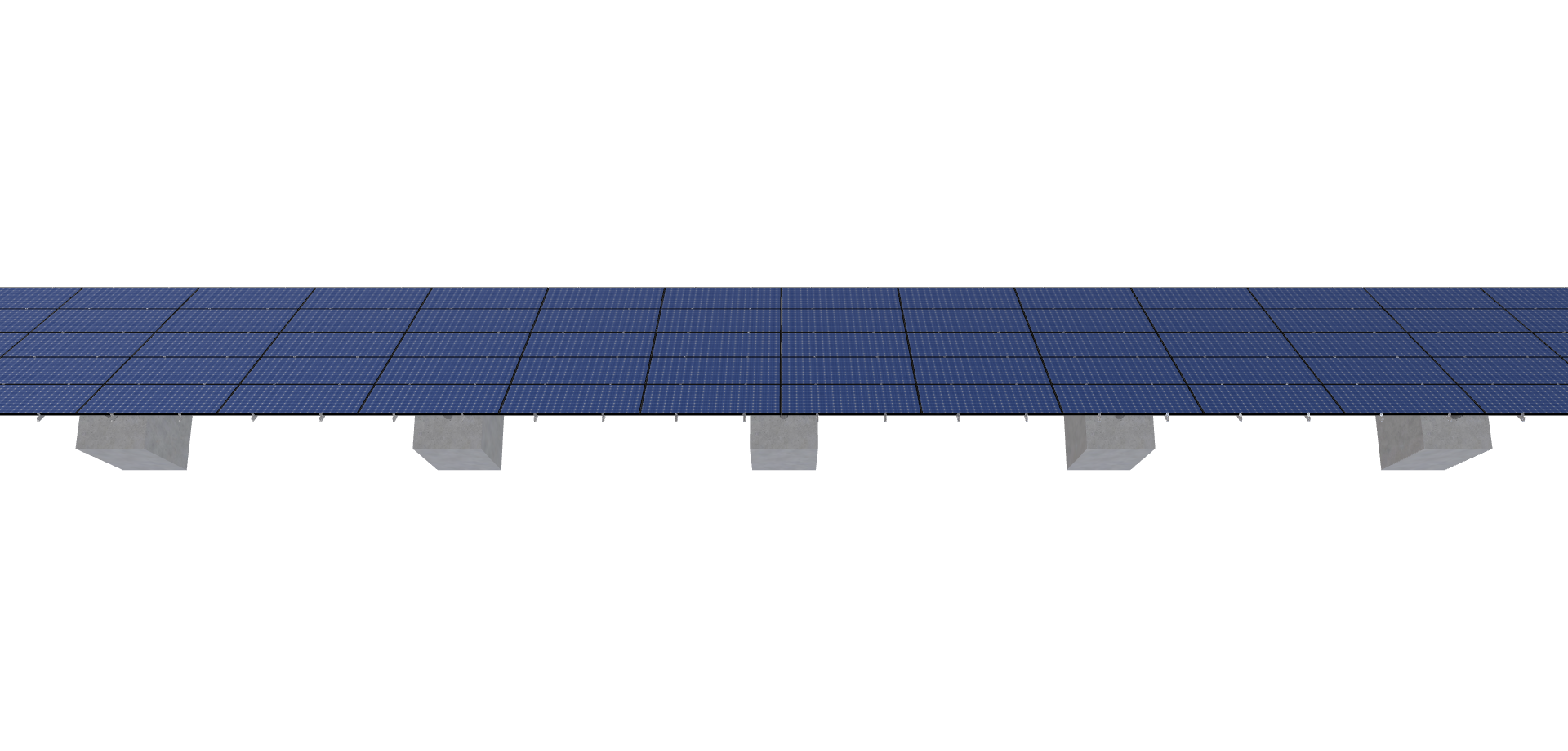

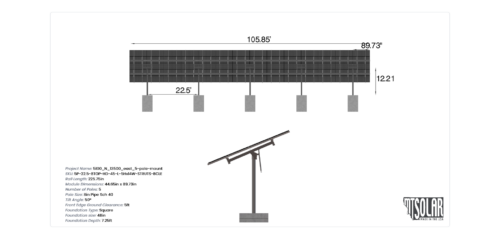

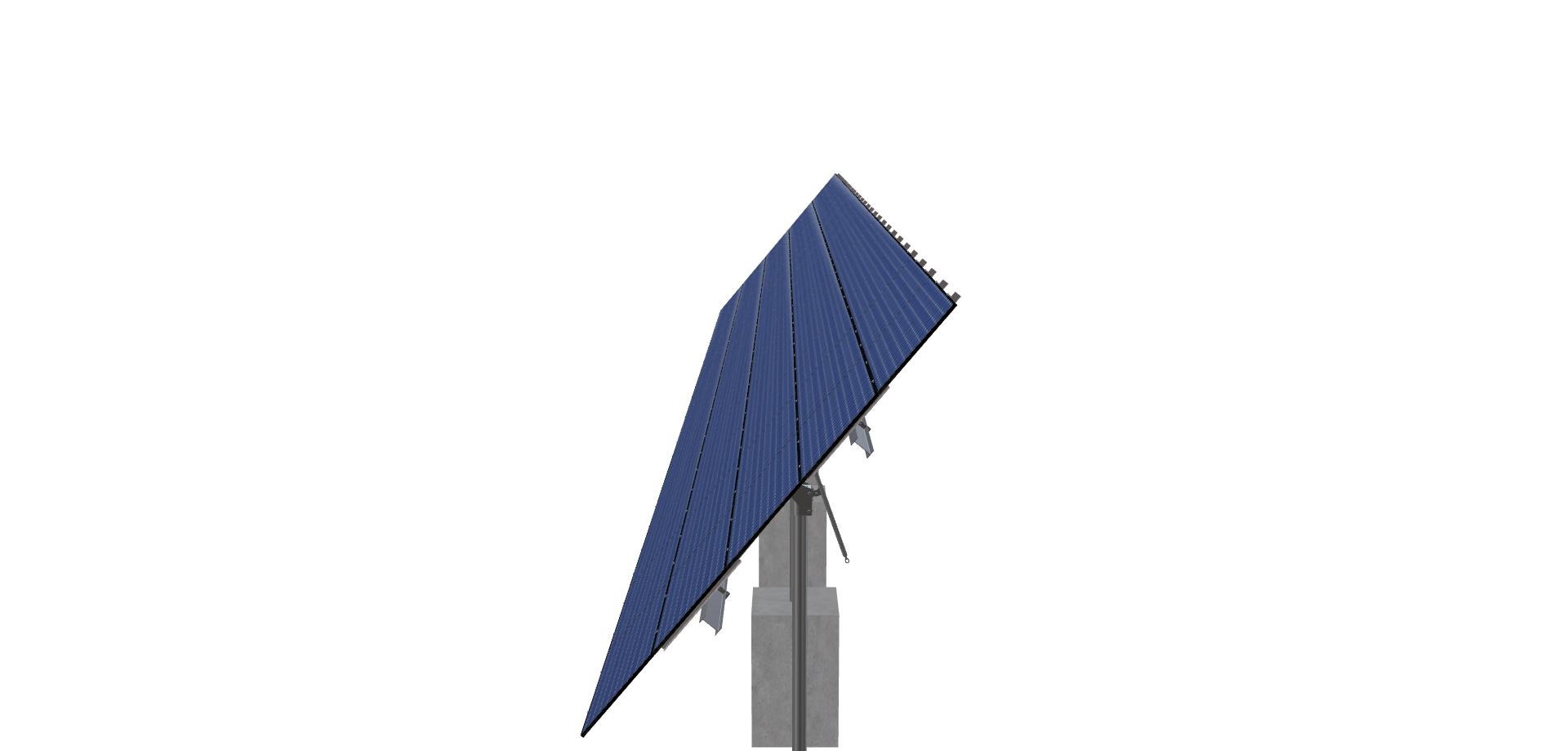

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.73 inches by 44.65 inches and an array layout of 14 wide by 5 high.
This mount fits on 5 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
5100_N_13500_east_5-pole-mount
$27,316.35
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.73 inches by 44.65 inches and an array layout of 14 wide by 5 high.
This mount fits on 5 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 5548.75 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 5P-22.5-8TOP-HD-45-L-5HX14W-STRUTS-BCLE |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 5.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 12.21 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 7.25 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 1260.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 5.00 |
| MODULE AREA | 1991.33 |
| ARRAY WIDTH | 105.85 |
| ARRAY HEIGHT | 18.81 |
| RAIL LENGTH | 225.75 |
| MODULE LENGTH | 89.73 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 105.00 |
| GROUND TO TOP | 19.33 |
| PROJECTED PANEL HEIGHT | 14.25 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | TRUE |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | 5100, N, 13500, EAST, 5-POLE-MOUNT |
| SITE ADDRESS | NEWDALE, ID, 83436, USA |
| MODULE WIDTH | 44.65 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 14.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 27316.35 |
| TOTAL WEIGHT | 5548.75 |
| TOTAL PALLETS | 5.00 |
https://skycivquotes.s3.amazonaws.com/2274e51a-3627-4ad3-8a2a-902087fee1e1.pdf |
|
| ID | 7867.00 |
| 3D Solar link |
