This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 85.51 inches by 51.3 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
5×6 635W Array
$11,181.66
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 85.51 inches by 51.3 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2272.7799999999997 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |

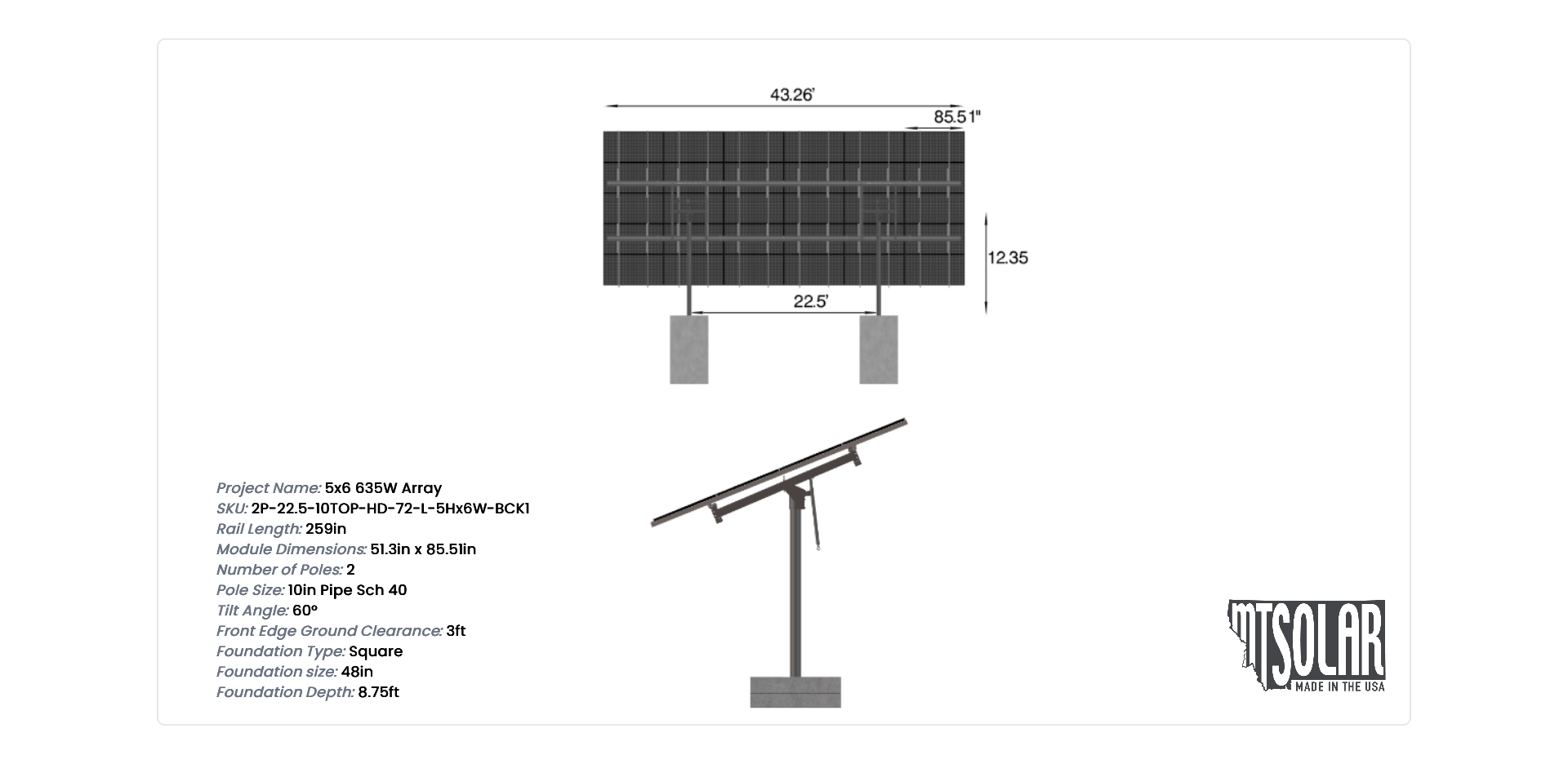

| SKU CODE | 2P-22.5-10TOP-HD-72-L-5HX6W-BCK1 |
| DUTY SIZE | HD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 12.35 |
| WING SPAN | 72.00 |
| MAX FOUNDATION DEPTH | 8.75 |
| TILT ANGLE | 60.00 |
| CANTILEVER | 504.00 |
| GROUND CLEARANCE | 3.00 |
| NO POLES | 2.00 |
| MODULE AREA | 933.59 |
| ARRAY WIDTH | 43.26 |
| ARRAY HEIGHT | 21.58 |
| RAIL LENGTH | 259.00 |
| MODULE LENGTH | 85.51 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 42.00 |
| GROUND TO TOP | 21.60 |
| PROJECTED PANEL HEIGHT | 18.51 |
| PROJECT ID | 5X6, 635W, ARRAY |
| SITE ADDRESS | CORNISH, ME, 04020, USA |
| MODULE WIDTH | 51.30 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 11181.66 |
| TOTAL WEIGHT | 2272.78 |
| TOTAL PALLETS | 2.00 |
