6020 watt REC 430 7wide4high 2 pole

$10,050.11

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68.2 inches by 44.1 inches and an array layout of 7 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

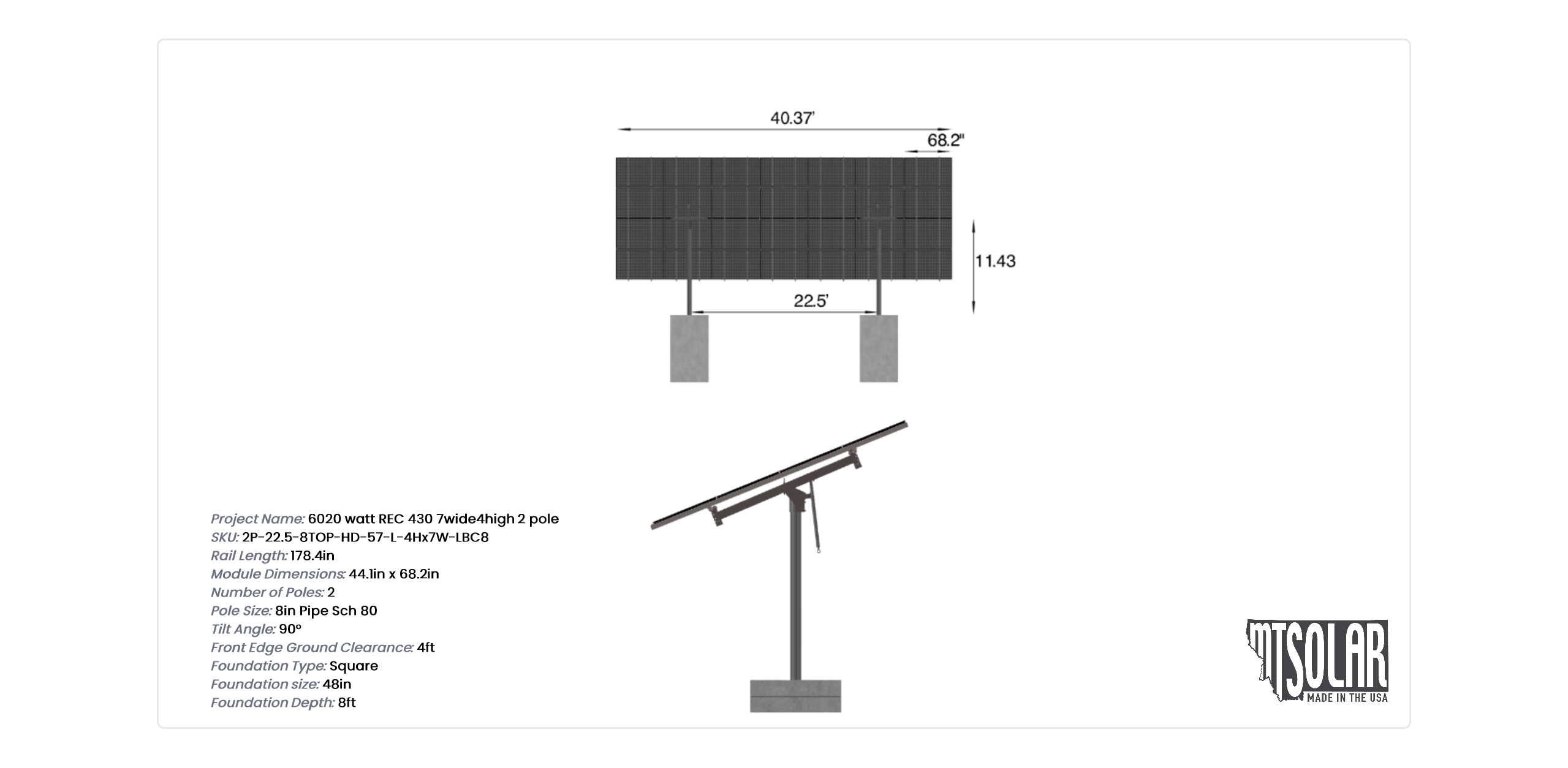

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

Product price: $10,050.11
Total options:
Order total:
SKU: 2P-22.5-8TOP-HD-57-L-4Hx7W-LBC8 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68.2 inches by 44.1 inches and an array layout of 7 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 1844.72 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

2P-22.5-8TOP-HD-57-L-4HX7W-LBC8

DUTY SIZE

HD

POLE SIZE

8IN, PIPE, SCH, 80

PRODUCT TYPE

BEAM

NUMBER OF POLES

2.00

POLE SPACING

22.50

POLE HEIGHT

11.43

WING SPAN

57.00

MAX FOUNDATION DEPTH

8.00

TILT ANGLE

90.00

CANTILEVER

474.00

GROUND CLEARANCE

4.00

NO POLES

2.00

MODULE AREA

600.12

ARRAY WIDTH

40.37

ARRAY HEIGHT

14.87

RAIL LENGTH

178.40

MODULE LENGTH

68.20

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

39.50

GROUND TO TOP

18.78

PROJECTED PANEL HEIGHT

14.70

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

6020, WATT, REC, 430, 7WIDE4HIGH, 2, POLE

SITE ADDRESS

SWANVILLE, MN, 56382, USA

MODULE WIDTH

44.10

NUMBER ROWS

4.00

NUMBER COLUMNS

7.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

10050.11

TOTAL WEIGHT

1844.72

TOTAL PALLETS

2.00

pdf

https://skycivquotes.s3.amazonaws.com/bdfa2fe0-34bf-4119-aeba-f5025e7a7a20.pdf

ID

6918.00
