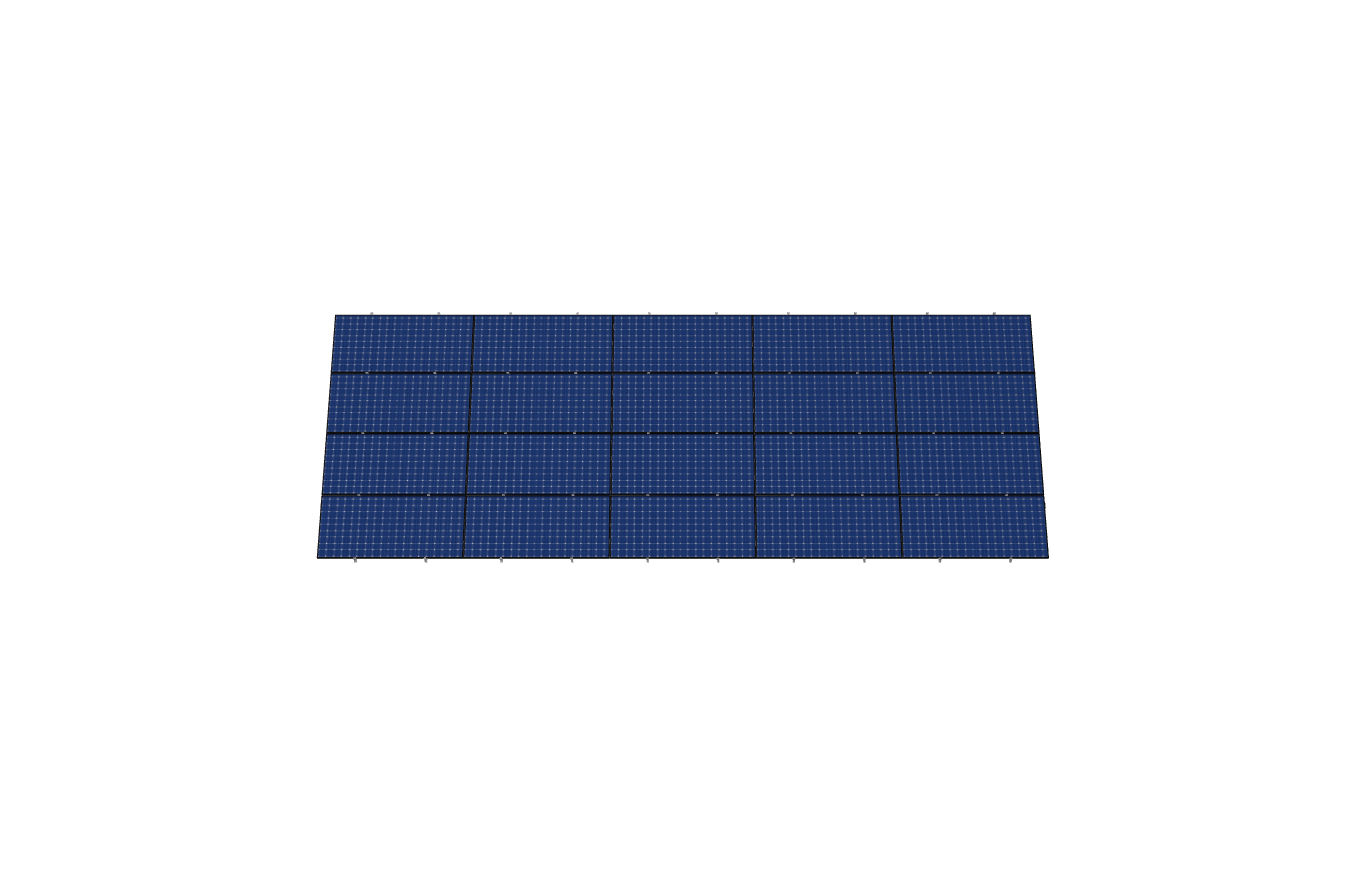

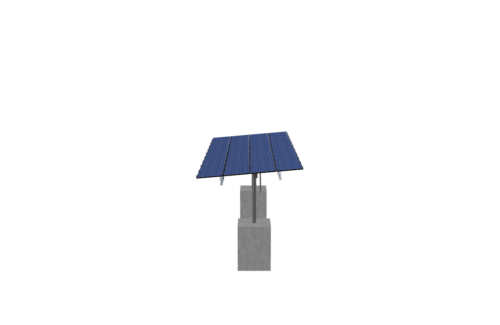

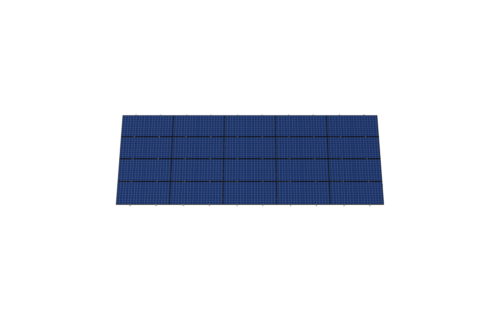

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89 inches by 41.3 inches and an array layout of 5 wide by 4 high.

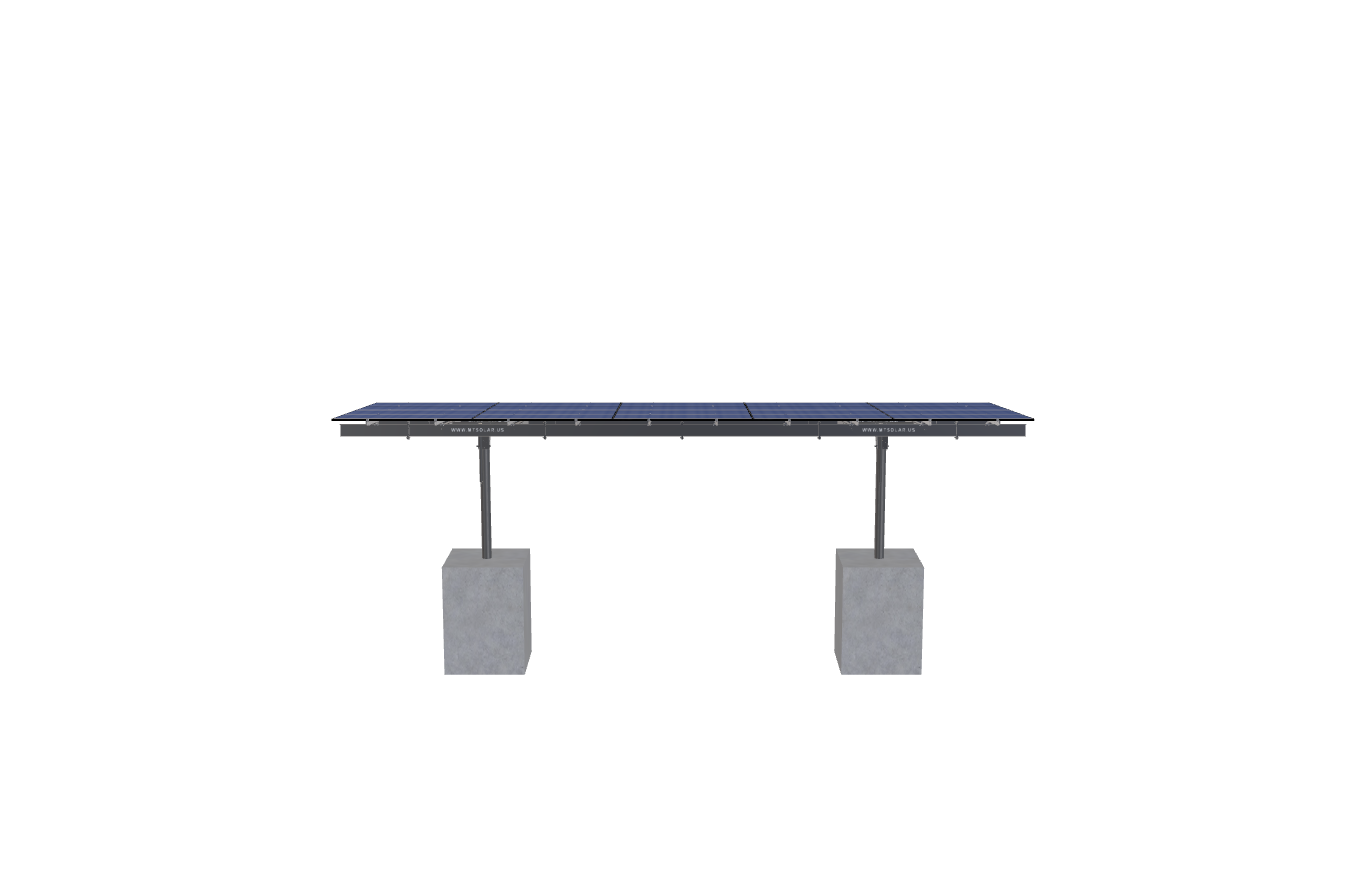

This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Agrivoltaics with 10 deg
$10,762.35
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89 inches by 41.3 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information

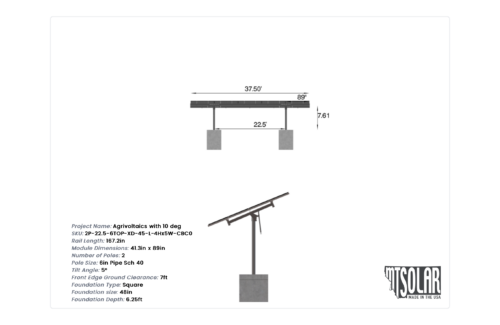

| Weight | 1932.7999999999997 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-22.5-6TOP-XD-45-L-4HX5W-CBC0 |
| DUTY SIZE | XD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 7.61 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 6.25 |
| TILT ANGLE | 5.00 |
| CANTILEVER | 450.00 |
| GROUND CLEARANCE | 7.00 |
| NO POLES | 2.00 |
| MODULE AREA | 522.50 |
| ARRAY WIDTH | 37.50 |
| ARRAY HEIGHT | 13.93 |
| RAIL LENGTH | 167.20 |
| MODULE LENGTH | 89.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 37.50 |
| GROUND TO TOP | 8.21 |
| PROJECTED PANEL HEIGHT | 1.21 |
| DESIGNER NAME | JOSE, E, GARCIA |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 787-399-4590 |
| PROJECT ID | AGRIVOLTAICS, WITH, 10, DEG |
| SITE ADDRESS | MIAMI, FL, USA |
| MODULE WIDTH | 41.30 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 5.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 170.00 |
| SNOW LOAD OVERRIDE | 0.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 10249.86 |
| TOTAL WEIGHT | 1932.80 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/a4276325-0941-41f2-ab1b-6ec9dc0f7a26.pdf |
|
| ID | 9210.00 |
| 3D Solar link |
