Bishop MTSOLAR_GD765A41C049

$7,412.92

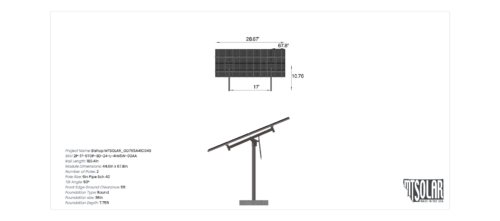

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.6 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 2P-17-6TOP-SD-24-L-4Hx5W-00AA Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.6 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 1287.1 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

2P-17-6TOP-SD-24-L-4HX5W-00AA

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

2.00

POLE SPACING

17.00

POLE HEIGHT

10.76

WING SPAN

24.00

MAX FOUNDATION DEPTH

7.75

TILT ANGLE

50.00

CANTILEVER

342.00

GROUND CLEARANCE

5.00

NO POLES

2.00

MODULE AREA

430.96

ARRAY WIDTH

28.67

ARRAY HEIGHT

15.03

RAIL LENGTH

180.40

MODULE LENGTH

67.80

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

28.50

GROUND TO TOP

16.45

PROJECTED PANEL HEIGHT

11.39

PROJECT ID

BISHOP, MTSOLAR, GD765A41C049

SITE ADDRESS

3224, COUNTY, RD, 562, GRANBY, CO, 80446, USA

MODULE WIDTH

44.60

NUMBER ROWS

4.00

NUMBER COLUMNS

5.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

36, ROUND

FOUNDATION TYPE

ROUND

FOUNDATION SIZE

36.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

115.00

SNOW LOAD OVERRIDE

90.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

TOTAL PRICE

7412.92

TOTAL WEIGHT

1287.10

TOTAL PALLETS

2.00

pdf

https://skycivquotes.s3.amazonaws.com/dfbd5ed6-2f43-478f-abfc-0b3b3e56db36.pdf

ID

6751.00
