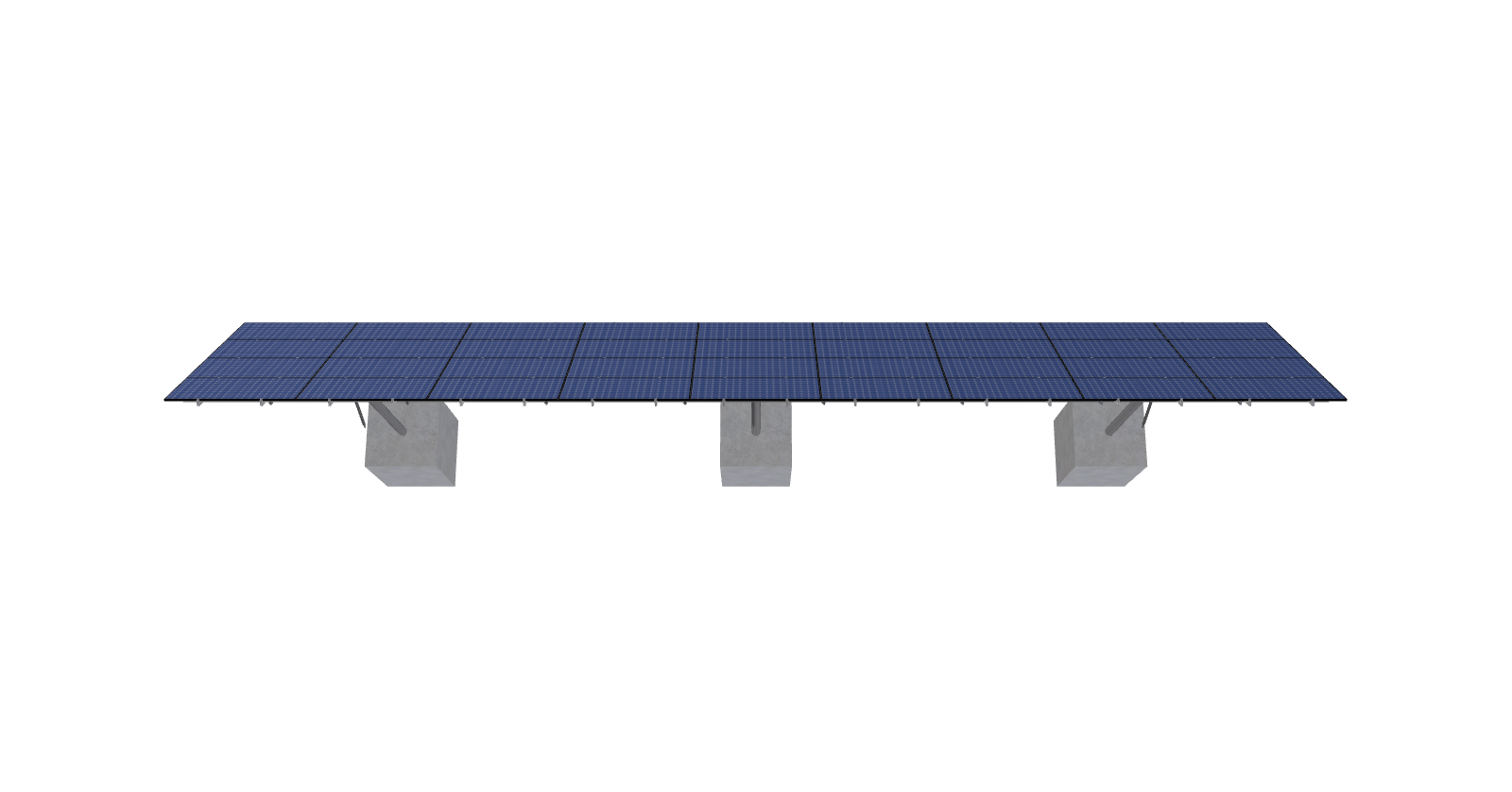

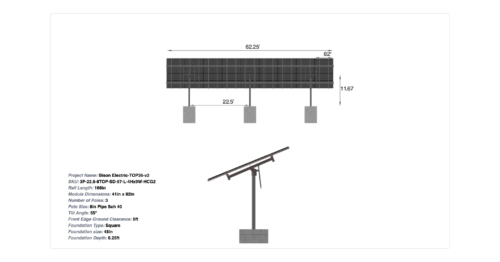

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82 inches by 41 inches and an array layout of 9 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Bison Electric-TOP36-v2
$14,472.03
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82 inches by 41 inches and an array layout of 9 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2445.42 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-22.5-8TOP-SD-57-L-4HX9W-HCG2 |
| DUTY SIZE | SD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 11.67 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 6.25 |
| TILT ANGLE | 55.00 |
| CANTILEVER | 744.00 |
| GROUND CLEARANCE | 6.00 |
| NO POLES | 3.00 |
| MODULE AREA | 861.13 |
| ARRAY WIDTH | 62.25 |
| ARRAY HEIGHT | 13.83 |
| RAIL LENGTH | 166.00 |
| MODULE LENGTH | 82.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 62.00 |
| GROUND TO TOP | 17.33 |
| PROJECTED PANEL HEIGHT | 11.33 |
| WIND SPEED OVERRIDE | 100.00 |
| SNOW LOAD OVERRIDE | 110.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | BISON, ELECTRIC-TOP36-V2 |
| SITE ADDRESS | 1820, PATRICK, CREEK, RD, KALISPELL, MT, 59901, USA |
| MODULE INFO | |
| MODULE WIDTH | 41.00 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 9.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 13782.89 |
| TOTAL WEIGHT | 2445.42 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/9a990791-fa9b-4eaf-9d54-9531957ebcaf.pdf |
|
| ID | 10842.00 |
| 3D Solar link |
