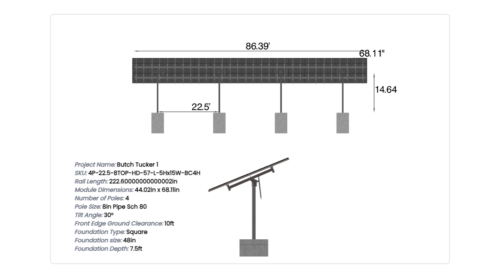

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68.11 inches by 44.02 inches and an array layout of 15 wide by 5 high.
This mount fits on 4 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Butch Tucker 1
$24,921.59
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68.11 inches by 44.02 inches and an array layout of 15 wide by 5 high.
This mount fits on 4 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 4828.719999999999 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-22.5-8TOP-HD-57-L-5HX15W-BC4H |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 14.64 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 7.50 |
| TILT ANGLE | 30.00 |
| CANTILEVER | 1014.00 |
| GROUND CLEARANCE | 10.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1602.49 |
| ARRAY WIDTH | 86.39 |
| ARRAY HEIGHT | 18.55 |
| RAIL LENGTH | 222.60 |
| MODULE LENGTH | 68.11 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 84.50 |
| GROUND TO TOP | 19.22 |
| PROJECTED PANEL HEIGHT | 9.17 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | BUTCH, TUCKER, 1 |
| SITE ADDRESS | 308, N, OUTER, RD, ST, JAMES, MO, 65559, USA |
| MODULE WIDTH | 44.02 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 15.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 23734.85 |
| TOTAL WEIGHT | 4828.72 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/bf1e1824-d5f4-4d4b-80af-ba11c6793523.pdf |
|
| ID | 2798.00 |
| 3D Solar link |
