This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68.11 inches by 44.02 inches and an array layout of 5 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Butch Tucker Test
$8,744.11
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68.11 inches by 44.02 inches and an array layout of 5 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information

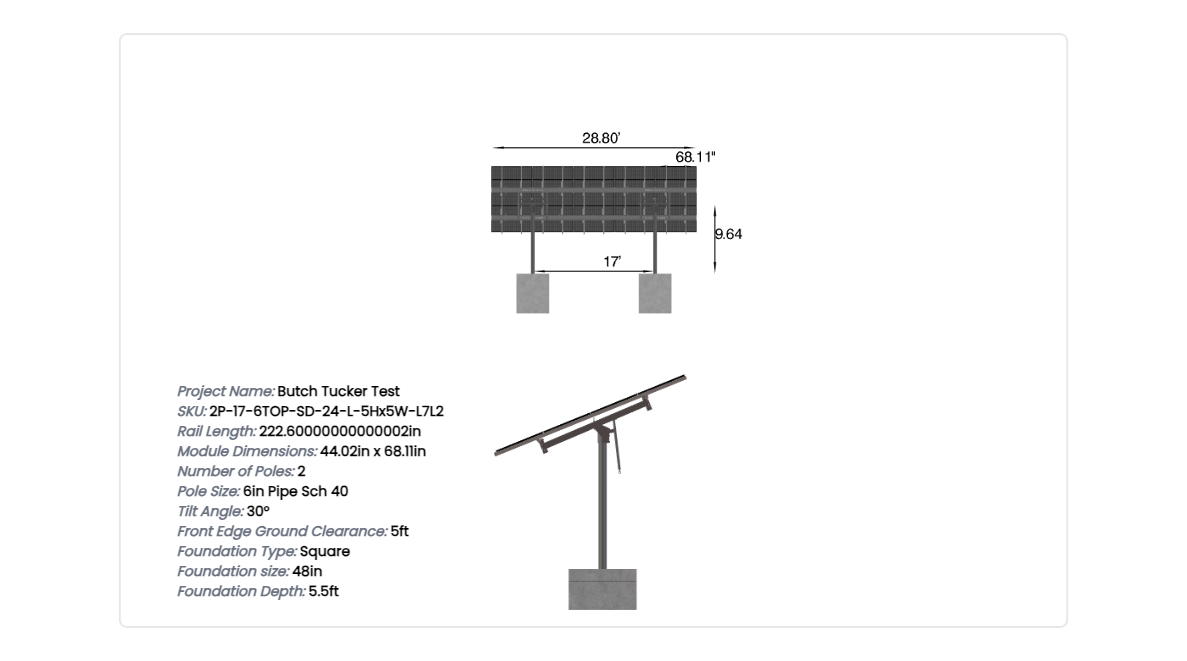

| Weight | 1608.2 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-17-6TOP-SD-24-L-5HX5W-L7L2 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 9.64 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 5.50 |
| TILT ANGLE | 30.00 |
| CANTILEVER | 342.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 2.00 |
| MODULE AREA | 534.16 |
| ARRAY WIDTH | 28.80 |
| ARRAY HEIGHT | 18.55 |
| RAIL LENGTH | 222.60 |
| MODULE LENGTH | 68.11 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 28.50 |
| GROUND TO TOP | 14.22 |
| PROJECTED PANEL HEIGHT | 9.17 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | BUTCH, TUCKER, TEST |
| SITE ADDRESS | 308, N, OUTER, RD, ST, JAMES, MO, 65559, USA |
| MODULE WIDTH | 44.02 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 5.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 8327.72 |
| TOTAL WEIGHT | 1608.20 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/1d36781a-44f8-4826-bb29-e7dc565aa5b9.pdf |
|
| ID | 2796.00 |
| 3D Solar link |
