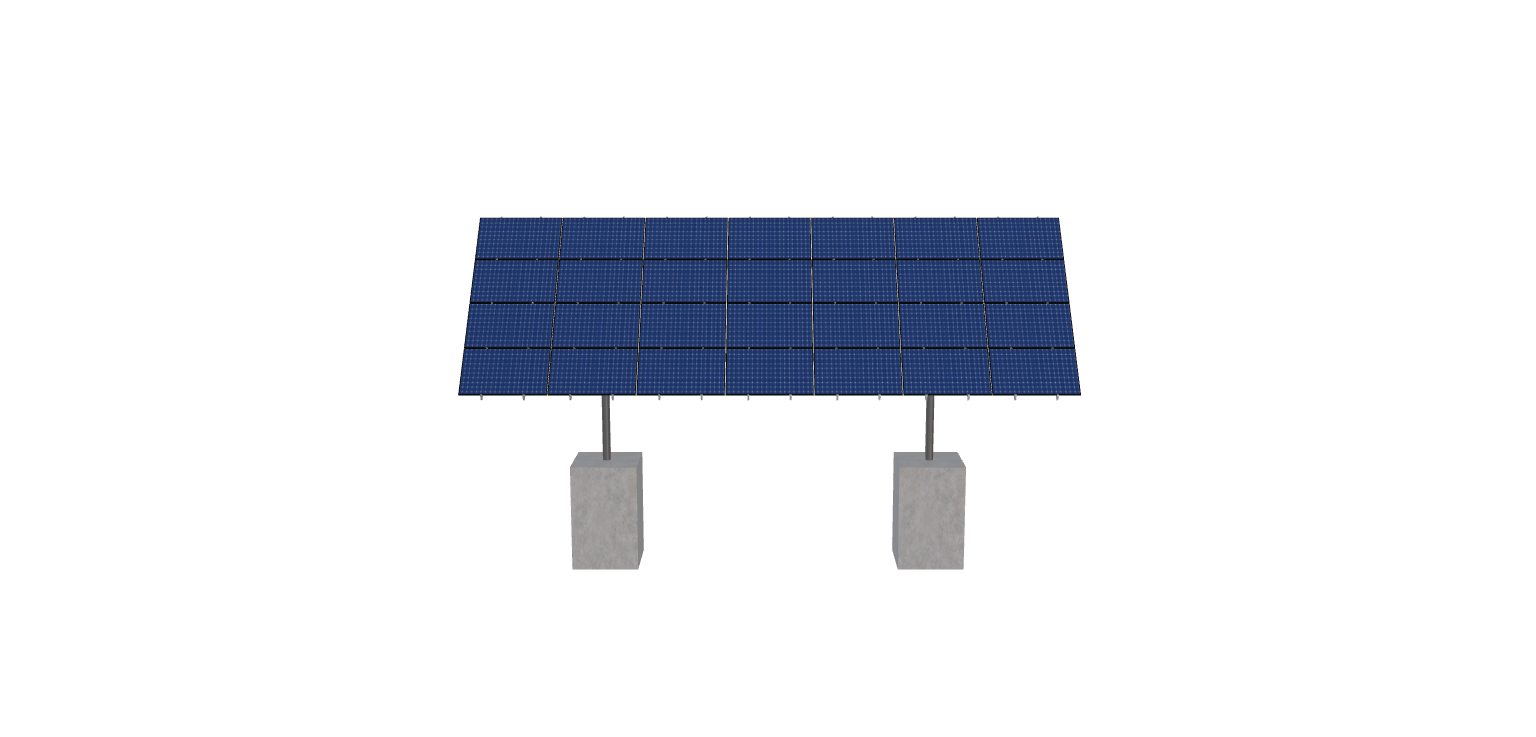

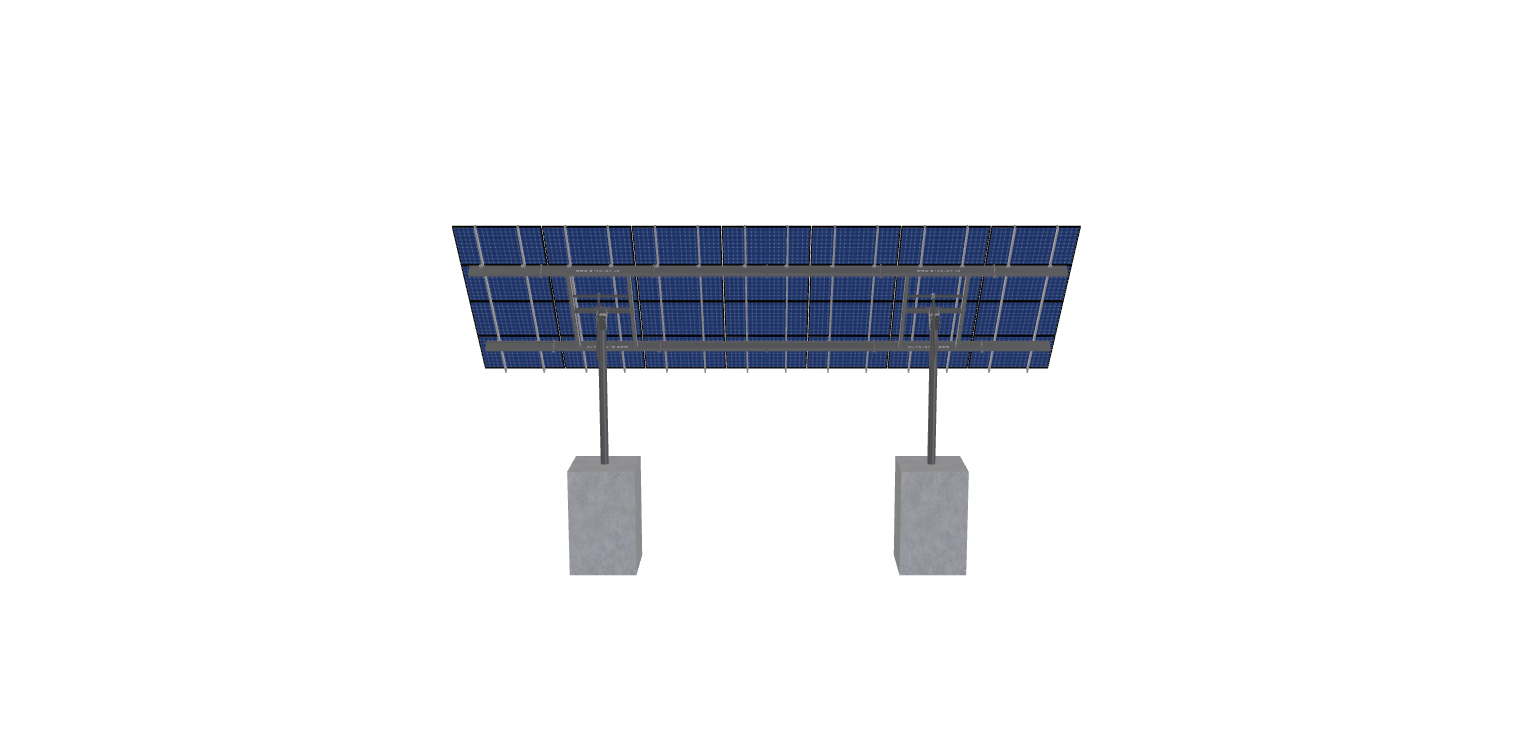

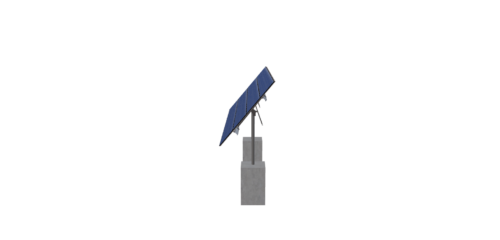

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.06 inches by 43.15 inches and an array layout of 7 wide by 4 high.
This mount fits on 2 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Calkins
$11,921.99
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.06 inches by 43.15 inches and an array layout of 7 wide by 4 high.
This mount fits on 2 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

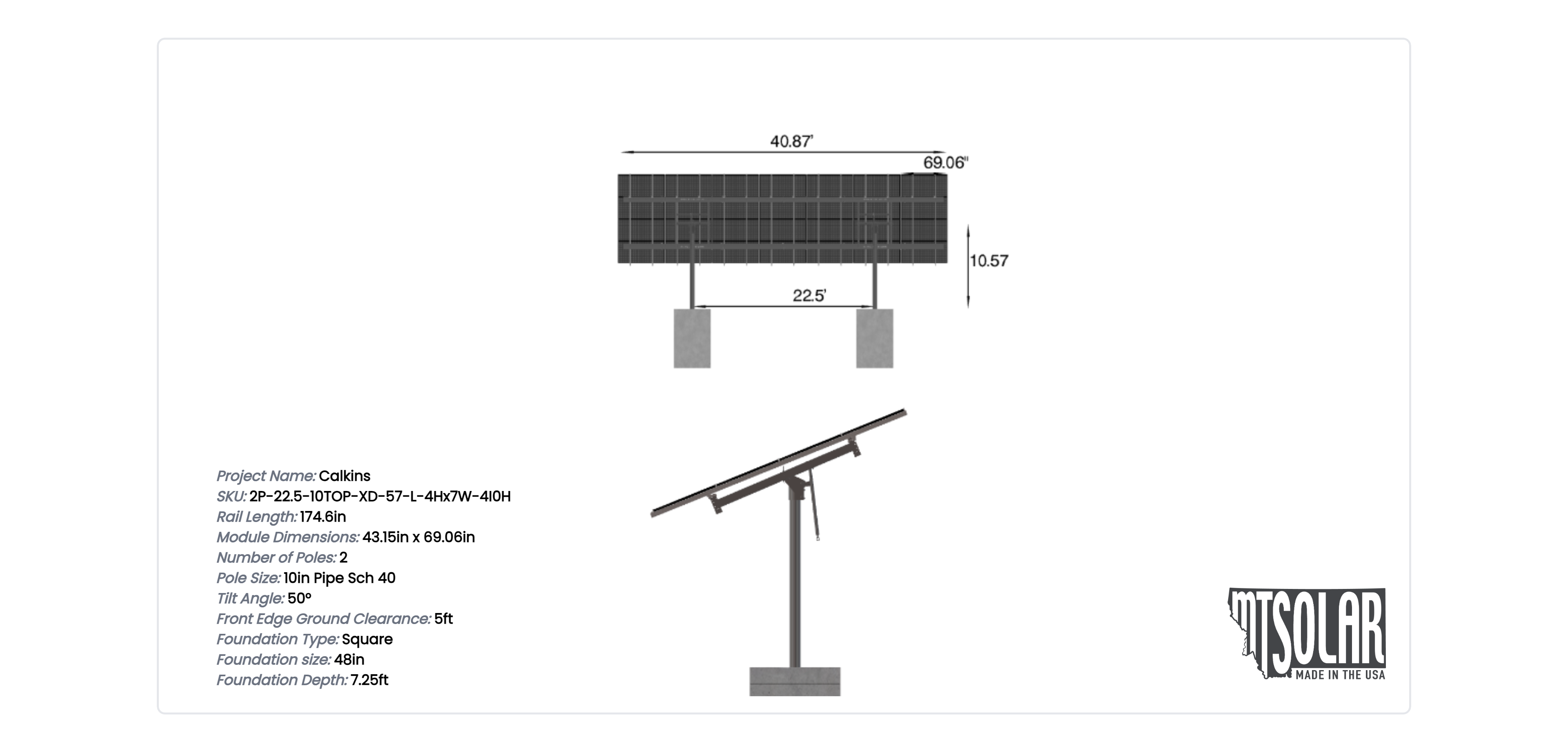

Additional information
| Weight | 2115.24 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-22.5-10TOP-XD-57-L-4HX7W-4I0H |
| DUTY SIZE | XD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 10.57 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 7.25 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 474.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 2.00 |
| MODULE AREA | 594.63 |
| ARRAY WIDTH | 40.87 |
| ARRAY HEIGHT | 14.55 |
| RAIL LENGTH | 174.60 |
| MODULE LENGTH | 69.06 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 39.50 |
| GROUND TO TOP | 16.08 |
| PROJECTED PANEL HEIGHT | 11.02 |
| PROJECT ID | CALKINS |
| SITE ADDRESS | 153, W, SHORE, RD, BRISTOL, NH, 03222, USA |
| MODULE WIDTH | 43.15 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 7.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | XD |
| POLE OVERRIDE | 10, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 120.00 |
| SNOW LOAD OVERRIDE | 40.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 11354.28 |
| TOTAL WEIGHT | 2115.24 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/e5f8e1c3-b34f-40fe-bca1-5635aa48861e.pdf |
|
| ID | 5474.00 |
| 3D Solar link |
