This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.44 inches by 40.866 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Camger-RevH-JB
$4,697.54
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.44 inches by 40.866 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

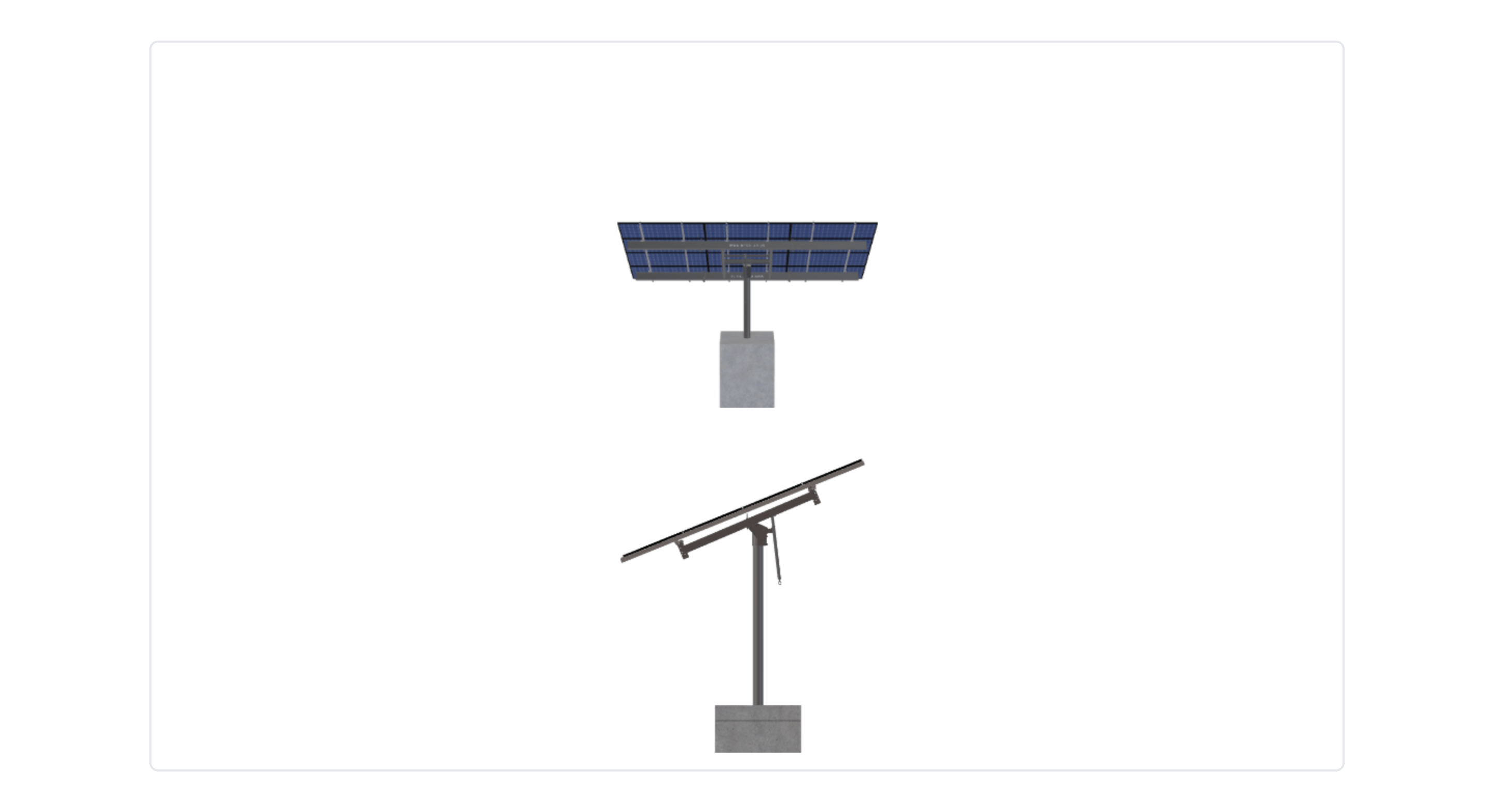

See 3D Model Here
Additional information
| Weight | 869.33 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-6TOP-HD-72-L-4HX3W-DFJ0 |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 6.45 |
| WING SPAN | 72.00 |
| MAX FOUNDATION DEPTH | 5.50 |
| TILT ANGLE | 30.00 |
| CANTILEVER | 234.00 |
| GROUND CLEARANCE | 3.00 |
| NO POLES | 1.00 |
| MODULE AREA | 287.63 |
| ARRAY WIDTH | 20.86 |
| ARRAY HEIGHT | 13.79 |
| RAIL LENGTH | 165.46 |
| MODULE LENGTH | 82.44 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 19.50 |
| GROUND TO TOP | 9.85 |
| PROJECTED PANEL HEIGHT | 6.81 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | CAMGER-REVH-JB |
| SITE ADDRESS | 364, MAIN, ST, NORFOLK, MA, 02056, USA |
| MODULE WIDTH | 40.87 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 4697.54 |
| TOTAL WEIGHT | 869.33 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/6c0f5e41-42c5-480d-a420-ae861ee44818.pdf |
|
| ID | 3588.00 |
| 3D Solar link |
