This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 78 inches by 40 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

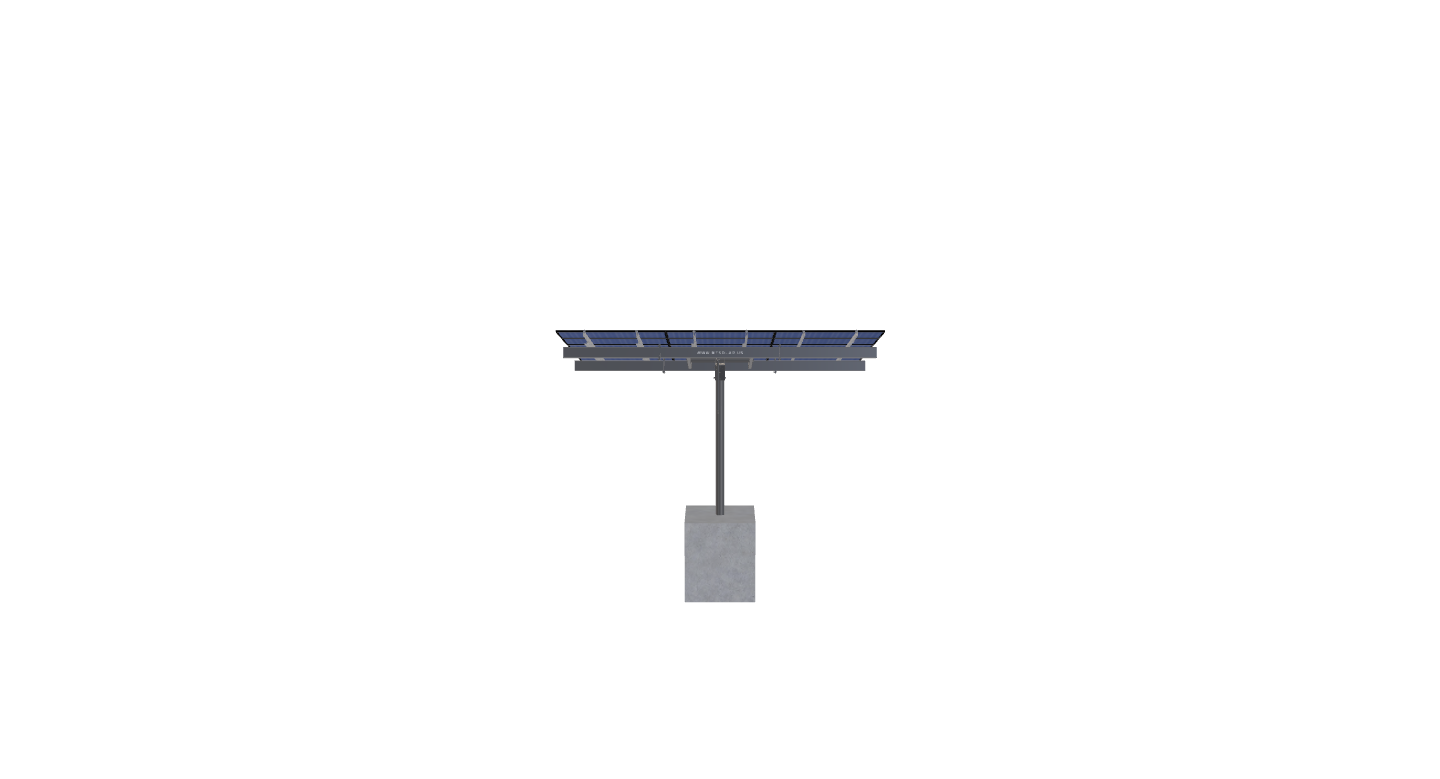

See 3D Model Here
Cedarbend Place–15mods-JB
$4,720.16
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 78 inches by 40 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 937.3199999999999 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 1P-0-6TOP-SD-72-L-5HX3W-J789 |
DUTY SIZE | SD |
POLE SIZE | 6IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 1.00 |
POLE SPACING | 0.00 |
POLE HEIGHT | 10.18 |
WING SPAN | 72.00 |
MAX FOUNDATION DEPTH | 5.25 |
TILT ANGLE | 15.00 |
CANTILEVER | 234.00 |
GROUND CLEARANCE | 8.00 |
NO POLES | 1.00 |
MODULE AREA | 333.28 |
ARRAY WIDTH | 19.75 |
ARRAY HEIGHT | 16.88 |
RAIL LENGTH | 202.50 |
MODULE LENGTH | 78.00 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 19.50 |
GROUND TO TOP | 12.34 |
PROJECTED PANEL HEIGHT | 4.31 |
WIND SPEED OVERRIDE | 104.00 |
SNOW LOAD OVERRIDE | 8.00 |
DIRECT SNOW LOAD | FALSE |
ADD ANGLE BRACE | FALSE |
PROJECT ID | CEDARBEND, PLACE–15MODS-JB |
SITE ADDRESS | 117, APARTMENT, DR, SHANNON, MS, 38868, USA |
MODULE WIDTH | 40.00 |
NUMBER ROWS | 5.00 |
NUMBER COLUMNS | 3.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | B |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
TOTAL PRICE | 4720.16 |
TOTAL WEIGHT | 937.32 |
TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/2e83a0e3-abc7-4a08-9744-6af3afd1cd41.pdf |
|
ID | 4758.00 |
3D Solar link |
