Chalmers_rev1

$8,565.99

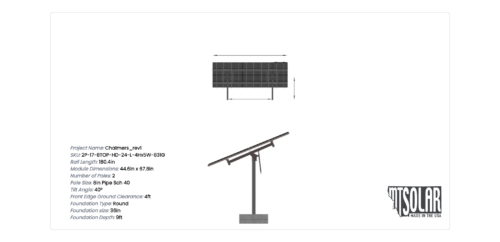

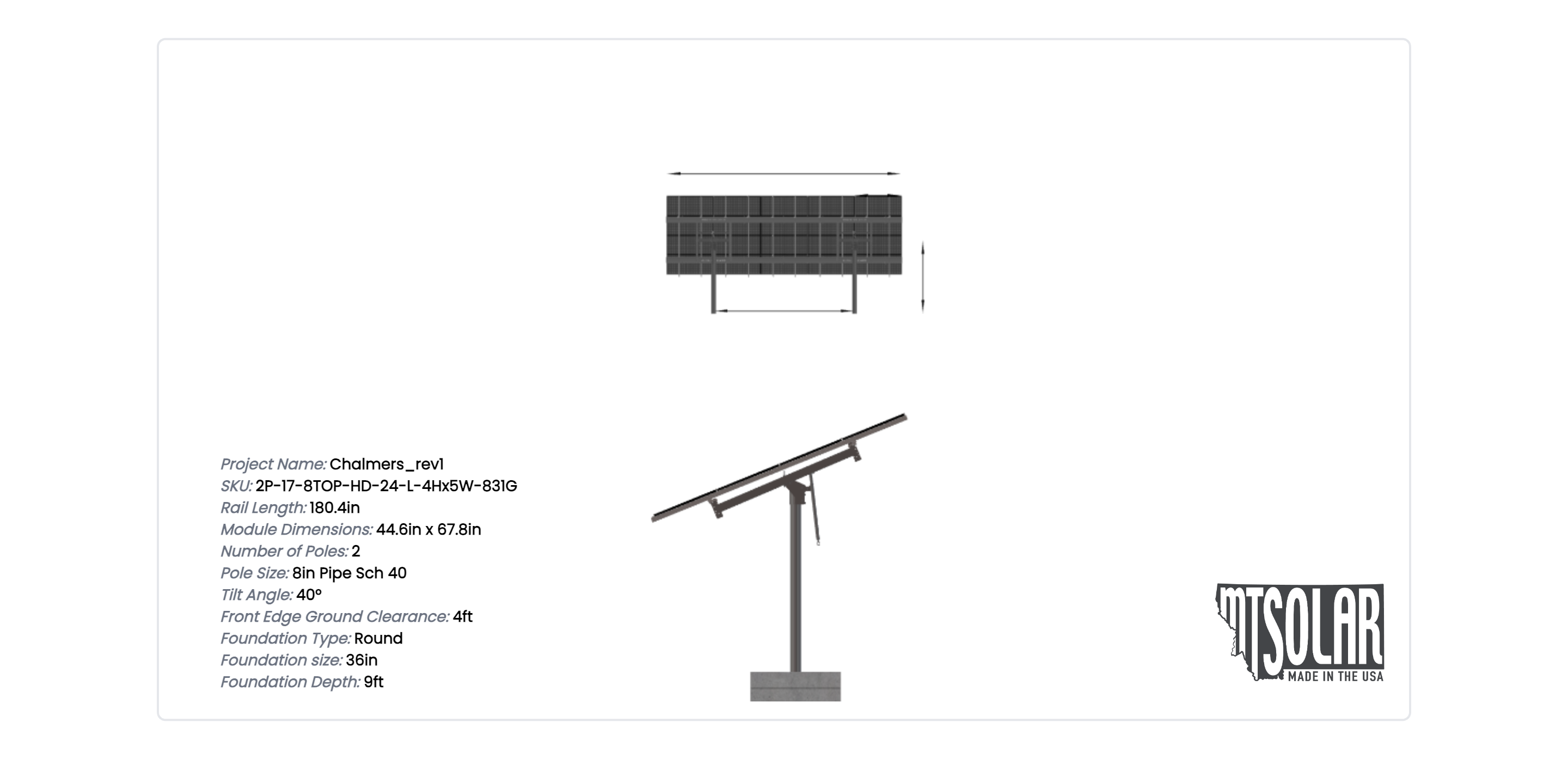

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.6 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

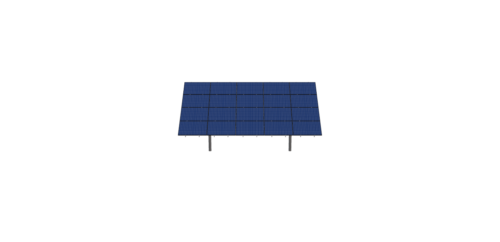

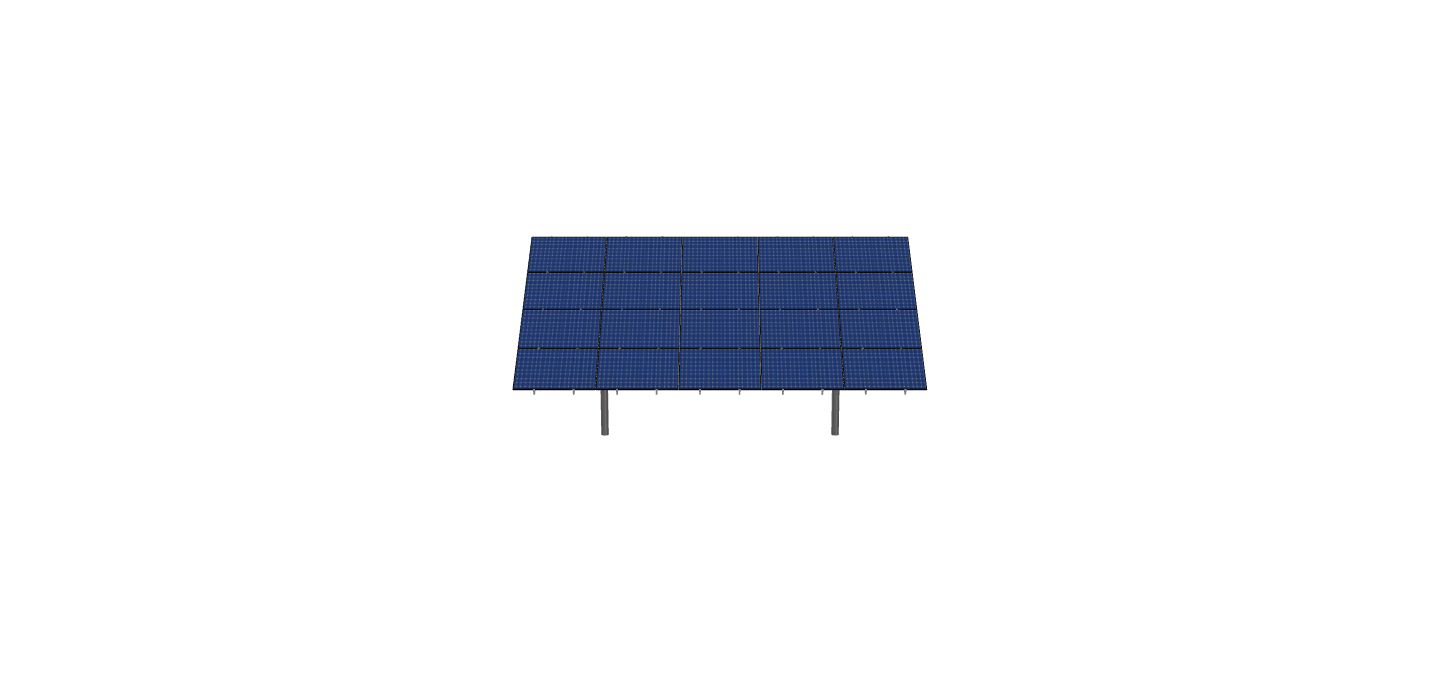

See 3D Model Here

SKU: 2P-17-8TOP-HD-24-L-4Hx5W-831G Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.6 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 1550.36 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

2P-17-8TOP-HD-24-L-4HX5W-831G

DUTY SIZE

HD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

2.00

POLE SPACING

17.00

POLE HEIGHT

8.83

WING SPAN

24.00

MAX FOUNDATION DEPTH

9.00

TILT ANGLE

40.00

CANTILEVER

342.00

GROUND CLEARANCE

4.00

NO POLES

2.00

MODULE AREA

430.96

ARRAY WIDTH

28.67

ARRAY HEIGHT

15.03

RAIL LENGTH

180.40

MODULE LENGTH

67.80

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

28.50

GROUND TO TOP

13.61

PROJECTED PANEL HEIGHT

9.56

PROJECT ID

CHALMERS, REV1

SITE ADDRESS

110, 600, W, FOUNTAIN, GREEN, UT, 84632, USA

MODULE WIDTH

44.60

NUMBER ROWS

4.00

NUMBER COLUMNS

5.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

36, ROUND

FOUNDATION TYPE

ROUND

FOUNDATION SIZE

36.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

120.00

SNOW LOAD OVERRIDE

44.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

TOTAL PRICE

8565.99

TOTAL WEIGHT

1550.36

TOTAL PALLETS

2.00

pdf

https://skycivquotes.s3.amazonaws.com/0a263289-9d07-4c9b-9380-85600c46a9b2.pdf

ID

5223.00
