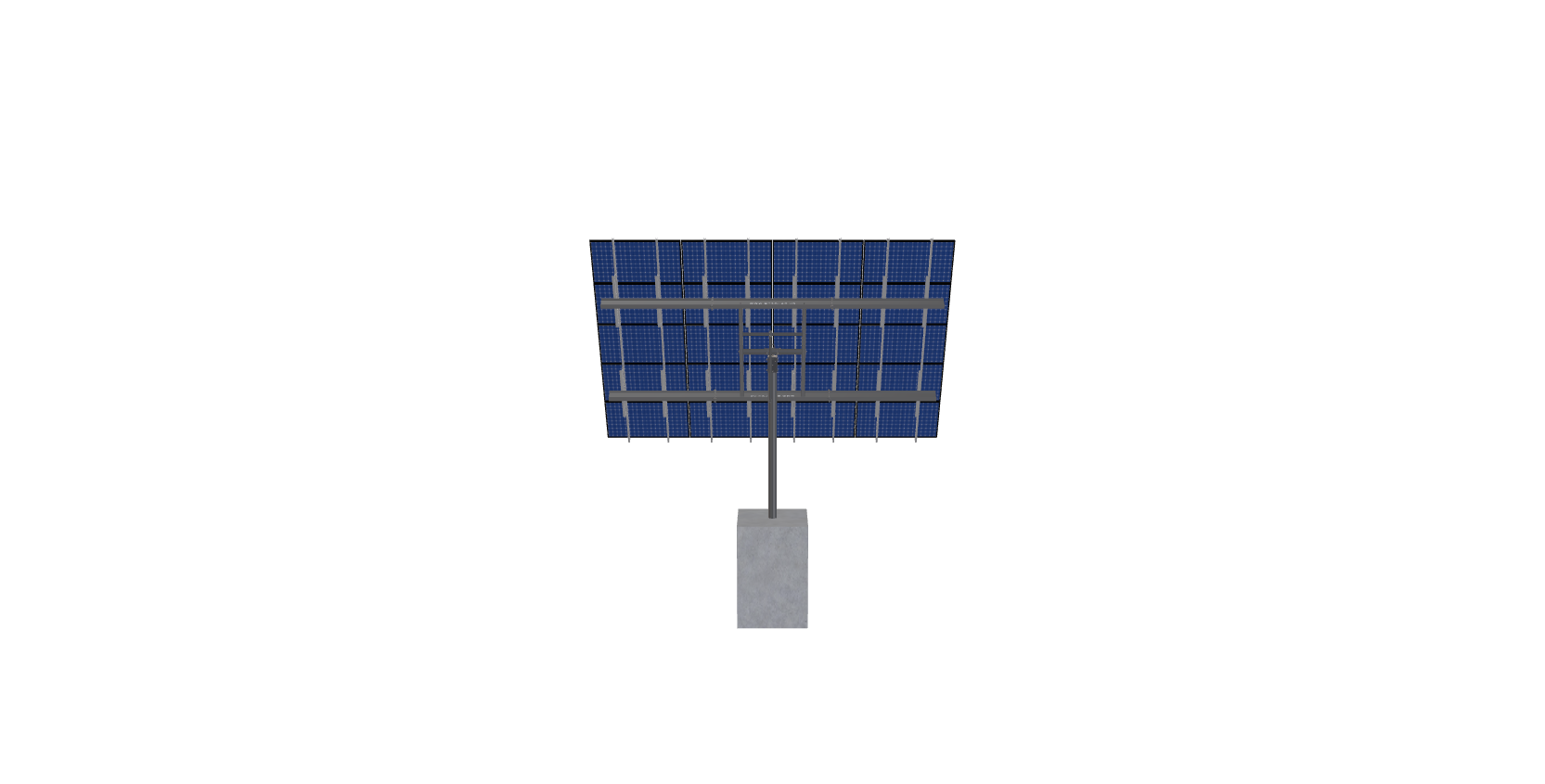

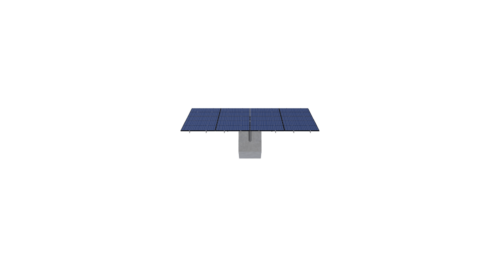

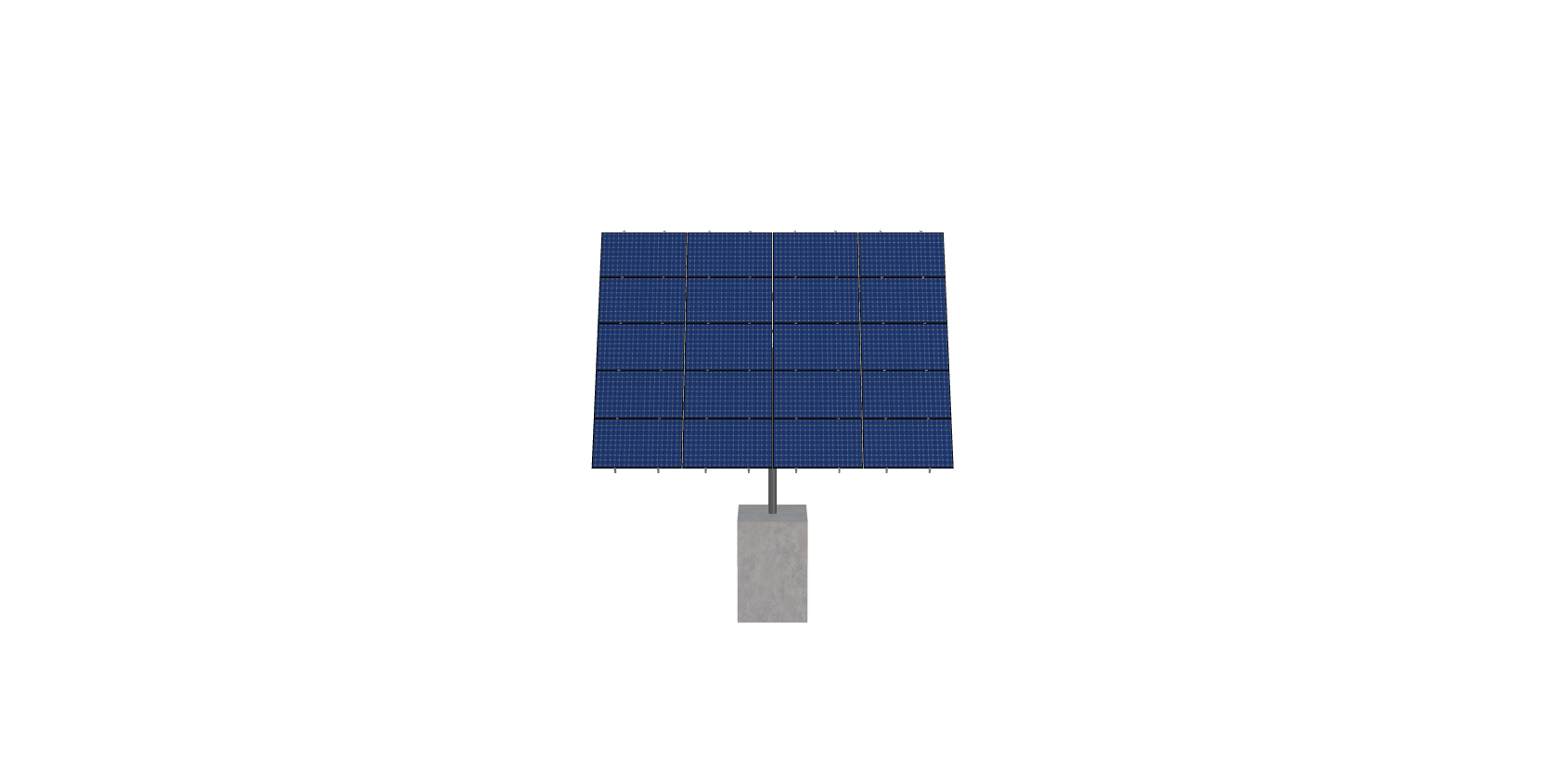

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 66.85 inches by 39.53 inches and an array layout of 4 wide by 5 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

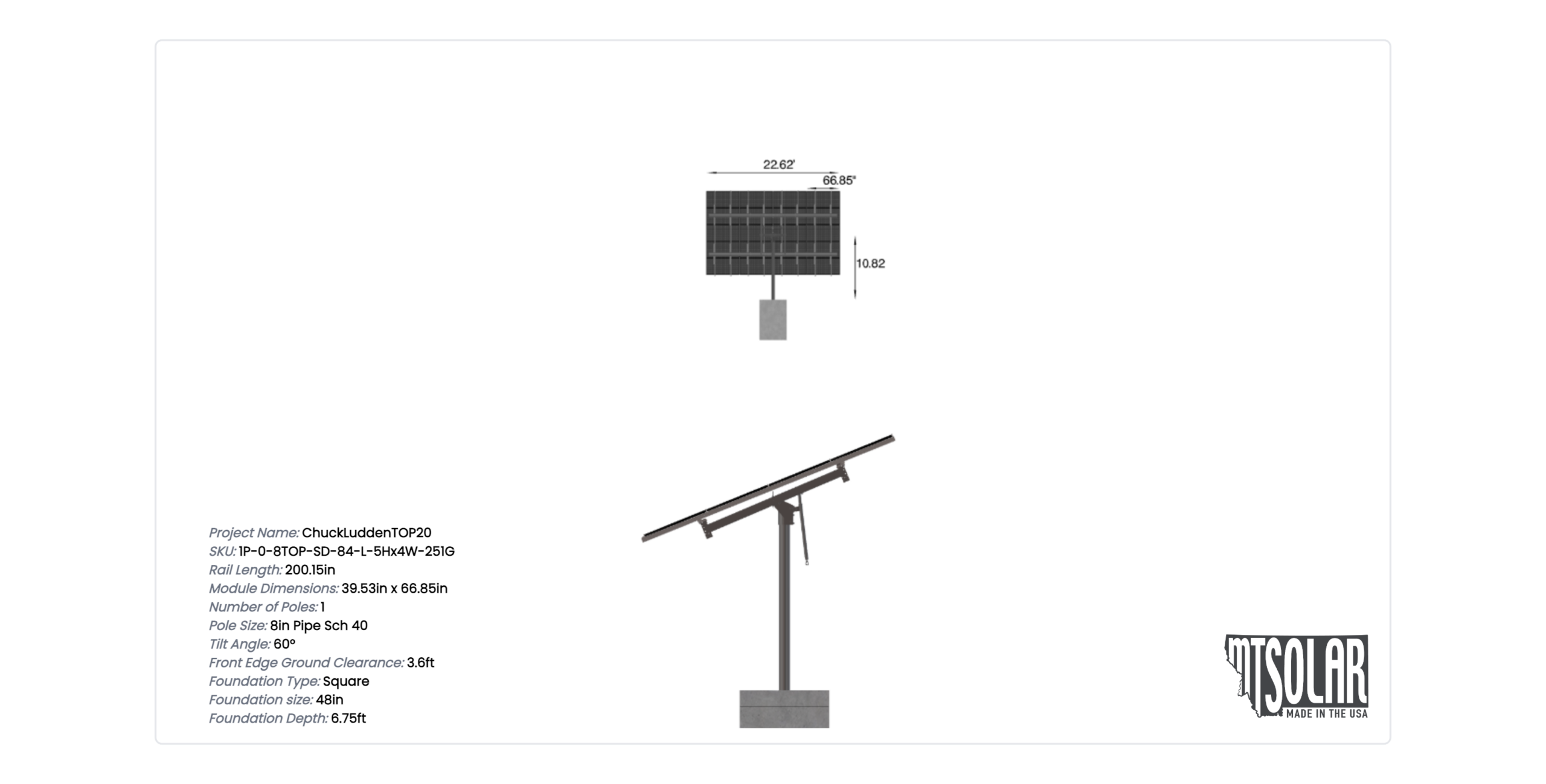

See 3D Model Here
ChuckLuddenTOP20
$5,725.70
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 66.85 inches by 39.53 inches and an array layout of 4 wide by 5 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1093.26 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-8TOP-SD-84-L-5HX4W-251G |
| DUTY SIZE | SD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 10.82 |
| WING SPAN | 84.00 |
| MAX FOUNDATION DEPTH | 6.75 |
| TILT ANGLE | 60.00 |
| CANTILEVER | 258.00 |
| GROUND CLEARANCE | 3.60 |
| NO POLES | 1.00 |
| MODULE AREA | 377.23 |
| ARRAY WIDTH | 22.62 |
| ARRAY HEIGHT | 16.68 |
| RAIL LENGTH | 200.15 |
| MODULE LENGTH | 66.85 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 21.50 |
| GROUND TO TOP | 18.04 |
| PROJECTED PANEL HEIGHT | 14.44 |
| DESIGNER NAME | JORDAN, SOLAR |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 4062065099.00 |
| PROJECT ID | CHUCKLUDDENTOP20 |
| SITE ADDRESS | 201, THAYER, LN, POLEBRIDGE, MT, 59928, USA |
| MODULE WIDTH | 39.53 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 4.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 105.00 |
| SNOW LOAD OVERRIDE | 60.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 5453.05 |
| TOTAL WEIGHT | 1093.26 |
| TOTAL PALLETS | 1.00 |
