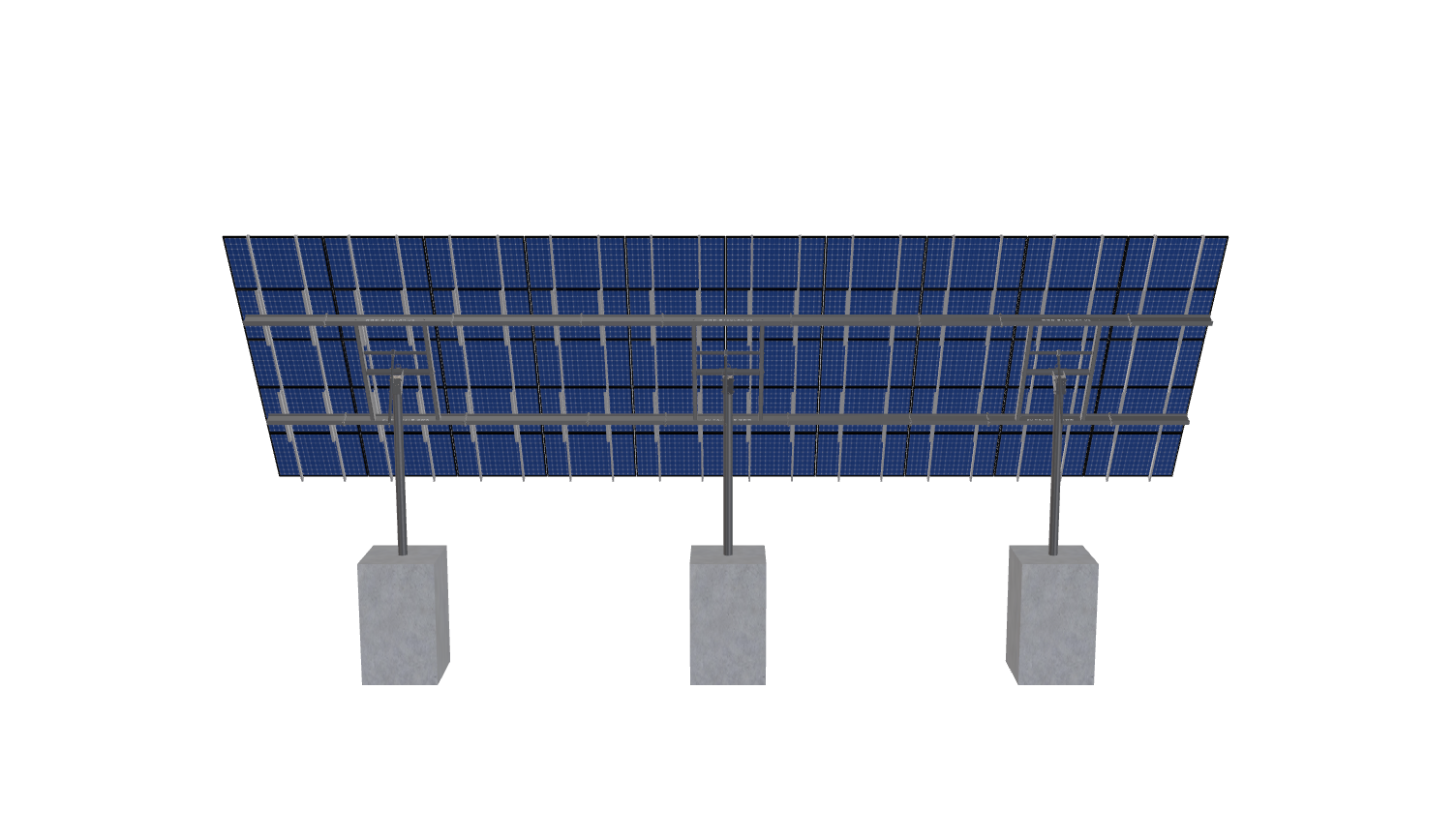

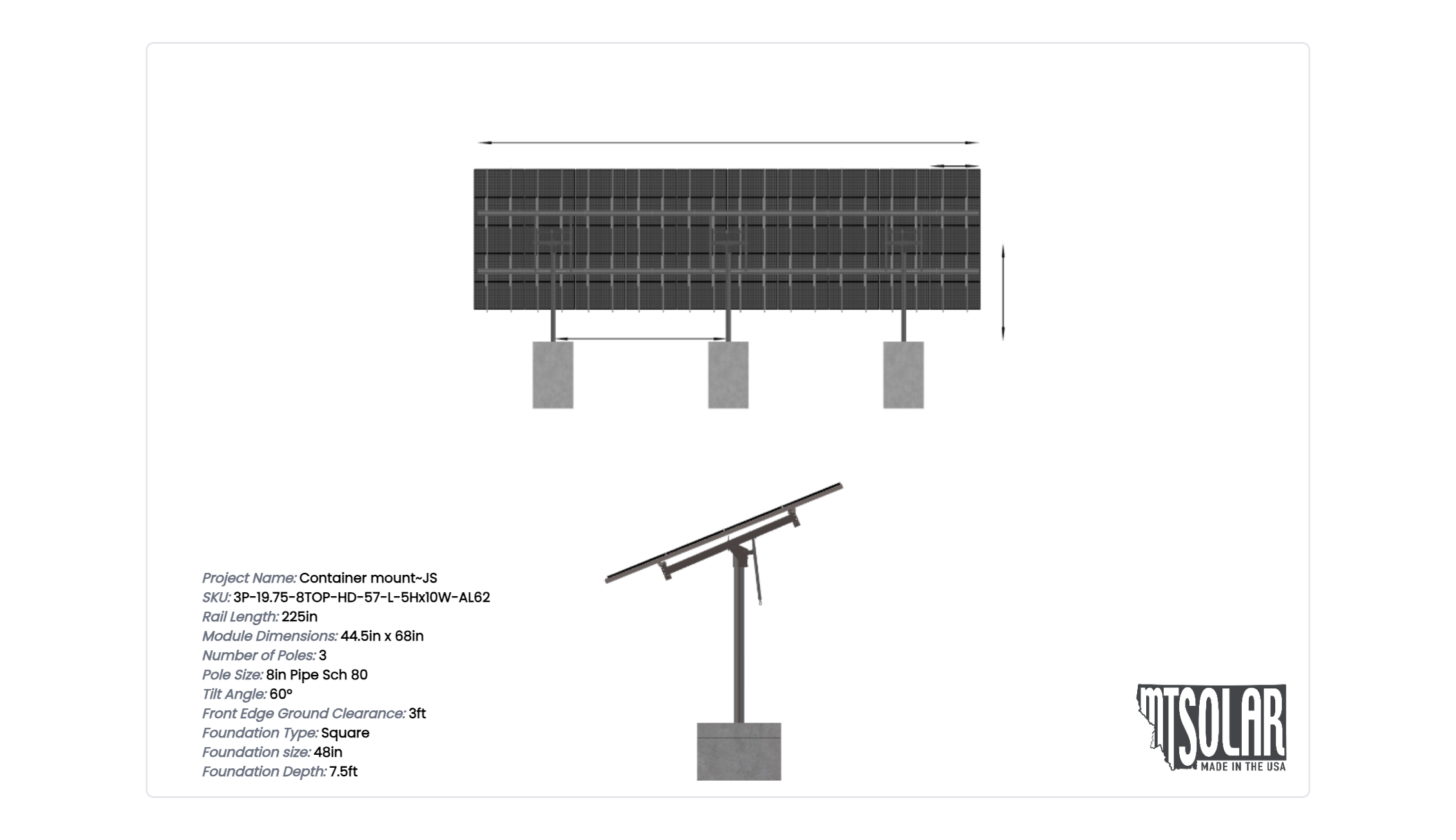

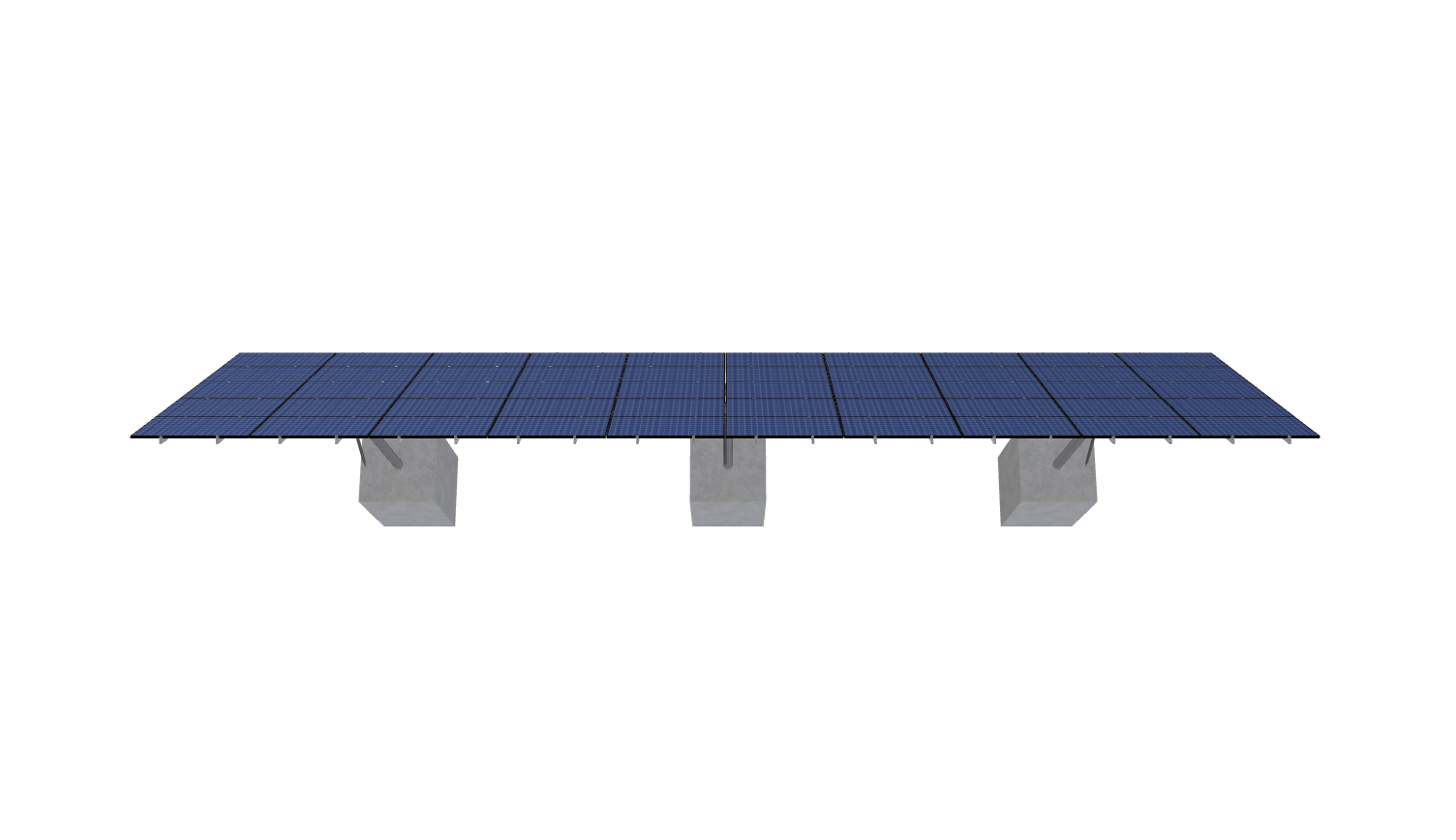

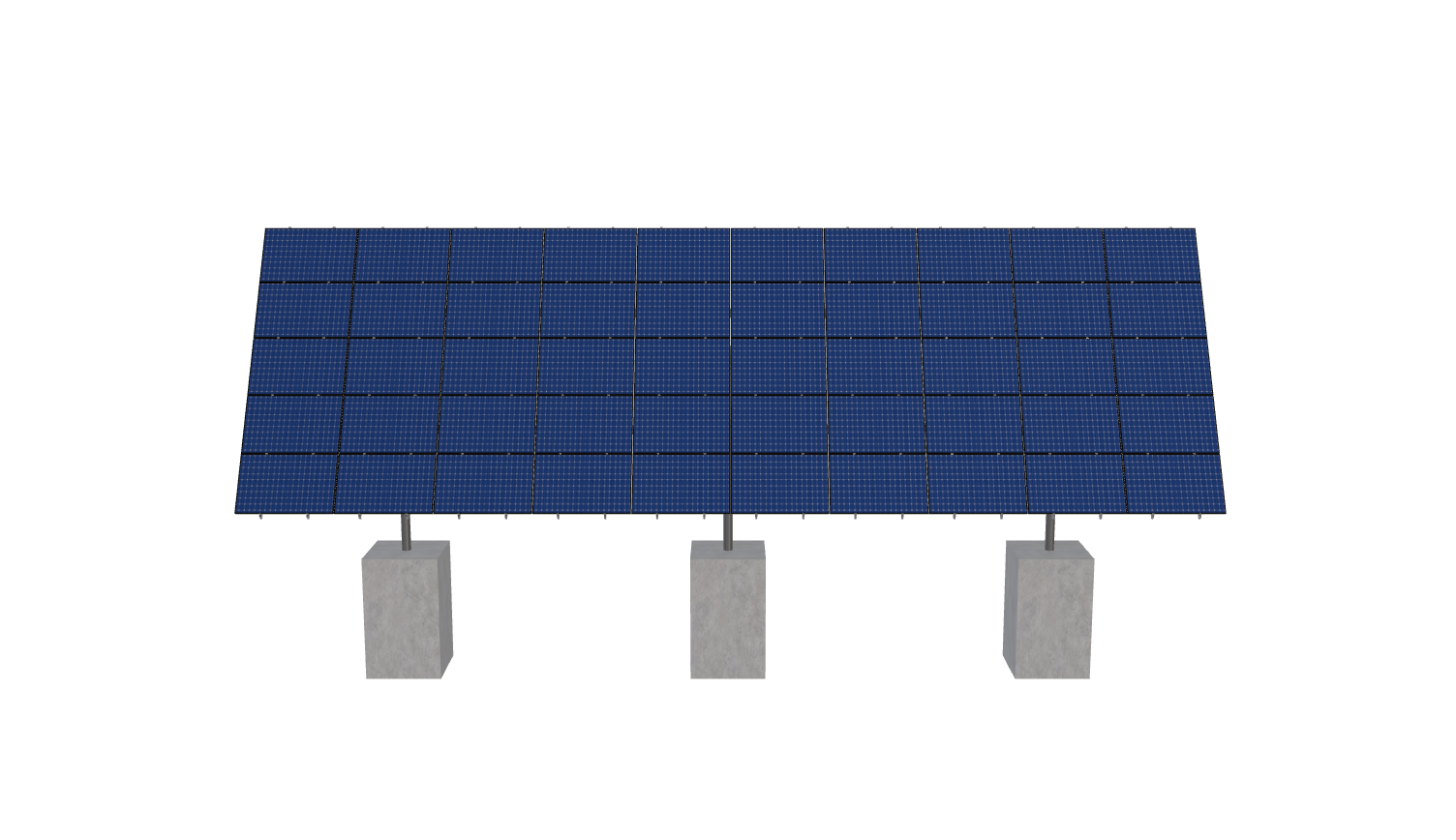

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 44.5 inches and an array layout of 10 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Container mount~JS
$17,434.57
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 44.5 inches and an array layout of 10 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3350.09 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-19.75-8TOP-HD-57-L-5HX10W-AL62 |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 11.12 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 7.50 |
| TILT ANGLE | 60.00 |
| CANTILEVER | 678.00 |
| GROUND CLEARANCE | 3.00 |
| NO POLES | 3.00 |
| MODULE AREA | 1078.13 |
| ARRAY WIDTH | 57.50 |
| ARRAY HEIGHT | 18.75 |
| RAIL LENGTH | 225.00 |
| MODULE LENGTH | 68.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 56.50 |
| GROUND TO TOP | 19.15 |
| PROJECTED PANEL HEIGHT | 16.06 |
| WIND SPEED OVERRIDE | 120.00 |
| SNOW LOAD OVERRIDE | 50.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | CONTAINER, MOUNT~JS |
| SITE ADDRESS | WASILLA, AK, 99654, USA |
| MODULE WIDTH | 44.50 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 10.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 16604.35 |
| TOTAL WEIGHT | 3350.09 |
| TOTAL PALLETS | 3.00 |
