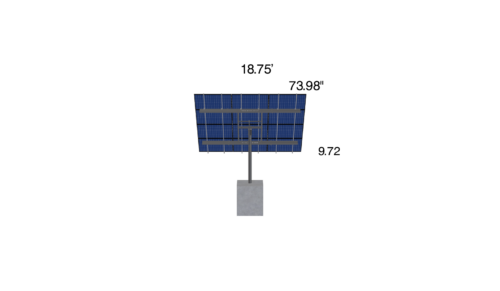

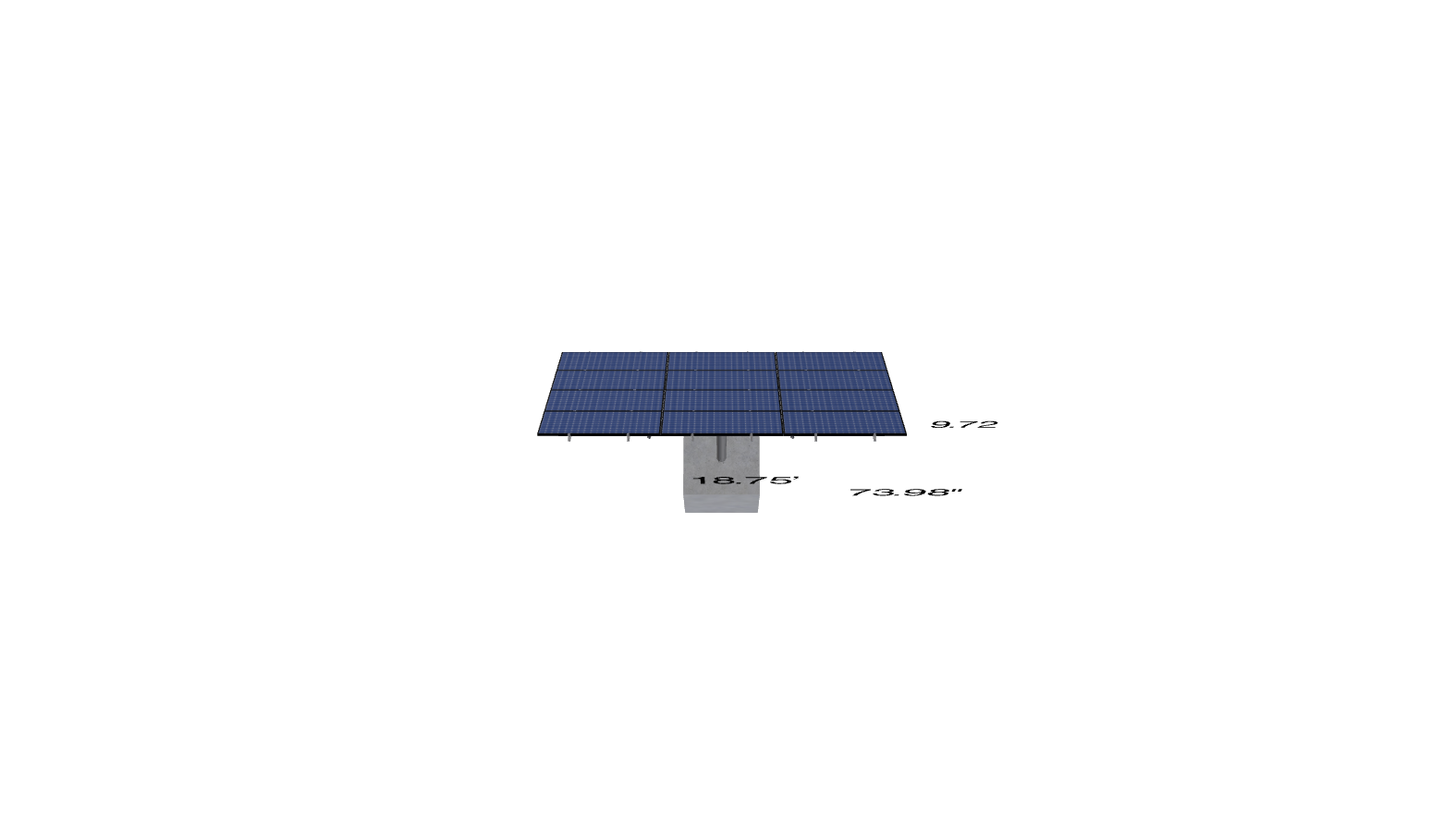

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 73.98 inches by 41.4 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Copeland estimate
$4,200.32
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 73.98 inches by 41.4 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 699.66 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-6TOP-SD-57-L-4HX3W-FB4L |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 9.72 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 5.25 |
| TILT ANGLE | 55.00 |
| CANTILEVER | 204.00 |
| GROUND CLEARANCE | 4.00 |
| NO POLES | 1.00 |
| MODULE AREA | 261.81 |
| ARRAY WIDTH | 18.75 |
| ARRAY HEIGHT | 13.97 |
| RAIL LENGTH | 167.60 |
| MODULE LENGTH | 73.98 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 17.00 |
| GROUND TO TOP | 15.37 |
| PROJECTED PANEL HEIGHT | 11.30 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | COPELAND, ESTIMATE |
| SITE ADDRESS | 3260, W, 2ND, AVE, DURANGO, CO, 81301, USA |
| MODULE WIDTH | 41.40 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 4000.30 |
| TOTAL WEIGHT | 699.66 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/90422c3c-8eca-4ea3-967b-b6590bd3f845.pdf |
|
| ID | 3598.00 |
| 3D Solar link |
