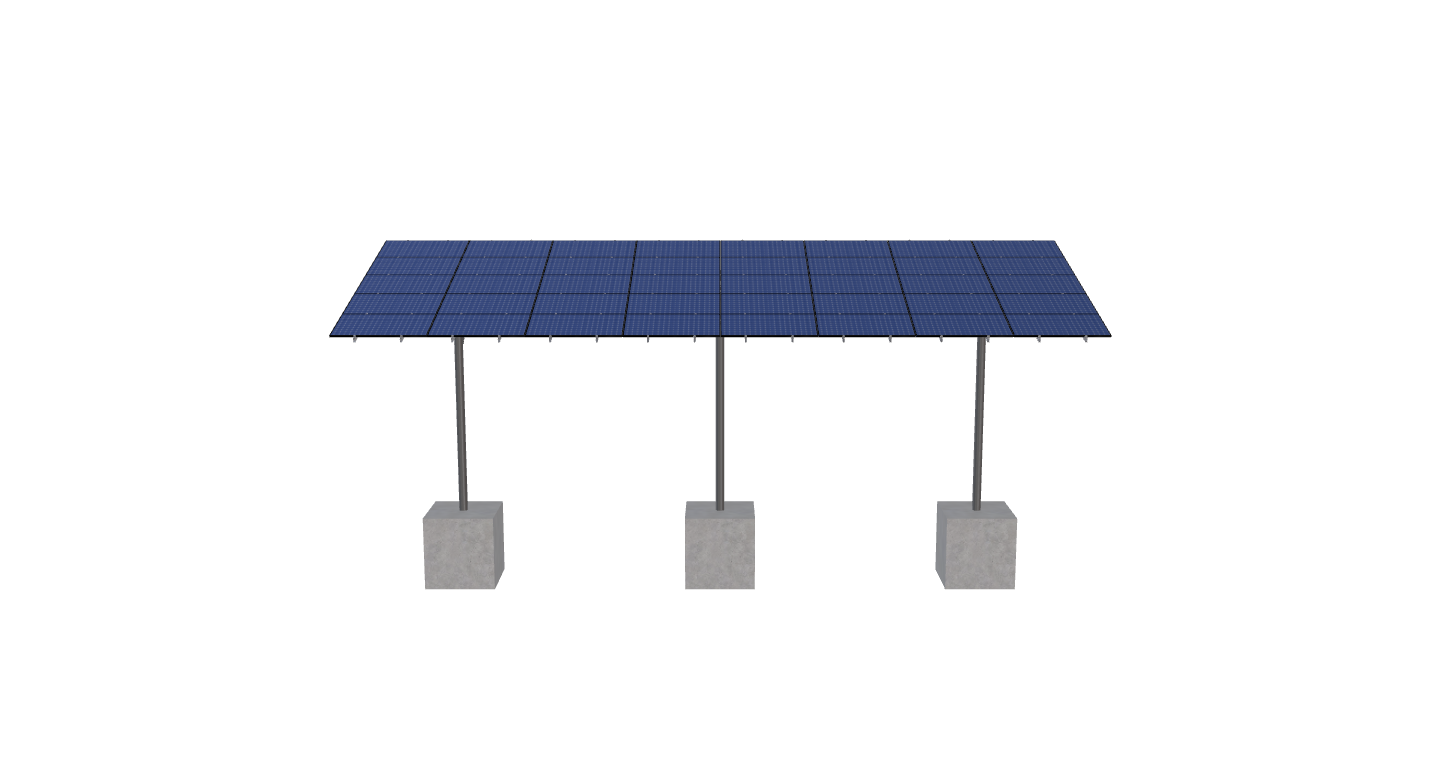

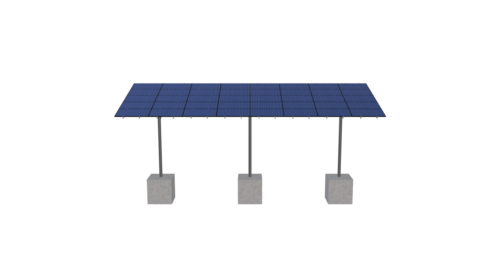

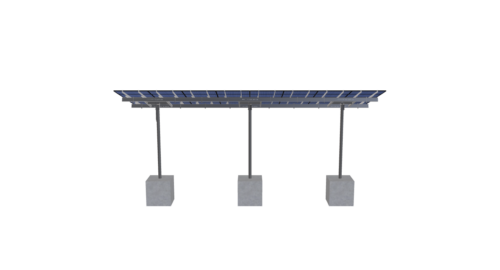

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.53 inches by 41.34 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Covelo – 5×8 – 19spacing – RevA – Jb
$13,000.00
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.53 inches by 41.34 inches and an array layout of 5 high by 8 wide.
This mount fits on 3 – 6in Sch 40 steel poles with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2524.52 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-17-6TOP-SD-24-L-5HX8W-1L8J |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |

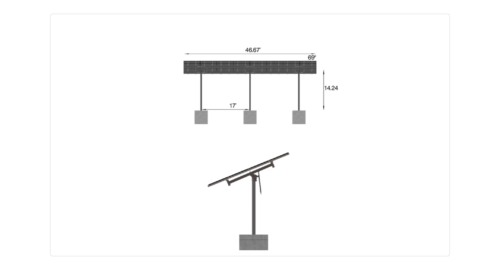

| POLE SPACING | 17.00 |
| POLE HEIGHT | 14.24 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 4.75 |
| TILT ANGLE | 15.00 |
| CANTILEVER | 546.00 |
| GROUND CLEARANCE | 12.00 |
| NO POLES | 3.00 |
| MODULE AREA | 806.94 |
| ARRAY WIDTH | 46.67 |
| ARRAY HEIGHT | 17.29 |
| RAIL LENGTH | 207.50 |
| MODULE LENGTH | 69.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 45.50 |
| GROUND TO TOP | 16.45 |
| PROJECTED PANEL HEIGHT | 4.42 |
| WIND SPEED OVERRIDE | 87.00 |
| SNOW LOAD OVERRIDE | 10.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | TRUE |
| PROJECT ID | COVELO, -, 5X8, -, 19SPACING, -, REVA, -, JB |
| SITE ADDRESS | 77826, CA-162, COVELO, CA, 95428, USA |
| MODULE WIDTH | 41.00 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 8.00 |
| POLE SPACING OVERRIDE | 19.75 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 12982.82 |
| TOTAL WEIGHT | 2524.52 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/e4d45f64-659e-40cb-8494-93e25473442b.pdf |
|
| ID | 6292.00 |
| 3D Solar link |
