Darger – V1Jb

$18,875.11

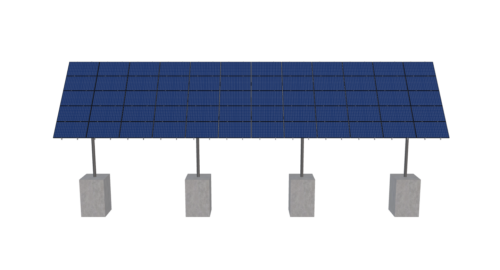

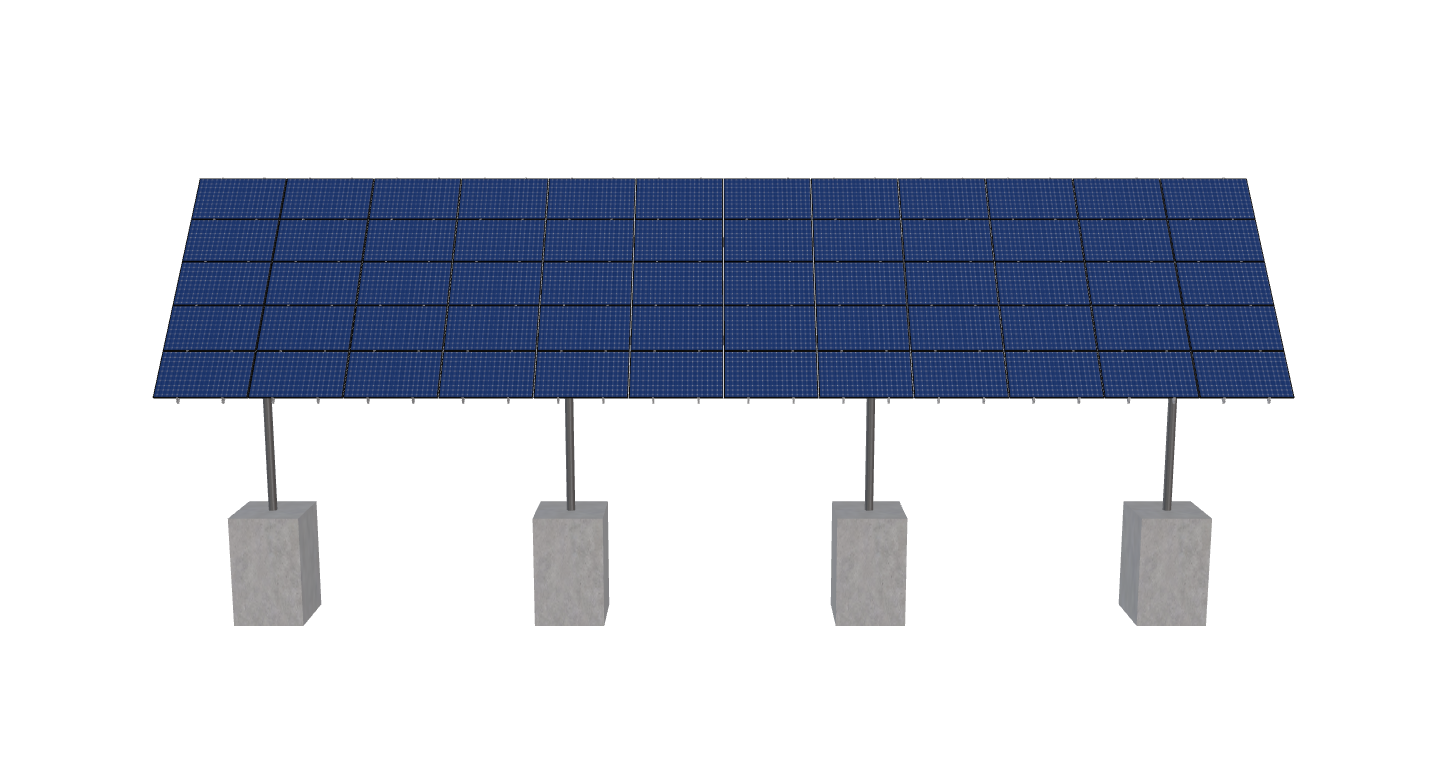

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.09 inches by 40.89 inches and an array layout of 12 wide by 5 high.

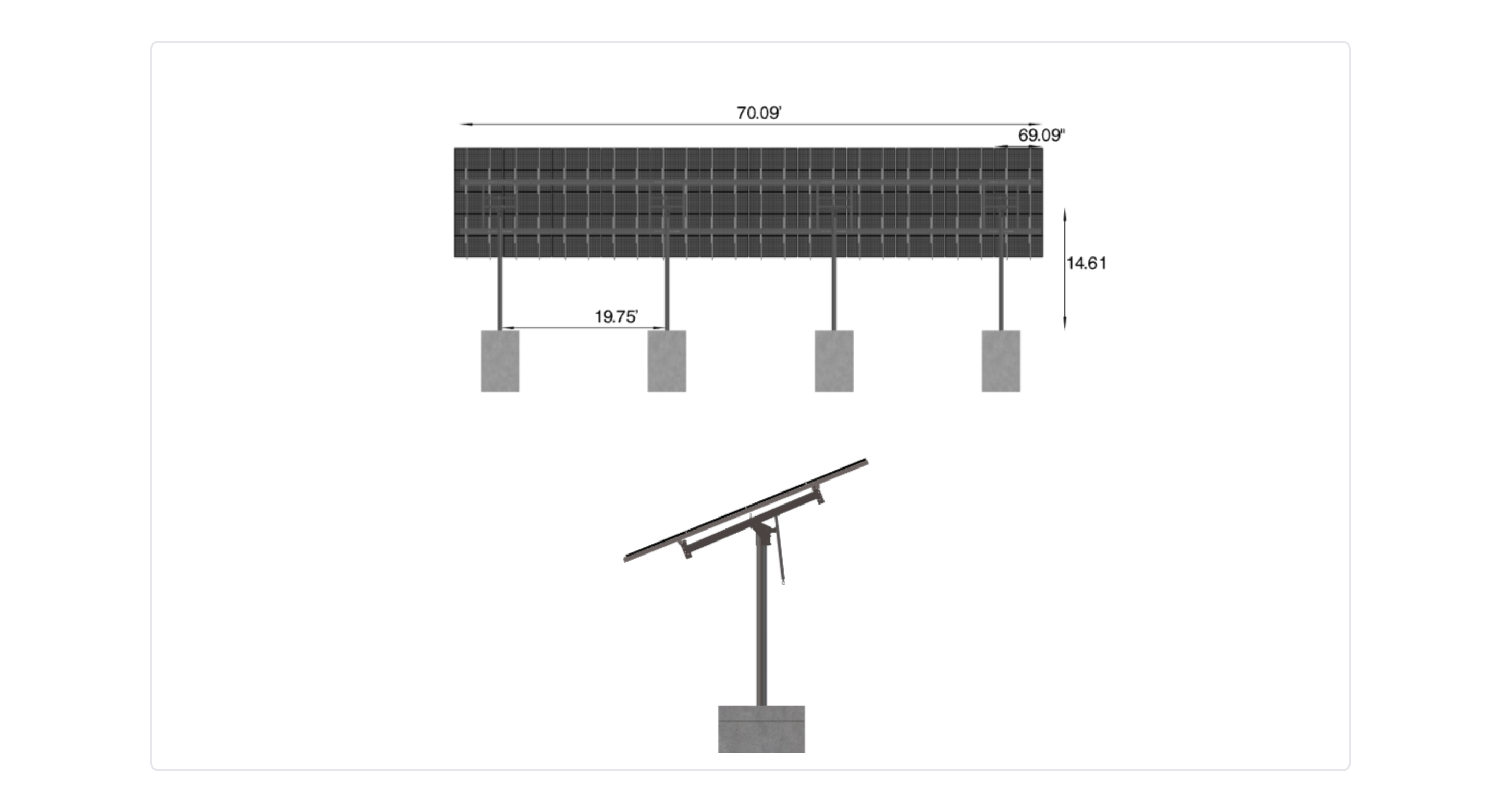

This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 4P-19.75-8TOP-SD-12-L-5Hx12W-7DE9 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.09 inches by 40.89 inches and an array layout of 12 wide by 5 high.
This mount fits on 4 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 3714.7799999999997 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

4P-19.75-8TOP-SD-12-L-5HX12W-7DE9

DUTY SIZE

SD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

4.00

POLE SPACING

19.75

POLE HEIGHT

14.61

WING SPAN

12.00

MAX FOUNDATION DEPTH

7.25

TILT ANGLE

50.00

CANTILEVER

825.00

GROUND CLEARANCE

8.00

NO POLES

4.00

MODULE AREA

1208.76

ARRAY WIDTH

70.09

ARRAY HEIGHT

17.25

RAIL LENGTH

206.95

MODULE LENGTH

69.09

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

68.75

GROUND TO TOP

21.13

PROJECTED PANEL HEIGHT

13.05

PROJECT ID

DARGER, -, V1JB

SITE ADDRESS

BURTON, AZ, 85901, USA

MODULE WIDTH

40.89

NUMBER ROWS

5.00

NUMBER COLUMNS

12.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

96.00

SNOW LOAD OVERRIDE

40.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

TRUE

TOTAL PRICE

18875.11

TOTAL WEIGHT

3714.78

TOTAL PALLETS

4.00

pdf

https://skycivquotes.s3.amazonaws.com/c109d525-ae10-4528-ae3d-650fae7b40ad.pdf

ID

7269.00
