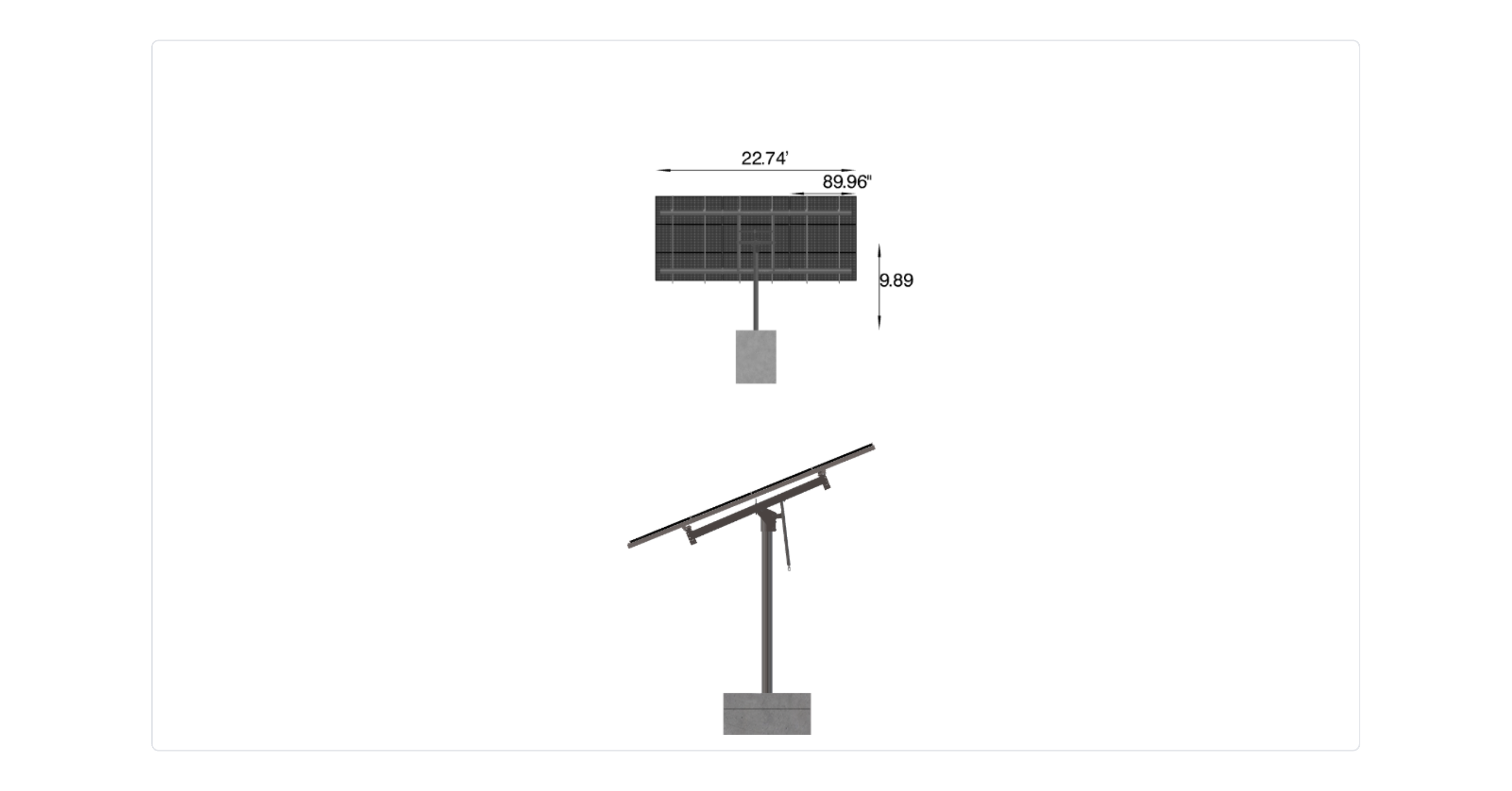

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.96 inches by 44.64 inches and an array layout of 3 wide by 3 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

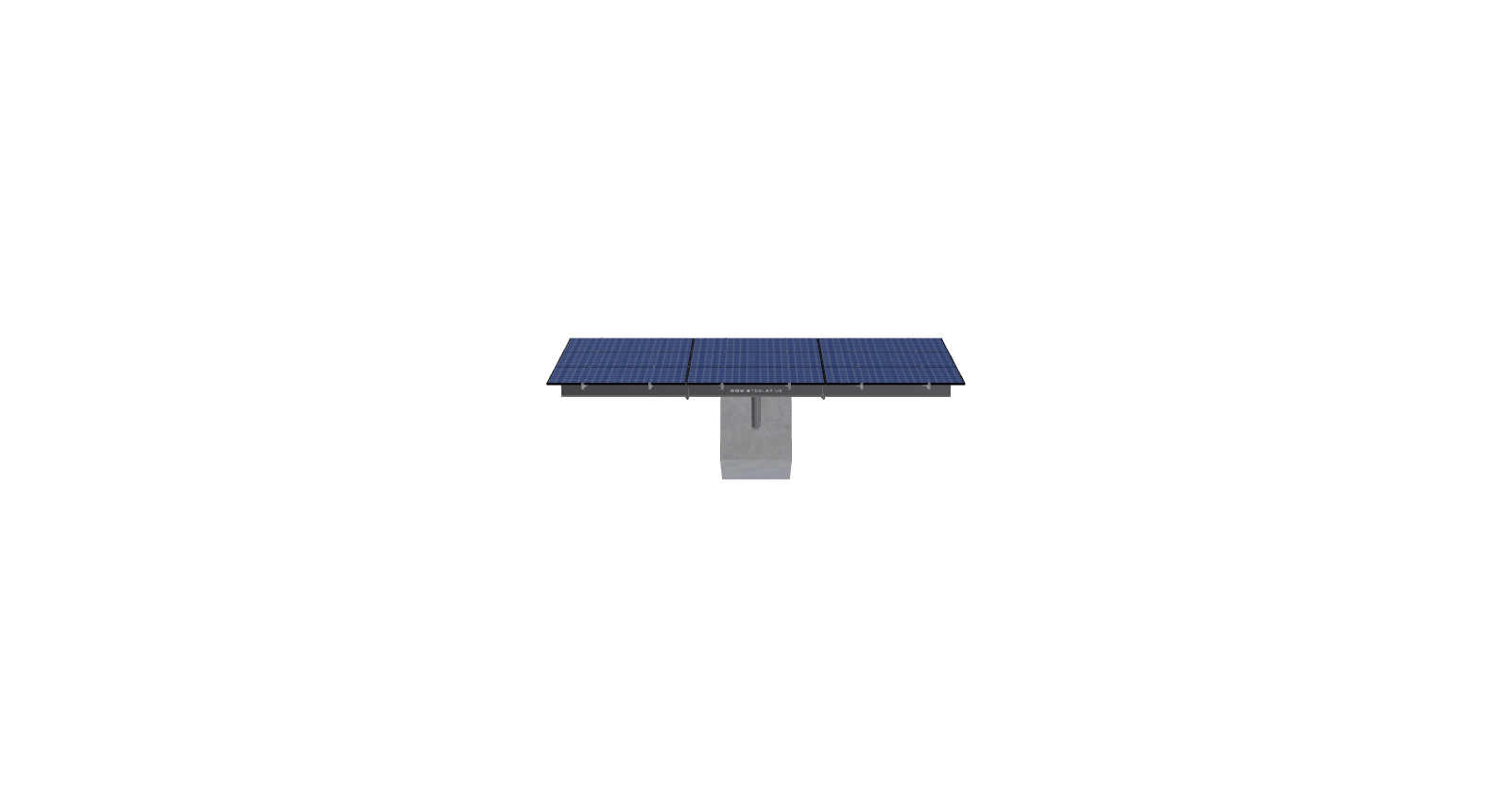

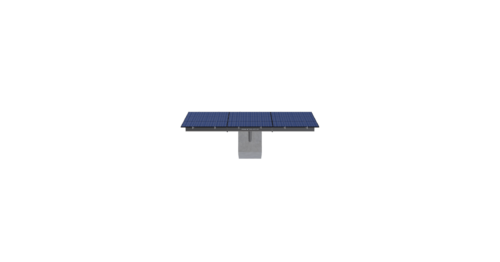

See 3D Model Here
Dustin Road-8inch-TOP9-cu
$4,244.73
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.96 inches by 44.64 inches and an array layout of 3 wide by 3 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 748.88 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-8TOP-SD-84-L-3HX3W-LAGI |
| DUTY SIZE | SD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 9.89 |
| WING SPAN | 84.00 |
| MAX FOUNDATION DEPTH | 6.00 |
| TILT ANGLE | 60.00 |
| CANTILEVER | 258.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 1.00 |
| MODULE AREA | 256.62 |
| ARRAY WIDTH | 22.74 |
| ARRAY HEIGHT | 11.29 |
| RAIL LENGTH | 135.42 |
| MODULE LENGTH | 89.96 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 21.50 |
| GROUND TO TOP | 14.72 |
| PROJECTED PANEL HEIGHT | 9.66 |
| WIND SPEED OVERRIDE | 103.00 |
| SNOW LOAD OVERRIDE | 90.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | DUSTIN, ROAD-8INCH-TOP9-CU |
| SITE ADDRESS | 97, DUSTIN, RD, WEBSTER, NH, 03303, USA |
| MODULE WIDTH | 44.64 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 4042.60 |
| TOTAL WEIGHT | 748.88 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/da259e2f-643e-43ec-b033-4f4e982d14f1.pdf |
|
| ID | 7155.00 |
| 3D Solar link |
