Dustin Road-V3cu

$5,320.23

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 81.9 inches by 40.6 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

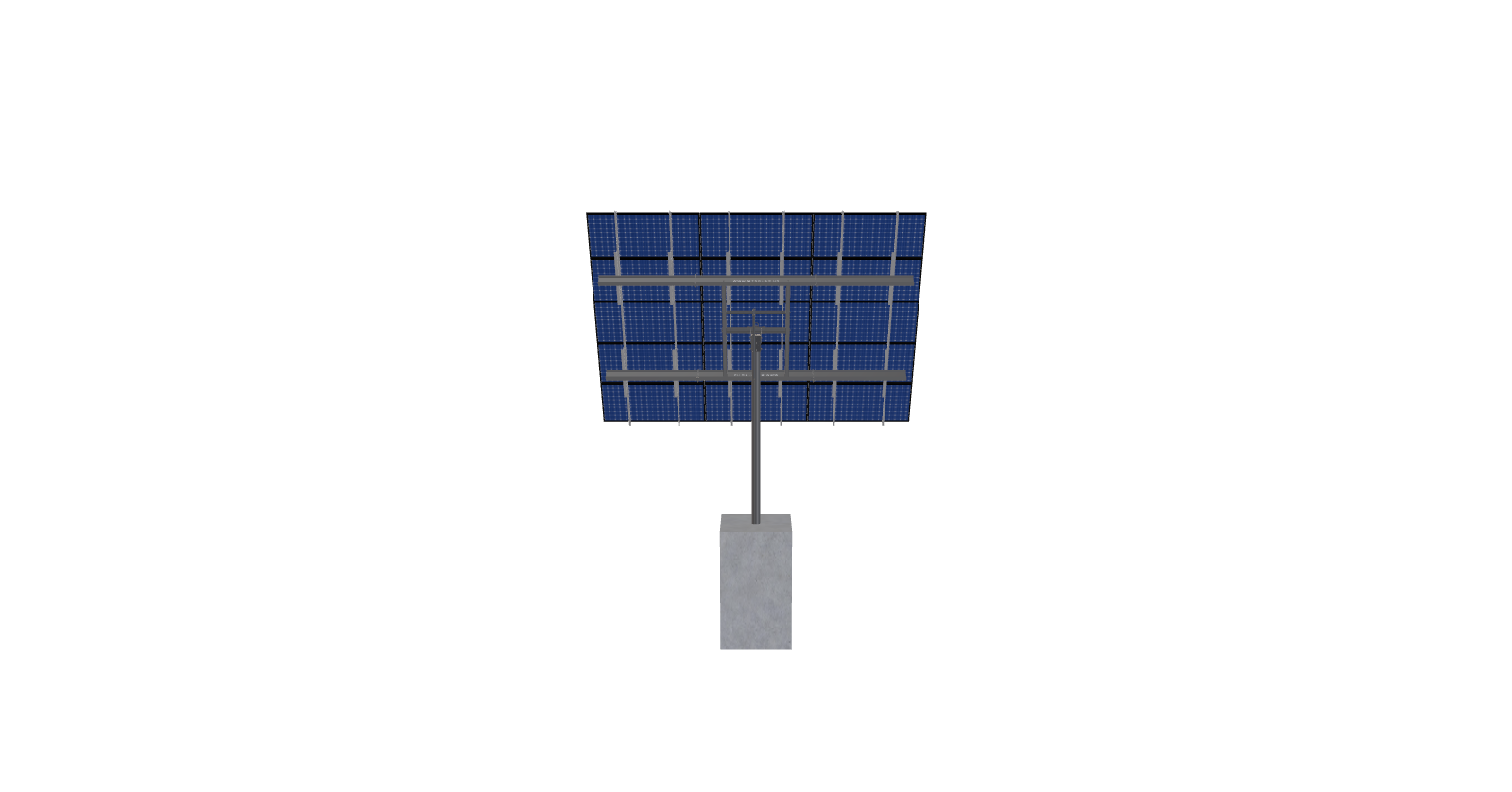

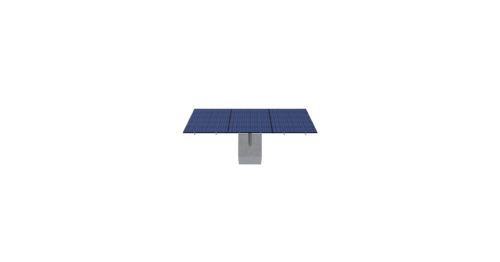

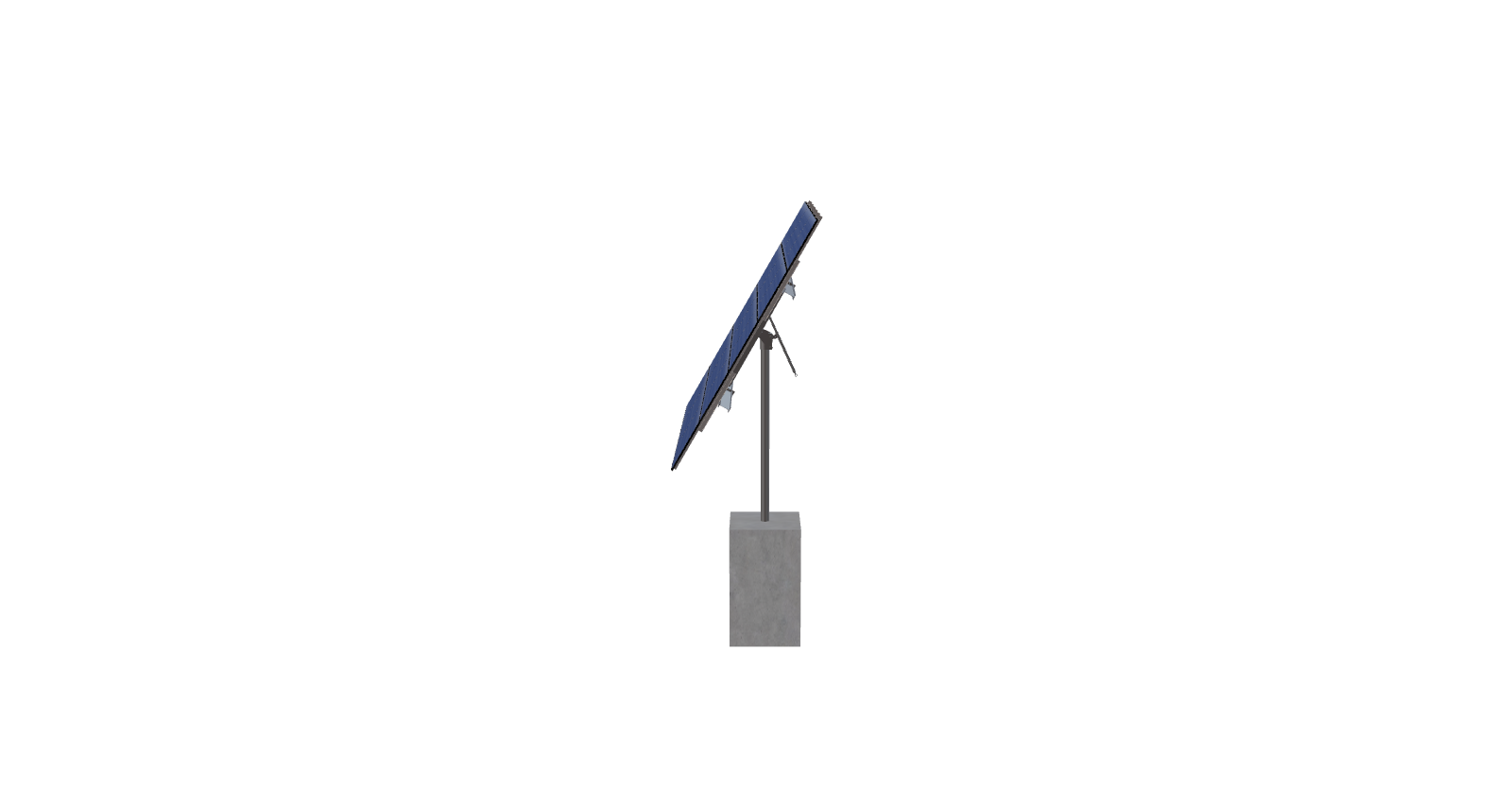

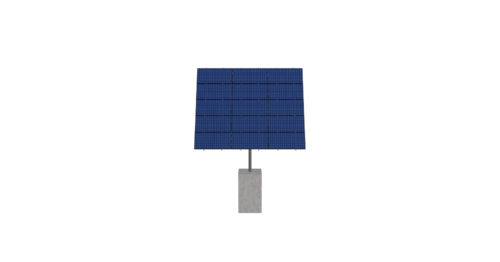

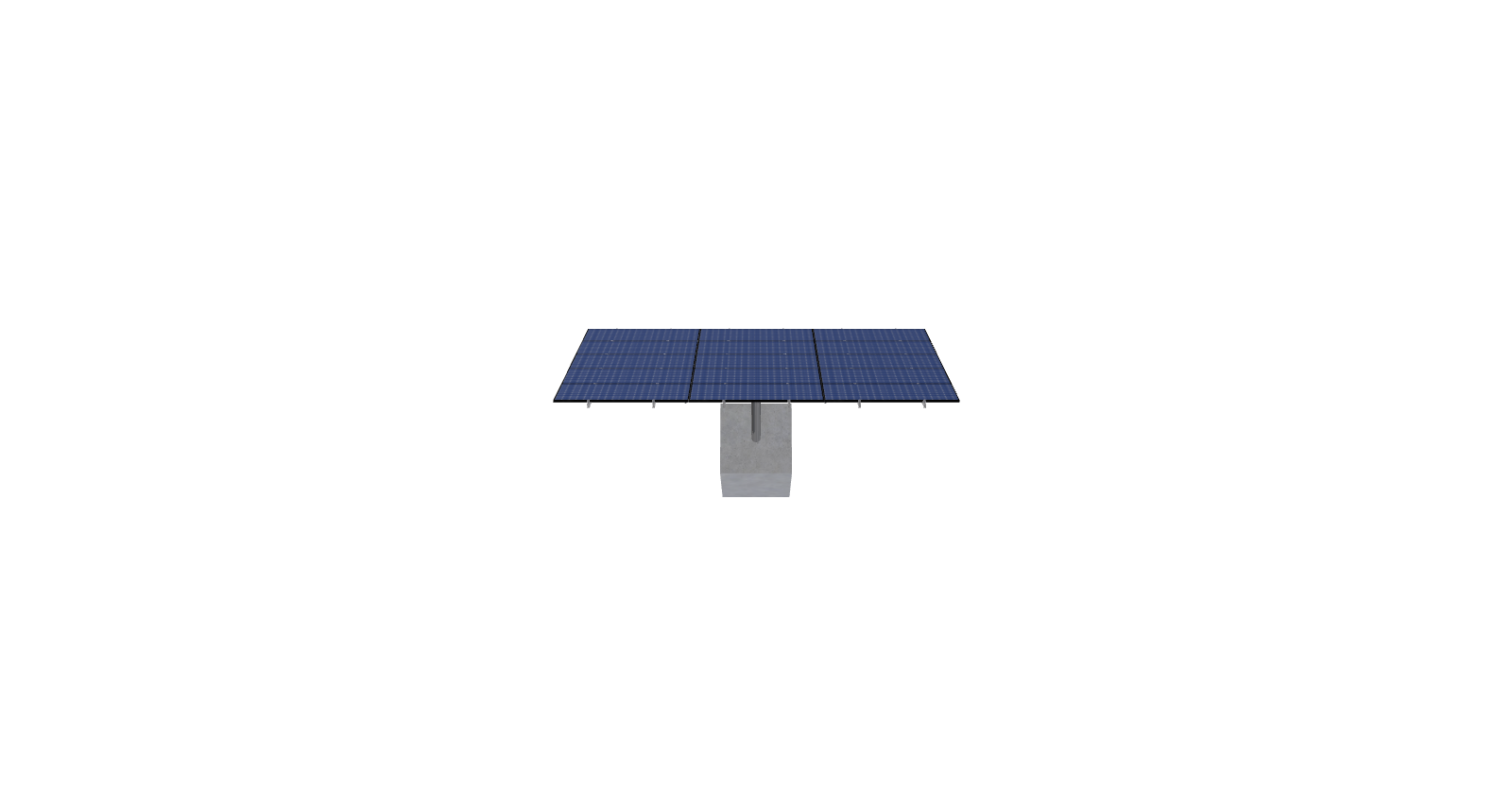

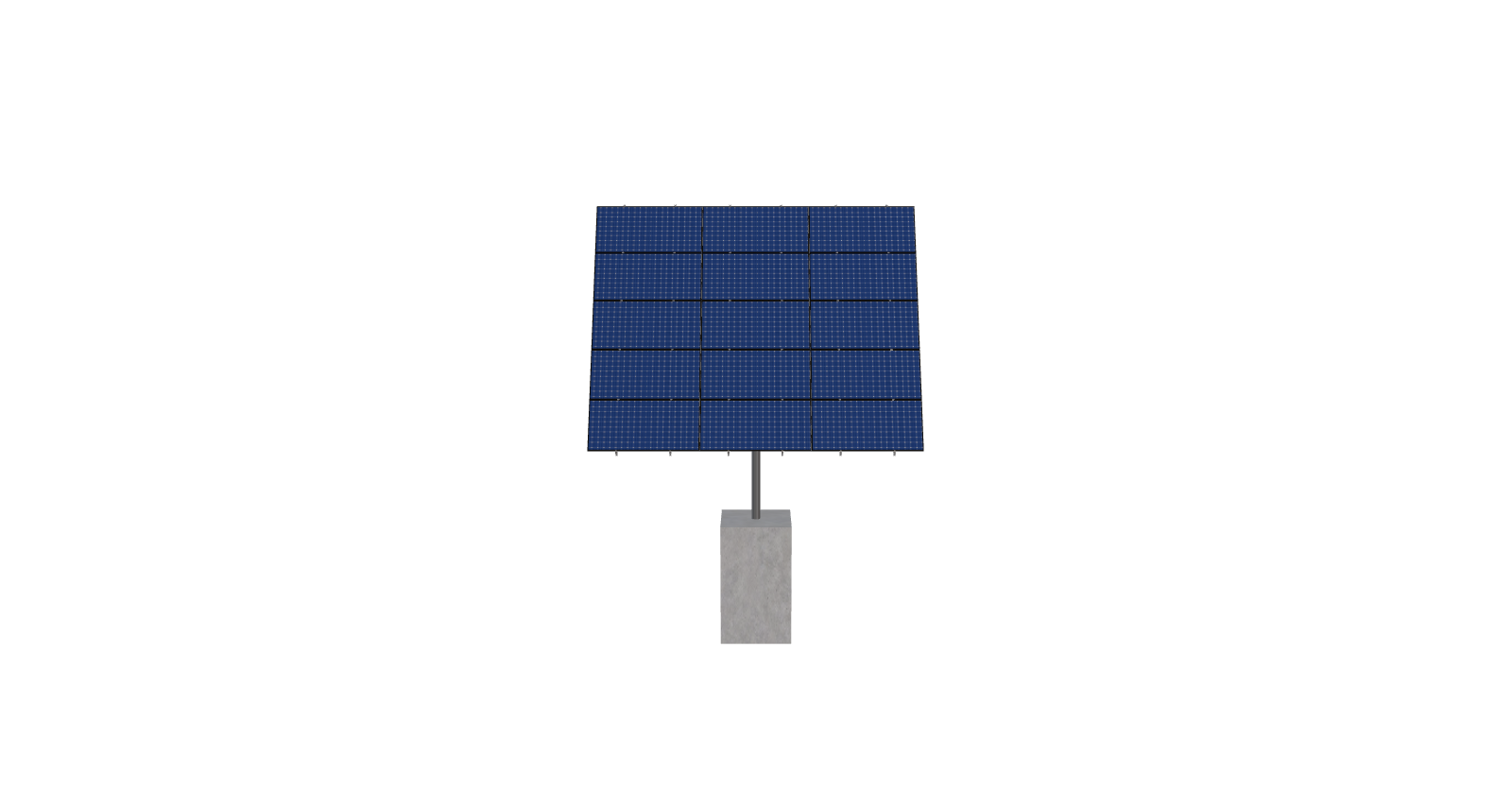

See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 1P-0-8TOP-HD-72-L-5Hx3W-C21F Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 81.9 inches by 40.6 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 1076.99 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-8TOP-HD-72-L-5HX3W-C21F

DUTY SIZE

HD

POLE SIZE

8IN, PIPE, SCH, 80

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

12.42

WING SPAN

72.00

MAX FOUNDATION DEPTH

7.75

TILT ANGLE

60.00

CANTILEVER

234.00

GROUND CLEARANCE

5.00

NO POLES

1.00

MODULE AREA

354.92

ARRAY WIDTH

20.73

ARRAY HEIGHT

17.13

RAIL LENGTH

205.50

MODULE LENGTH

81.90

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

19.50

GROUND TO TOP

19.74

PROJECTED PANEL HEIGHT

14.65

WIND SPEED OVERRIDE

115.00

SNOW LOAD OVERRIDE

80.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

DUSTIN, ROAD-V3CU

SITE ADDRESS

97, DUSTIN, RD, WEBSTER, NH, 03303, USA

MODULE WIDTH

40.60

NUMBER ROWS

5.00

NUMBER COLUMNS

3.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

5320.23

TOTAL WEIGHT

1076.99

TOTAL PALLETS

1.00

pdf

https://skycivquotes.s3.amazonaws.com/fb9e8f60-45f6-42b1-9e49-4dbc64399f6c.pdf

ID

7081.00
