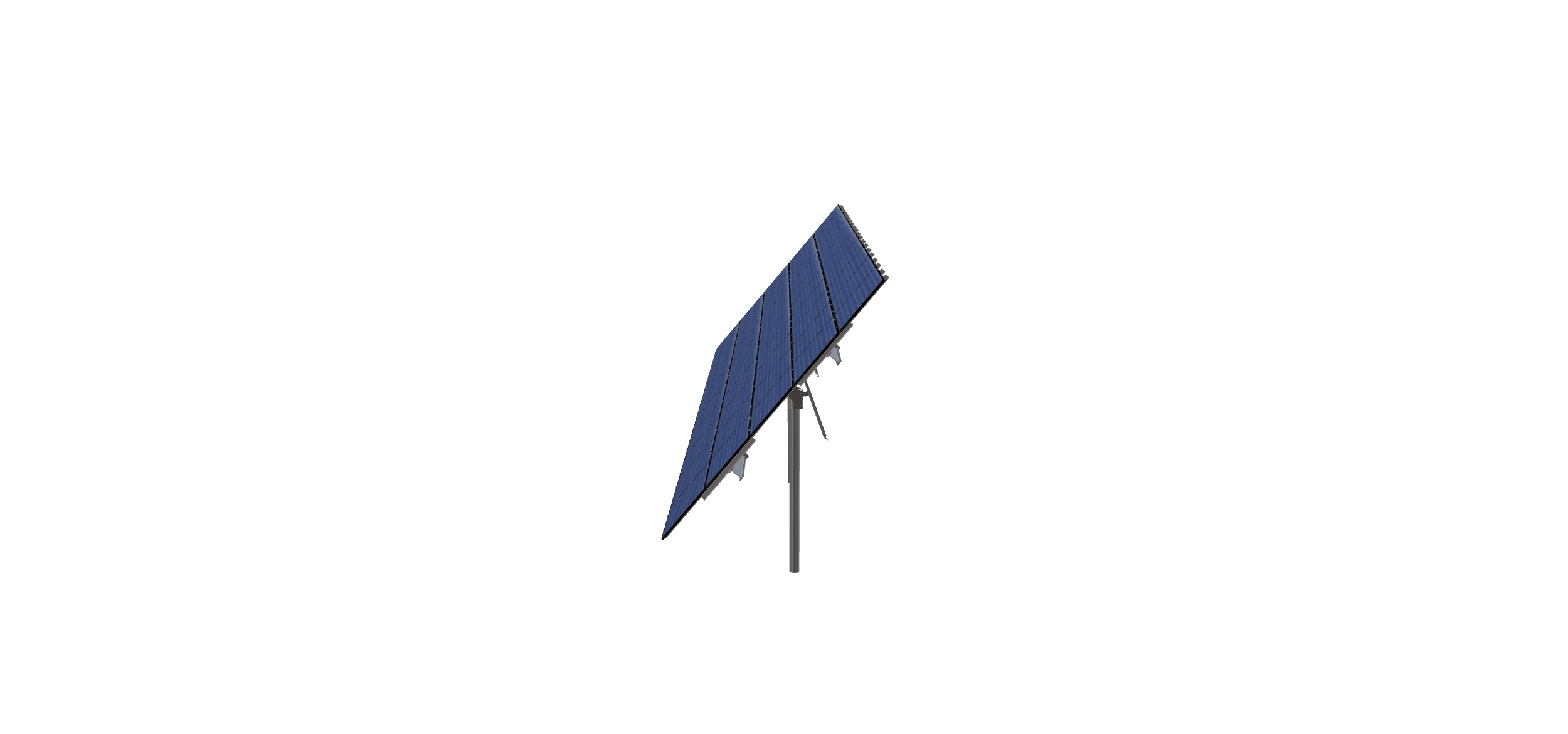

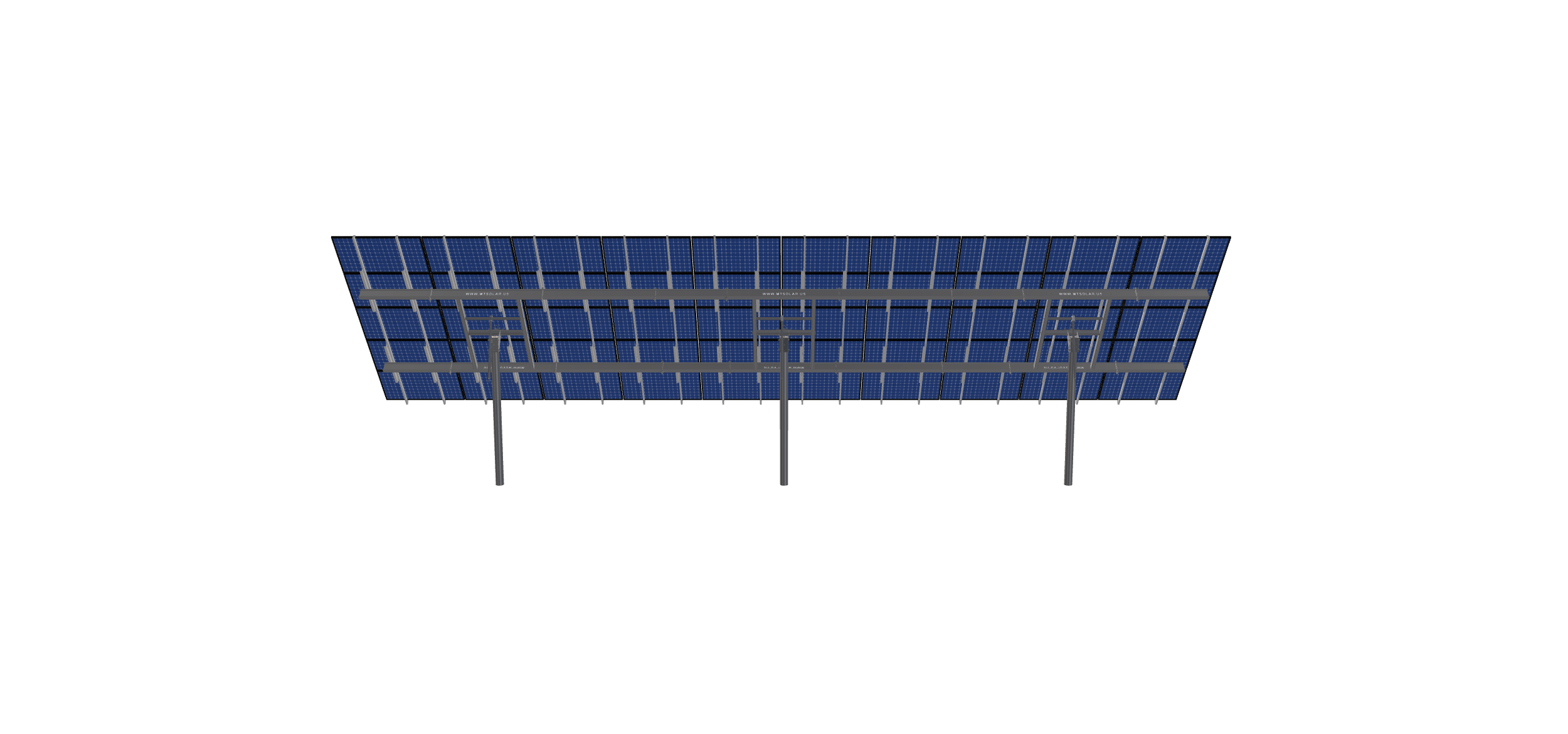

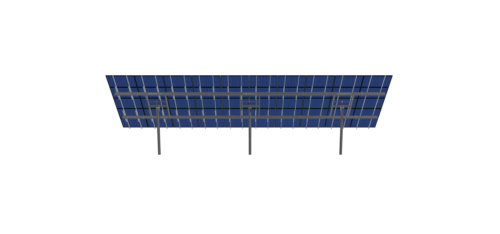

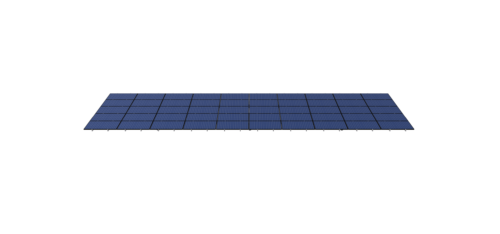

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.06 inches by 40.9 inches and an array layout of 10 wide by 5 high.
This mount fits on 3 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Epsom
$14,743.03
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.06 inches by 40.9 inches and an array layout of 10 wide by 5 high.
This mount fits on 3 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2925.4 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-19.75-6TOP-SD-57-L-5HX10W-4IHC |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 10.61 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 9.00 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 678.00 |
| GROUND CLEARANCE | 4.00 |
| NO POLES | 3.00 |
| MODULE AREA | 1007.11 |
| ARRAY WIDTH | 58.38 |
| ARRAY HEIGHT | 17.25 |
| RAIL LENGTH | 207.00 |
| MODULE LENGTH | 69.06 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 56.50 |
| GROUND TO TOP | 17.13 |
| PROJECTED PANEL HEIGHT | 13.05 |
| DESIGNER NAME | LEE |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 802-591-1313 |
| PROJECT ID | EPSOM |
| SITE ADDRESS | 2334, MESSER, HILL, RD, PLYMOUTH, VT, 05056, USA |
| MODULE WIDTH | 40.90 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 10.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 36, ROUND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 110.00 |
| SNOW LOAD OVERRIDE | 60.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 14743.03 |
| TOTAL WEIGHT | 2925.40 |
| TOTAL PALLETS | 3.00 |
